A practical 16:10 workspace
The taller widescreen format gives clinical information room alongside your imaging workflow.

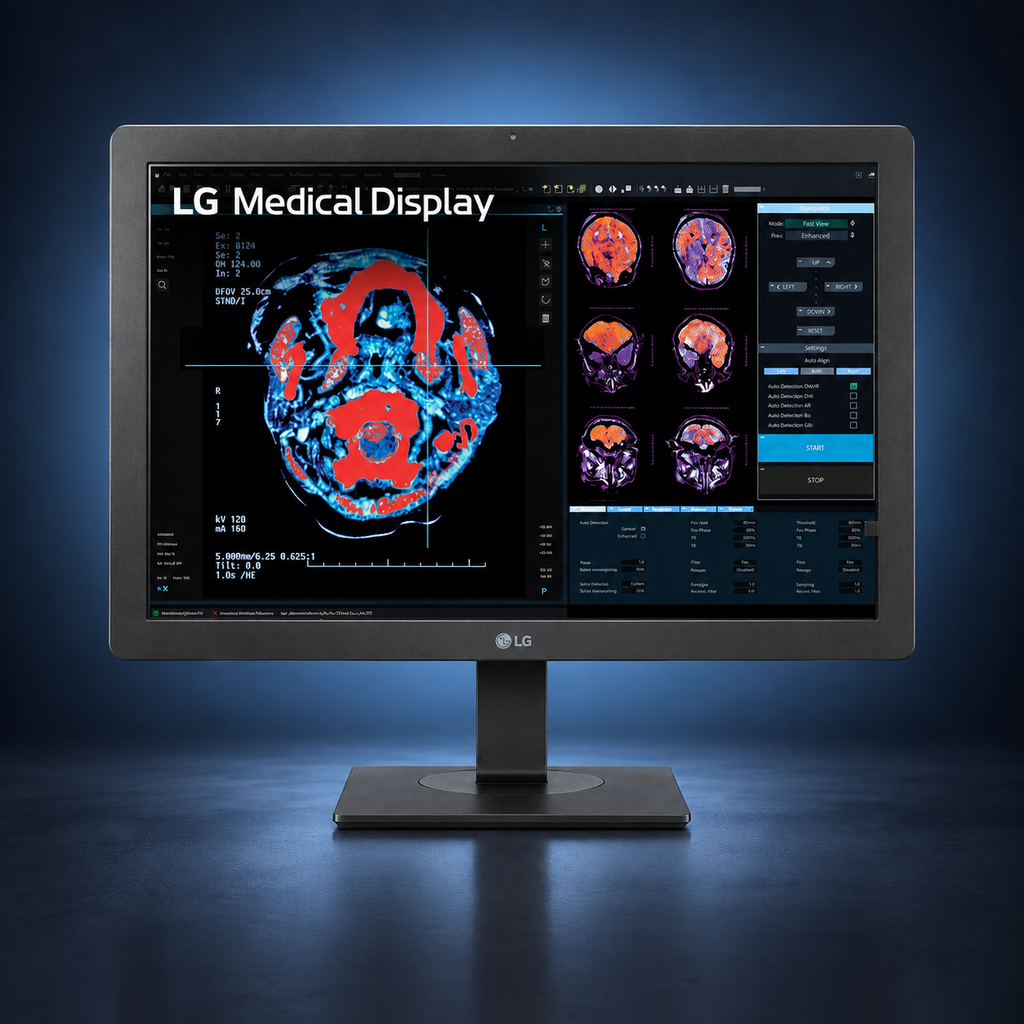

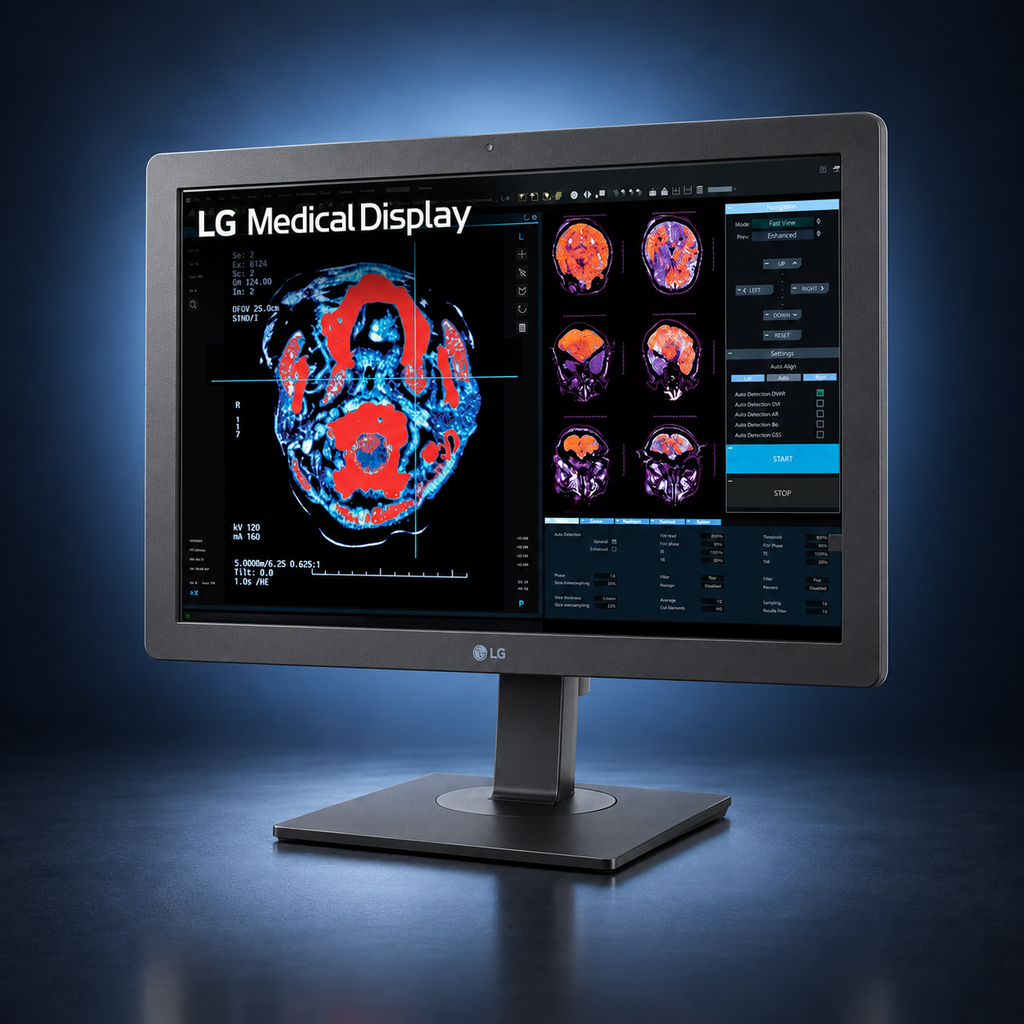

LG 24HR513C-B 24″ 2MP Diagnostic Monitor
$1,399.00
Skip to product information
LG 24HR513C-B 24″ 2MP Diagnostic Monitor
$1,399.00
LG 24HR513C-B · RADIOLOGY & CLINICAL REVIEW
A clear view of the complete workflow.
A compact medical display for a workstation that needs patient information and radiological images within easy reach.
This listing is for one monitor. Specifications describe the individual display.
Plan the display around your workflow
Tell Texel Comp which imaging application you use, how many screens you need and which graphics outputs your workstation provides. That information helps match the display to the desk before you order.
What distinguishes this model
Calibration at the screen
The built-in front sensor supports calibration without a separate measuring device.
Connect a coordinated desk
DisplayPort daisy-chain support helps organize a multi-monitor installation.
LG 24HR513C-B specifications
Display performance
| Exact model | LG 24HR513C-B |
|---|---|
| Screen | 24 inches |
| Native resolution | 2MP · 1920 × 1200 |
| Panel / aspect | IPS · 16:10 |
| Typical brightness | 600 cd/m² |
| Typical contrast | 1,000:1 |
Calibration & installation
| Calibration sensor | Internal front calibration sensor |
|---|---|
| Calibration support | LG Calibration Studio Medical |
| Resolution modes | 2MP |

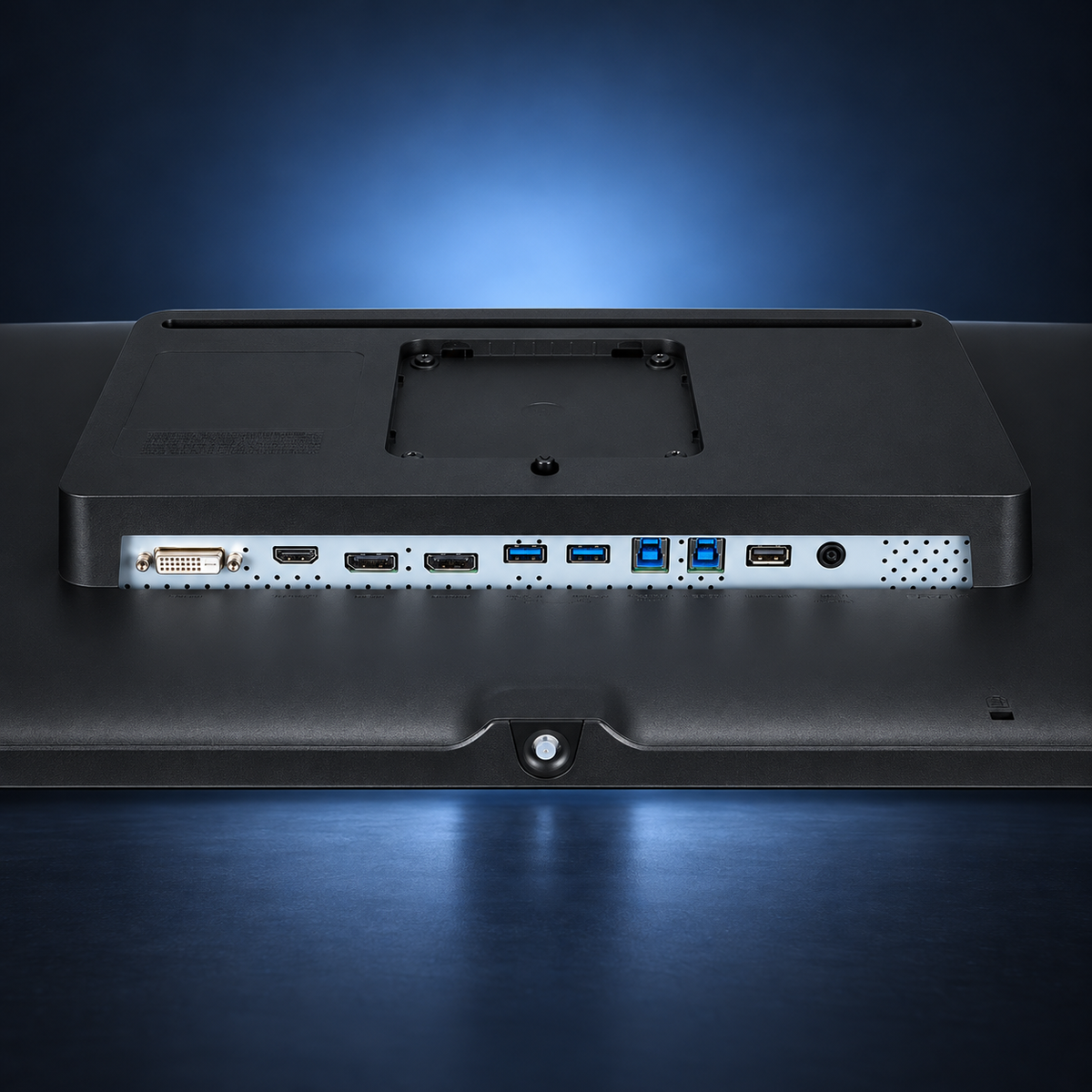

| Connectivity | DisplayPort input/output, HDMI and USB hub |

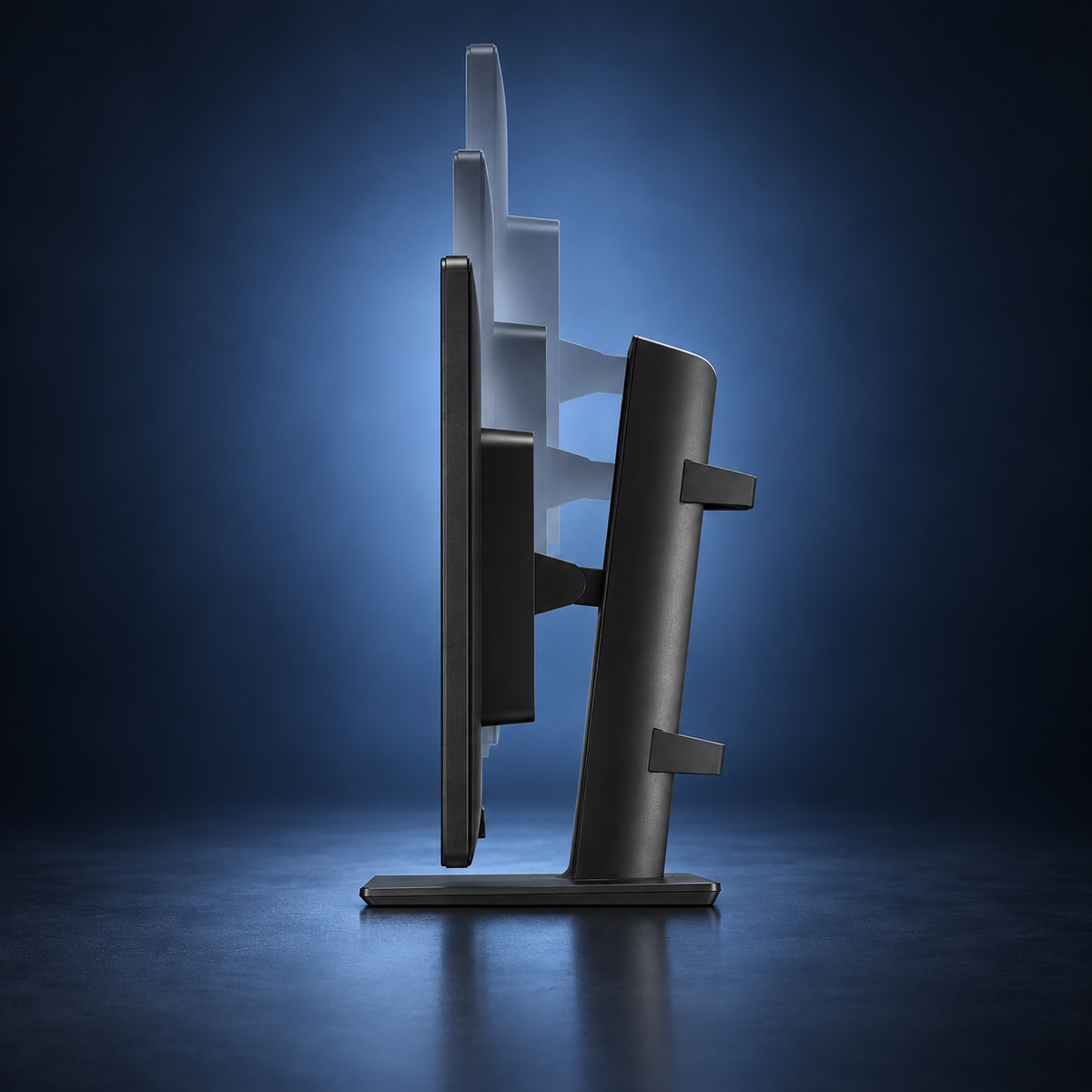

| Stand adjustment | Height, tilt, swivel and bi-directional auto pivot |
| Condition / warranty | New · 3-year manufacturer limited warranty |
Brightness shown is the manufacturer’s typical specification, not a promise of calibrated luminance. Confirm the calibration target, software version and display connection for your installation.
Intended application
FDA-cleared for radiological image display; not intended for mammography.
For your purchasing team
Use the exact model number when comparing quotes. Ask Texel Comp to confirm availability, supplied accessories, delivery timing and applicable U.S. manufacturer warranty terms for your order.
A monitor purchase does not include a computer, PACS software license or deployment service unless those items are explicitly listed in your quote.
Questions before you order
Is this a replacement for a mammography display?
No. Its FDA-cleared radiological image display use excludes mammography. Choose a model with an explicit mammography indication when that is the required application.
Will it work with my existing PACS workstation?
Confirm your graphics card’s output, supported resolution and required cable connection. Send your workstation model and intended screen arrangement to Texel Comp for help reviewing the setup.
Does DICOM support complete our display quality checks?
The display’s DICOM support is one part of the installation. Your team should establish and maintain its calibration and quality-control workflow for the intended application.
Can we request a quote for several reading desks?
Yes. Include the exact LG model, monitor quantity, single or paired arrangement and delivery destination. Texel Comp can help you review the display requirements for the order.
