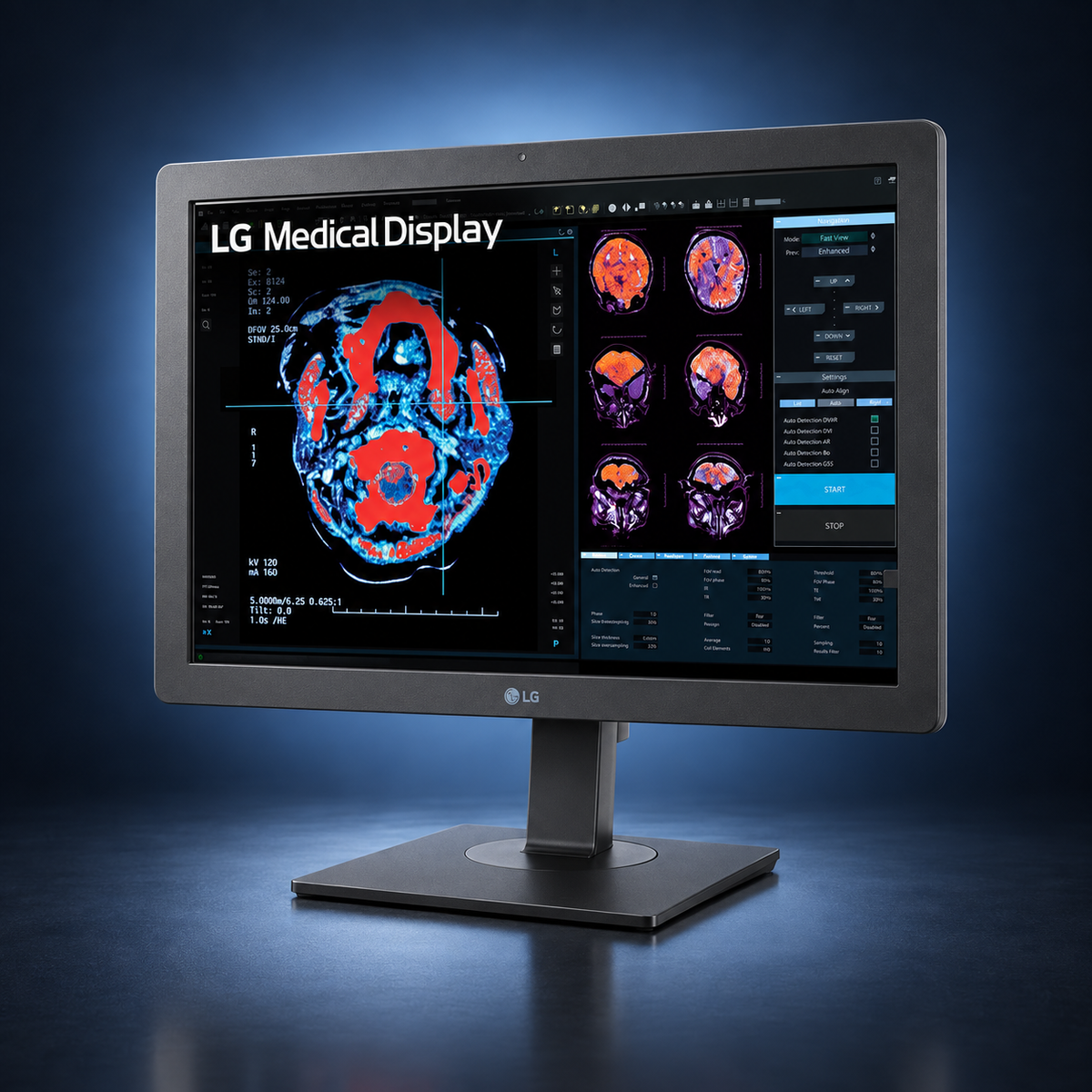

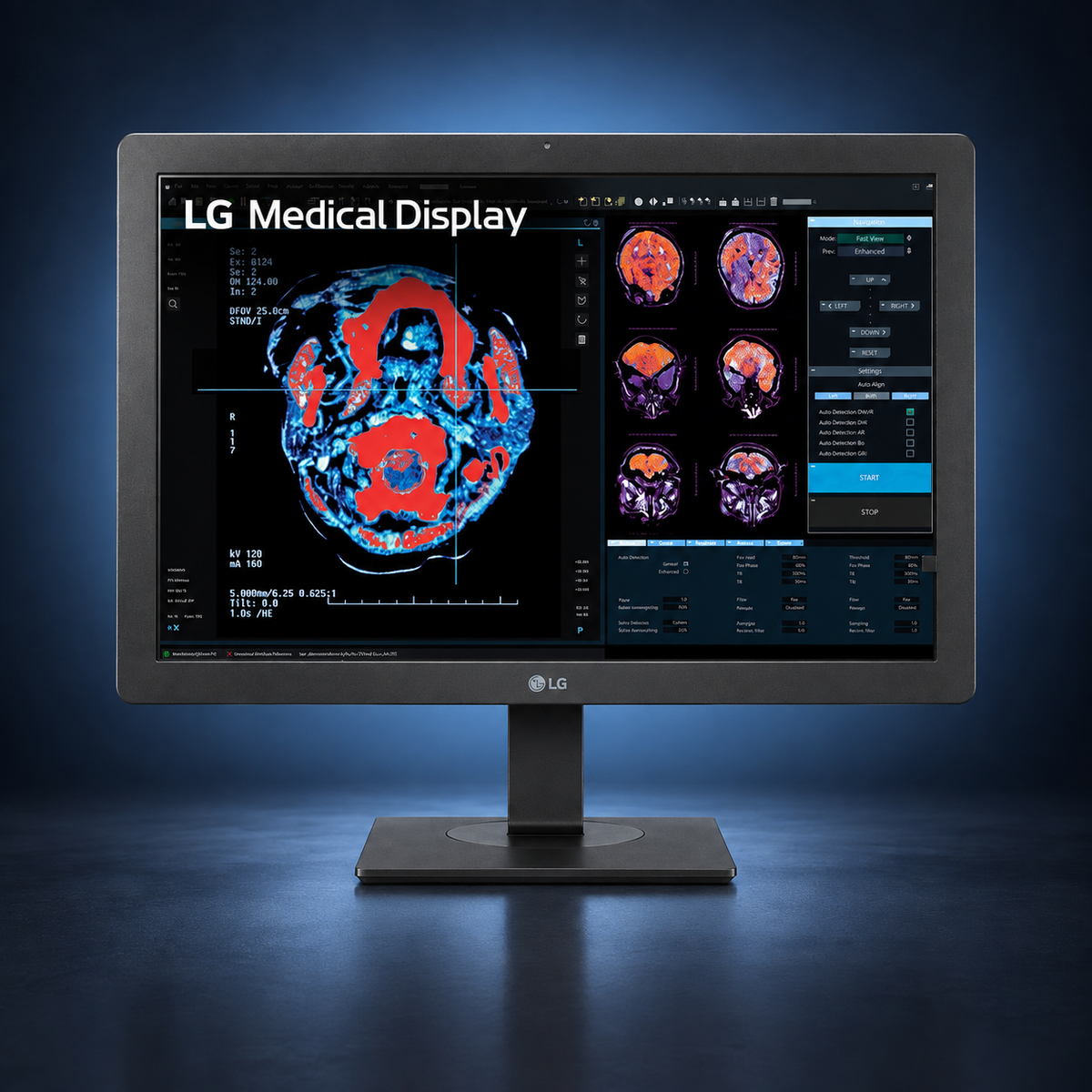

01 · DISPLAY
A 24-inch workspace for clinical review.
The 2MP, 1920 × 1200 IPS display uses a 16:10 layout. Texel Comp can help place it alongside your diagnostic displays.
LG 24HR513C-B2MP · 1920 × 1200
Product images show the individual monitor. Screen content is illustrative.
RADIOLOGY & CLINICAL REVIEW
LG 24HR513C-B 24″ 2MP Diagnostic Monitor
SKU LG-24HR513C-B
New
LG 24HR513C-B combines a 24-inch 2MP IPS display with internal front calibration sensor. A compact medical display for a workstation that needs patient information and radiological images within easy reach.
- DISPLAY
- 24-inch 2MP
1920 × 1200 - PANEL
- IPS
1,000:1 typical contrast - BRIGHTNESS
- 600 cd/m² typical
- CALIBRATION SENSOR
- Internal front calibration sensor
3-year manufacturer limited warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
LG 24HR513C-B · RADIOLOGY & CLINICAL REVIEW
A clear view of the complete workflow.
A compact medical display for a workstation that needs patient information and radiological images within easy reach.
This listing is for one monitor. Specifications describe the individual display.
Plan the display around your workflow
Tell Texel Comp which imaging application you use, how many screens you need and which graphics outputs your workstation provides. That information helps match the display to the desk before you order.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · FRONT SENSOR
Make calibration part of the setup.
The built-in front sensor works with supported calibration software. Plan the calibration schedule alongside your organization’s display quality-control process.
03 · FOCUS VIEW
Draw attention to a selected area.
Focus View brightens the selected region relative to its surroundings. Choose the area using the monitor controls while reviewing an image.
04 · PATHOLOGY MODE
Select a mode for color imagery.
Pathology Mode provides a dedicated setting for color pathology images. Confirm the viewing application’s color-management requirements as part of your configuration.
05 · DAISY CHAIN
Connect a wider reading station.
DisplayPort daisy chaining supports a compatible multi-monitor arrangement. LG’s illustration includes separate diagnostic displays; confirm the number of displays in your order.

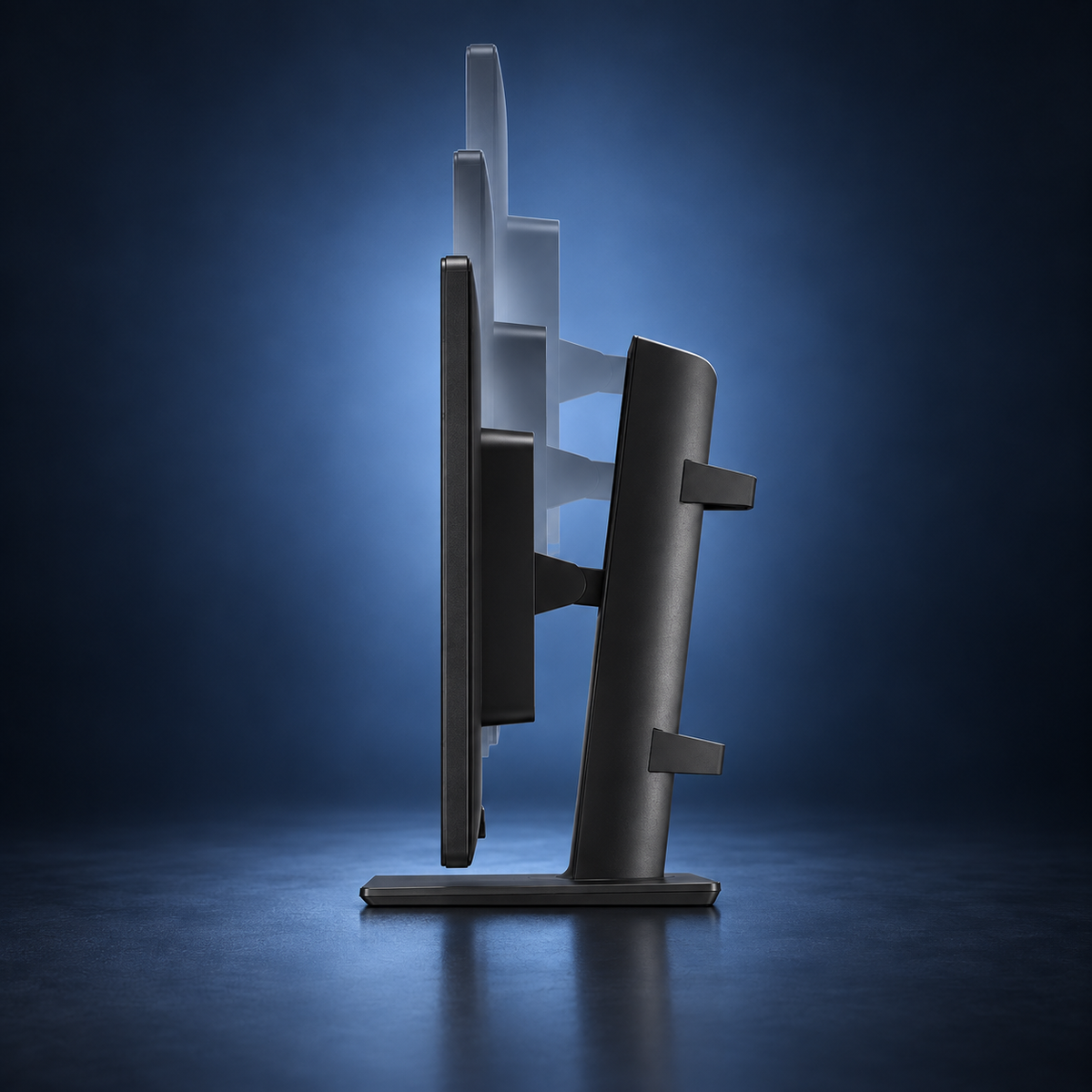

06 · DESK POSITION
Rotate the display to suit the task.
The adjustable stand supports portrait and landscape positions, plus height, tilt and swivel changes. Review available desk space when planning the installation.

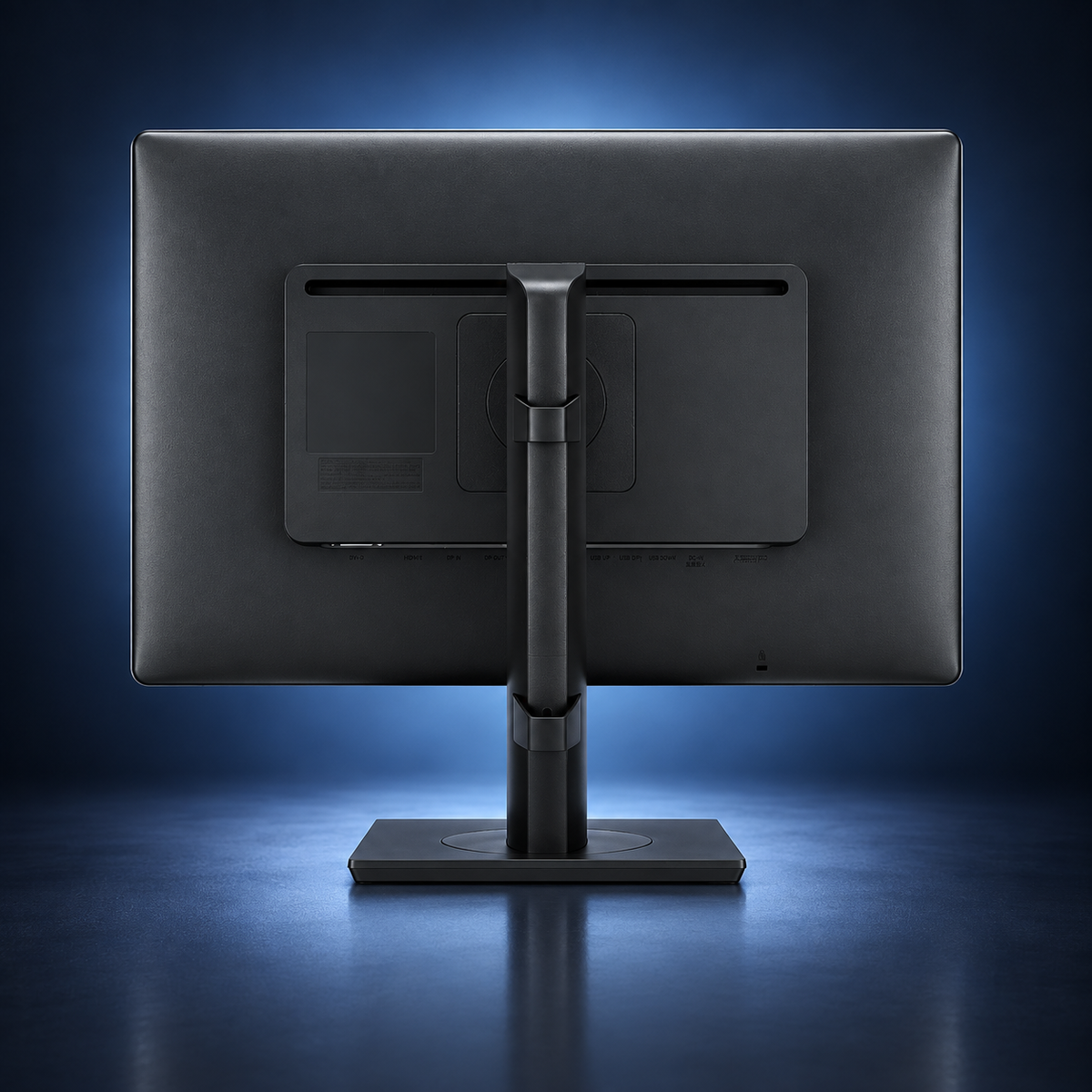

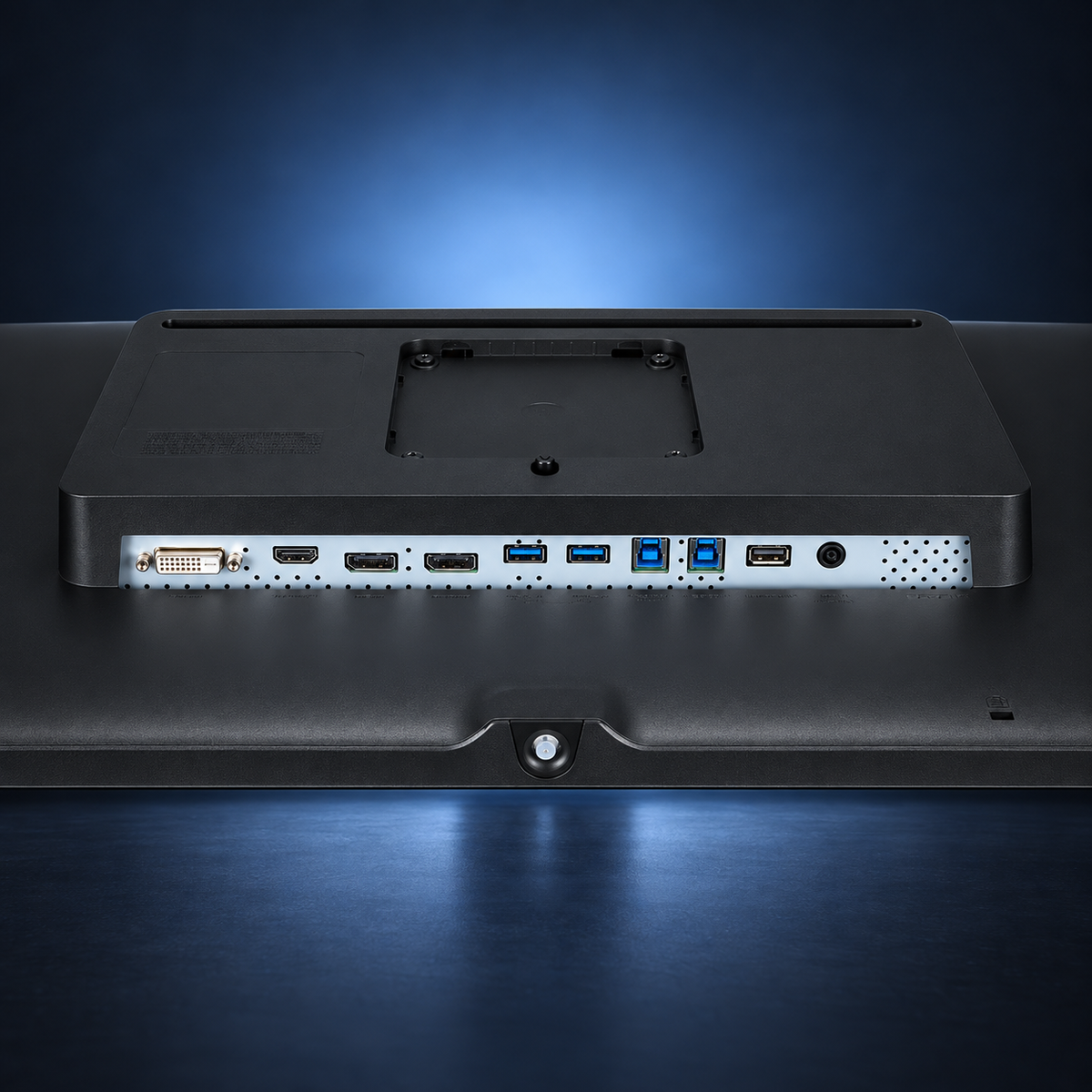

07 · REAR CONNECTIONS
Plan the cables around the ports.
DisplayPort, HDMI and USB connectivity support workstation integration. LG’s connector illustration shows the layout; Texel Comp can confirm the supplied configuration and required cables.
LG 24HR513C-B specifications
Display performance
| Exact model | LG 24HR513C-B |
|---|---|
| Screen | 24 inches |
| Native resolution | 2MP · 1920 × 1200 |
| Panel / aspect | IPS · 16:10 |
| Typical brightness | 600 cd/m² |
| Typical contrast | 1,000:1 |
Calibration & installation
| Calibration sensor | Internal front calibration sensor |
|---|---|
| Calibration support | LG Calibration Studio Medical |
| Resolution modes | 2MP |
| Connectivity | DisplayPort input/output, HDMI and USB hub |
| Stand adjustment | Height, tilt, swivel and bi-directional auto pivot |
| Condition / warranty | New · 3-year manufacturer limited warranty |
Brightness shown is the manufacturer’s typical specification, not a promise of calibrated luminance. Confirm the calibration target, software version and display connection for your installation.
Intended application
FDA-cleared for radiological image display; not intended for mammography.
For your purchasing team
Use the exact model number when comparing quotes. Ask Texel Comp to confirm availability, supplied accessories, delivery timing and applicable U.S. manufacturer warranty terms for your order.
A monitor purchase does not include a computer, PACS software license or deployment service unless those items are explicitly listed in your quote.
Questions before you order
Is this a replacement for a mammography display?
No. Its FDA-cleared radiological image display use excludes mammography. Choose a model with an explicit mammography indication when that is the required application.
Will it work with my existing PACS workstation?
Confirm your graphics card’s output, supported resolution and required cable connection. Send your workstation model and intended screen arrangement to Texel Comp for help reviewing the setup.
Does DICOM support complete our display quality checks?
The display’s DICOM support is one part of the installation. Your team should establish and maintain its calibration and quality-control workflow for the intended application.
Can we request a quote for several reading desks?
Yes. Include the exact LG model, monitor quantity, single or paired arrangement and delivery destination. Texel Comp can help you review the display requirements for the order.
