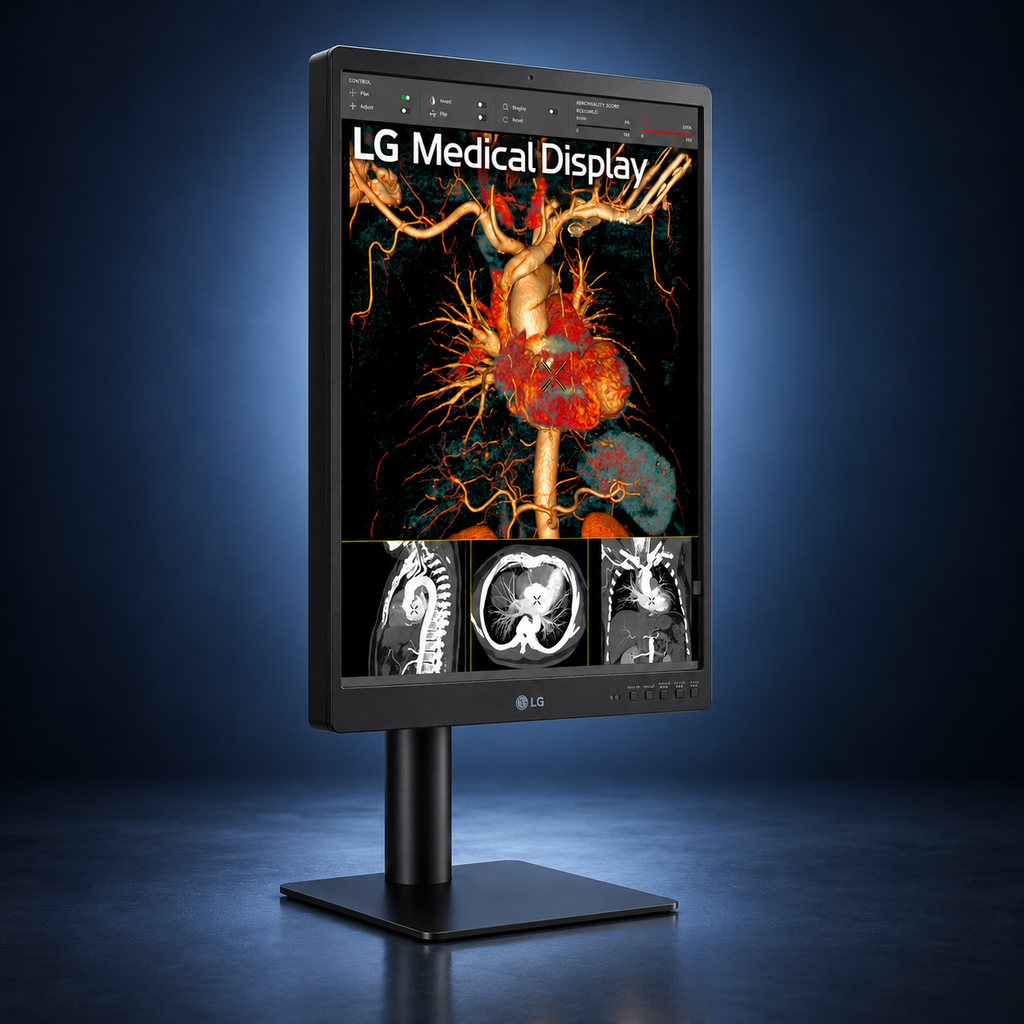

Portrait proportions
The 3:4 display makes a dedicated vertical imaging area easy to plan into a reading workstation.

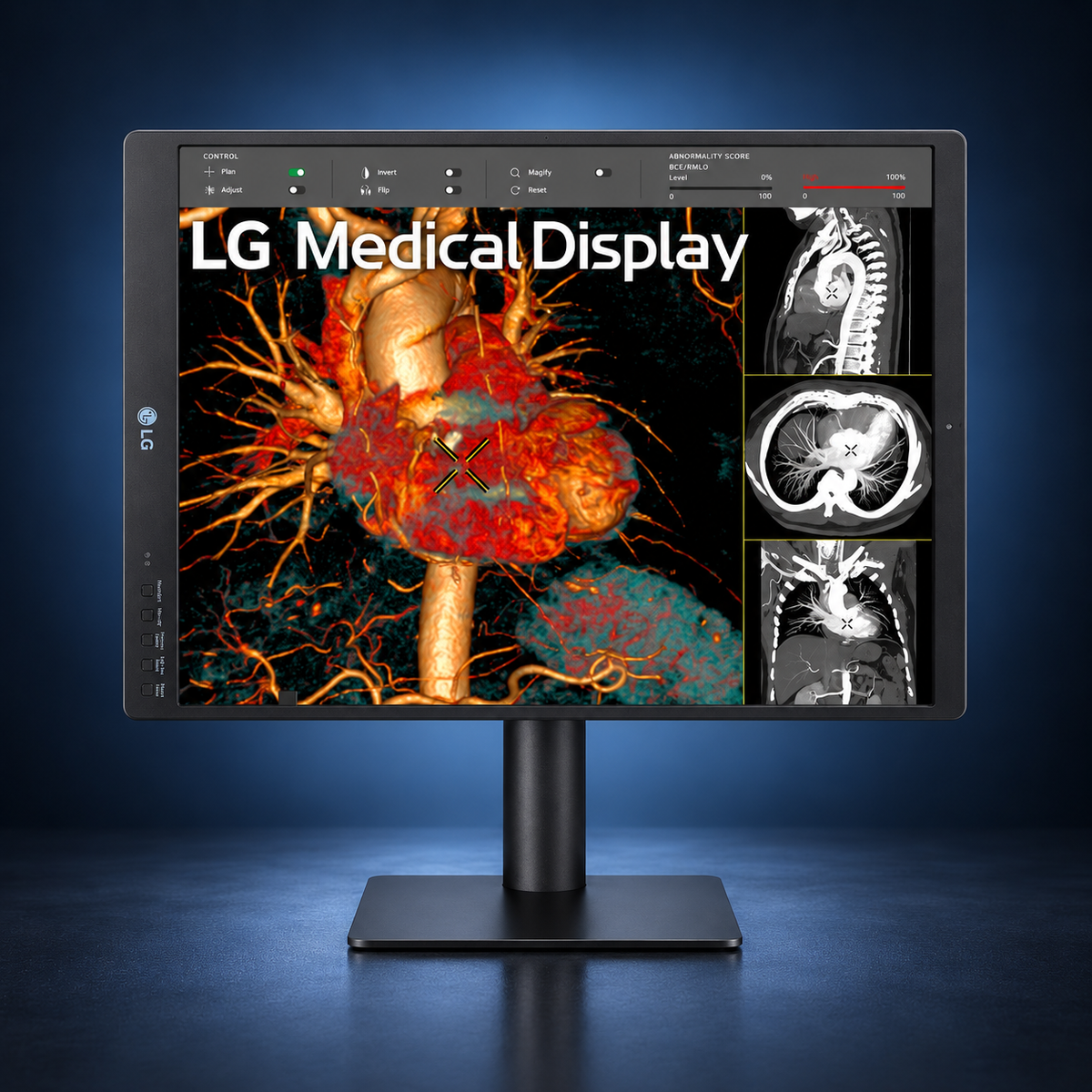

LG 21HQ513D-S 21.3″ 3MP Diagnostic Monitor
Single Monitor
$2,899.00
Skip to product information
LG 21HQ513D-S 21.3″ 3MP Diagnostic Monitor
$2,899.00
LG 21HQ513D-S · DIAGNOSTIC RADIOLOGY
Portrait imaging. A focused reading desk.
A portrait medical monitor for radiology desks that need a dedicated image display, with single-monitor and pair configurations available.
Choose Single Monitor or Pair (2 Monitors) in the configuration selector. Specifications are per monitor.
Plan the display around your workflow
Tell Texel Comp which imaging application you use, how many screens you need and which graphics outputs your workstation provides. That information helps match the display to the desk before you order.
What distinguishes this model
One model, two resolution modes
Selectable 3MP and 2MP modes let the installation match its display requirements.

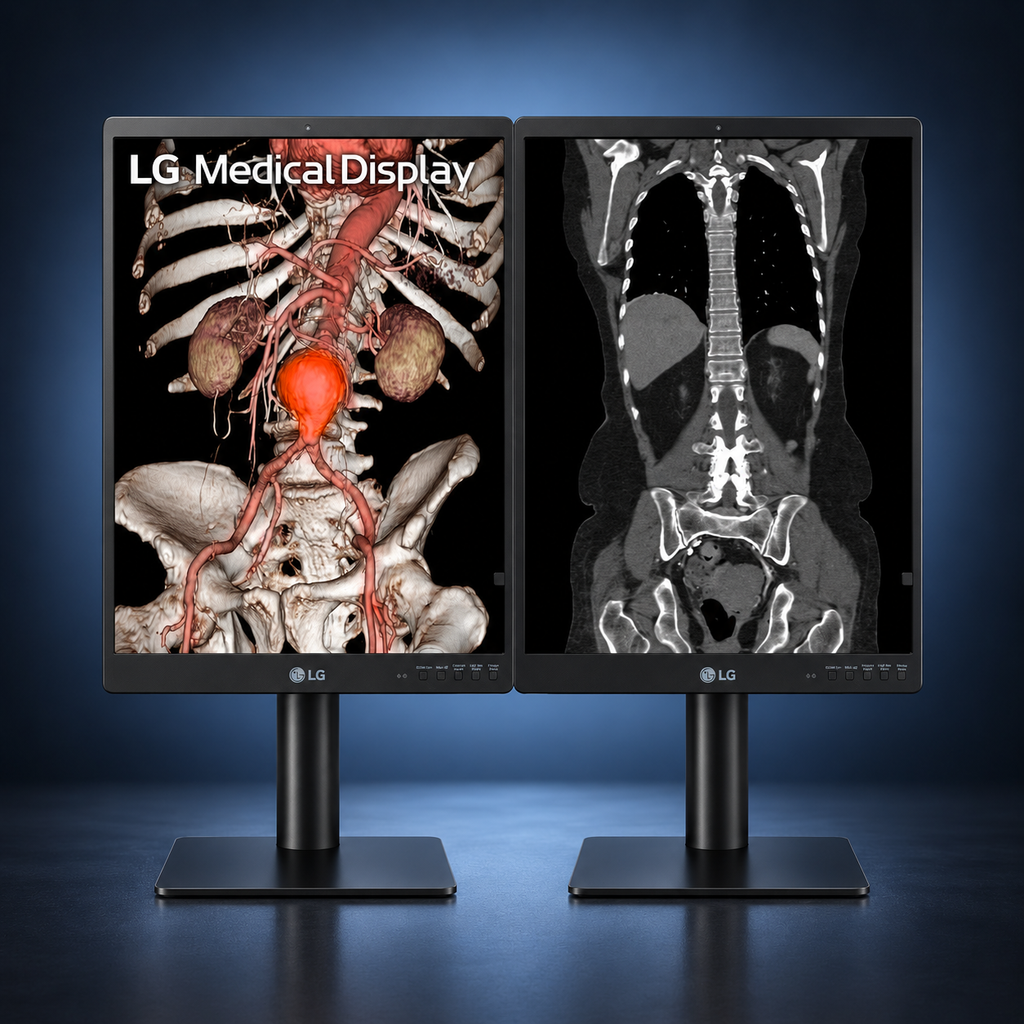

A connected pair
DisplayPort daisy-chain support and adjustable stands help build a coordinated two-screen desk.
LG 21HQ513D-S specifications
Display performance
| Exact model | LG 21HQ513D-S |
|---|---|
| Screen | 21.3 inches |
| Native resolution | 3MP · 1536 × 2048 |
| Panel / aspect | IPS · 3:4 |
| Typical brightness | 1100 cd/m² |
| Typical contrast | 1,800:1 |
Calibration & installation
| Calibration sensor | Internal front calibration sensor |
|---|---|
| Calibration support | LG Calibration Studio Medical |
| Resolution modes | 3MP / 2MP |

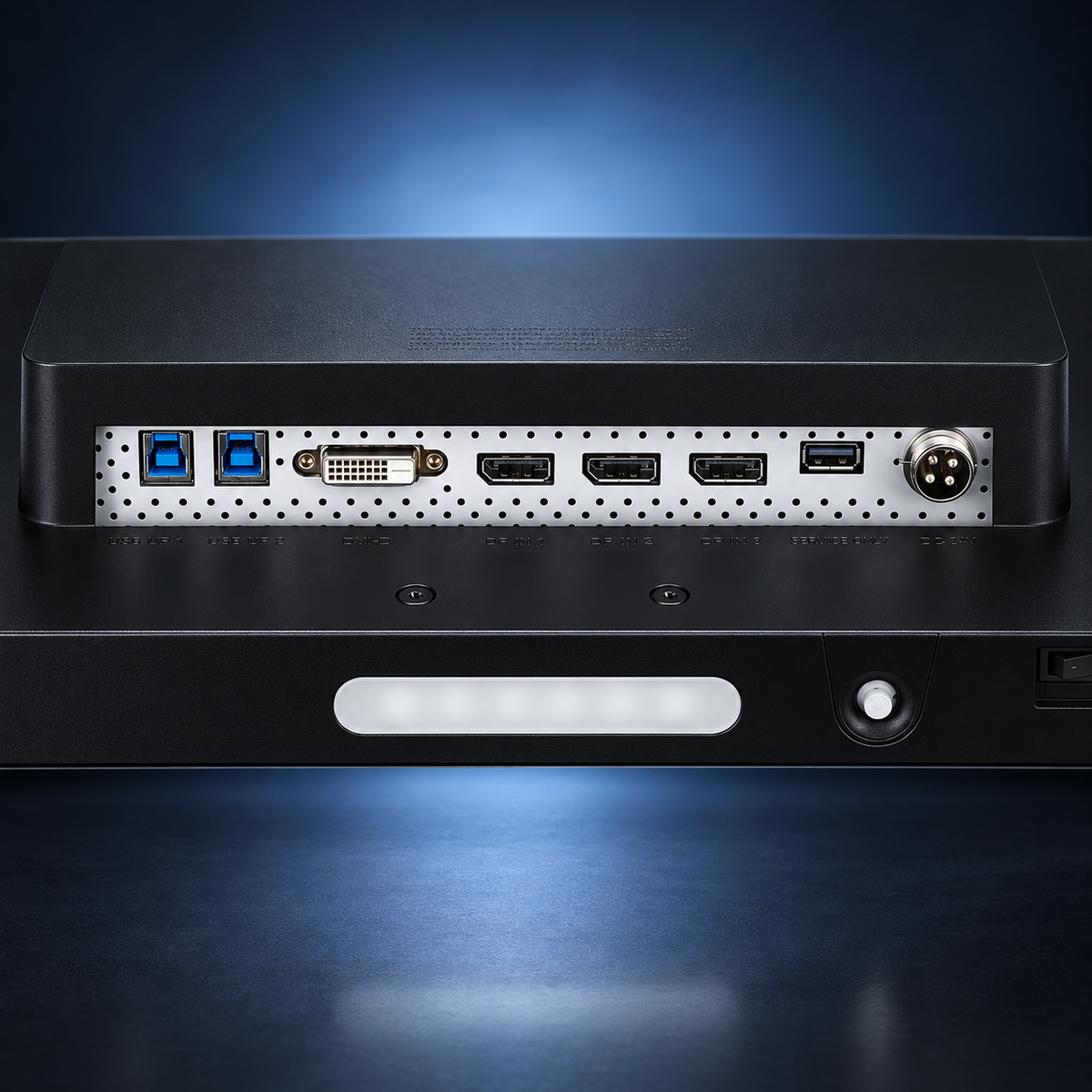

| Connectivity | DisplayPort daisy chain and USB hub |

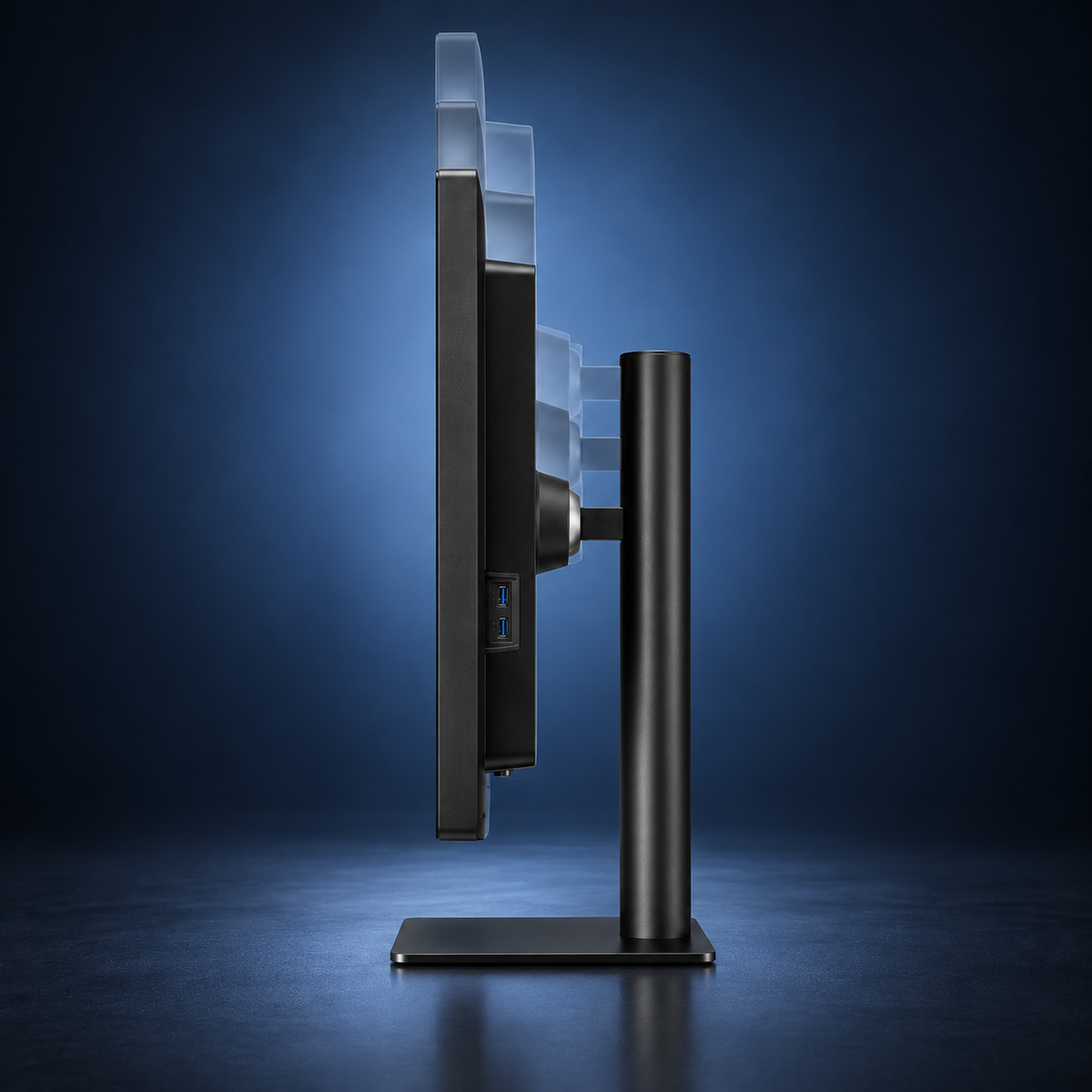

| Stand adjustment | Height, tilt, swivel and bi-directional auto pivot |
| Condition / warranty | New · 5-year manufacturer limited warranty |
Brightness shown is the manufacturer’s typical specification, not a promise of calibrated luminance. Confirm the calibration target, software version and display connection for your installation.
Intended application
FDA-cleared for radiological image display; not intended for mammography.
For your purchasing team
Use the exact model number when comparing quotes. Ask Texel Comp to confirm availability, supplied accessories, delivery timing and applicable U.S. manufacturer warranty terms for your order.
A monitor purchase does not include a computer, PACS software license or deployment service unless those items are explicitly listed in your quote.
Questions before you order
Does choosing a pair create one 6MP display?
No. A pair contains two separate 3MP monitors. Each screen retains its own native resolution, calibration and workstation connection requirements.
Will it work with my existing PACS workstation?
Confirm your graphics card’s output, supported resolution and required cable connection. Send your workstation model and intended screen arrangement to Texel Comp for help reviewing the setup.
Does DICOM support complete our display quality checks?
The display’s DICOM support is one part of the installation. Your team should establish and maintain its calibration and quality-control workflow for the intended application.
Can we request a quote for several reading desks?
Yes. Include the exact LG model, monitor quantity, single or paired arrangement and delivery destination. Texel Comp can help you review the display requirements for the order.
