A focused desktop connection
Use DisplayPort or HDMI for video, then connect the USB upstream cable when you need the monitor’s peripheral hub.
Dell U2724D27-inch · 120 Hz
PROFESSIONAL WORKLIST MONITOR

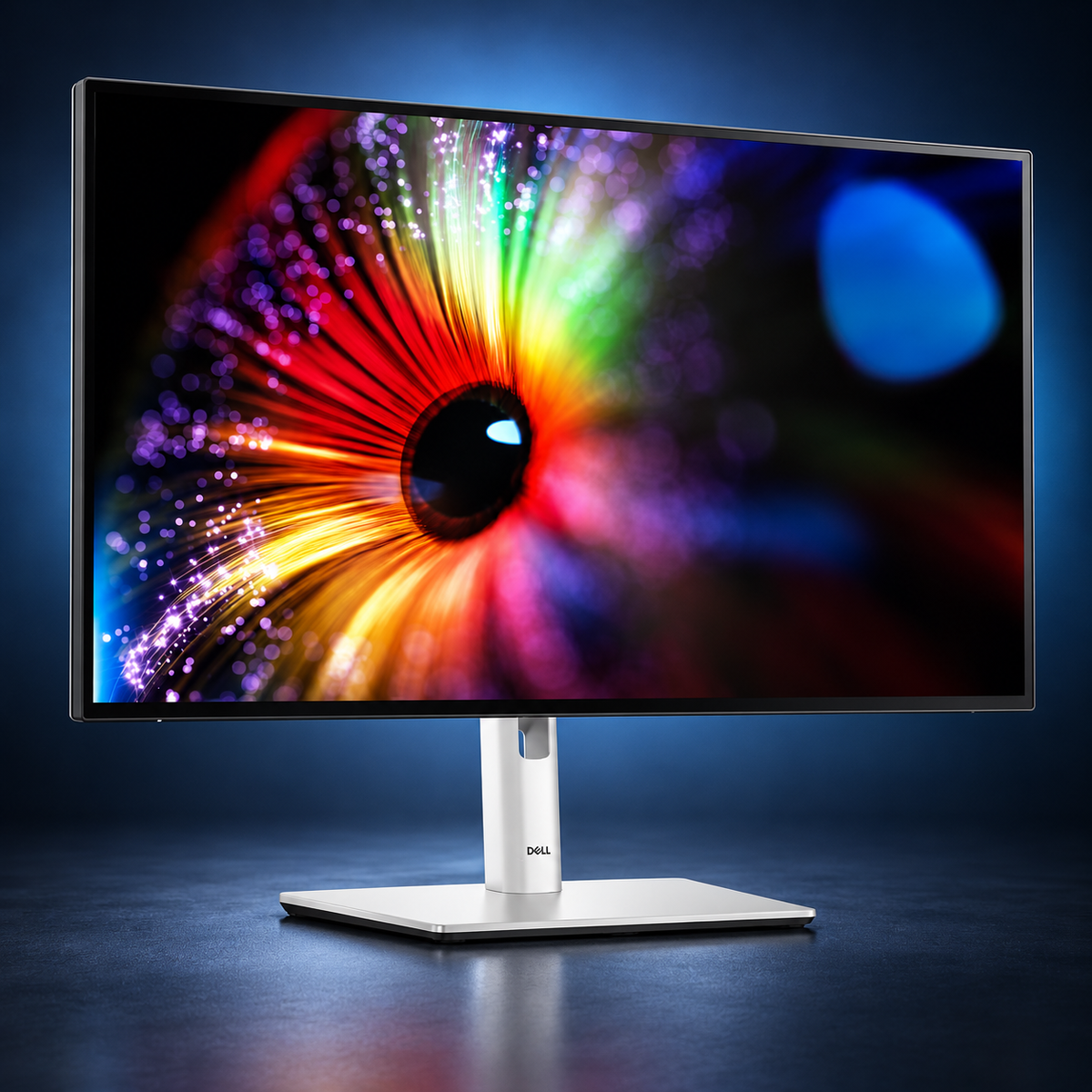

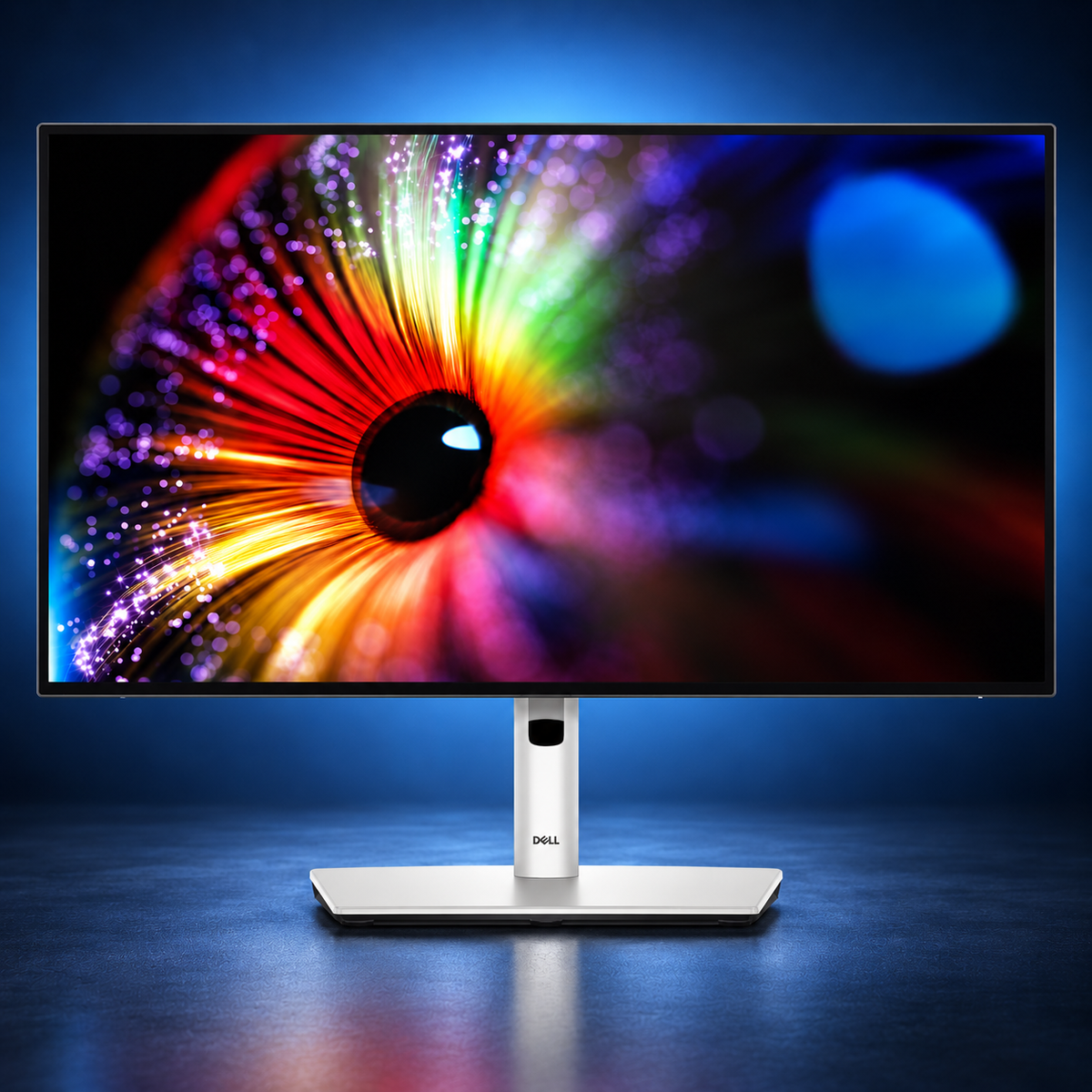

Dell UltraSharp U2724D 27" QHD Worklist Monitor
SKU DELL-U2724D
New
The Dell U2724D is a 27-inch IPS Black monitor with 2560 × 1440 QHD resolution and 120 Hz refresh for PACS worklists, RIS/EHR applications and reporting desktops.
- DISPLAY
- 27-inch
IPS Black - RESOLUTION
- 2560 × 1440 QHD
120 Hz - CONNECTION
- DisplayPort / HDMI
- POSITIONING
- Height, tilt, swivel
Portrait / landscape pivot
3-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
DELL U2724D · WORKLIST MONITORS
Keep worklists close. Give reporting its own space.
A dedicated 27-inch secondary screen gives patient lists, reporting tools and communication windows a place beside your medical displays. U2724D is the straightforward QHD option for a desktop workstation with a separate video connection.
A secondary screen with a clear role
Choose your worklist display around the applications that sit beside your imaging workflow. Screen size, text scaling, portrait orientation and computer connections matter as much as the desktop layout.
Built around your reporting desk
Position the screen for your work
Adjust height, tilt, swivel and pivot to align the secondary display with the rest of the desk. Check arm capacity and clearance if using a VESA mount.
Keep the worklist separate
Arrange patient lists, RIS/EHR windows and reporting tools on this screen, with your approved medical displays reserved for diagnostic interpretation.
Dell U2724D specifications
Display & workspace
| Model | Dell U2724D |
|---|---|
| Screen size | 27-inch |
| Native resolution | 2560 × 1440 QHD |
| Panel technology | IPS Black |
| Aspect ratio | 16:9 |
| Maximum refresh | 120 Hz |
| Typical contrast | 2,000:1 |

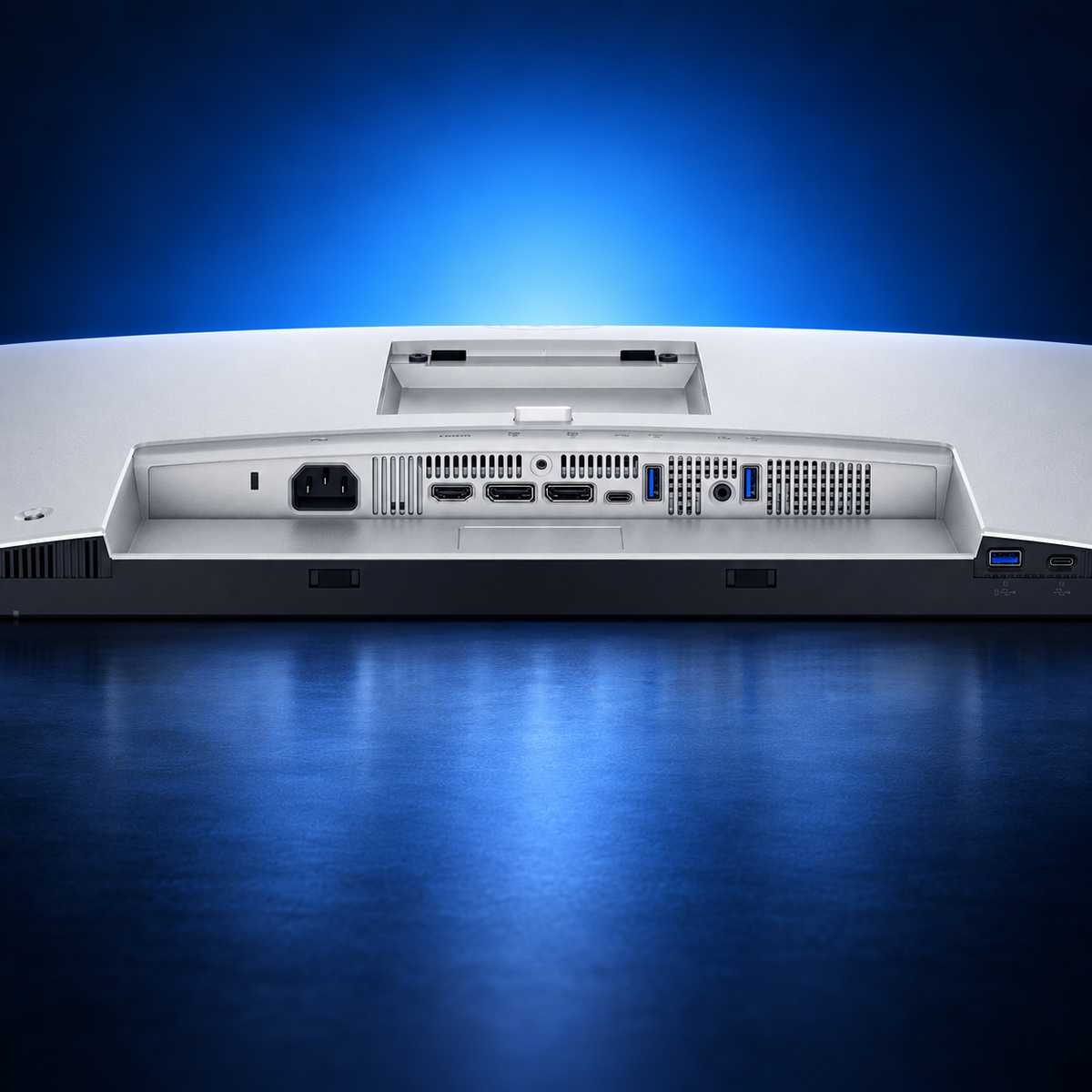

Connections & installation
| Video connections | DisplayPort / HDMI |
|---|---|
| Hub functions | USB hub; USB-C data connection |
| Host power delivery | No laptop charging over the upstream USB connection |
| Stand adjustment | Height, tilt, swivel and pivot |
| Mounting | VESA 100 × 100 mm |
| Intended use | Non-diagnostic worklist / reporting / productivity |
Configure the right secondary display
Match the monitor to your graphics card outputs and preferred reporting arrangement. For multiple displays, check the computer’s supported resolutions, refresh rates and connection paths. USB data, video and laptop charging depend on the ports and cables in use.
These screens are offered for worklist and professional desktop use. For primary diagnostic interpretation, select a medical display appropriate to your application.
Product & purchasing details
| SKU | DELL-U2724D |
|---|---|
| Product condition | New |
| Manufacturer coverage | 3-Year Advanced Exchange Service and Premium Panel Exchange |
| Availability | Confirmed with your quote |
| Shipping | Confirmed for your delivery address |
Manufacturer service terms and the supplied configuration are confirmed for the quoted unit. Computers, medical displays and dictation equipment are separate unless listed in your order.
Questions about Dell U2724D
Does U2724D charge a laptop through USB-C?
Its USB-C upstream connection is for data rather than a single-cable video and laptop-charging dock. Choose U2724DE for Thunderbolt 4 with up to 90W power delivery.
Can this monitor be used for primary diagnostic reading?
This listing is for non-diagnostic secondary display use. Resolution, refresh rate and professional color features alone do not establish suitability for diagnostic interpretation.
Can I rotate it into portrait orientation?
The supplied model’s stand supports pivot adjustment. Rotate the display in your operating-system settings and check cable clearance, viewing distance and application layout.
What should I send for a workstation quote?
Include the Dell U2724D model, quantity, workstation or laptop model, graphics outputs and intended desk arrangement. Texel Comp can help check the connections alongside your medical displays.
Manufacturer documentation
Dell U2724D product information · Dell manuals & setup guides
