One wide 8MP display
3840 × 2160 resolution, DICOM support, an internal backlight sensor and Picture-by-Picture flexibility.
TEXEL COMP · GENERAL RADIOLOGY WORKSTATION PACKAGE
Complete PACS General Radiology Station | LG 32HL512D-B 8MP Diagnostic Display | Workstation PC | Dictation Mic | Two 24-inch Worklist Monitors
SKU TC-RAD-BASE-8MP-LG32-P3G2
New
One LG 32HL512D-B 8MP diagnostic display, a new Lenovo ThinkStation P3 Tower Gen 2 with RTX A400, two Dell 24-inch worklist monitors and Philips LFH3500 dictation. One keyboard and one mouse are included. This configuration is not intended for mammography.
- DISPLAY CONFIGURATION
- LG 32HL512D-B · one 8MP diagnostic display
2 Dell 24-inch worklist monitors - PROCESSOR
- Core Ultra 5 235
- MEMORY / STORAGE
- 32GB DDR5 / 512GB NVMe
- GRAPHICS
- RTX A400 · 4GB
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-Year LG Display Manufacturer Limited WarrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
WORKSPACE
Wide-format imaging. Worklists. Reporting.
This package includes one LG 32HL512D-B 8MP diagnostic display with a new Lenovo ThinkStation P3 Tower Gen 2, RTX A400 and two Dell 24-inch worklist monitors and a Philips SpeechMike Premium LFH3500.
Use the LG for primary imaging and the Dell screens for worklists, reporting and supporting applications. Confirm PACS, calibration and facility requirements.
A three-screen graphics platform
Four Mini DisplayPort 1.4a outputs. Final cables and adapters are matched to the confirmed monitor configuration.
Handheld USB dictation
LFH3500 push-button controls, an integrated trackball and configurable function keys for reporting.

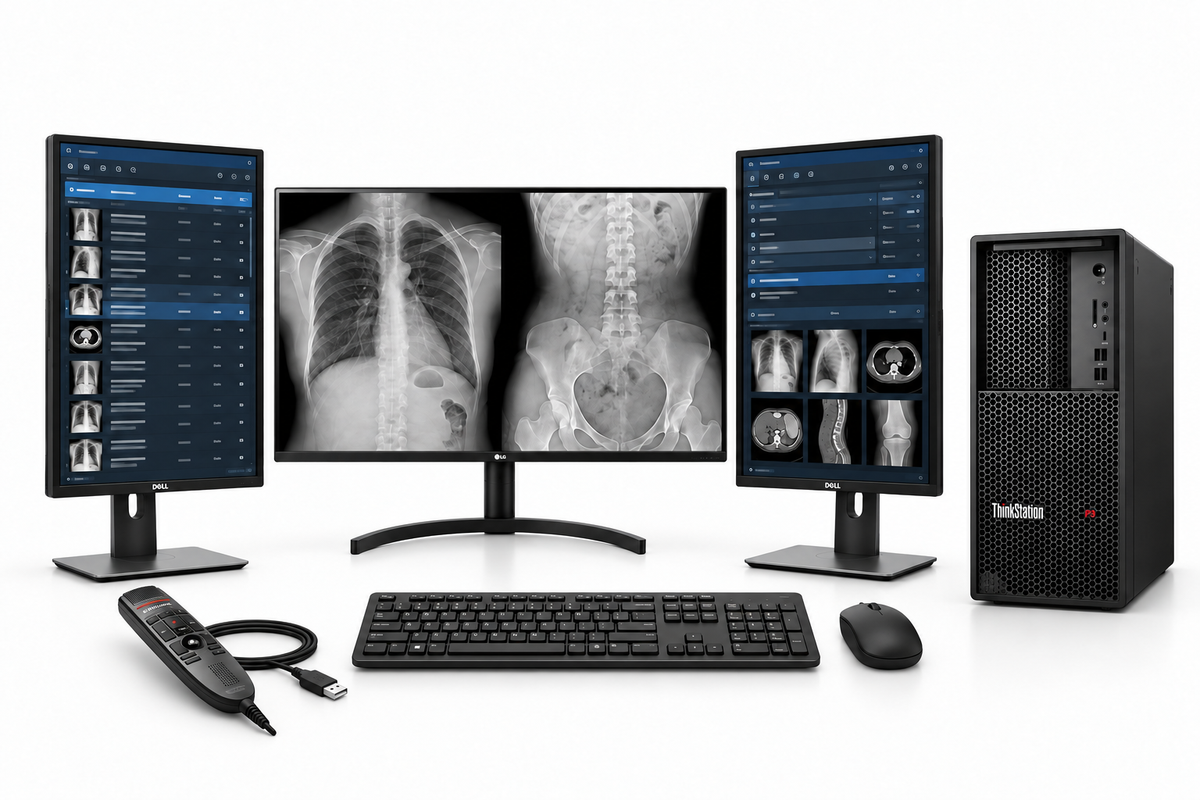

THE PACKAGE
What's included.
Three physical monitors.
One workstation. One dictation microphone.
One keyboard. One mouse.

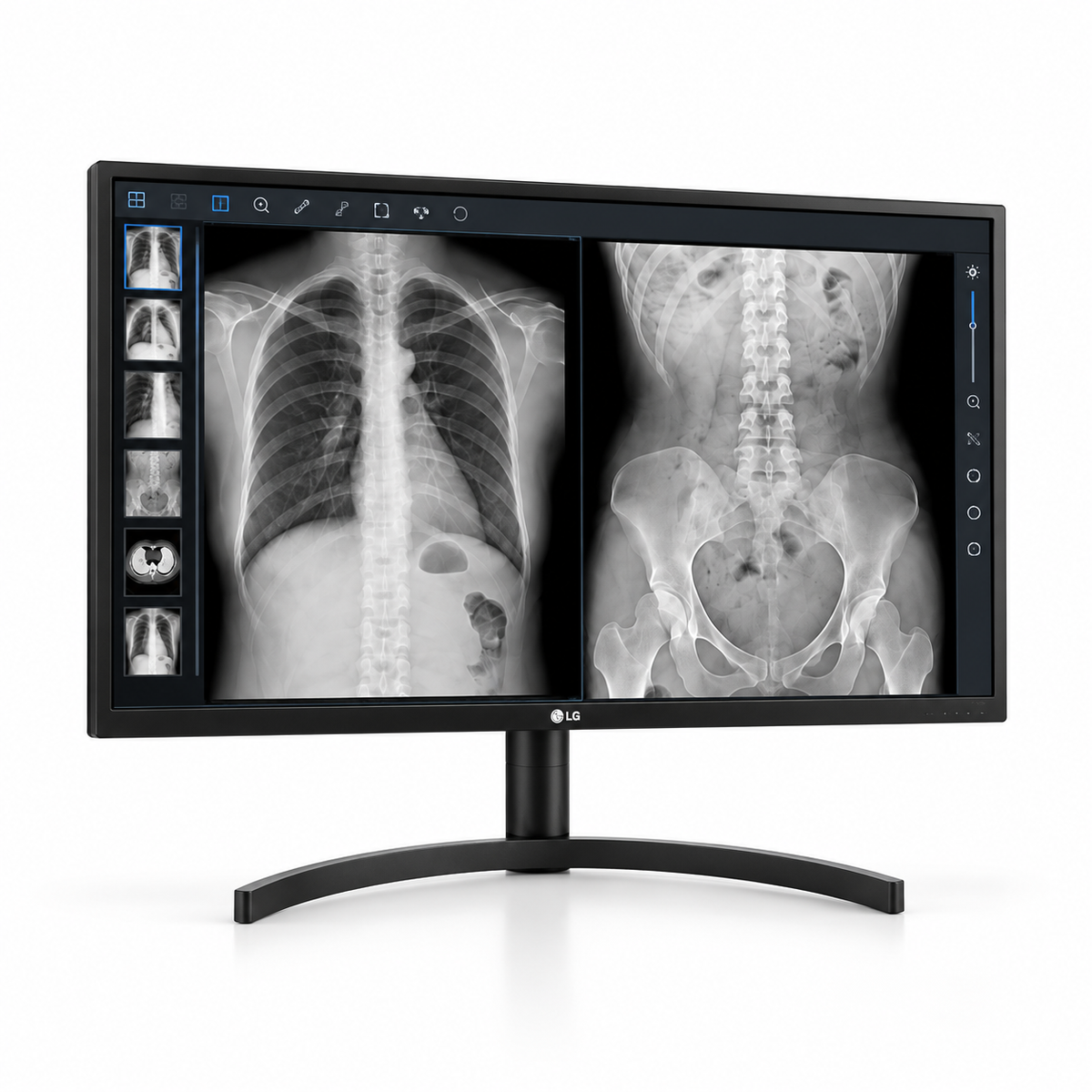

1 × DIAGNOSTIC DISPLAY
LG 32HL512D-B
31.5-inch, 8MP Nano IPS display with a 16:9 format, DICOM support, hardware calibration support and an adjustable stand.

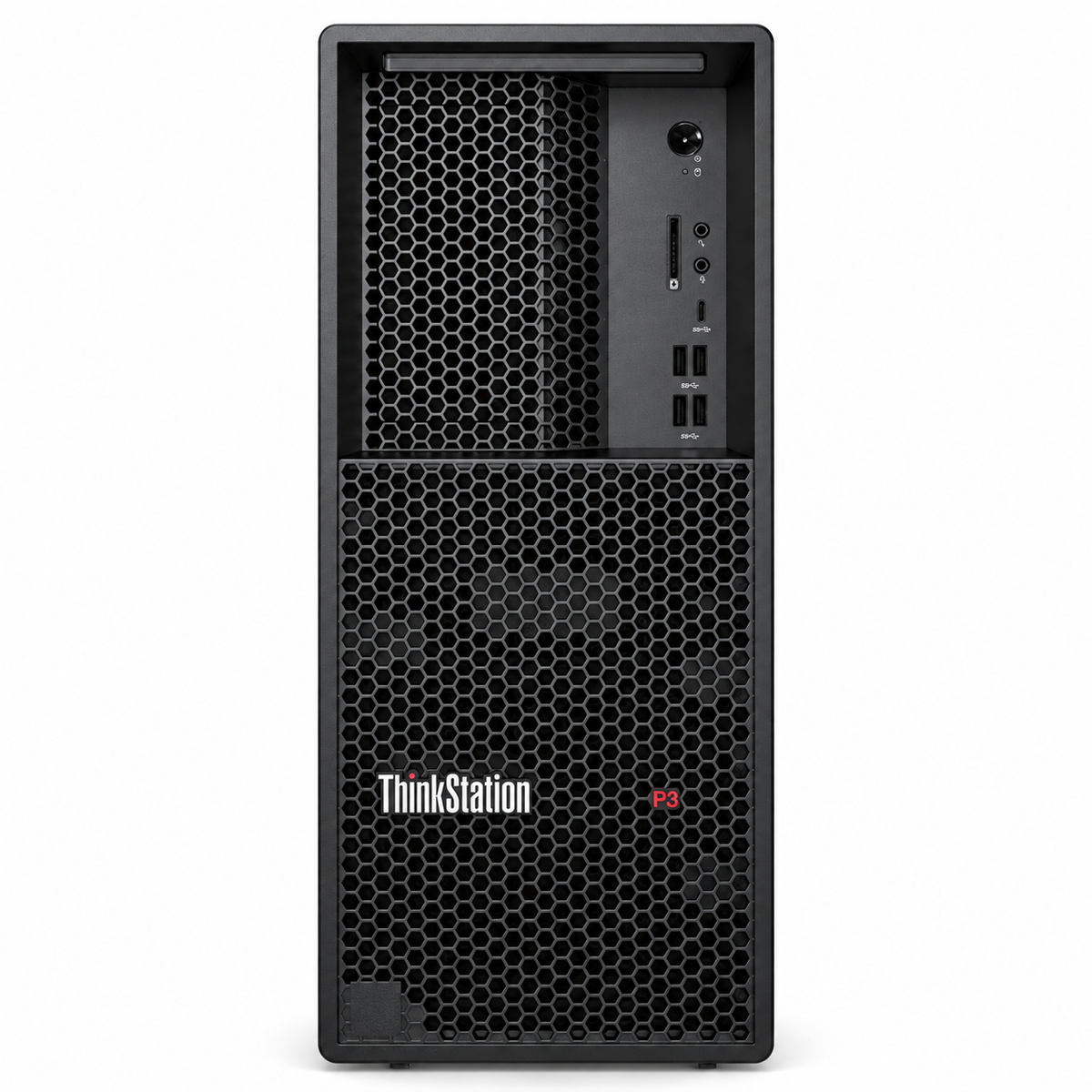

1 × WORKSTATION + GPU
Lenovo P3 Tower Gen 2
Core Ultra 5 235 · 32GB DDR5 · 512GB NVMe SSD. Installed NVIDIA RTX A400 with 4GB GDDR6.

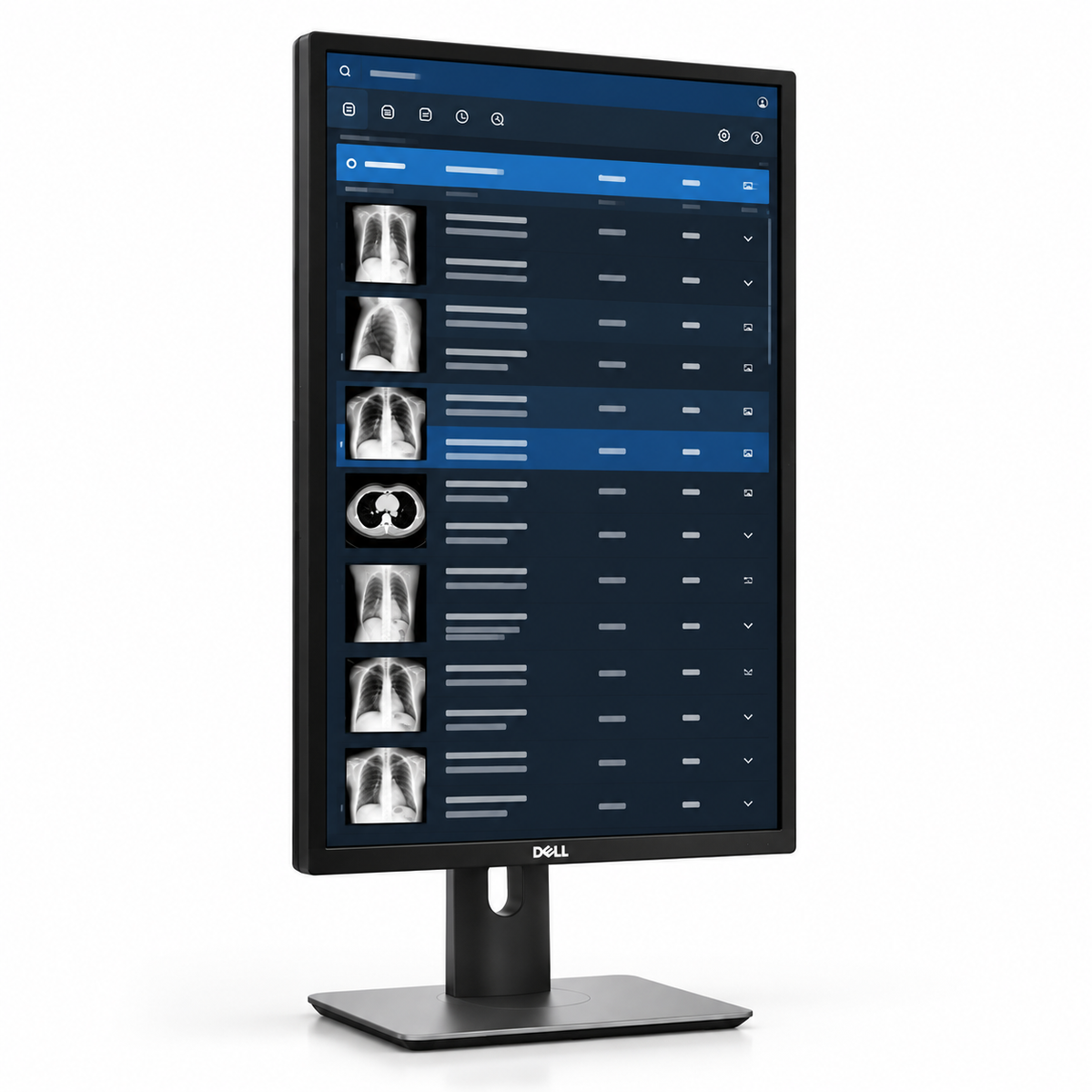

2 × WORKLIST DISPLAY
Dell 24-inch class
Portrait-capable worklist and reporting screens. Models depend on availability; confirm connections.

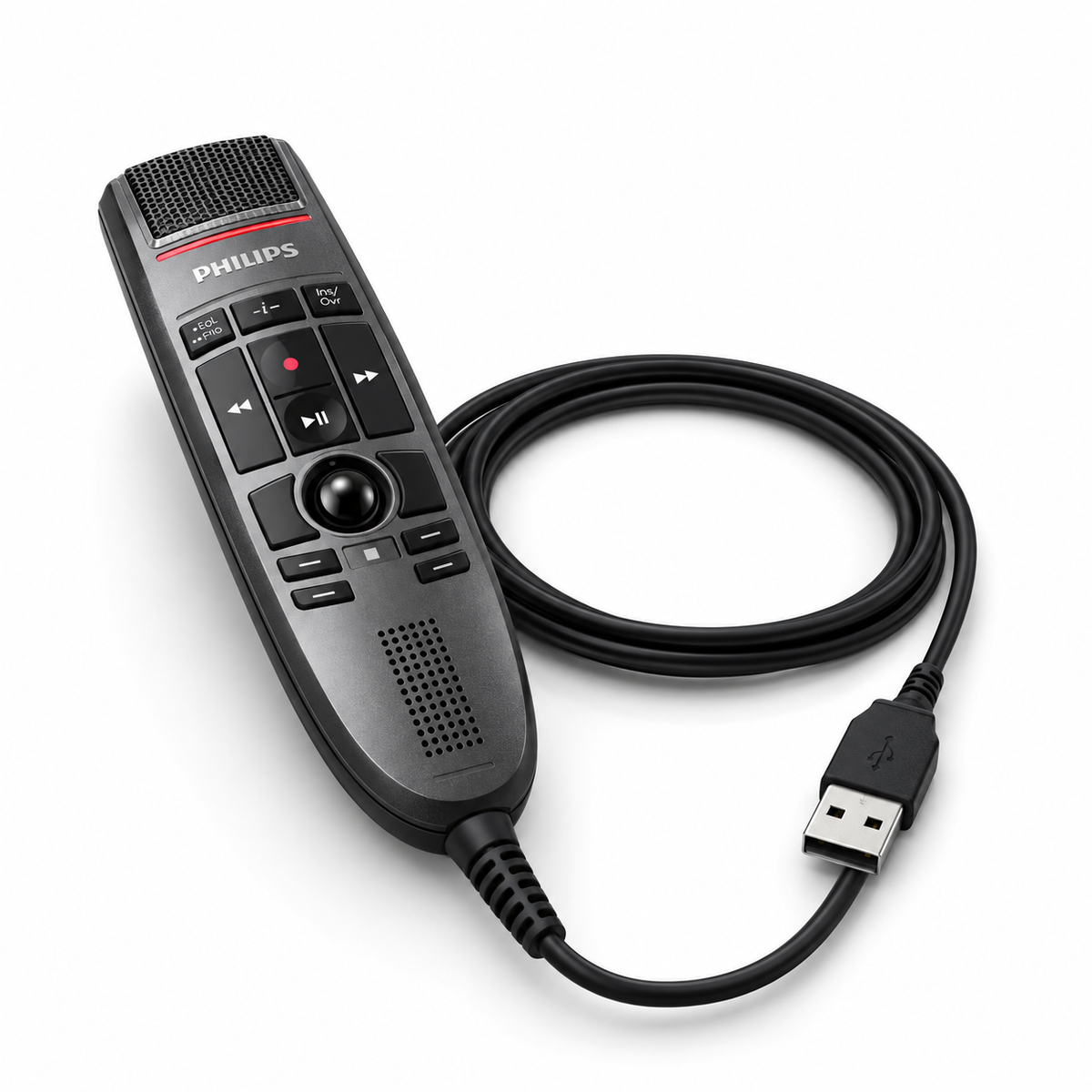

1 × DICTATION MICROPHONE
Philips SpeechMike LFH3500
Wired USB Type-A connection, push-button operation, integrated trackball and configurable controls.
1 × KEYBOARD + 1 × MOUSE
Keyboard and mouse
Desktop input set. Models selected based on availability.
TECHNICAL DETAIL
Technical specifications.
LG diagnostic display One included
| Model | LG 32HL512D-B |
|---|---|
| Panel | 31.5-inch Nano IPS · 16:9 |
| Native resolution | 3840 × 2160 · 8MP |
| Picture-by-Picture | Two 4MP image areas from connected sources |
| Brightness | 450 cd/m² typical |
| Contrast | 1300:1 typical |
| Calibration | DICOM support · internal backlight sensor · LG PerfectLum hardware calibration support |
| Connectivity | 2 × DisplayPort 1.4 · 1 × HDMI 2.0 · USB hub |
| Ergonomics | Height, tilt and pivot · 100 × 100 mm VESA |
Workstation and graphics Package configuration
| Computer | New Lenovo ThinkStation P3 Tower Gen 2 |
|---|---|
| Processor | Intel Core Ultra 5 235 · 14 cores / 14 threads · up to 5.0GHz |
| Memory | 32GB DDR5 |
| Storage | 512GB NVMe SSD |
| Graphics | NVIDIA RTX A400 · 4GB GDDR6 |
| GPU outputs | 4 × Mini DisplayPort 1.4a |
| Microphone | Philips SpeechMike Premium LFH3500 · USB Type-A |
| Worklist monitors | 2 × Dell 24-inch worklist monitors · selected based on availability |
| Keyboard and mouse | 1 × keyboard · 1 × mouse · models selected based on availability |
| Operating system | To be confirmed in the final quote |
PURCHASING & SUPPORT
Purchasing and support.
- Condition
- New LG display and Lenovo workstation; confirm other component conditions in the quote.
- Display warranty
- LG 32HL512D-B: 5-year manufacturer limited warranty under applicable U.S. terms. Other coverage is confirmed in the quote.
- Technical support
- Contact support@texelcomp.com. Installation, calibration and training are specified in the quote.
- Final configuration
- Confirm price, delivery, OS, Dell model, cables, adapters and services in the quote.
CLINICAL NOTES
Choose for your workflow.
The LG 32HL512D-B is FDA-cleared under K232127 for radiological image display. It is not intended for mammography. Clearance applies to the LG display, not the assembled workstation package.
Confirm Lenovo configuration, OS, connections, Picture-by-Picture inputs, adapters, calibration and services. Dell models depend on availability. PACS, RIS, reporting and speech-recognition licenses are included only when listed in the quote.
QUESTIONS
Package questions.
How many monitors are included?
Three: one LG 32HL512D-B 8MP diagnostic display and two Dell 24-inch worklist monitors. Dell models are selected based on availability.
Can the RTX A400 drive the completed workspace?
RTX A400 supports four displays. The standard layout uses three outputs; two LG PBP inputs may use all four. Verify cables, adapters, drivers and applications.
Can I use this package for mammography?
No. The LG 32HL512D-B is not intended for mammography. This package is specified for general radiology.
Are PACS and speech-recognition licenses included?
Included only if listed in the quote. Confirm your PACS, reporting, dictation software and OS.
