Two 8MP 4K review displays
3840 × 2160 IPS panels with DICOM support, detachable calibration sensors and wide color coverage.
2 × LG 27HS713C-B3840 × 2160 per display
Detachable calibration sensor
TEXEL COMP · CLINICAL REVIEW WORKSTATION PACKAGE
Complete PACS Clinical Review Station | Dual LG 27HS713C-B 27-inch 8MP 4K DICOM Displays | Lenovo Workstation | Philips SpeechMike | Two Dell 27-inch Worklist Monitors
SKU TC-RAD-CLIN-8MP-LG27-DUAL-P3G2
New
Dual LG 8MP 4K clinical-review displays, a Lenovo workstation and Philips dictation, with two dedicated Dell 27-inch worklist screens. Dell models are selected based on availability.
- DISPLAY CONFIGURATION
- Pair of LG 27HS713C-B 8MP 4K clinical-review displays
2 Dell 27-inch worklist monitors - PROCESSOR
- Core Ultra 5 235
- MEMORY / STORAGE
- 32GB DDR5 / 512GB NVMe
- GRAPHICS
- RTX A400 · 4GB
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
3-Year Manufacturer Limited WarrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
WORKSPACE
Clinical review. Worklists. Reporting.

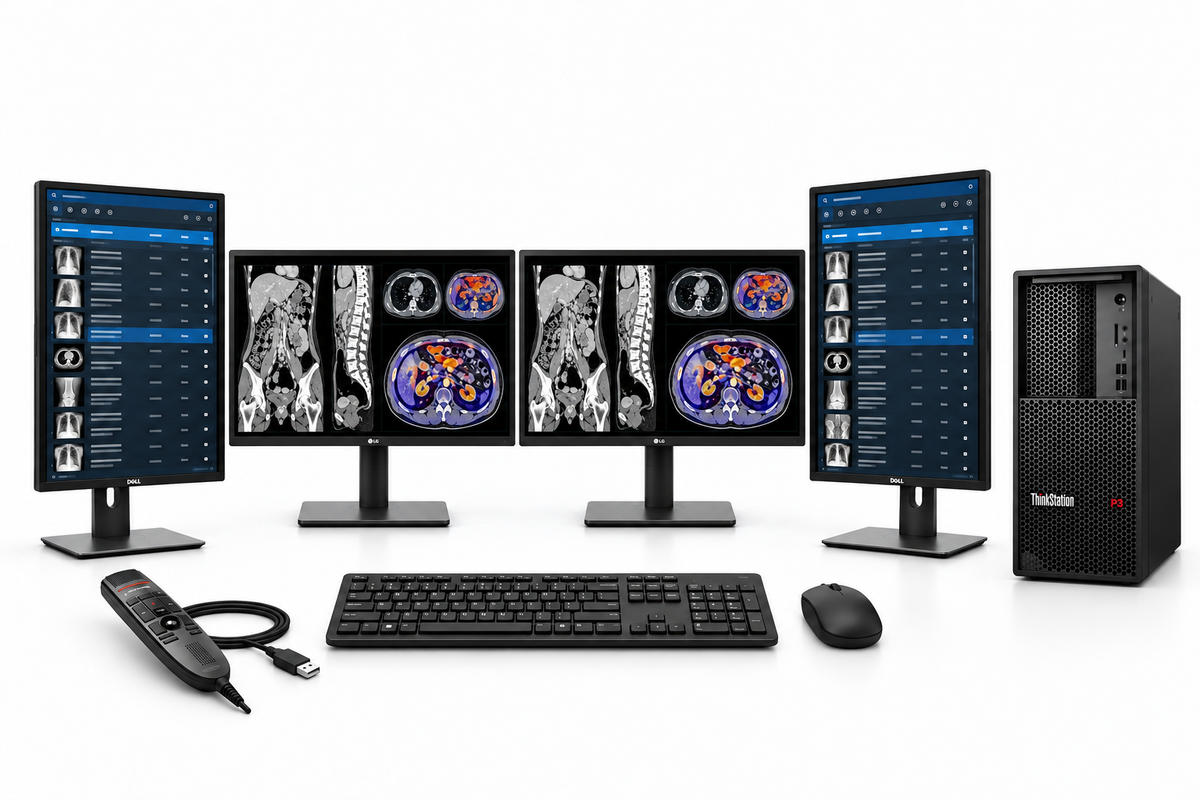

This package includes two LG 27HS713C-B 27-inch 8MP 4K clinical-review displays with a new Lenovo ThinkStation P3 Tower Gen 2, RTX A400 and two Dell 27-inch worklist monitors and a Philips SpeechMike Premium LFH3500.
Use the LG displays for DICOM-supported clinical review and the Dell screens for worklists, reporting and supporting applications. This configuration is for clinical review; it is not represented as a primary diagnostic or mammography workstation.
A four-screen graphics platform
Four Mini DisplayPort 1.4a outputs. Final cables and adapters are matched to the confirmed monitor configuration.
Handheld USB dictation
LFH3500 push-button controls, an integrated trackball and configurable function keys for reporting.
THE PACKAGE
What's included.
Four physical monitors.
One workstation. One dictation microphone.
One keyboard. One mouse.
2 × CLINICAL-REVIEW DISPLAY
LG 27HS713C-B

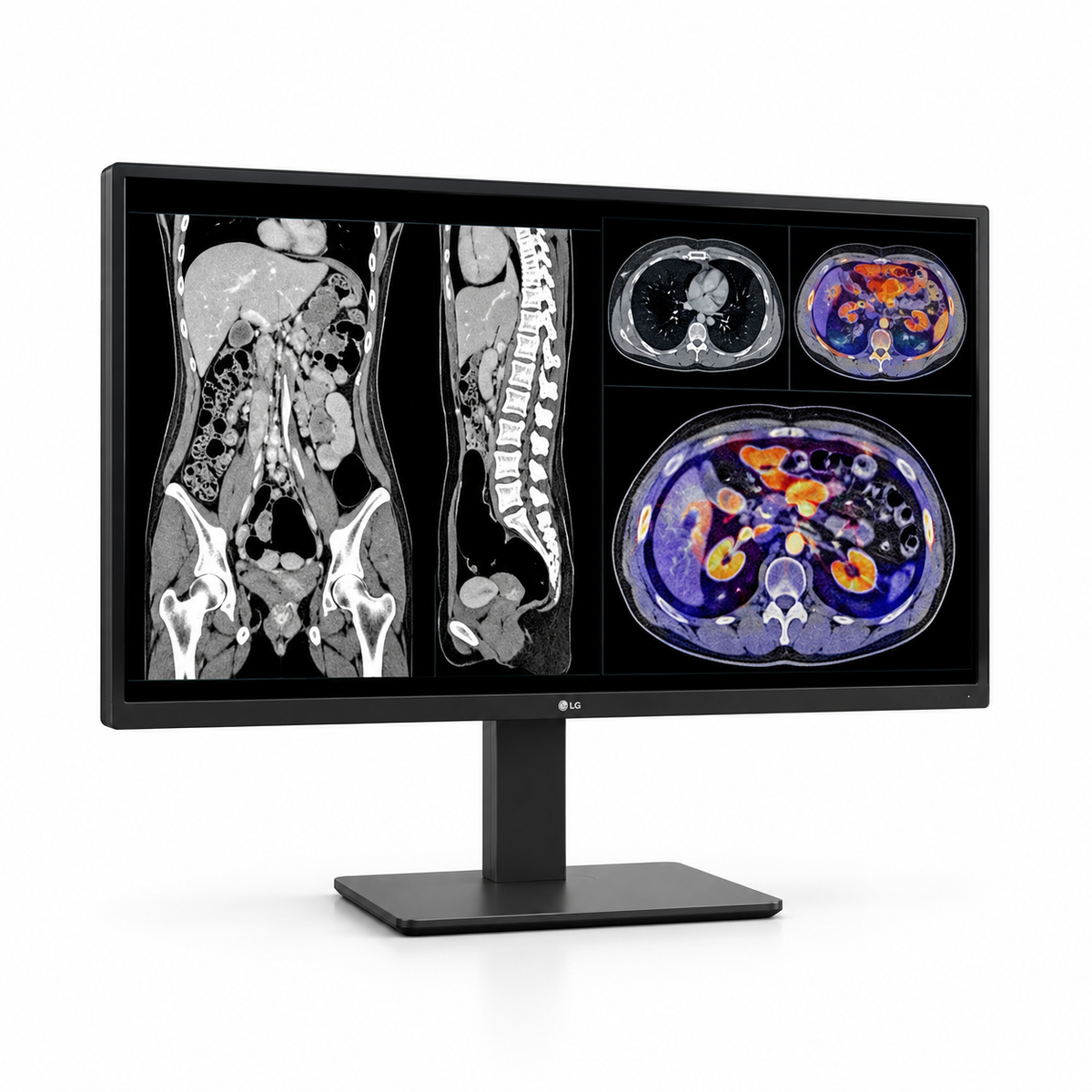

27-inch, 8MP 4K IPS medical displays with DICOM support, detachable calibration sensors and adjustable stands.
1 × WORKSTATION + GPU
Lenovo P3 Tower Gen 2
Core Ultra 5 235 · 32GB DDR5 · 512GB NVMe SSD. Installed NVIDIA RTX A400 with 4GB GDDR6.
2 × WORKLIST DISPLAY
Dell 27-inch class

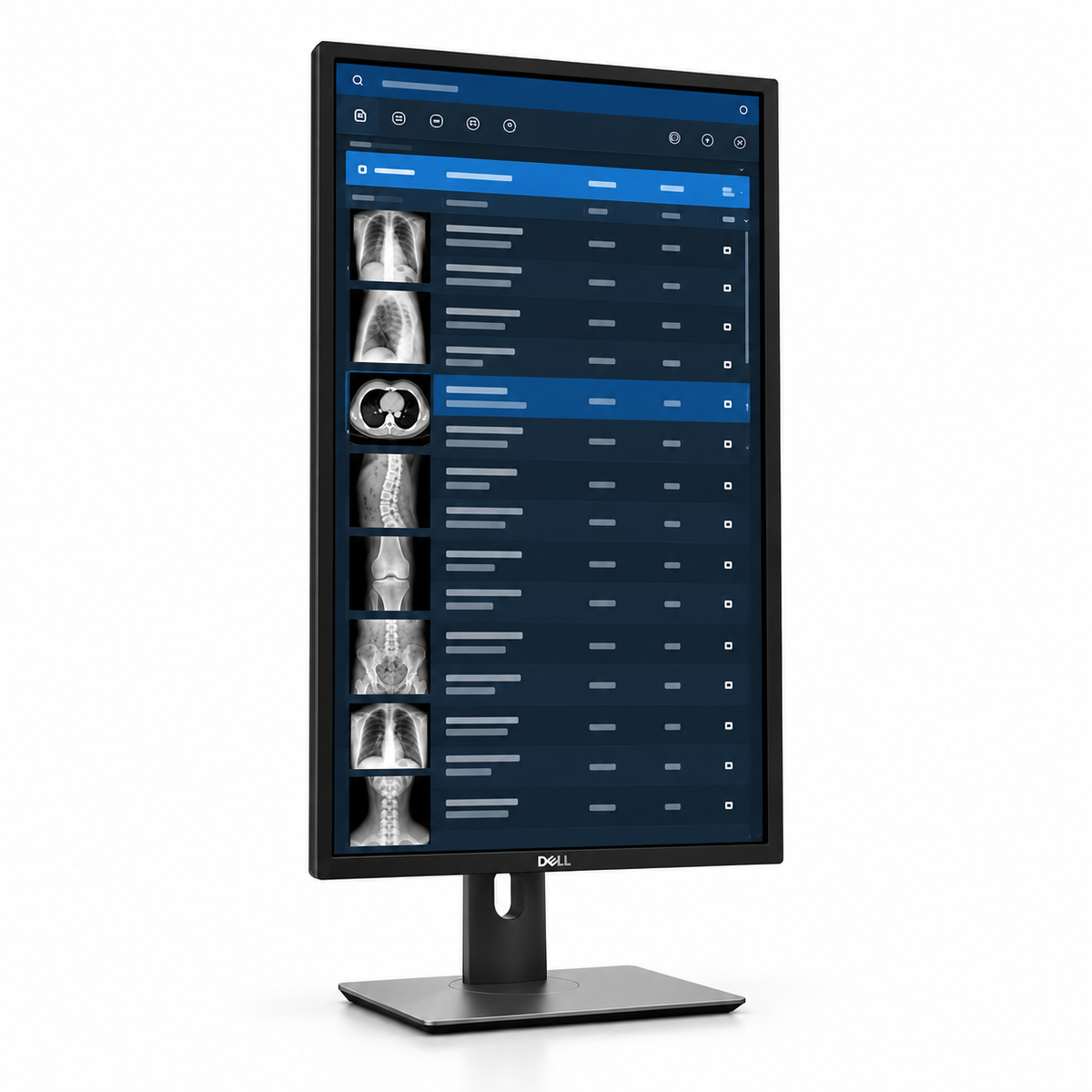

Portrait-capable worklist and reporting screens. Models depend on availability; confirm connections.
1 × DICTATION MICROPHONE
Philips SpeechMike LFH3500
Wired USB Type-A connection, push-button operation, integrated trackball and configurable controls.
1 × KEYBOARD + 1 × MOUSE
Keyboard and mouse
Desktop input set. Models selected based on availability.
TECHNICAL DETAIL
Technical specifications.
LG clinical-review displays Per monitor · 2 included
| Exact model | LG 27HS713C-B |
|---|---|
| Panel | 27-inch IPS LED · 16:9 |
| Native resolution | 3840 × 2160 · 8MP / 4K UHD |
| Brightness | 450 cd/m² typical |
| Contrast | 1200:1 typical |
| Color gamut | DCI-P3 95% typical |
| Calibration | DICOM compliant · detachable calibration sensor · LG Calibration Studio Medical |
| Connectivity | DisplayPort, HDMI, DVI-D and USB connectivity |
| Ergonomics | Height, tilt, swivel and bi-directional pivot · 100 × 100 mm VESA |
Workstation and graphics Package configuration
| Computer | New Lenovo ThinkStation P3 Tower Gen 2 |
|---|---|
| Processor | Intel Core Ultra 5 235 · 14 cores / 14 threads · up to 5.0GHz |
| Memory | 32GB DDR5 |
| Storage | 512GB NVMe SSD |
| Graphics | NVIDIA RTX A400 · 4GB GDDR6 |
| GPU outputs | 4 × Mini DisplayPort 1.4a |
| Microphone | Philips SpeechMike Premium LFH3500 · USB Type-A |
| Worklist monitors | 2 × Dell 27-inch worklist monitors · selected based on availability |
| Keyboard and mouse | 1 × keyboard · 1 × mouse · models selected based on availability |
| Operating system | To be confirmed in the final quote |
PURCHASING & SUPPORT
Purchasing and support.
- Condition
- New, as specified for this package.
- Display warranty
- The LG 27HS713C-B displays carry a 3-year manufacturer limited warranty, subject to LG’s applicable U.S. terms. Other component coverage is confirmed in the final quote.
- Technical support
- Contact support@texelcomp.com. Installation, calibration and training are specified in the quote.
- Final configuration
- Confirm price, delivery, OS, Dell model, cables, adapters and services in the quote.
CLINICAL NOTES
Choose for your workflow.
The LG 27HS713C-B is positioned by LG as a clinical-review medical monitor. This listing does not claim primary diagnostic or mammography use. Confirm the display indication required by your facility before ordering.
Confirm Lenovo configuration, OS, four-monitor connections, calibration and services. Dell models depend on availability. PACS, RIS, reporting and speech-recognition licenses are included only when listed in the quote.
QUESTIONS
Package questions.
How many monitors are included?
Four: two LG 27HS713C-B 8MP 4K clinical-review displays and two Dell 27-inch worklist monitors. Dell models are selected based on availability.
Is this a primary diagnostic or mammography station?
No. The LG 27HS713C-B is positioned for clinical review. This package does not claim primary diagnostic radiology, mammography or breast-tomosynthesis use.
Can the RTX A400 drive all four screens?
RTX A400 supports up to four displays. Verify resolutions, inputs, cables, adapters, drivers and applications for the final configuration.
Are PACS and speech-recognition licenses included?
Included only if listed in the quote. Confirm your PACS, reporting, dictation software and OS.
Manufacturer resources
LG 27HS713C-B specificationsLenovo P3 Tower Gen 2 PSREFPhilips LFH3500 documentationView the LG 27HS713C-B displayExplore radiology workstations
TEXEL COMP
Build around your workflow.
Talk with Texel Comp about the right configuration, compatibility and service scope for your organization.
