Two dedicated LG displays
1920 × 1200 per screen, DICOM calibration support and an internal front sensor.
2 × LG 24HR513C-B1920 × 1200 per display
Built-in front calibration sensor
TEXEL COMP · PACS WORKSTATION PACKAGE
Complete PACS General Radiology Station | Dual LG 24HR513C-B 2MP Medical Displays | Workstation PC | Dictation Mic | Two 24-inch Worklist Monitors
SKU TC-RAD-BASE-2MP-LG24-P3G2
NewFree Shipping
Dual LG medical displays, a Lenovo workstation and Philips dictation, with two dedicated Dell worklist screens. Dell models are selected based on availability.
- DISPLAY CONFIGURATION
- Pair of LG 24HR513C-B 2MP medical displays
2 Dell 24-inch worklist monitors - PROCESSOR
- Core Ultra 5 235
- MEMORY / STORAGE
- 32GB DDR5 / 512GB NVMe
- GRAPHICS
- RTX A400 · 4GB
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
3-Year Manufacturer WarrantyManufacturer terms apply
Free ShippingConfirm delivery location and scope
Contact Texel CompConfiguration and service questions
THE WORKSPACE
Image review. Worklists. Reporting.

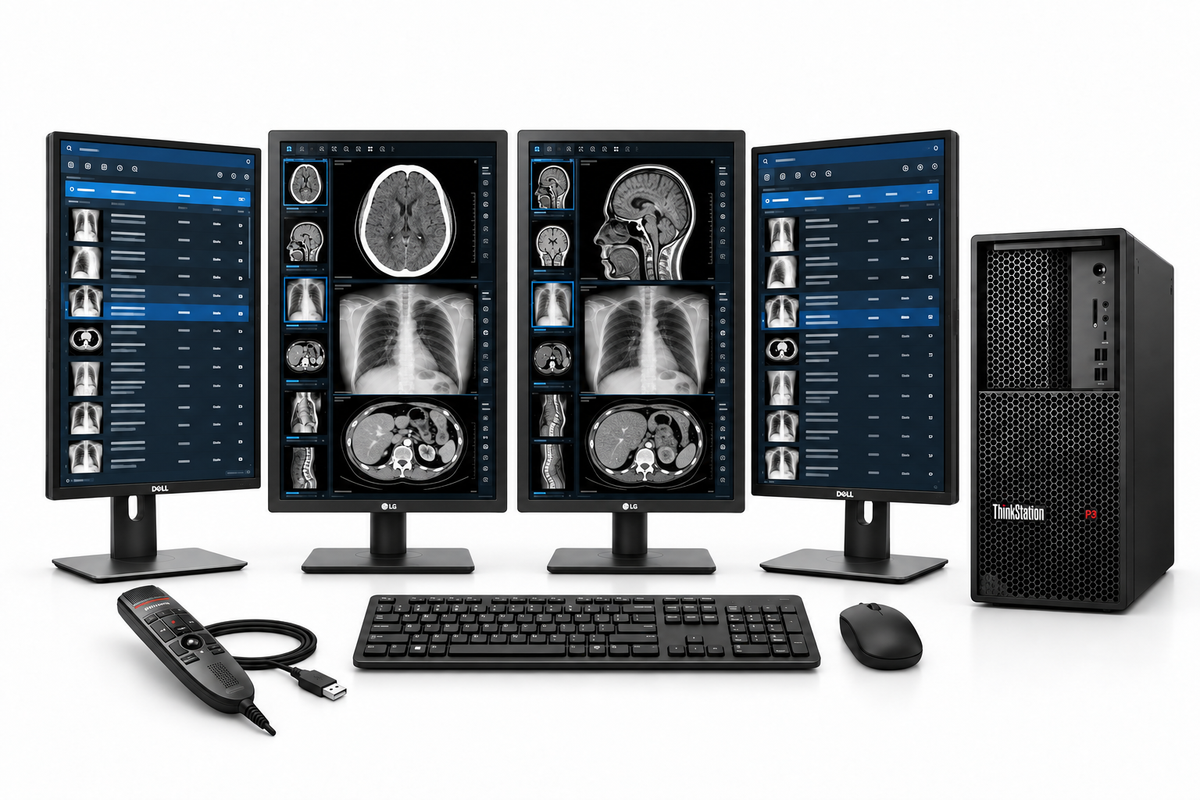

This package includes two LG 24HR513C-B 2MP medical displays with a new Lenovo ThinkStation P3 Tower Gen 2, NVIDIA RTX A400 graphics, two Dell 24-inch worklist monitors and a Philips SpeechMike Premium LFH3500.
Keep image viewing on the LG displays and worklists and reporting on the Dell screens. Confirm your PACS and facility requirements before ordering.
A four-screen graphics platform
Four Mini DisplayPort 1.4a outputs. Match cables and adapters to the confirmed monitors.
Handheld USB dictation
LFH3500 push-button controls, a trackball and configurable function keys for reporting.
THE PACKAGE
Every component, clearly specified.
Four physical monitors.
One workstation. One dictation microphone.
One keyboard. One mouse.

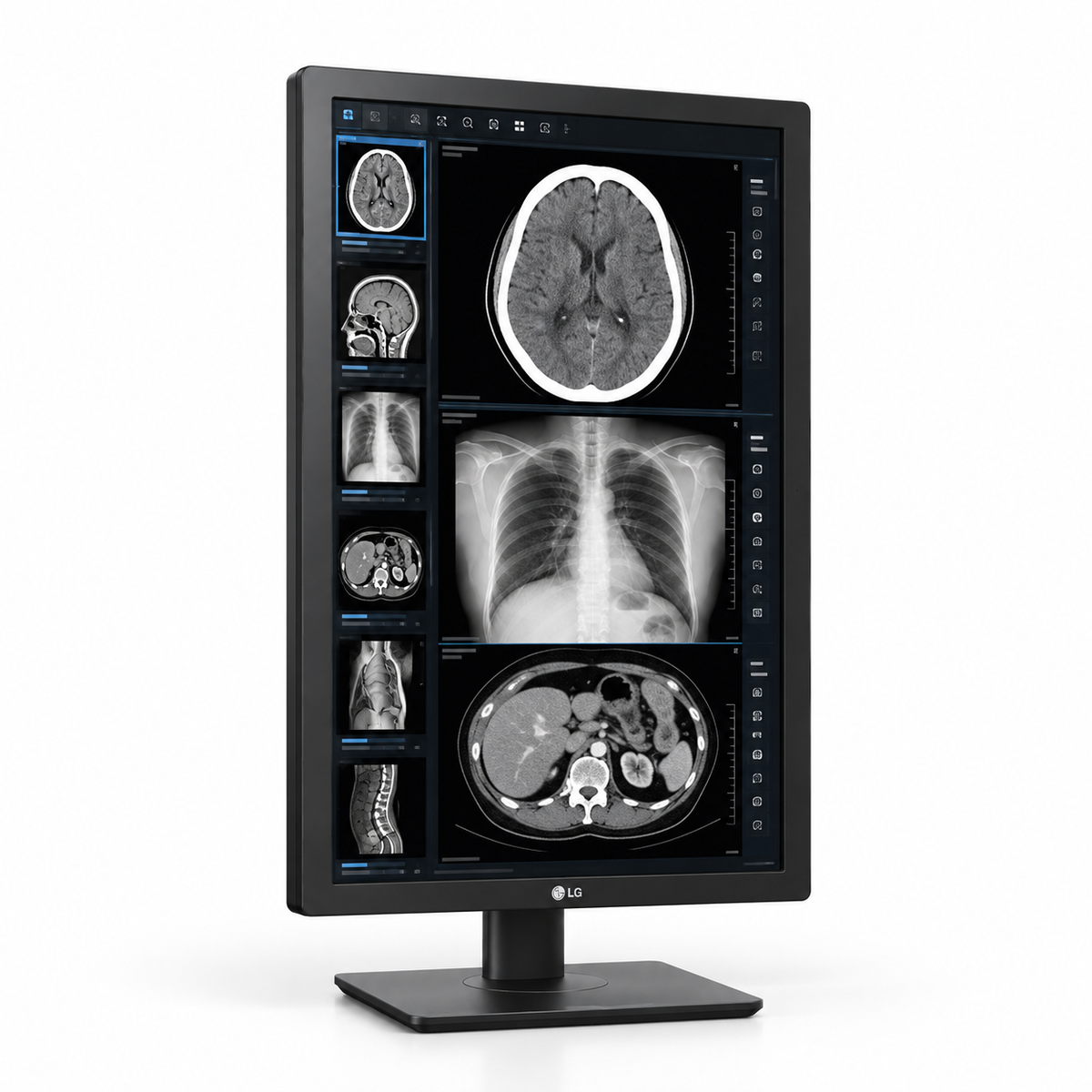

2 × MEDICAL DISPLAY
LG 24HR513C-B
24-inch, 2MP-class IPS displays. 16:10 format with DICOM calibration support and adjustable stands.
1 × WORKSTATION + GPU
Lenovo P3 Tower Gen 2
Core Ultra 5 235 · 32GB DDR5 · 512GB NVMe SSD. Installed NVIDIA RTX A400 with 4GB GDDR6.
2 × WORKLIST DISPLAY
Dell 24-inch class
Portrait-capable worklist and reporting screens. Models depend on availability; confirm connections.
1 × DICTATION MICROPHONE
Philips SpeechMike LFH3500
Wired USB Type-A connection, push-button operation, integrated trackball and configurable controls.
1 × KEYBOARD + 1 × MOUSE
Keyboard and mouse
Desktop input set. Models selected based on availability.
TECHNICAL DETAIL
Specifications that matter.
LG medical displays Per monitor · 2 included
| Model | LG 24HR513C-B |
|---|---|
| Panel | 24-inch IPS · 16:10 |
| Resolution | 1920 × 1200 · 2MP class |
| Brightness | 600 cd/m² typical · 350 cd/m² stabilized |
| Contrast | 1000:1 |
| Calibration | DICOM Part 14 support · internal front sensor |
| Video | DisplayPort, HDMI and DVI-D inputs · DisplayPort output |
| Ergonomics | Height, tilt, swivel and bi-directional pivot |
| Mounting | 100 × 100 mm VESA |
Workstation and graphics Package configuration
| Computer | New Lenovo ThinkStation P3 Tower Gen 2 |
|---|---|
| Processor | Intel Core Ultra 5 235 · 14 cores / 14 threads · up to 5.0GHz |
| Memory | 32GB DDR5 |
| Storage | 512GB NVMe SSD |
| Graphics | NVIDIA RTX A400 · 4GB GDDR6 |
| GPU outputs | 4 × Mini DisplayPort 1.4a |
| Microphone | Philips SpeechMike Premium LFH3500 · USB Type-A |
| Worklist monitors | 2 × Dell 24-inch worklist monitors · selected based on availability |
| Keyboard and mouse | 1 × keyboard · 1 × mouse · models selected based on availability |
| Operating system | To be confirmed in the final quote |
PURCHASING & SUPPORT
A clear scope before you order.
- Condition
- New, as confirmed for this package.
- Shipping
- Free Shipping. Confirm delivery location and shipping scope in your quote.
- Warranty
- 3-Year Manufacturer Warranty, subject to the applicable manufacturer’s terms. Confirm component coverage in the final quote.
- Technical support
- Contact support@texelcomp.com. Installation, calibration and training scope are specified in the quote.
CLINICAL & CONFIGURATION NOTES
Choose for your workflow.
The LG 24HR513C display is FDA 510(k)-cleared under K232985 for radiological image review, analysis and diagnosis by trained medical practitioners. It is not intended for mammography. Clearance applies to the LG display, not the assembled package.
Before ordering, confirm the Lenovo configuration, operating system, monitor connections, adapters and service scope. Dell worklist monitor models are selected based on availability. PACS, reporting and speech-recognition licenses are included only when expressly listed in the final quote.
BUYER QUESTIONS
Before you choose your station.
How many monitors are included?
Four: a pair of LG 24HR513C-B displays and two Dell 24-inch worklist monitors. Dell models are selected based on availability.
Can the RTX A400 drive all four screens?
The RTX A400 supports up to four displays. Final monitor inputs, cables, adapters, drivers and application settings must be verified for your setup.
Can I use this package for mammography?
No. The LG 24HR513C is not intended for mammography.
Are PACS and speech-recognition licenses included?
Only when expressly specified in the quote. Tell Texel Comp which PACS, dictation software and operating system your organization uses.
Manufacturer & regulatory resources
LG 24HR513C-B specificationsLenovo P3 Tower Gen 2 PSREFPhilips LFH3500 documentationFDA K232985Explore radiology workstations
TEXEL COMP
Build around your workflow.
Talk with Texel Comp about the right configuration, compatibility and service scope for your organization.
