Integrated DICOM calibration
RadiCS LE and the Integrated Front Sensor support calibration without repeatedly mounting an external sensor. Brightness stabilization and Digital Uniformity Equalizer help manage screen consistency.
EIZO RadiForce MX217 21.3-inch 2MP DICOM Medical Monitor
$0.00
Skip to product information
EIZO RadiForce MX217 21.3-inch 2MP DICOM Medical Monitor
$0.00
EIZO RADIFORCE MX217 · 2MP MEDICAL DISPLAY
A compact medical display for patient charts and image review.
The EIZO RadiForce MX217 is a 21.3-inch 2MP-class color medical monitor with DICOM Part 14 calibration. Its portrait-format 1200 × 1600 panel supports patient-chart display and radiological image review in hospitals and clinics.
Plan your reading workstation
Specify the exact regional model and operating luminance before deployment. European MX217-HB and MX217-SB configurations have separate specifications; their calibration values are not assumed for this base-model listing.
MX217 features for your imaging workflow
Grayscale and color together
Hybrid Gamma PXL handles mixed image content at pixel level. The color IPS panel has a typical brightness of 500 cd/m² and an 1800:1 typical contrast ratio.

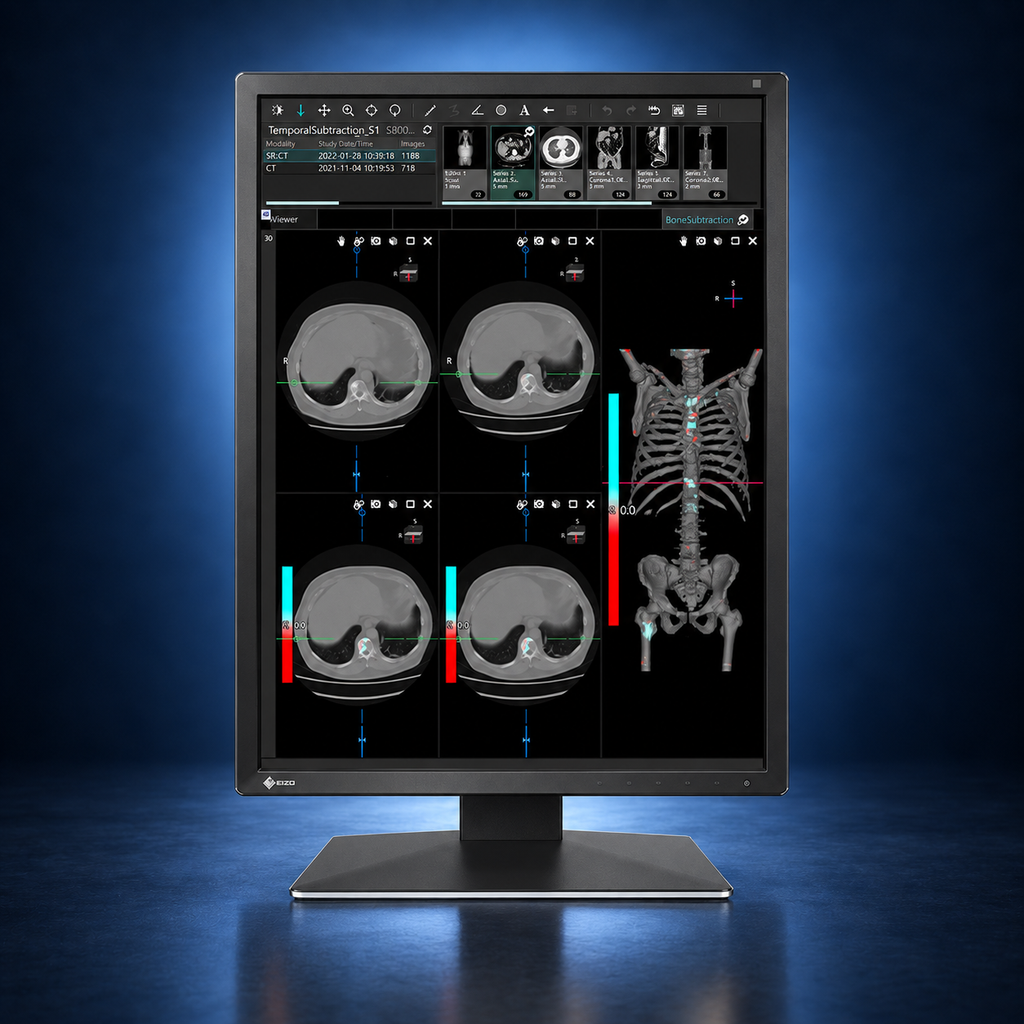

Portrait or landscape workflow
Image Rotation Plus links RadiCS LE with the gravity sensor to adjust image orientation. DisplayPort output supports compatible daisy-chain arrangements.
EIZO RadiForce MX217 technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce MX217 |
|---|---|
| Screen / panel | 21.3-inch color IPS; LED backlight |
| Native resolution | 1200 × 1600; 2MP class; 3:4 |
| Typical brightness | 500 cd/m² |
| Recommended calibration | Not verified for base model; confirm supplied configuration |
| Typical contrast / pixel pitch | 1800:1; 0.270 mm |
| DICOM / uniformity | DICOM Part 14; Digital Uniformity Equalizer |
| Calibration sensor | Integrated Front Sensor (IFS) |
Connections & installation
| Video inputs | 1 × DisplayPort; 1 × DVI-D |
|---|---|
| Video output | DisplayPort daisy chain |
| USB hub | 1 × Type-B upstream; 2 × Type-A downstream (USB 2.0) |
| VESA mounting | 100 × 100 mm |
| Power input / typical use | 100–240V AC, 50/60Hz; 23W |
| Net monitor weight | 7.2 kg with stand; not packaged shipping weight |
Applications & clinical scope
FDA 510(k) K230684 covers radiological image review, analysis and diagnosis by trained medical practitioners. Mammography is excluded; this listing does not claim diagnostic mammography or DBT use.
The EIZO US specification lists 500 cd/m² typical brightness but does not state a recommended calibration target. Confirm that target with EIZO for the supplied configuration; do not substitute MX217-HB or MX217-SB values. No HDMI or USB-C video input is listed.
Verify PACS compatibility, native-resolution output, reading-room conditions and facility QC requirements before deployment.
One monitor & standard accessories
EIZO lists one DisplayPort cable, one USB Type-A–Type-B cable, an AC power cord, RadiCS LE and documentation with its standard kit. Contents vary by country and supplied unit; the written quote confirms the actual kit. No workstation, dictation microphone or secondary monitor is included.
Product & purchasing details
One MX217 monitor. Condition, availability, price and shipping are confirmed in your quote. Contact Texel Comp for technical support options.
EIZO lists a standard five-year manufacturer warranty. Confirm the quoted unit's eligibility, remaining coverage and applicable LCD brightness or operating-hour limits before ordering; country and configuration terms can differ.
Send your quantity, workstation, graphics outputs and delivery ZIP code. Installation, full RadiCS, RadiNET Pro and external QC sensors are separate quote items.
MX217 buying & setup questions
What is the MX217's FDA clinical scope?
FDA 510(k) K230684 covers radiological image review, analysis and diagnosis by trained practitioners and excludes mammography. Suitability also depends on the facility's modality and QC requirements.
Does MX217 have an Integrated Front Sensor?
Yes. EIZO lists an Integrated Front Sensor, backlight sensor and ambient light sensor. The front sensor works with RadiCS LE for supported DICOM calibration.
Is 500 cd/m² its recommended calibration target?
500 cd/m² is the typical brightness listed on the US product page. A recommended target for the quoted base configuration has not been verified; confirm it before installation.
Is MX217 the same configuration as MX217-HB or MX217-SB?
Do not assume that. Regional suffixes can identify different luminance configurations and specifications. Your quote should identify the exact supplied model and calibration requirements.
Manufacturer & regulatory resources
EIZO MX217 specifications, manuals & downloads · FDA K230684 clinical indications · EIZO US warranty terms
