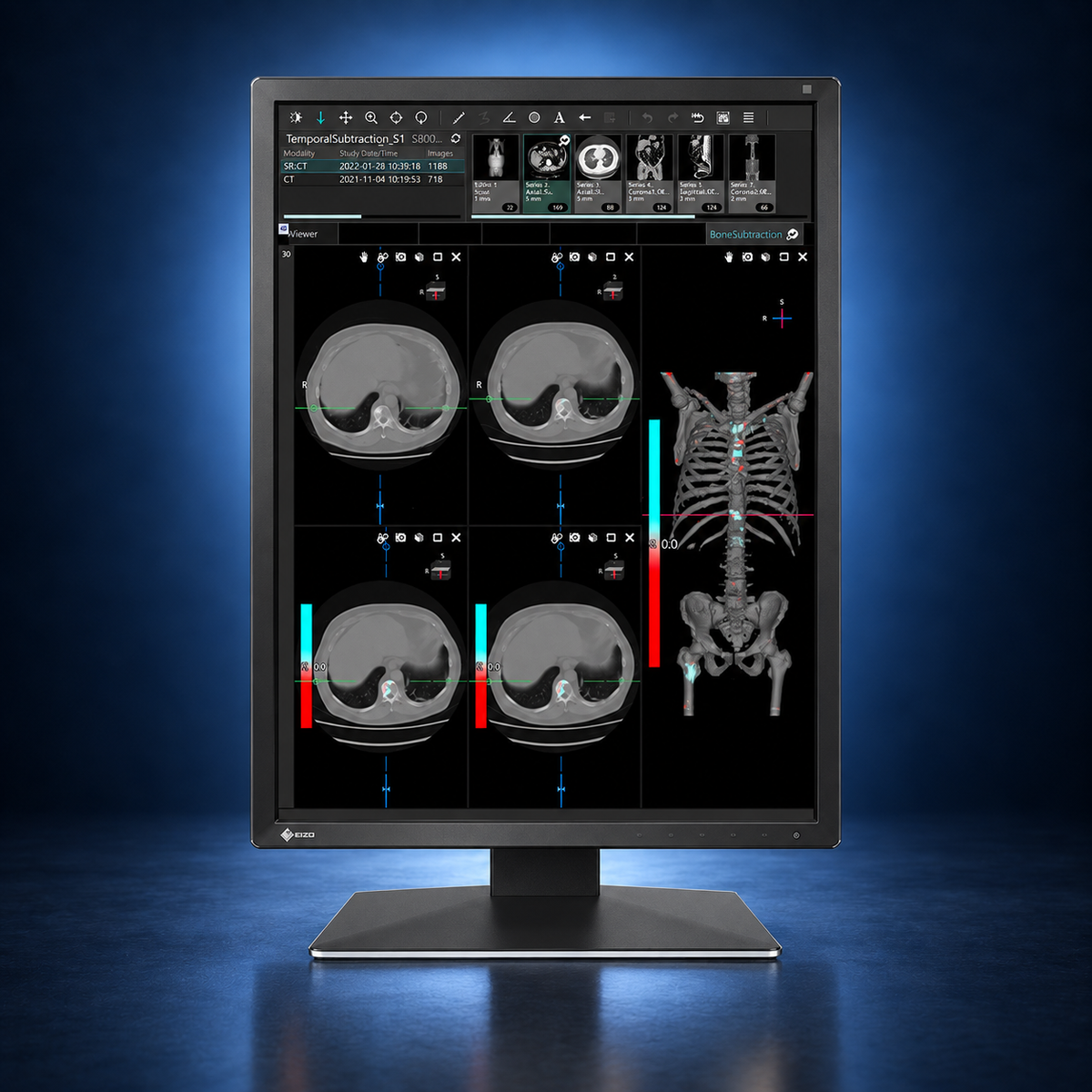

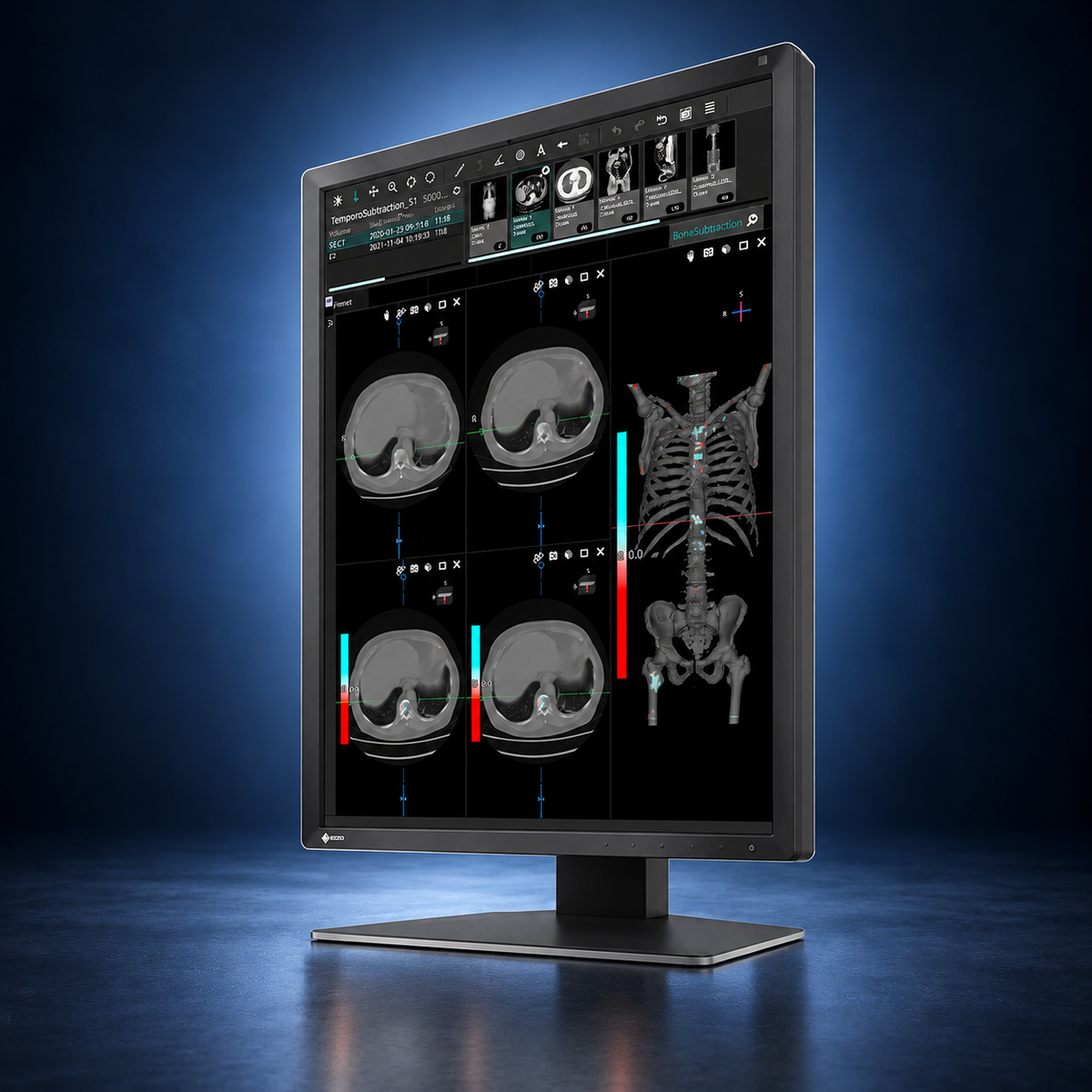

01 · 2MP DISPLAY
A portrait screen for medical image review.
The 21.3-inch MX217 displays 1200 × 1600 pixels. Texel Comp can help arrange this compact medical-review display within your workstation.
EIZO RadiForce MX2172MP · 1200 × 1600 · 21.3-inch
EIZO · MEDICAL IMAGE REVIEW
EIZO RadiForce MX217 21.3-inch 2MP DICOM Medical Monitor
SKU EIZO-MX217
New
The EIZO RadiForce MX217 is a 21.3-inch 2MP-class color medical monitor with DICOM Part 14 calibration. Its portrait-format 1200 × 1600 panel supports patient-chart display and radiological image review in hospitals and clinics. This listing is for one monitor.
- DISPLAY
- 21.3-inch color IPS · 2MP
1200 × 1600 · 3:4 - DICOM CALIBRATION
- Target confirmed with supplied model
500 cd/m² typical brightness - IMAGE CONSISTENCY
- Integrated Front Sensor
Digital Uniformity Equalizer - CONNECTIVITY
- 1 × DisplayPort; 1 × DVI-D
DisplayPort daisy chain
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year standard EIZO warranty · terms applyManufacturer terms apply
Contact Texel CompConfiguration and service questions
EIZO RADIFORCE MX217 · 2MP MEDICAL DISPLAY
A compact medical display for patient charts and image review.
The EIZO RadiForce MX217 is a 21.3-inch 2MP-class color medical monitor with DICOM Part 14 calibration. Its portrait-format 1200 × 1600 panel supports patient-chart display and radiological image review in hospitals and clinics.
Plan your reading workstation
Specify the exact regional model and operating luminance before deployment. European MX217-HB and MX217-SB configurations have separate specifications; their calibration values are not assumed for this base-model listing.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · BUILT-IN CALIBRATION
Use the sensor already in the bezel.
The Integrated Front Sensor and included RadiCS LE support DICOM Part 14 calibration, reducing the need to attach an external sensor.
03 · MIXED IMAGE VIEWING
Review grayscale and color images together.
Hybrid Gamma PXL adjusts the display response pixel by pixel, allowing different medical image types to share the same screen.
04 · IMAGE DETAIL
Maintain detail at higher brightness.
EIZO Sharpness Recovery addresses the relationship between panel brightness and sharpness. Review display settings as part of your workstation setup.
05 · SCREEN ORIENTATION
Let the image follow the monitor.
Image Rotation Plus uses a built-in gravity sensor to switch between portrait and landscape orientation as you rotate the monitor.
06 · MULTI-MONITOR SETUP
Link compatible displays through DisplayPort.
The DisplayPort output supports daisy chaining with compatible graphics hardware. Texel Comp can review the video connections for your intended layout.

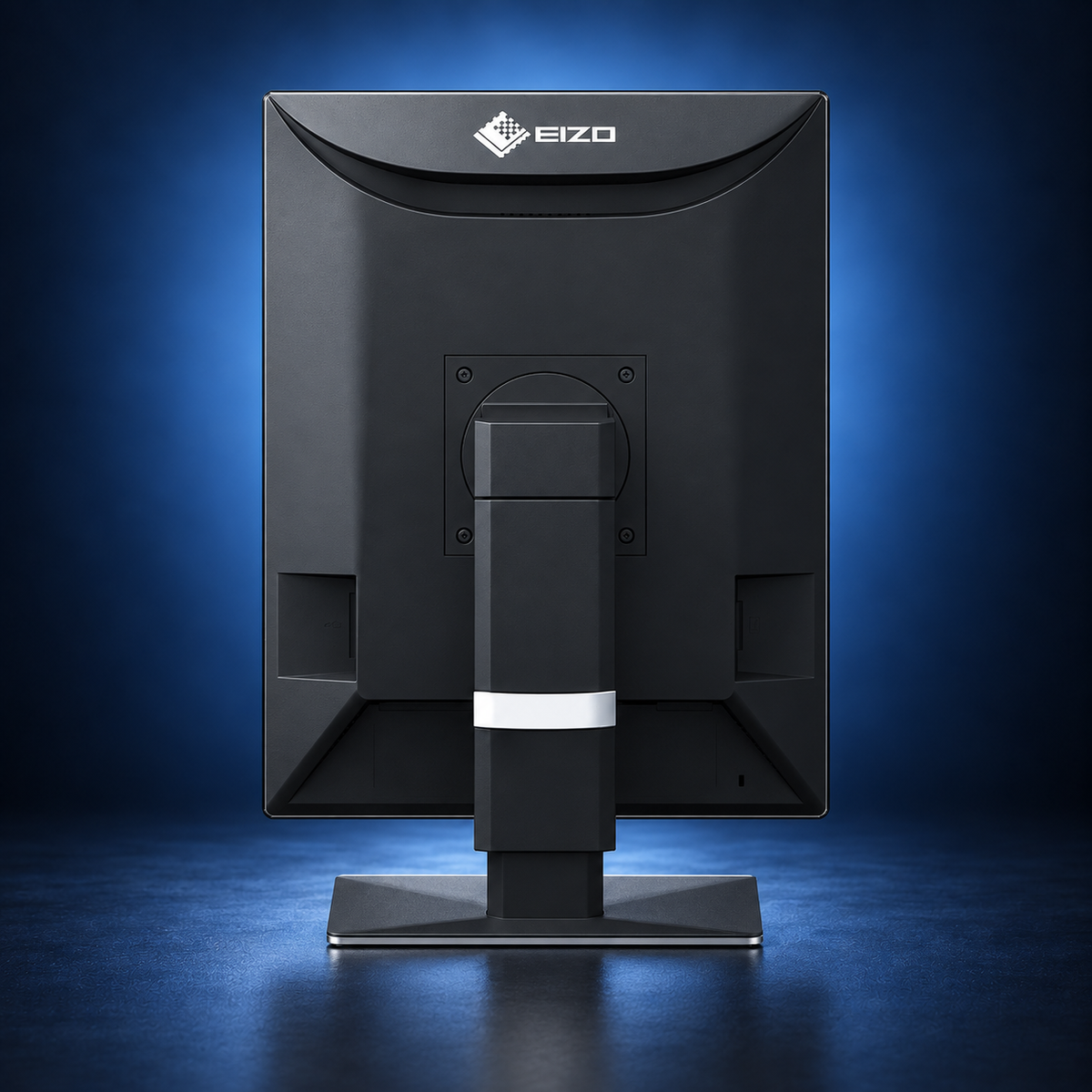

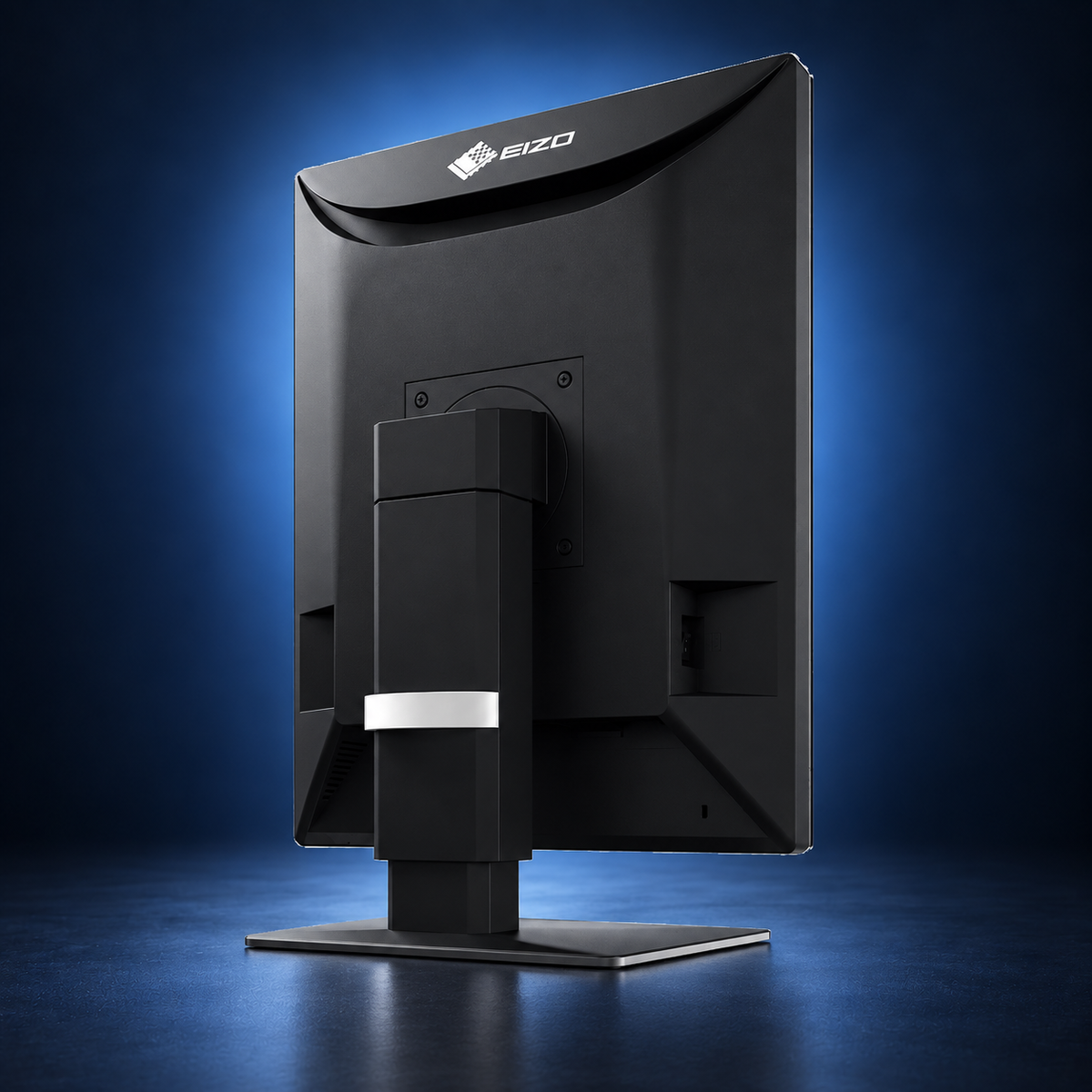

07 · REAR VIEW
Plan video and peripheral connections.
DisplayPort and DVI-D inputs sit alongside a DisplayPort output and USB hub. Check cable access and mounting clearance before installation.
08 · INSTALLATION DRAWING
Check mounting and cable clearance.
Use the manufacturer’s outline drawing to review the 100 × 100 mm VESA mounting pattern, full stand position and rear cable access with Texel Comp.
EIZO RadiForce MX217 technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce MX217 |
|---|---|
| Screen / panel | 21.3-inch color IPS; LED backlight |
| Native resolution | 1200 × 1600; 2MP class; 3:4 |
| Typical brightness | 500 cd/m² |
| Recommended calibration | Not verified for base model; confirm supplied configuration |
| Typical contrast / pixel pitch | 1800:1; 0.270 mm |
| DICOM / uniformity | DICOM Part 14; Digital Uniformity Equalizer |
| Calibration sensor | Integrated Front Sensor (IFS) |
Connections & installation
| Video inputs | 1 × DisplayPort; 1 × DVI-D |
|---|---|
| Video output | DisplayPort daisy chain |
| USB hub | 1 × Type-B upstream; 2 × Type-A downstream (USB 2.0) |
| VESA mounting | 100 × 100 mm |
| Power input / typical use | 100–240V AC, 50/60Hz; 23W |
| Net monitor weight | 7.2 kg with stand; not packaged shipping weight |
Applications & clinical scope
FDA 510(k) K230684 covers radiological image review, analysis and diagnosis by trained medical practitioners. Mammography is excluded; this listing does not claim diagnostic mammography or DBT use.
The EIZO US specification lists 500 cd/m² typical brightness but does not state a recommended calibration target. Confirm that target with EIZO for the supplied configuration; do not substitute MX217-HB or MX217-SB values. No HDMI or USB-C video input is listed.
Verify PACS compatibility, native-resolution output, reading-room conditions and facility QC requirements before deployment.
One monitor & standard accessories
EIZO lists one DisplayPort cable, one USB Type-A–Type-B cable, an AC power cord, RadiCS LE and documentation with its standard kit. Contents vary by country and supplied unit; the written quote confirms the actual kit. No workstation, dictation microphone or secondary monitor is included.
Product & purchasing details
One MX217 monitor. Condition, availability, price and shipping are confirmed in your quote. Contact Texel Comp for technical support options.
EIZO lists a standard five-year manufacturer warranty. Confirm the quoted unit's eligibility, remaining coverage and applicable LCD brightness or operating-hour limits before ordering; country and configuration terms can differ.
Send your quantity, workstation, graphics outputs and delivery ZIP code. Installation, full RadiCS, RadiNET Pro and external QC sensors are separate quote items.
MX217 buying & setup questions
What is the MX217's FDA clinical scope?
FDA 510(k) K230684 covers radiological image review, analysis and diagnosis by trained practitioners and excludes mammography. Suitability also depends on the facility's modality and QC requirements.
Does MX217 have an Integrated Front Sensor?
Yes. EIZO lists an Integrated Front Sensor, backlight sensor and ambient light sensor. The front sensor works with RadiCS LE for supported DICOM calibration.
Is 500 cd/m² its recommended calibration target?
500 cd/m² is the typical brightness listed on the US product page. A recommended target for the quoted base configuration has not been verified; confirm it before installation.
Is MX217 the same configuration as MX217-HB or MX217-SB?
Do not assume that. Regional suffixes can identify different luminance configurations and specifications. Your quote should identify the exact supplied model and calibration requirements.
