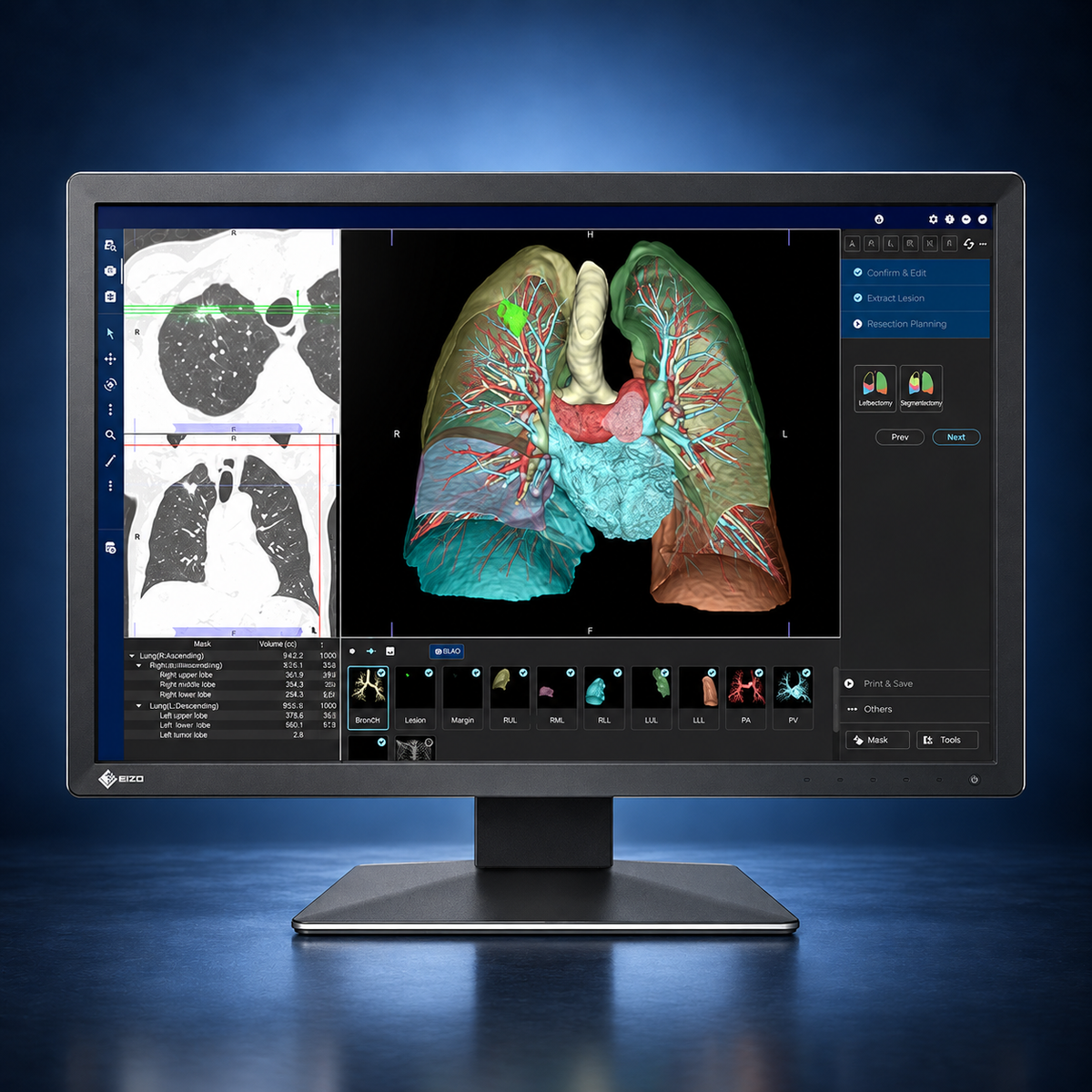

01 · WIDESCREEN DISPLAY
Room for images and reference information.
The 24.1-inch MX243W provides a 1920 × 1200 medical-review workspace. Texel Comp can help match its layout to your clinical workstation.
EIZO RadiForce MX243W2.3MP · 1920 × 1200 · 24.1-inch
EIZO · MEDICAL IMAGE REVIEW
EIZO RadiForce MX243W 24.1-inch 2.3MP DICOM Medical Monitor
SKU EIZO-MX243W
New
The EIZO RadiForce MX243W is a 24.1-inch color DICOM medical monitor with 1920 × 1200 native resolution. Its 2.3MP-class widescreen panel provides space for medical images, patient information and application controls. This listing is for one monitor.
- DISPLAY
- 24.1-inch color IPS · 2.3MP
1920 × 1200 · 16:10 - DICOM CALIBRATION
- 220 cd/m² recommended
410 cd/m² typical brightness - IMAGE CONSISTENCY
- Backlight sensor; RadiCS LE
Digital Uniformity Equalizer - CONNECTIVITY
- 1 × DisplayPort; 1 × DVI-D
DisplayPort daisy chain
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year standard EIZO warranty · terms applyManufacturer terms apply
Contact Texel CompConfiguration and service questions
EIZO RADIFORCE MX243W · 2.3MP MEDICAL DISPLAY
A 16:10 medical review display with room for images and tools.
The EIZO RadiForce MX243W is a 24.1-inch color DICOM medical monitor with 1920 × 1200 native resolution. Its 2.3MP-class widescreen panel provides space for medical images, patient information and application controls.
Plan your reading workstation
This MX-Series display is positioned for medical image viewing and clinical review. Match its resolution and 220 cd/m² recommended calibration brightness to the intended modality, room conditions and facility quality-control policy.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · MIXED IMAGE VIEWING
Keep color and grayscale content together.
Hybrid Gamma PXL applies grayscale or color response to individual pixels, supporting different medical image types within one viewing layout.
03 · DISPLAY MODES
Choose a mode for the displayed content.
CAL Switch provides selectable viewing modes. Included RadiCS LE can automate mode changes for configured applications within your workstation workflow.
04 · IMAGE DETAIL
Support source detail at higher brightness.
Sharpness Recovery compensates for the panel sharpness tradeoff at high brightness. Review your selected settings during workstation acceptance.
05 · QUALITY CONTROL
Keep calibration on your routine schedule.
Included RadiCS LE supports simplified DICOM Part 14 calibration. Discuss your sensor and quality-control setup with Texel Comp when configuring the workstation.
06 · MULTI-MONITOR SETUP
Organize a compatible daisy chain.
DisplayPort output supports multiple connected displays with compatible graphics hardware. Plan output support and cable routing before choosing your arrangement.

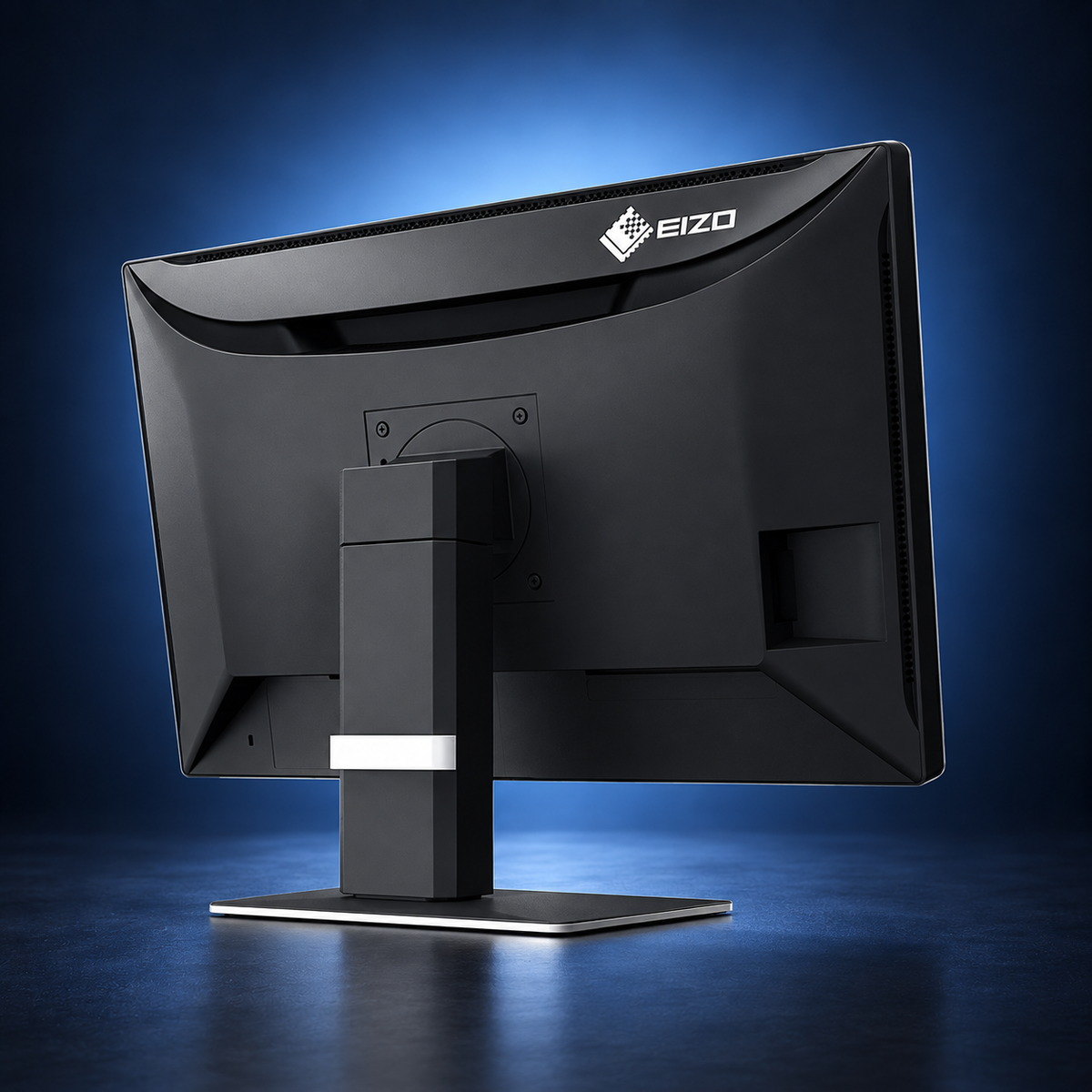

07 · REAR VIEW
See how the display connects.
DisplayPort and DVI-D inputs, DisplayPort output and a USB hub provide workstation connectivity. Allow room for cables behind your chosen mount.
EIZO RadiForce MX243W technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce MX243W |
|---|---|
| Screen / panel | 24.1-inch color IPS; LED backlight |
| Native resolution | 1920 × 1200; 2.3MP class; 16:10 |
| Typical brightness | 410 cd/m² |
| Recommended calibration | 220 cd/m² |
| Typical contrast / pixel pitch | 1350:1; 0.270 mm |
| DICOM / uniformity | DICOM Part 14; Digital Uniformity Equalizer |
| Calibration sensor | Backlight sensor; no Integrated Front Sensor listed |
Connections & installation
| Video inputs | 1 × DisplayPort; 1 × DVI-D |
|---|---|
| Video output | DisplayPort daisy chain |
| USB hub | 1 × Type-B upstream; 2 × Type-A downstream (USB 2.0) |
| VESA mounting | 100 × 100 mm |
| Power input / typical use | 100–240V AC, 50/60Hz; 26W |
| Net monitor weight | 7.8 kg with stand; not packaged shipping weight |
Applications & clinical scope
FDA 510(k) K221136 covers radiological image review, analysis and diagnosis by trained medical practitioners. Mammography is excluded; this listing does not claim diagnostic mammography or DBT use.
EIZO lists a backlight sensor for MX243W, not an Integrated Front Sensor or ambient light sensor. Specify any external QC sensor and full RadiCS software separately. No USB-C docking or HDMI input is listed.
Verify PACS compatibility, native-resolution output, reading-room conditions and facility QC requirements before deployment.
One monitor & standard accessories
EIZO lists one DisplayPort cable, one USB Type-A–Type-B cable, an AC power cord, RadiCS LE and documentation with its standard configuration. Contents vary by country and supplied unit; the written quote confirms the actual kit. No workstation, dictation microphone or secondary monitor is included.
Product & purchasing details
One MX243W monitor. Condition, availability, price and shipping are confirmed in your quote. Contact Texel Comp for technical support options.
EIZO lists a standard five-year manufacturer warranty. Confirm the quoted unit's eligibility, remaining coverage and applicable LCD brightness or operating-hour limits before ordering; country and configuration terms can differ.
Send your quantity, workstation, graphics outputs and delivery ZIP code. Installation, full RadiCS, RadiNET Pro and external QC sensors are separate quote items.
MX243W buying & setup questions
Does MX243W have a built-in front calibration sensor?
No Integrated Front Sensor is listed in EIZO's specifications. Its listed sensor is the backlight sensor. Confirm an external sensor and the required QC software if your testing procedure needs them.
Is this a Full HD monitor?
Its native resolution is 1920 × 1200 with a 16:10 aspect ratio, often called WUXGA. That is taller than 1920 × 1080 Full HD and is approximately 2.3 megapixels.
Can MX243W be used for mammography diagnosis?
No. FDA 510(k) K221136 excludes mammography. Its general-radiology indications do not establish diagnostic mammography or DBT use.
Does it include USB-C docking?
No. Video inputs are DisplayPort and DVI-D. The USB 2.0 hub uses a Type-B upstream connection and two Type-A downstream ports.
Manufacturer & regulatory resources
EIZO MX243W specifications, manuals & downloads · FDA K221136 clinical indications · EIZO US warranty terms
