01 · 8MP DISPLAY
A wide screen for medical image review.
The 30.5-inch MX317W displays 4096 × 2160 pixels. Texel Comp can help position this wide medical-review screen within your workstation.
EIZO RadiForce MX317W8MP · 4096 × 2160 · 30.5-inch
EIZO · MEDICAL IMAGE REVIEW

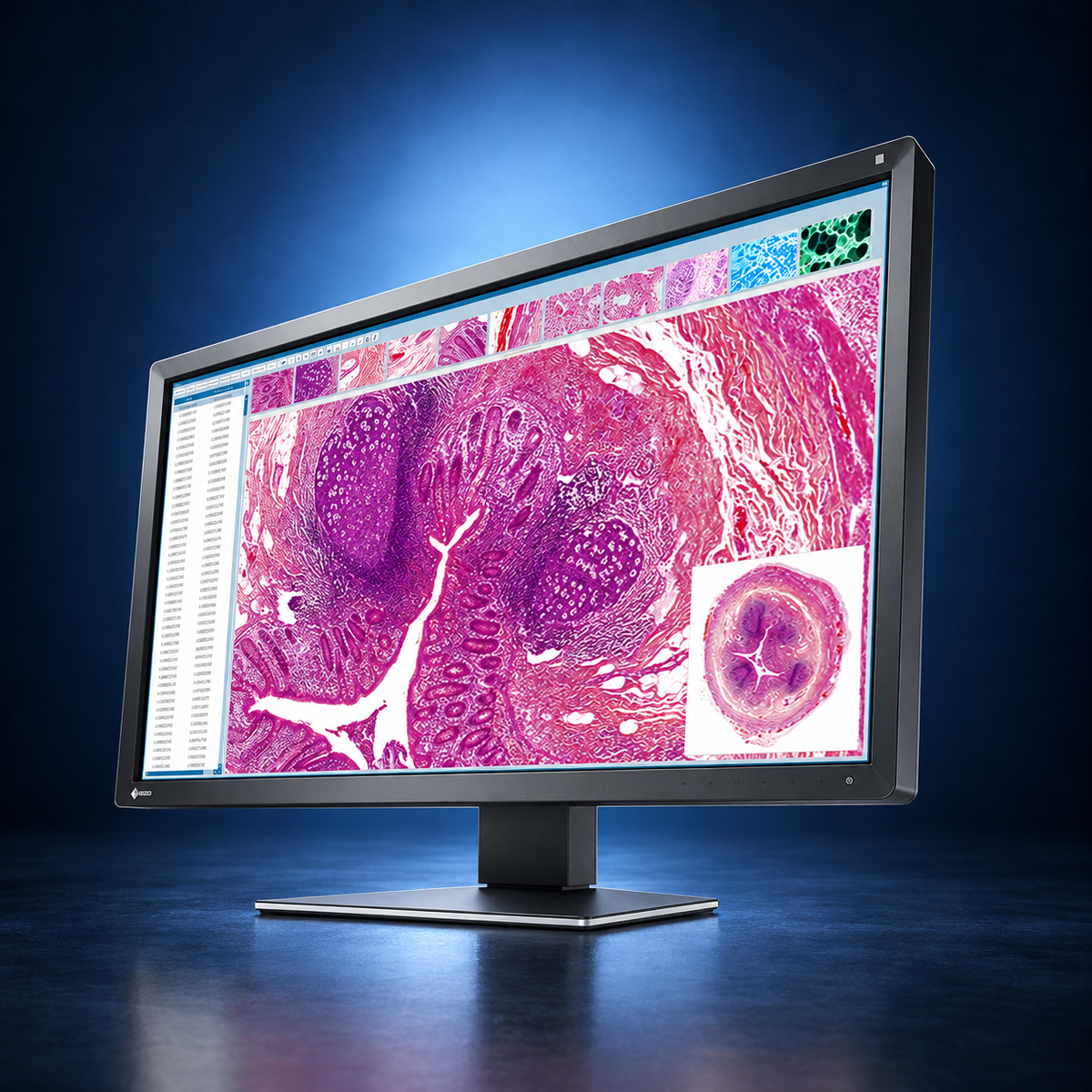

EIZO RadiForce MX317W 30.5-inch 8MP DICOM Medical Monitor
SKU EIZO-MX317W
New
The EIZO RadiForce MX317W is a 30.5-inch color DICOM medical monitor with 4096 × 2160 native resolution. It combines an 8MP widescreen workspace, integrated calibration and mobile-workstation connectivity for medical image review and teleradiology. This listing is for one monitor.
- DISPLAY
- 30.5-inch color IPS · 8MP
4096 × 2160 · 17:9 - DICOM CALIBRATION
- 270 cd/m² recommended
550 cd/m² typical brightness - IMAGE CONSISTENCY
- Integrated Front Sensor
Digital Uniformity Equalizer - CONNECTIVITY
- USB-C video + up to 94W charging
Gigabit LAN · USB-C daisy chain
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year standard EIZO warranty · terms applyManufacturer terms apply
Contact Texel CompConfiguration and service questions
EIZO RADIFORCE MX317W · 8MP MEDICAL DISPLAY
A wide 8MP medical workspace with USB-C docking.
The EIZO RadiForce MX317W is a 30.5-inch color DICOM medical monitor with 4096 × 2160 native resolution. It combines an 8MP widescreen workspace, integrated calibration and mobile-workstation connectivity for medical image review and teleradiology.
Plan your reading workstation
The 17:9 panel gives images and application tools room to sit together. Match the display's 270 cd/m² recommended calibration target to your reading environment and facility requirements rather than choosing by megapixels alone.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.

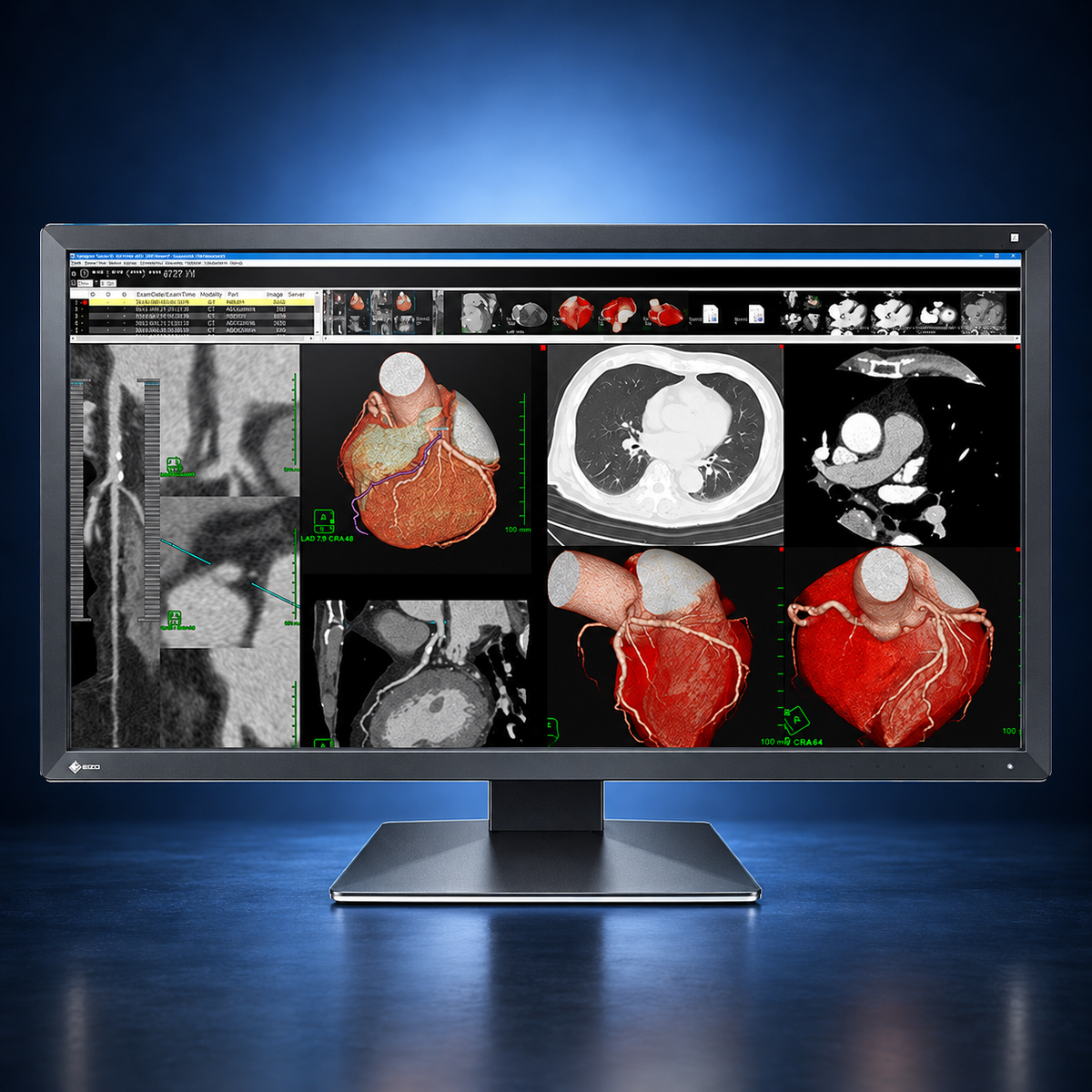

02 · WORKSPACE
Keep multiple windows in view.
The 8MP image area offers room for medical images and application windows. Review the arrangement that suits your daily workflow.
03 · USB-C DOCKING
Connect a compatible mobile workstation.
USB-C combines video, USB data and up to 94 W power delivery. Check the workstation’s USB-C capabilities when choosing your configuration.
04 · WIRED NETWORK
Bring Ethernet to the display.
The built-in Gigabit Ethernet connection can serve a compatible USB-C workstation through the monitor, simplifying a desk that needs wired networking.
05 · MULTI-MONITOR SETUP
Extend your desktop through USB-C.
USB-C daisy chaining supports compatible multi-monitor setups. Ask Texel Comp to review the workstation output and connected display requirements.
06 · MIXED IMAGE VIEWING
Use one screen for grayscale and color.
Hybrid Gamma PXL applies an appropriate response to individual pixels, allowing monochrome and color medical images to share the same screen.
07 · BUILT-IN CALIBRATION
Keep quality control on the schedule.
The Integrated Front Sensor and included RadiCS LE support DICOM Part 14 calibration as display characteristics change over time.

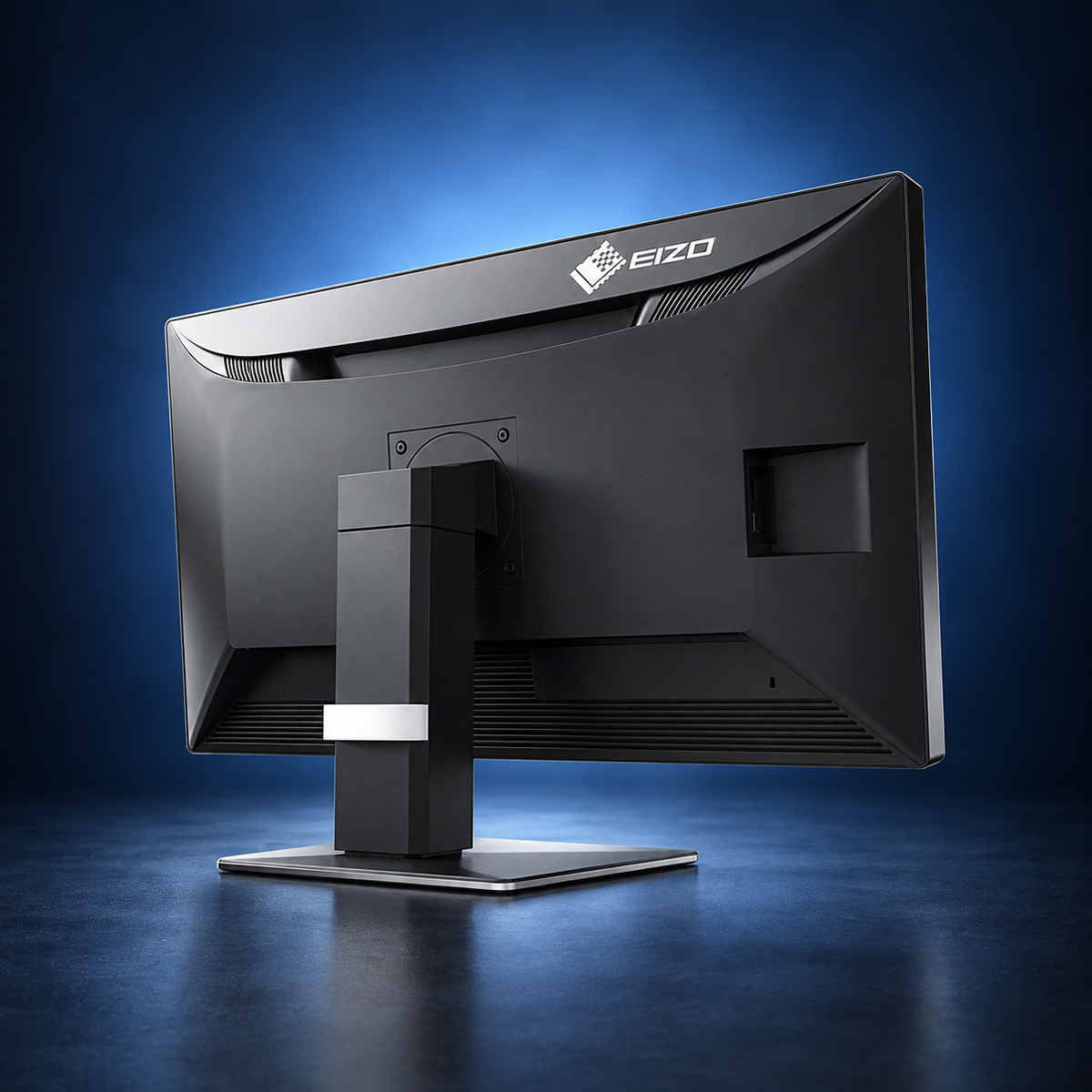

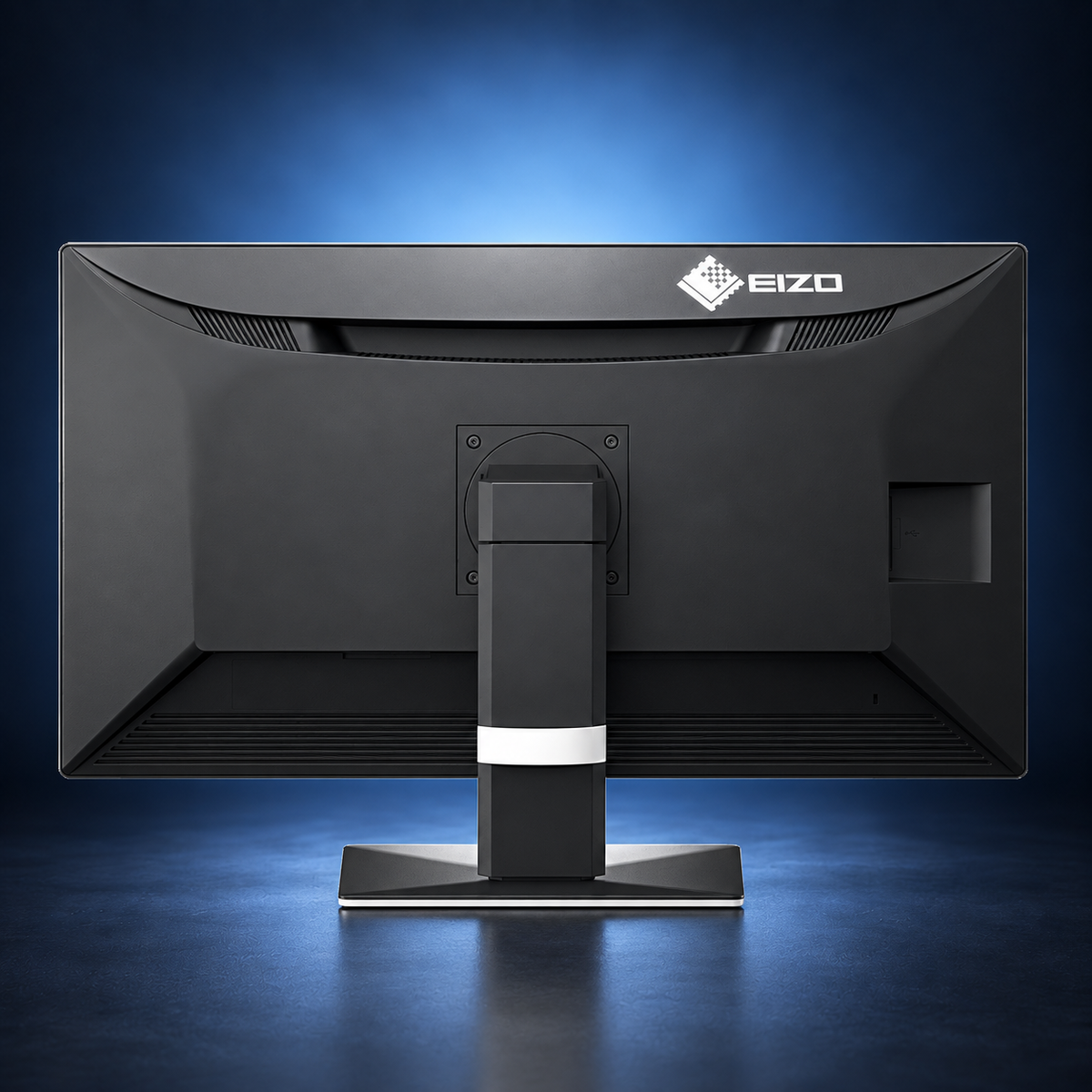

08 · REAR VIEW
Map the ports before installation.
USB-C, two DisplayPort inputs, HDMI and Ethernet support different workstation connections. Plan the USB hub and downstream display connections together.
09 · INSTALLATION DRAWING
Check mounting and cable clearance.
Use the manufacturer’s outline drawing to review the 100 × 100 mm VESA mounting pattern, full stand position and rear cable access with Texel Comp.
EIZO RadiForce MX317W technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce MX317W |
|---|---|
| Screen / panel | 30.5-inch color IPS; LED backlight |
| Native resolution | 4096 × 2160; 8MP class; 17:9 |
| Typical brightness | 550 cd/m² |
| Recommended calibration | 270 cd/m² |
| Typical contrast / pixel pitch | 1800:1; 0.1674 mm |
| DICOM / uniformity | DICOM Part 14; Digital Uniformity Equalizer |
| Calibration sensor | Integrated Front Sensor (IFS) |
Connections & installation
| Video inputs | USB-C (DisplayPort Alt Mode); 2 × DisplayPort; 1 × HDMI |
|---|---|
| Video output | USB-C daisy chain |
| USB hub | 2 × Type-B + 1 × Type-C upstream; 3 × Type-A + 1 × Type-C downstream (USB 2.0) |
| USB-C power / LAN | Upstream up to 94W; downstream up to 15W; gigabit RJ-45 |
| VESA mounting | 100 × 100 mm |
| Power input / typical use | 100–240V AC, 50/60Hz; 62W |
| Net monitor weight | 12.4 kg with stand; not packaged shipping weight |
Applications & clinical scope
FDA 510(k) K233465 covers radiological image review, analysis and diagnosis by trained medical practitioners. Mammography is excluded; this listing does not claim diagnostic mammography or DBT use.
MX317W is distinct from MX317W-PA. The -PA model has separate digital-pathology indications; those claims are not applied to this product. Daisy chaining and 94W charging require compatible devices and a suitable USB-C cable.
Verify PACS compatibility, native-resolution output, reading-room conditions and facility QC requirements before deployment.
One monitor & standard accessories
EIZO lists a USB-C cable, two DisplayPort cables, one HDMI cable, two USB Type-A–Type-B cables, an AC power cord, RadiCS LE and documentation with its standard kit. Contents vary by country and supplied unit; the written quote confirms the actual kit. No workstation, dictation microphone or secondary monitor is included.
Product & purchasing details
One MX317W monitor. Condition, availability, price and shipping are confirmed in your quote. Contact Texel Comp for technical support options.
EIZO lists a standard five-year manufacturer warranty. Confirm the quoted unit's eligibility, remaining coverage and applicable LCD brightness or operating-hour limits before ordering; country and configuration terms can differ.
Send your quantity, workstation, graphics outputs and delivery ZIP code. Installation, full RadiCS, RadiNET Pro and external QC sensors are separate quote items.
MX317W buying & setup questions
Is the MX317W intended for diagnostic mammography?
No. FDA 510(k) K233465 covers radiological image review, analysis and diagnosis, and explicitly excludes mammography. Do not select this model for diagnostic mammography or DBT.
Can the monitor charge a mobile workstation?
The upstream USB-C port offers up to 94W Power Delivery and DisplayPort Alt Mode video. Confirm your workstation's charging requirement and USB-C video support before ordering.
Is MX317W the pathology-cleared MX317W-PA?
No. MX317W-PA is a separately identified model with different FDA indications. A Patho display preset on MX317W does not establish those separate primary-pathology indications.
Is the display 3840 × 2160 UHD?
Its native panel is 4096 × 2160, a wider 17:9 DCI 4K format. Configure the workstation and application to use the monitor's native pixel matrix.
Manufacturer & regulatory resources
EIZO MX317W specifications, manuals & downloads · FDA K233465 clinical indications · EIZO US warranty terms
