01 · 12MP DISPLAY
One canvas for a wider image layout.
The RX1270 combines a 30.9-inch screen with 4200 × 2800 resolution. Discuss your PACS arrangement with Texel Comp before deployment.
EIZO RadiForce RX127012MP · 4200 × 2800 · 30.9-inch
EIZO · MAMMOGRAPHY & DBT
EIZO RadiForce RX1270 30.9-inch 12MP Mammography & DBT Monitor
SKU EIZO-RX1270
New
The EIZO RadiForce RX1270 is a 30.9-inch color medical display for radiologists reading mammography, digital breast tomosynthesis and other radiological images. Its 4200 × 2800 IPS panel provides a wide workspace without a center bezel. This listing is for one monitor.
- DISPLAY
- 30.9-inch color IPS · 12MP
4200 × 2800 · 3:2 - DICOM CALIBRATION
- 500 cd/m² recommended
1200 cd/m² typical brightness - IMAGE CONSISTENCY
- Integrated Front Sensor
Digital Uniformity Equalizer - CONNECTIVITY
- 2 × DisplayPort; 1 × HDMI
No video daisy-chain output
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year standard EIZO warranty · terms applyManufacturer terms apply
Contact Texel CompConfiguration and service questions
EIZO RADIFORCE RX1270 · 12MP MEDICAL DISPLAY
Read breast imaging and general radiology on one continuous 12MP screen.
The EIZO RadiForce RX1270 is a 30.9-inch color medical display for radiologists reading mammography, digital breast tomosynthesis and other radiological images. Its 4200 × 2800 IPS panel provides a wide workspace without a center bezel.
Plan your reading workstation
A single wide display can place current and prior studies side by side. Confirm your PACS hanging protocols, graphics outputs and room quality-control requirements when planning a breast-imaging workstation.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.

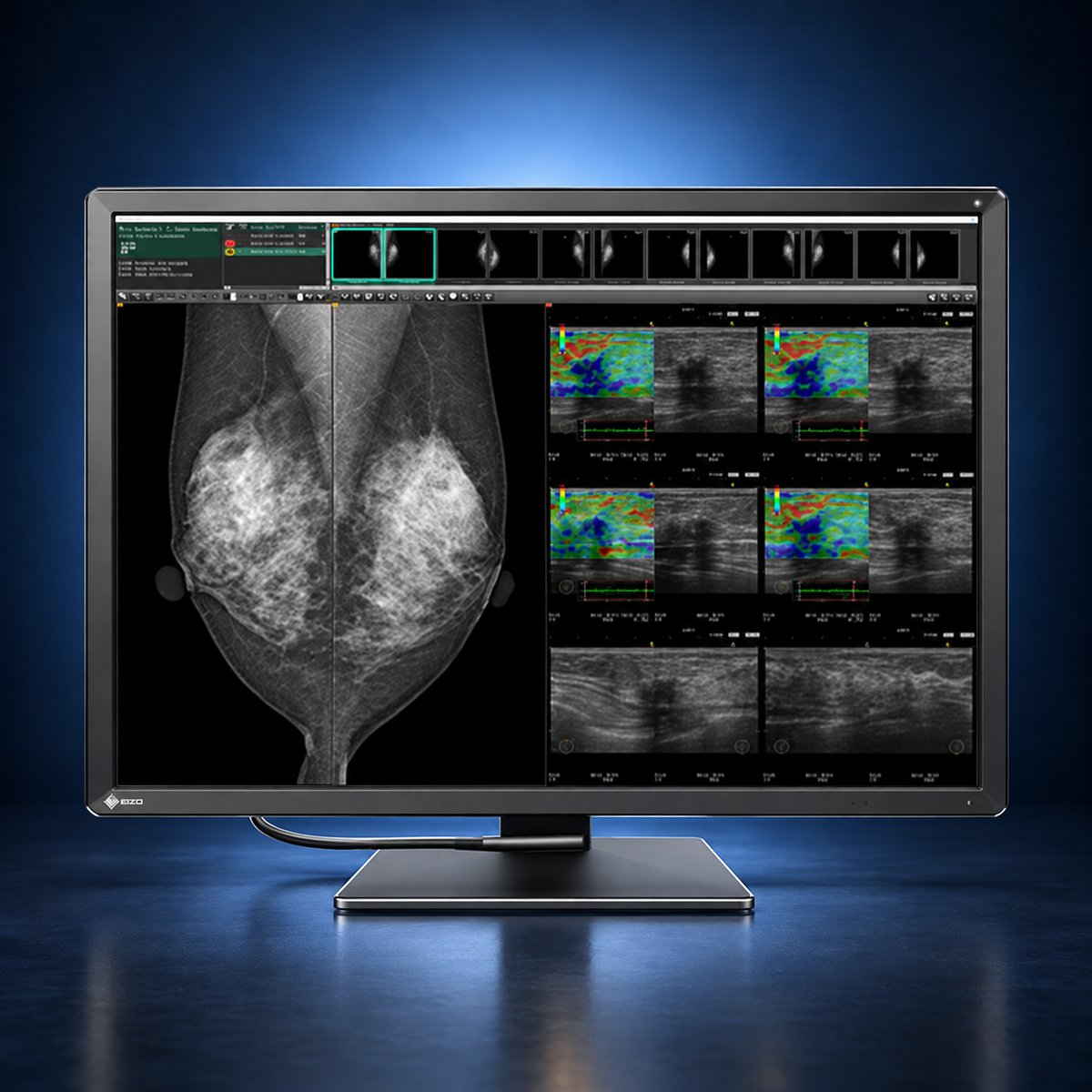

02 · WORKSPACE
Arrange several images on one screen.
Its 12MP workspace supports flexible image positioning. Compare your preferred application layout with the space available on the reading desk.
03 · READING ROOM LIGHTING
Light the wall behind your display.
A built-in comfort light illuminates the rear wall; an adjustable spotlight helps with the keyboard or printed material in dim rooms.
04 · FOCUS TOOLS
Bring attention to a selected region.
Point-and-Focus adjusts brightness and grayscale within selected areas using the mouse and keyboard, with the bundled RadiCS LE workflow tools.
05 · REFERENCE WINDOW
Keep reference information nearby.
Hide-and-Seek lets you reveal or hide a Picture-in-Picture window at the screen edge, keeping reference content available as needed.
06 · MIXED IMAGE VIEWING
Combine color and grayscale content.
Hybrid Gamma PXL handles monochrome and color pixels individually, supporting different image types within a single viewing layout.
07 · QUALITY CONTROL
Use the sensor in the front bezel.
Included RadiCS LE and the Integrated Front Sensor support DICOM Part 14 calibration. Discuss your quality-control requirements with Texel Comp.

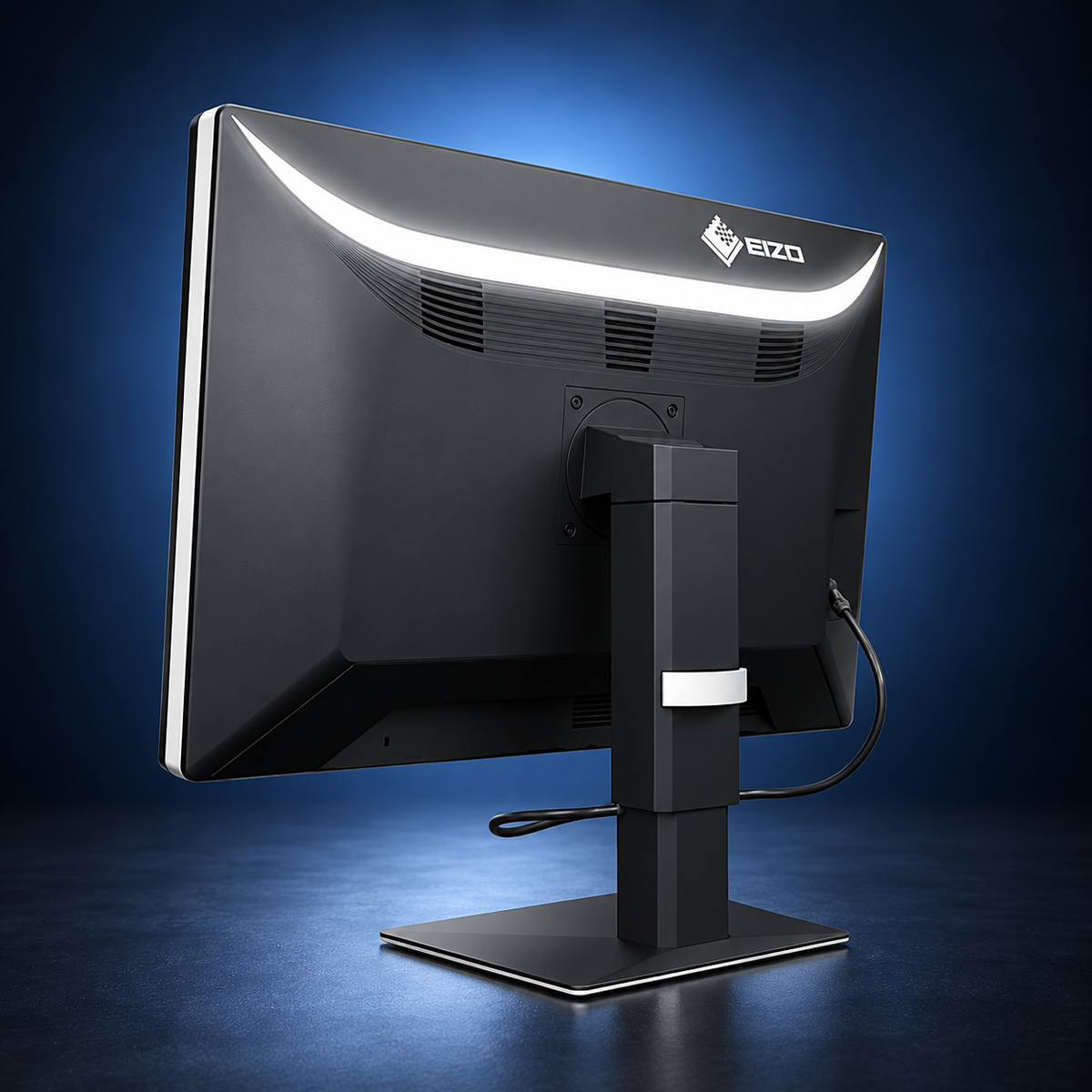

08 · REAR VIEW
Check video and USB connections together.
The RX1270 has two DisplayPort inputs, HDMI and a USB hub. Review graphics output and cable routing before installation.
EIZO RadiForce RX1270 technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce RX1270 |
|---|---|
| Screen / panel | 30.9-inch color IPS; LED backlight |
| Native resolution | 4200 × 2800; 12MP class; 3:2 |
| Typical brightness | 1200 cd/m² |
| Recommended calibration | 500 cd/m² |
| Typical contrast / pixel pitch | 1500:1; 0.1554 mm |
| DICOM / uniformity | DICOM Part 14; Digital Uniformity Equalizer |
| Calibration sensor | Integrated Front Sensor (IFS) |
Connections & installation
| Video inputs | 2 × DisplayPort; 1 × HDMI |
|---|---|
| Video output | No video daisy-chain output |
| USB hub | 2 × Type-B upstream; 3 × Type-A downstream (USB 2.0) |
| VESA mounting | 100 × 100 mm |
| Power input / typical use | 100–240V AC, 50/60Hz; 77W |
| Net monitor weight | 15.6 kg with stand; not packaged shipping weight |
Applications & clinical scope
FDA 510(k) K200485 includes full-field digital mammography, digital breast tomosynthesis and other radiological images for review, analysis and diagnosis by trained medical practitioners.
Specify anti-glare or anti-reflection surface treatment in your quote; these are distinct manufacturer configurations. USB-C docking and daisy-chain video output are not listed for this model.
Verify PACS compatibility, native-resolution output, reading-room conditions and facility QC requirements before deployment.
One monitor & standard accessories
EIZO's standard kit lists two DisplayPort cables, one HDMI cable, two USB Type-A–Type-B cables, an AC power cord, cable cover, RadiCS LE and documentation. Contents vary by country and supplied unit; the written quote confirms the actual kit. No workstation, dictation microphone or secondary monitor is included.
Product & purchasing details
One RX1270 monitor. Condition, availability, price and shipping are confirmed in your quote. Contact Texel Comp for technical support options.
EIZO lists a standard five-year limited warranty. US LCD brightness coverage at 7500K is limited to five years or 20,000 hours at 500 cd/m², or 30,000 hours at 400 cd/m², whichever occurs first. Quoted-unit eligibility and remaining coverage are confirmed before ordering.
Send your quantity, workstation, graphics outputs and delivery ZIP code. Installation, full RadiCS, RadiNET Pro and external QC sensors are separate quote items.
RX1270 buying & setup questions
Is the RX1270 cleared for mammography and DBT?
Yes. FDA 510(k) K200485 includes full-field digital mammography and digital breast tomosynthesis, as well as other radiological images, for professional review, analysis and diagnosis.
Is this one monitor or two 5MP monitors?
One physical RX1270 monitor with a 4200 × 2800 panel. A side-by-side PACS layout does not create separate hardware monitors; configure image presentation to meet your clinical requirements.
Can I use one DisplayPort cable at native resolution?
EIZO specifies a 12MP signal at 60 frames per second over DisplayPort 1.4. The workstation, output capability and cable must support the required mode.
Are RadiCS and a graphics card included?
The standard configuration lists RadiCS LE. Full RadiCS, external QC sensors and graphics hardware are separate unless your written quote includes them.
Manufacturer & regulatory resources
EIZO RX1270 specifications, manuals & downloads · FDA K200485 clinical indications · EIZO US warranty terms
