01 · 2MP DISPLAY
A compact portrait reading screen.
The 21.3-inch RX270 displays 1200 × 1600 pixels. Texel Comp can help place it alongside the information screens on your desk.
EIZO RadiForce RX2702MP · 1200 × 1600 · 21.3-inch
EIZO · DIAGNOSTIC RADIOLOGY
EIZO RadiForce RX270 21.3-inch 2MP Diagnostic Radiology Monitor
SKU EIZO-RX270
New
The EIZO RadiForce RX270 is a 21.3-inch color diagnostic monitor with a 1200 × 1600 portrait panel. It brings DICOM grayscale calibration and an integrated front sensor to CT, MRI and other general-radiology reading workflows. This listing is for one monitor.
- DISPLAY
- 21.3-inch color IPS · 2MP
1200 × 1600 · 3:4 - DICOM CALIBRATION
- 500 cd/m² recommended
1000 cd/m² typical brightness - IMAGE CONSISTENCY
- Integrated Front Sensor
Digital Uniformity Equalizer - CONNECTIVITY
- 2 × DisplayPort; 1 × DVI-D
DisplayPort daisy chain
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year standard EIZO warranty · terms applyManufacturer terms apply
Contact Texel CompConfiguration and service questions
EIZO RADIFORCE RX270 · 2MP MEDICAL DISPLAY
A high-brightness 2MP display for grayscale and color imaging.
The EIZO RadiForce RX270 is a 21.3-inch color diagnostic monitor with a 1200 × 1600 portrait panel. It brings DICOM grayscale calibration and an integrated front sensor to CT, MRI and other general-radiology reading workflows.
Plan your reading workstation
Choose this 2MP-class display around your modality, image matrix and facility requirements. A brighter medical panel and a higher-resolution panel solve different needs; compare RX270 with RX370 before specifying your station.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · BUILT-IN CALIBRATION
Calibrate with the front-bezel sensor.
The Integrated Front Sensor works with included RadiCS LE for DICOM Part 14 calibration, supporting scheduled display quality control.
03 · MIXED IMAGE VIEWING
Give each pixel the appropriate response.
Hybrid Gamma PXL distinguishes monochrome and color content, supporting mixed medical image layouts without switching the entire screen between modes.
04 · IMAGE DETAIL
Address the high-brightness sharpness tradeoff.
Sharpness Recovery supports reproduction of source image detail at high brightness. Include your chosen settings in workstation acceptance checks.
05 · WORKSTATION CONTROL
Work across two computers with one set of controls.
Switch-and-Go shares a keyboard and mouse between connected workstations. Discuss the video and USB cable plan with Texel Comp.
06 · MULTI-MONITOR SETUP
Simplify compatible video cabling.
DisplayPort output supports daisy-chain arrangements with a compatible graphics board. Check monitor combinations and output requirements before deployment.
07 · USB CONNECTIONS
Keep peripherals within reach.
Two USB-A downstream ports connect peripherals. A dedicated USB-C port charges devices at up to 15 W and does not carry video.

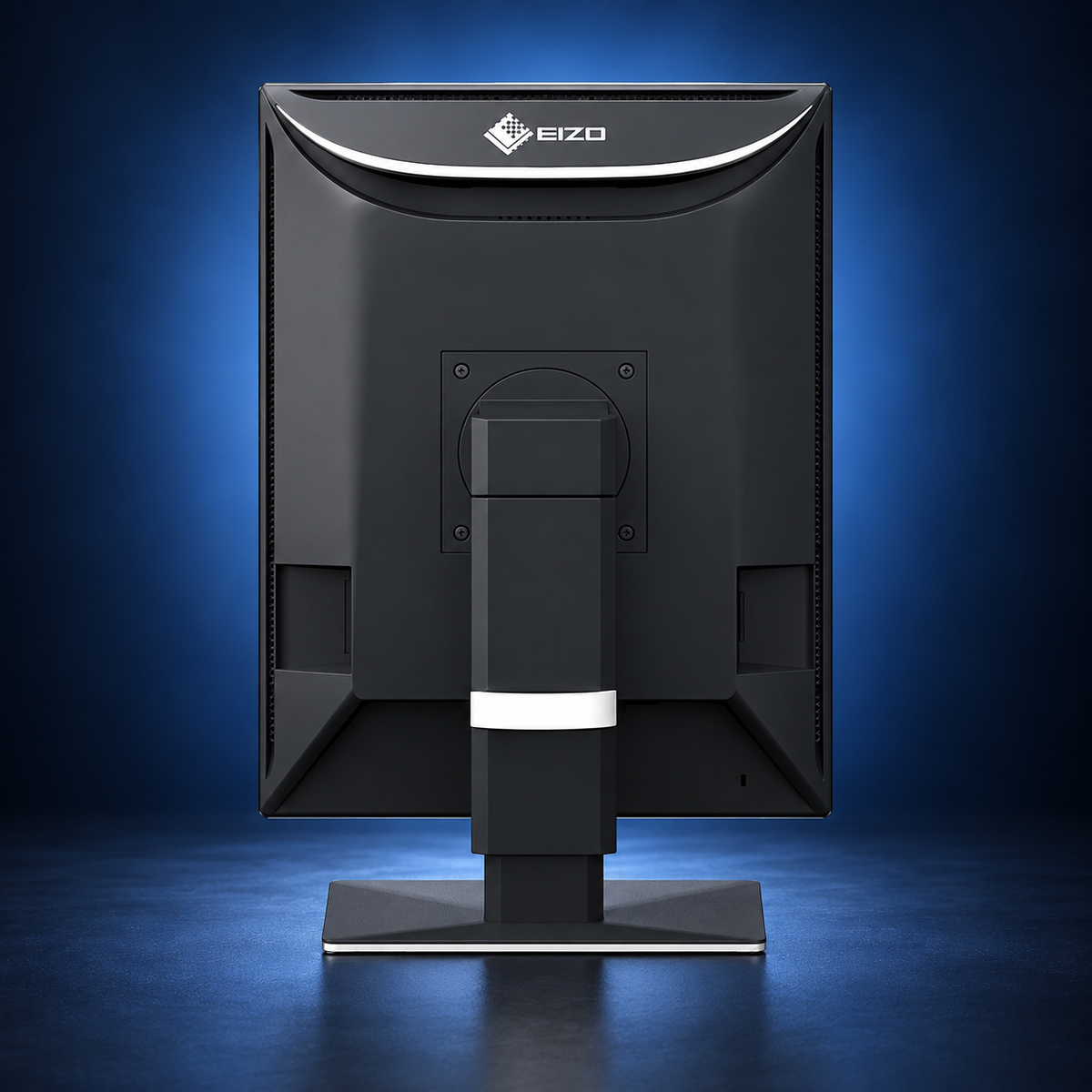

08 · REAR VIEW
Check the panel behind the display.
Two DisplayPort inputs, DVI-D and DisplayPort output provide video connections. Leave access for the USB cables and chosen mounting hardware.
EIZO RadiForce RX270 technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce RX270 |
|---|---|
| Screen / panel | 21.3-inch color IPS; LED backlight |
| Native resolution | 1200 × 1600; 2MP class; 3:4 |
| Typical brightness | 1000 cd/m² |
| Recommended calibration | 500 cd/m² |
| Typical contrast / pixel pitch | 1800:1; 0.270 mm |
| DICOM / uniformity | DICOM Part 14; Digital Uniformity Equalizer |
| Calibration sensor | Integrated Front Sensor (IFS) |
Connections & installation
| Video inputs | 2 × DisplayPort; 1 × DVI-D |
|---|---|
| Video output | DisplayPort daisy chain |
| USB hub | 2 × Type-B upstream; 2 × Type-A downstream (USB 2.0) |
| USB-C dedicated charging | Up to 15W; no video or USB data |
| VESA mounting | 100 × 100 mm |
| Power input / typical use | 100–240V AC, 50/60Hz; 33W |
| Net monitor weight | 7.7 kg with stand; not packaged shipping weight |
Applications & clinical scope
FDA 510(k) K223768 covers radiological image review, analysis and diagnosis by trained medical practitioners. Mammography is excluded; this listing does not claim diagnostic mammography or DBT use.
The USB-C connection is charging only; video must use DisplayPort or DVI-D. Specify anti-glare or anti-reflection surface treatment when quoting. DICOM Part 14 is not supported while Instant Backlight Booster is active.
Verify PACS compatibility, native-resolution output, reading-room conditions and facility QC requirements before deployment.
One monitor & standard accessories
EIZO lists one DisplayPort cable, one USB Type-A–Type-B cable, an AC power cord, RadiCS LE and documentation with its standard configuration. Contents vary by country and supplied unit; the written quote confirms the actual kit. No workstation, dictation microphone or secondary monitor is included.
Product & purchasing details
One RX270 monitor. Condition, availability, price and shipping are confirmed in your quote. Contact Texel Comp for technical support options.
EIZO lists a standard five-year manufacturer warranty. Confirm the quoted unit's eligibility, remaining coverage and applicable LCD brightness or operating-hour limits before ordering; country and configuration terms can differ.
Send your quantity, workstation, graphics outputs and delivery ZIP code. Installation, full RadiCS, RadiNET Pro and external QC sensors are separate quote items.
RX270 buying & setup questions
Is the RX270 suitable for mammography or DBT diagnosis?
No. FDA 510(k) K223768 covers radiological image review, analysis and diagnosis but excludes mammography. Choose a breast-imaging display with the required indications.
How does RX270 differ from RX370?
RX270 has a 1200 × 1600 2MP-class panel; RX370 has a 1536 × 2048 3MP panel. Select resolution using your modality and facility criteria rather than screen size alone.
Can I connect a USB-C laptop directly for video?
No. RX270's dedicated USB-C port supplies up to 15W for charging and is not a video input. Use a compatible DisplayPort or DVI-D connection.
Can I daisy-chain a second monitor?
The DisplayPort output supports daisy chaining with compatible graphics hardware and connected displays. Verify the full signal path and required native resolutions before purchase.
Manufacturer & regulatory resources
EIZO RX270 specifications, manuals & downloads · FDA K223768 clinical indications · EIZO US warranty terms
