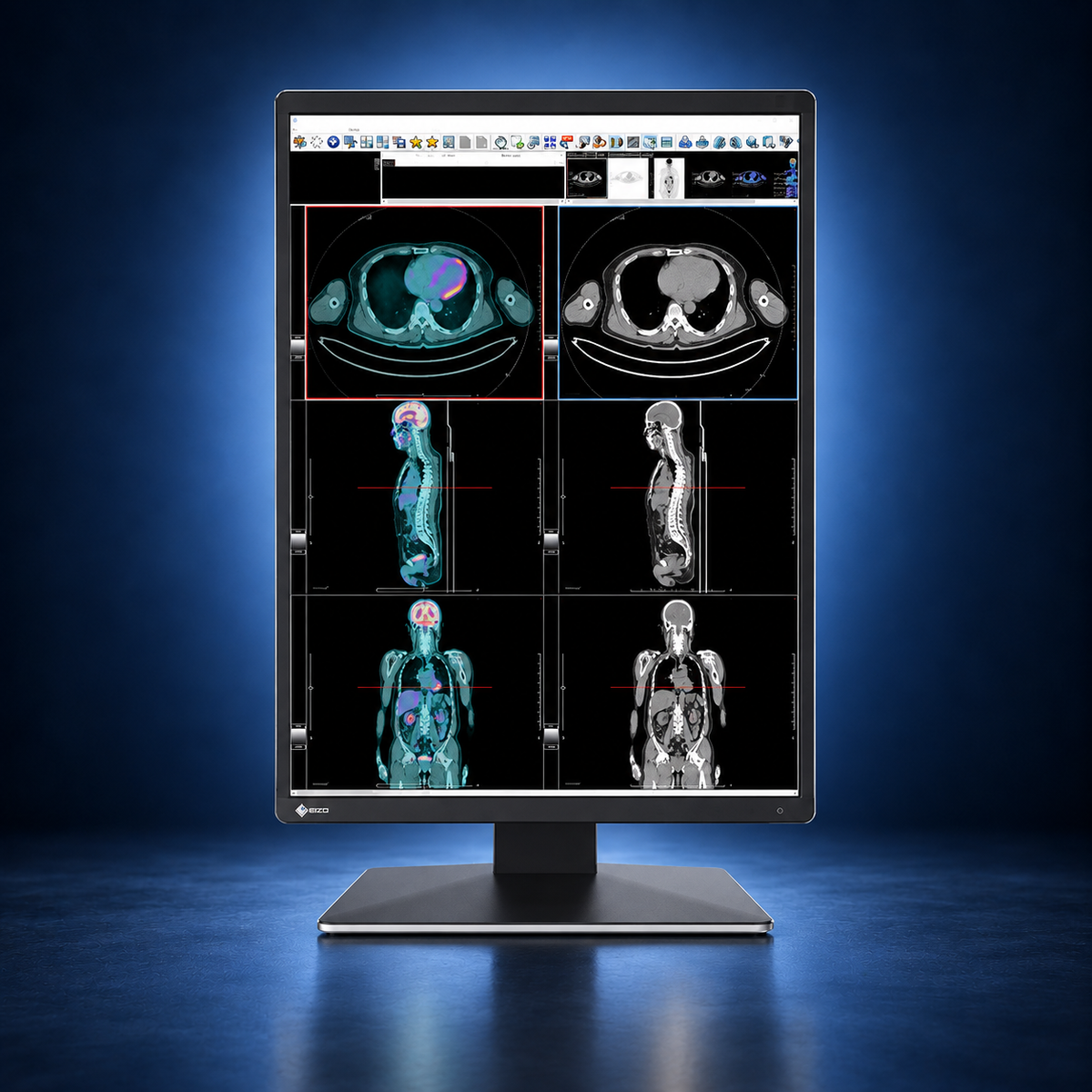

01 · 3MP DISPLAY
A portrait view for your reading desk.
The 21.3-inch RX370 displays 1536 × 2048 pixels. Texel Comp can help plan its position alongside your worklist screen.
EIZO RadiForce RX3703MP · 1536 × 2048 · 21.3-inch
Manufacturer product photography. Screen content is illustrative.
EIZO · DIAGNOSTIC RADIOLOGY
EIZO RadiForce RX370 21.3-inch 3MP Color Diagnostic Radiology Monitor
SKU EIZO-RX370
New
A 21.3-inch 3MP color diagnostic monitor for general radiology, with DICOM calibration and an Integrated Front Sensor. Request a single-monitor or matched-pair quote for your PACS reading station.
- DISPLAY
- 21.3-inch color IPS · 3MP
1536 × 2048 portrait - DICOM CALIBRATION
- 500 cd/m² recommended
1100 cd/m² typical brightness - IMAGE CONSISTENCY
- Integrated Front Sensor
Digital Uniformity Equalizer - CONNECTIVITY
- 2 × DisplayPort + dual-link DVI-D
DisplayPort daisy-chain output
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year standard EIZO warranty · terms applyManufacturer terms apply
Contact Texel CompConfiguration and service questions
EIZO RADIFORCE RX370 · 3MP DIAGNOSTIC DISPLAY
Color and grayscale imaging. One focused reading display.
The EIZO RadiForce RX370 brings a 21.3-inch portrait display to general radiology reading stations. Its 3MP panel, DICOM grayscale calibration and integrated sensor support a consistent imaging workspace.
Plan the display around your reading workflow
Specify one monitor or request a quote for two matching RX370 displays. Keep patient worklists and reporting tools on a separate secondary screen when planning your desk.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · BUILT-IN CALIBRATION
Keep calibration within reach.
The Integrated Front Sensor works with included RadiCS LE software for DICOM Part 14 calibration, without attaching an external sensor.
03 · MIXED IMAGE VIEWING
Grayscale and color on one screen.
Hybrid Gamma PXL applies grayscale or color response pixel by pixel, supporting mixed medical image layouts within the same display.
04 · DETAIL AT HIGH BRIGHTNESS
Preserve detail in a bright image.
Sharpness Recovery addresses the panel sharpness tradeoff associated with high brightness. Include display settings in your workstation acceptance checks.
05 · WORKSTATION CONTROL
Move between two connected computers.
Switch-and-Go shares a keyboard and mouse between two workstations. Plan the required USB and video cables with Texel Comp.
06 · MULTI-MONITOR SETUP
Route video through a daisy chain.
DisplayPort output supports daisy chaining with a compatible graphics board, helping organize multi-monitor cabling around your desk.
07 · USB CONNECTIONS
Connect peripherals and charge a device.
Two USB-A downstream ports support peripherals. The USB-C charging port supplies up to 15 W; it is separate from video input.

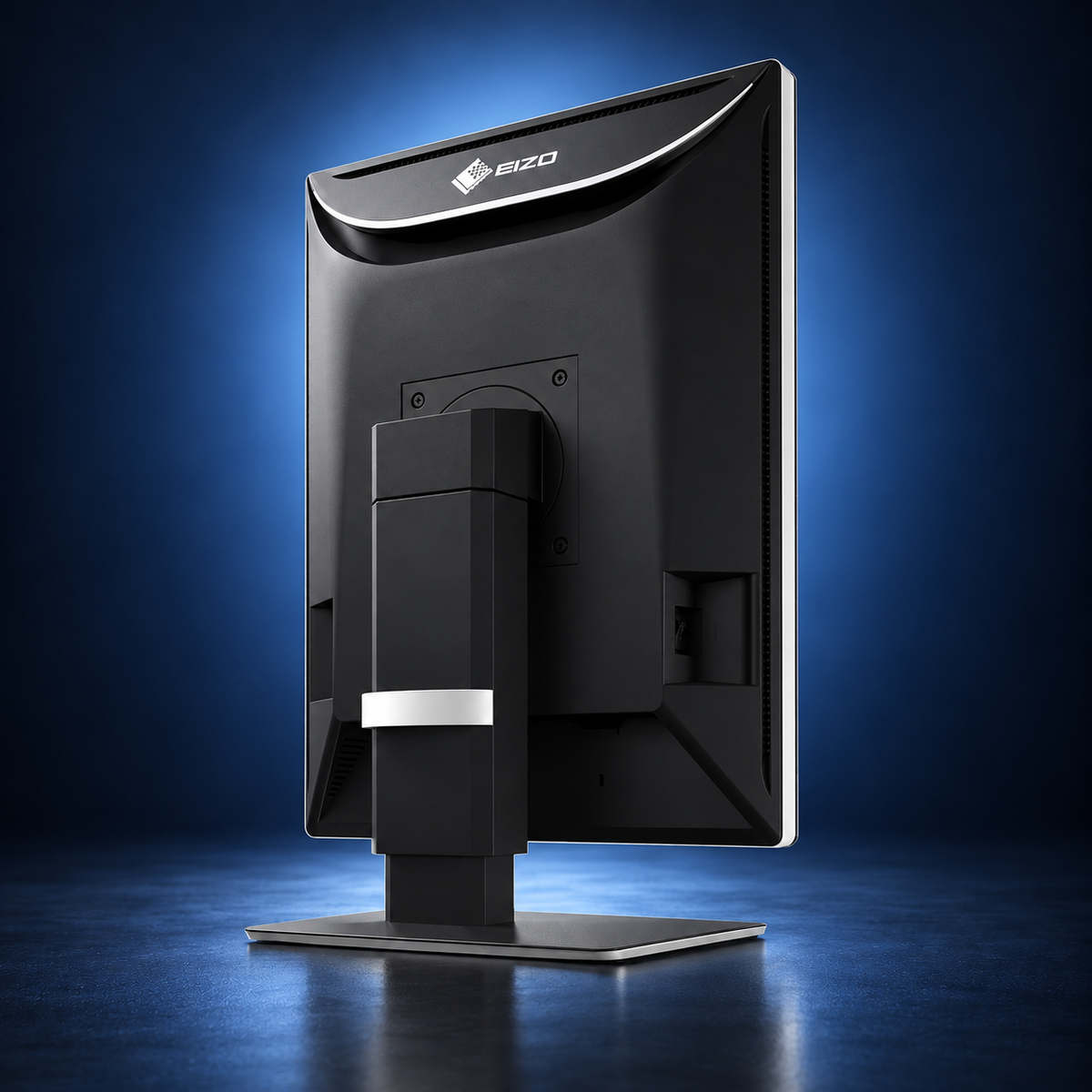

08 · REAR VIEW
Plan the connections behind the screen.
Two DisplayPort inputs, dual-link DVI-D and DisplayPort output sit alongside USB connections. Check cable access before choosing a desk mount.
EIZO RX370 technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce RX370 |
|---|---|
| Screen | 21.3-inch color IPS; LED backlight |
| Native resolution | 1536 × 2048; 3MP; 3:4 portrait |
| Brightness | 1100 cd/m² typical; 500 cd/m² recommended calibration |
| Typical contrast | 1800:1 |
| Sensors | Integrated Front Sensor, backlight and ambient light sensors |
Connections & installation
| Video inputs | 2 × DisplayPort; 1 × dual-link DVI-D |
|---|---|
| Video output | DisplayPort for compatible daisy-chain setups |
| USB hub | USB 2.0; 2 × Type-B upstream, 2 × Type-A downstream |
| USB-C charging | Up to 15W; charging only, no video or USB data |
| Stand | 90 mm height adjustment; tilt, swivel and portrait / landscape pivot |
| Mounting | VESA 100 × 100 mm |
| Power / weight | 100–240V AC; 36W typical; 8 kg with stand |
General radiology, with a clear clinical scope
FDA 510(k) K211491 covers display of radiological images for review, analysis and diagnosis by trained medical practitioners. The RX370 is not intended for mammography; do not select it for diagnostic mammography or breast tomosynthesis.
Before deployment, check your PACS application, graphics card, operating system and local quality-control requirements. Use the native resolution and an approved calibration procedure. A compatible graphics board is required for DisplayPort daisy chaining; 10-bit output also depends on the complete signal path.
Calibration software & standard accessories
EIZO lists RadiCS LE, two 3 m DisplayPort cables, two 3 m USB Type-A–Type-B cables, a 3 m AC power cord and instructions with its standard configuration. Contents vary by country and supplied unit; your quote confirms the actual kit. Full RadiCS quality-control software and RadiNET Pro are separate options.
Instant Backlight Booster temporarily increases luminance. DICOM Part 14 is not supported while this function is active.
Product & purchasing details
| Listing configuration | One RX370 monitor; ask for a matched pair quote |
|---|---|
| SKU | EIZO-RX370 |
| Condition / availability | Confirmed in your quote |
| Price / shipping | Quoted for quantity and delivery address |
| Standard manufacturer warranty | 5 years; LCD brightness and operating-hour limits apply |
| Optional equipment | Graphics card, RadiLight, full RadiCS and RadiNET Pro quoted separately |
EIZO's standard RX370 warranty is five years. LCD brightness coverage at 7500K is limited to five years or 20,000 hours at 500 cd/m², or 30,000 hours at 400 cd/m², whichever occurs first. Eligibility and remaining coverage are confirmed for the quoted unit.
Send your monitor quantity, workstation model, graphics outputs and delivery ZIP code. Texel Comp can help plan the display connections and identify separately quoted equipment for your reading station.
EIZO RX370 buying & setup questions
Is the RX370 approved for mammography?
No. Its FDA indications explicitly exclude mammography. Choose a display with the required breast-imaging indications for mammography or DBT diagnosis.
Can I connect a laptop through USB-C?
The RX370's USB-C port supplies up to 15W for charging; it does not accept video or carry USB data. Use a supported DisplayPort or dual-link DVI video connection and the Type-B upstream ports for USB hub functions.
Does this listing include a pair of monitors?
This listing is for one RX370. Request a matched pair in your quote if you need two diagnostic screens. A pair provides two separate 3MP panels; it does not change the resolution of either monitor.
Is RadiCS LE the same as full RadiCS?
No. RadiCS LE supports monitor calibration and supported workflow functions. Full RadiCS provides broader quality-control testing and management. Confirm which software your facility requires and include any additional license or sensor in the quote.
Manufacturer & regulatory resources
EIZO RX370 specifications, manuals & downloads · EIZO US warranty terms · FDA K211491 indications
