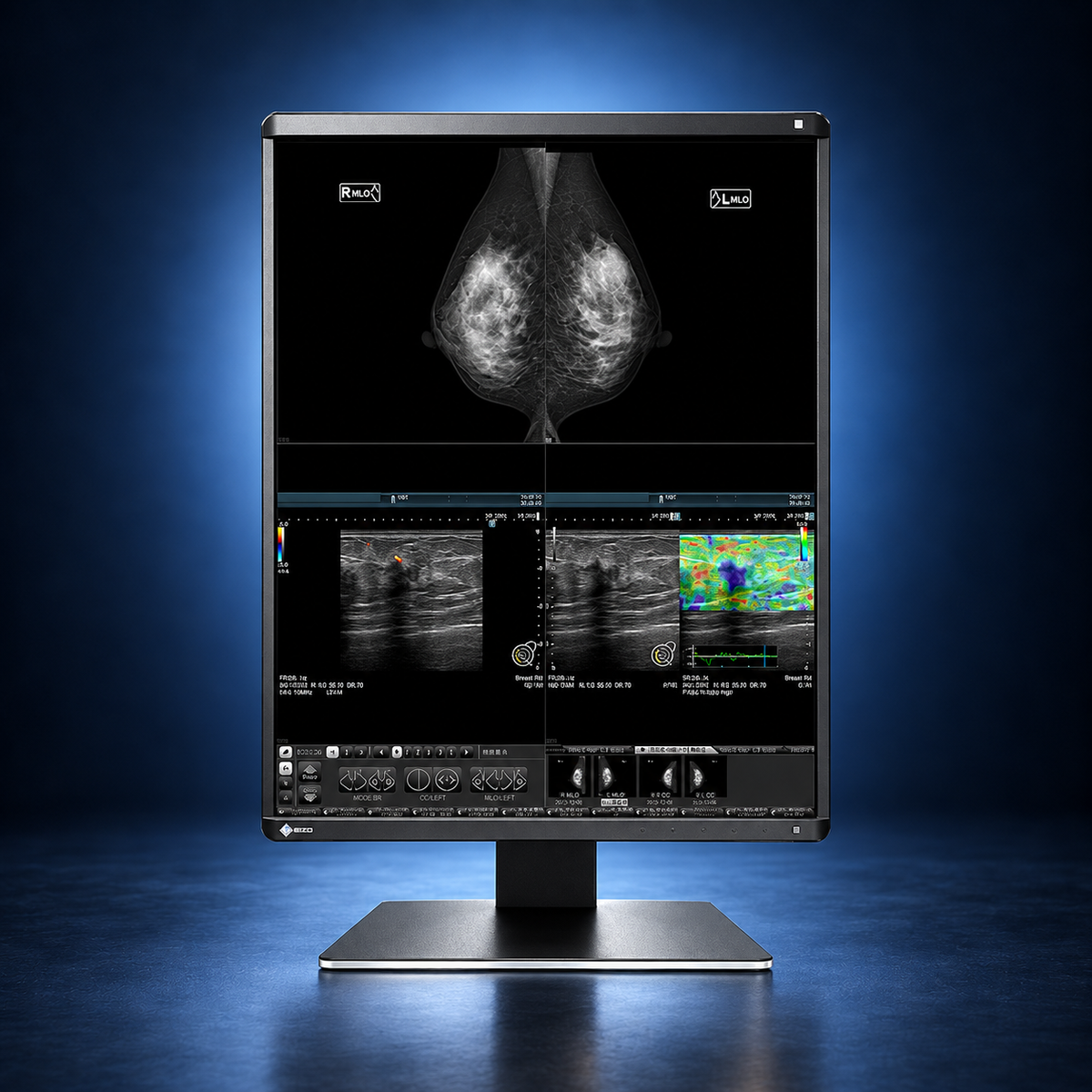

01 · 5MP BREAST IMAGING
A dedicated view for breast imaging.
The 21.3-inch RX570 displays 2048 × 2560 pixels for breast imaging. Texel Comp can help plan single-screen or paired workstation configurations.
EIZO RadiForce RX5705MP · 2048 × 2560 · 21.3-inch
EIZO · MAMMOGRAPHY & DBT
EIZO RadiForce RX570 21.3-inch 5MP Mammography & DBT Monitor
SKU EIZO-RX570
New
The EIZO RadiForce RX570 is a 21.3-inch color diagnostic display with a 2048 × 2560 portrait panel. It supports breast-imaging reading workflows while also displaying grayscale and color radiological studies. This listing is for one monitor.
- DISPLAY
- 21.3-inch color IPS · 5MP
2048 × 2560 · 4:5 - DICOM CALIBRATION
- 500 cd/m² recommended
1200 cd/m² typical brightness - IMAGE CONSISTENCY
- Integrated Front Sensor
Digital Uniformity Equalizer - CONNECTIVITY
- 2 × DisplayPort; 1 × dual-link DVI-D
DisplayPort daisy chain
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year standard EIZO warranty · terms applyManufacturer terms apply
Contact Texel CompConfiguration and service questions
EIZO RADIFORCE RX570 · 5MP MEDICAL DISPLAY
A dedicated 5MP screen for mammography and breast tomosynthesis.
The EIZO RadiForce RX570 is a 21.3-inch color diagnostic display with a 2048 × 2560 portrait panel. It supports breast-imaging reading workflows while also displaying grayscale and color radiological studies.
Plan your reading workstation
This listing is one RX570 monitor. Plan a second display separately if your reading protocol requires a matched pair; the dual-screen MammoDuo configuration is a different supplied configuration.
TEXEL COMP · PRODUCT DETAILS

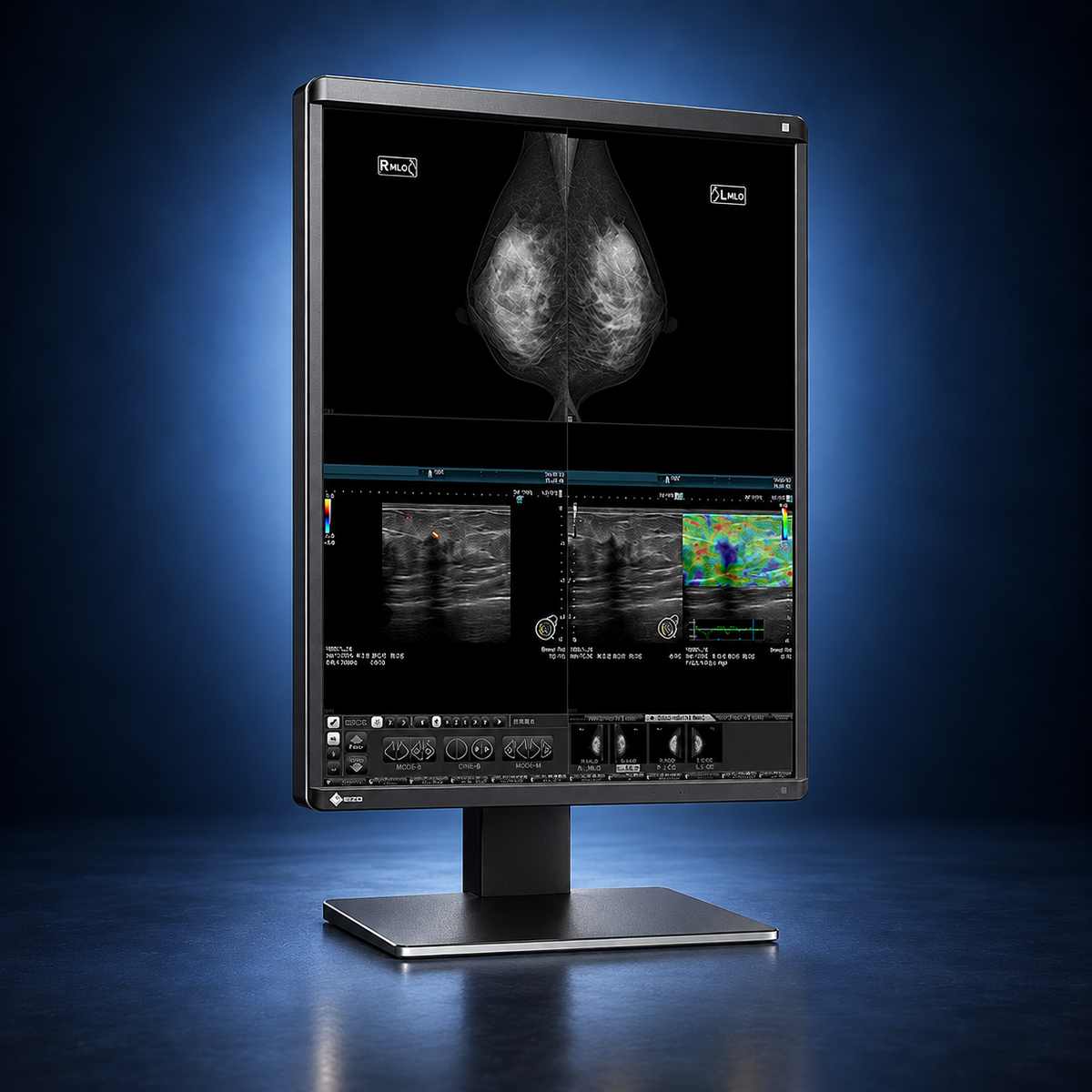

A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · BUILT-IN SENSOR
Make calibration part of your routine.
The front-bezel sensor and included RadiCS LE support DICOM Part 14 calibration without mounting an external sensor on the screen.
03 · IMAGE RESOLUTION
Use a 5MP portrait image area.
The 2048 × 2560 panel provides a dedicated portrait workspace. Confirm your application resolution and preferred image layout with Texel Comp.
04 · MIXED IMAGE VIEWING
Review grayscale and color content together.
Hybrid Gamma PXL adjusts grayscale response pixel by pixel for mixed image types, including monochrome breast images and color content.
05 · IMAGE DETAIL
Support detail at high brightness.
EIZO Sharpness Recovery compensates for the panel sharpness tradeoff at high brightness, alongside the display’s calibration and uniformity features.
06 · WORKSTATION CONTROL
Share one keyboard and mouse.
Switch-and-Go supports control of two connected workstations. Include the required signal and USB cables when planning your setup.
07 · MULTI-MONITOR SETUP
Connect a compatible daisy chain.
DisplayPort daisy chaining reduces separate video cable runs. Texel Comp can review graphics-board support for your intended monitor arrangement.

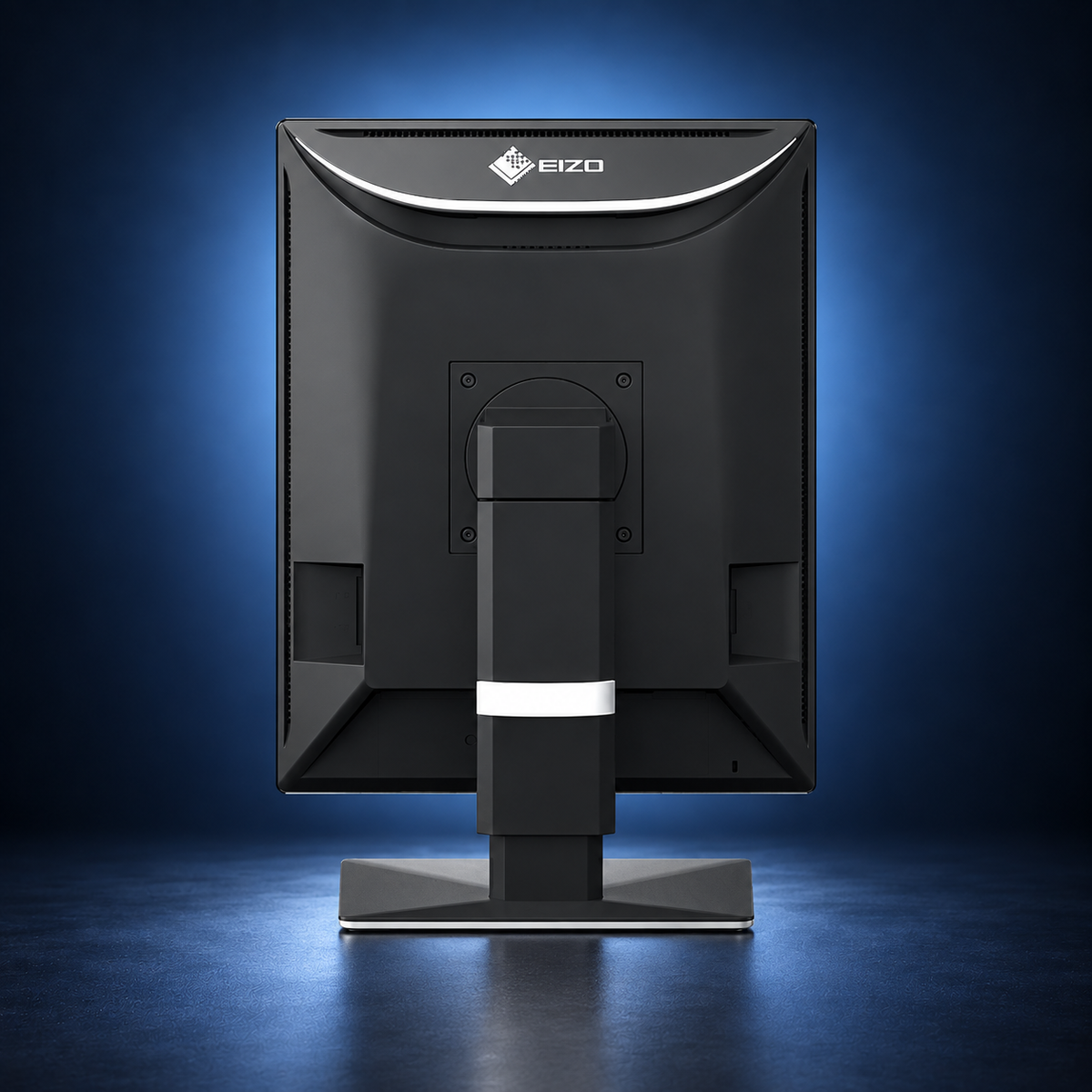

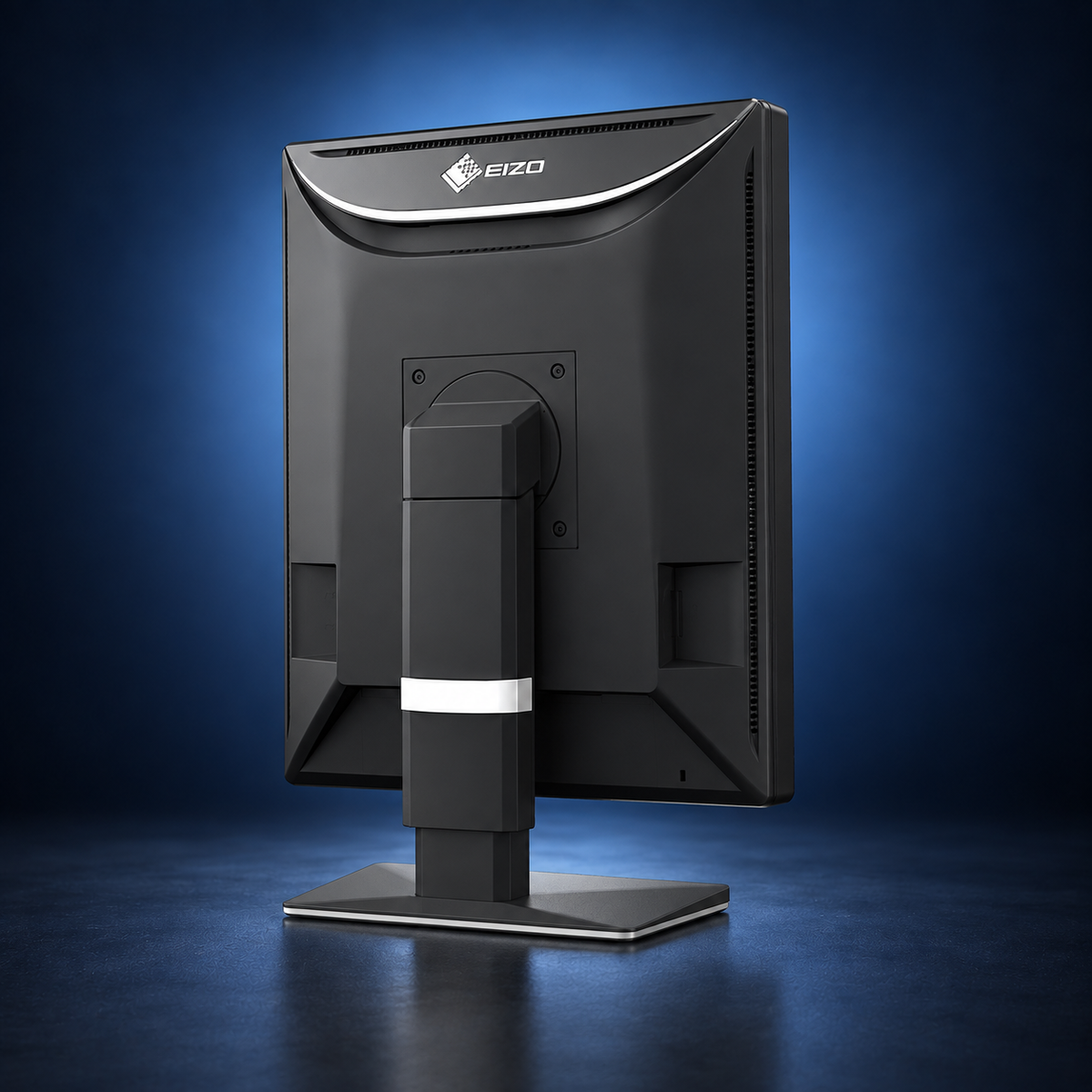

08 · REAR VIEW
Leave room for the connection panel.
Two DisplayPort inputs, dual-link DVI-D and DisplayPort output support workstation connections. USB-C provides dedicated charging up to 15 W.
09 · INSTALLATION DRAWING
Check mounting and cable clearance.
Use the manufacturer’s outline drawing to review the 100 × 100 mm VESA mounting pattern, full stand position and rear cable access with Texel Comp.
EIZO RadiForce RX570 technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce RX570 |
|---|---|
| Screen / panel | 21.3-inch color IPS; LED backlight |
| Native resolution | 2048 × 2560; 5MP class; 4:5 |
| Typical brightness | 1200 cd/m² |
| Recommended calibration | 500 cd/m² |
| Typical contrast / pixel pitch | 2200:1; 0.165 mm |
| DICOM / uniformity | DICOM Part 14; Digital Uniformity Equalizer |
| Calibration sensor | Integrated Front Sensor (IFS) |
Connections & installation
| Video inputs | 2 × DisplayPort; 1 × dual-link DVI-D |
|---|---|
| Video output | DisplayPort daisy chain |
| USB hub | 2 × Type-B upstream; 2 × Type-A downstream (USB 2.0) |
| USB-C dedicated charging | Up to 15W; no video or USB data |
| VESA mounting | 100 × 100 mm |
| Power input / typical use | 100–240V AC, 50/60Hz; 34W |
| Net monitor weight | 7.6 kg with stand; not packaged shipping weight |
Applications & clinical scope
FDA 510(k) K243221 includes full-field digital mammography, digital breast tomosynthesis and other radiological images for review, analysis and diagnosis by trained medical practitioners.
Choose the required anti-glare or anti-reflection model in your quote. The USB-C port supplies up to 15W for charging only; it is not a laptop video input. DICOM Part 14 is not supported while Instant Backlight Booster is active.
Verify PACS compatibility, native-resolution output, reading-room conditions and facility QC requirements before deployment.
One monitor & standard accessories
For a single RX570, EIZO lists one DisplayPort cable, one USB Type-A–Type-B cable, an AC power cord, RadiCS LE and documentation. The MammoDuo accessory quantities do not apply to this listing. Contents vary by country and supplied unit; the written quote confirms the actual kit. No workstation, dictation microphone or secondary monitor is included.
Product & purchasing details
One RX570 monitor. Condition, availability, price and shipping are confirmed in your quote. Contact Texel Comp for technical support options.
EIZO lists a standard five-year manufacturer warranty. Confirm the quoted unit's eligibility, remaining coverage and applicable LCD brightness or operating-hour limits before ordering; country and configuration terms can differ.
Send your quantity, workstation, graphics outputs and delivery ZIP code. Installation, full RadiCS, RadiNET Pro and external QC sensors are separate quote items.
RX570 buying & setup questions
Does the RX570 have FDA mammography and DBT clearance?
Yes. FDA 510(k) K243221 covers radiological images including full-field digital mammography and digital breast tomosynthesis for review, analysis and diagnosis by trained practitioners.
Does this product include MammoDuo?
No. This is one monitor. RX570-MD and RX570-AR-MD are two-screen configurations with a shared stand and require a separate quote.
Can USB-C carry laptop video?
No. The dedicated USB-C port supplies up to 15W for charging. Use DisplayPort or dual-link DVI-D for video and the Type-B upstream connection for USB peripherals.
How do typical and calibrated brightness differ?
1200 cd/m² is EIZO's typical brightness specification; 500 cd/m² is the recommended calibration target. Select and verify the operating target through your facility's QC procedure.
