01 · 6MP DISPLAY
A broad view of multiple image types.
The 30-inch RX670 displays 3280 × 2048 pixels. Texel Comp can help plan a wide medical image-reading workstation around it.
EIZO RadiForce RX6706MP · 3280 × 2048 · 30-inch
EIZO · DIAGNOSTIC RADIOLOGY
EIZO RadiForce RX670 30-inch 6MP Diagnostic Radiology Monitor
SKU EIZO-RX670
New
The EIZO RadiForce RX670 is a 30-inch color diagnostic radiology monitor with a 3280 × 2048 widescreen panel. It pairs a high-brightness medical display with integrated calibration, USB-C workstation docking and reading-room lighting. This listing is for one monitor.
- DISPLAY
- 30-inch color IPS · 6MP
3280 × 2048 · 16:10 - DICOM CALIBRATION
- 500 cd/m² recommended
1100 cd/m² typical brightness - IMAGE CONSISTENCY
- Integrated Front Sensor
Digital Uniformity Equalizer - CONNECTIVITY
- USB-C video + up to 94W charging
Gigabit LAN · USB-C daisy chain
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year standard EIZO warranty · terms applyManufacturer terms apply
Contact Texel CompConfiguration and service questions
EIZO RADIFORCE RX670 · 6MP MEDICAL DISPLAY
A 6MP reading display for multi-modality radiology.
The EIZO RadiForce RX670 is a 30-inch color diagnostic radiology monitor with a 3280 × 2048 widescreen panel. It pairs a high-brightness medical display with integrated calibration, USB-C workstation docking and reading-room lighting.
Plan your reading workstation
Use the continuous 16:10 screen to arrange image series and prior studies according to your PACS workflow. Keep its 6MP-class resolution distinct from the RX1270's 12MP panel and from separate dual-monitor configurations.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.

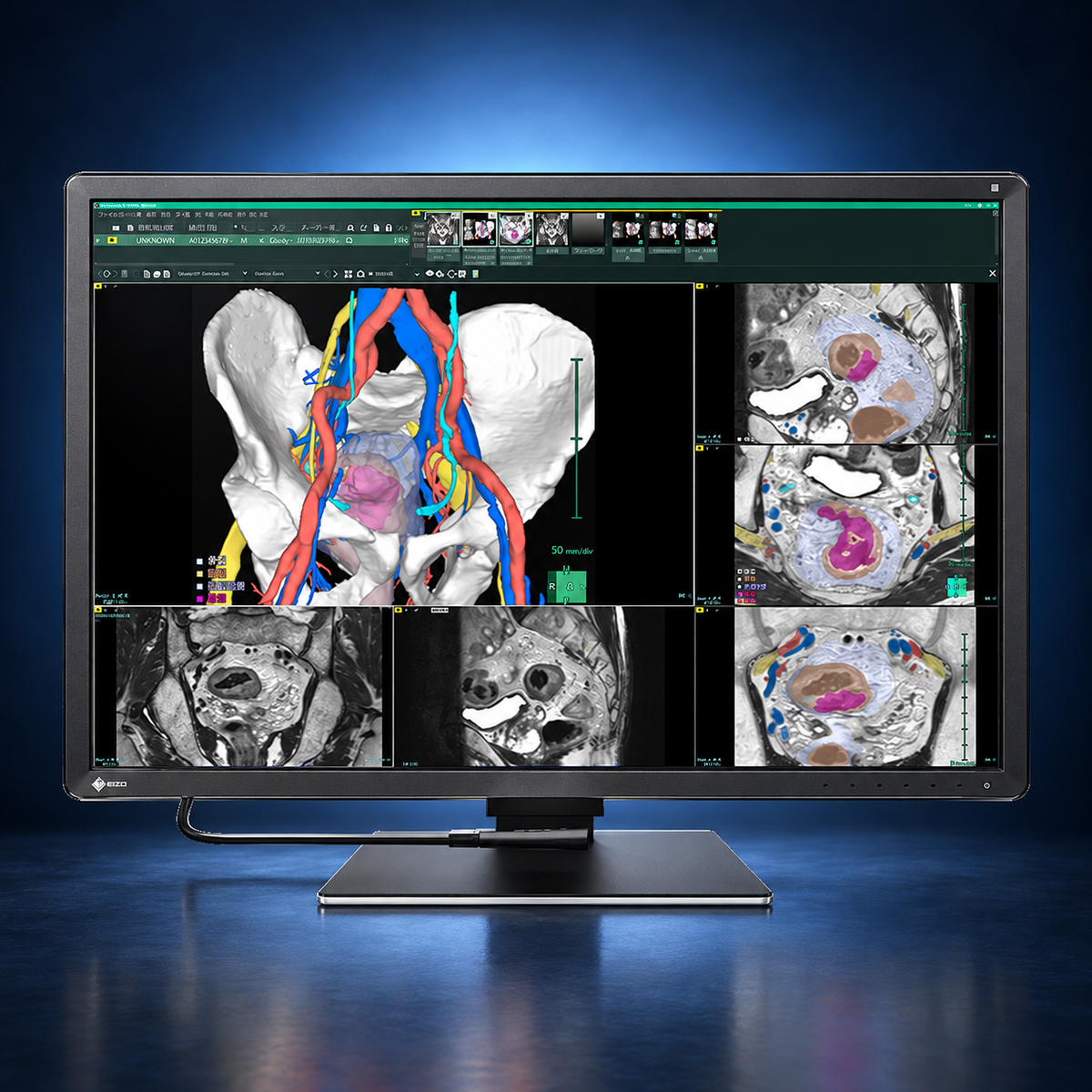

02 · MULTI-MODALITY WORKSPACE
Arrange your images across one canvas.
The wide 6MP display supports flexible layouts for different image types. Check your preferred PACS arrangement during workstation planning.
03 · USB-C DOCKING
Carry video, data and charging together.
A compatible USB-C workstation can receive video, USB connectivity and up to 94 W power delivery through the display connection.
04 · WIRED NETWORK
Connect the desk to Ethernet.
The monitor includes Gigabit Ethernet for a compatible USB-C workstation. Texel Comp can review the connection requirements with your deployment team.
05 · READING ROOM LIGHTING
Add light behind the image area.
Built-in comfort lighting illuminates the rear wall. An adjustable spotlight supports keyboard or document use in a dim reading environment.
06 · MIXED IMAGE VIEWING
View grayscale and color side by side.
Hybrid Gamma PXL manages grayscale and color response at the pixel level, supporting different medical image types on one screen.
07 · BUILT-IN CALIBRATION
Use the front sensor for calibration.
The Integrated Front Sensor and bundled RadiCS LE support DICOM Part 14 calibration without attaching and removing an external sensor.

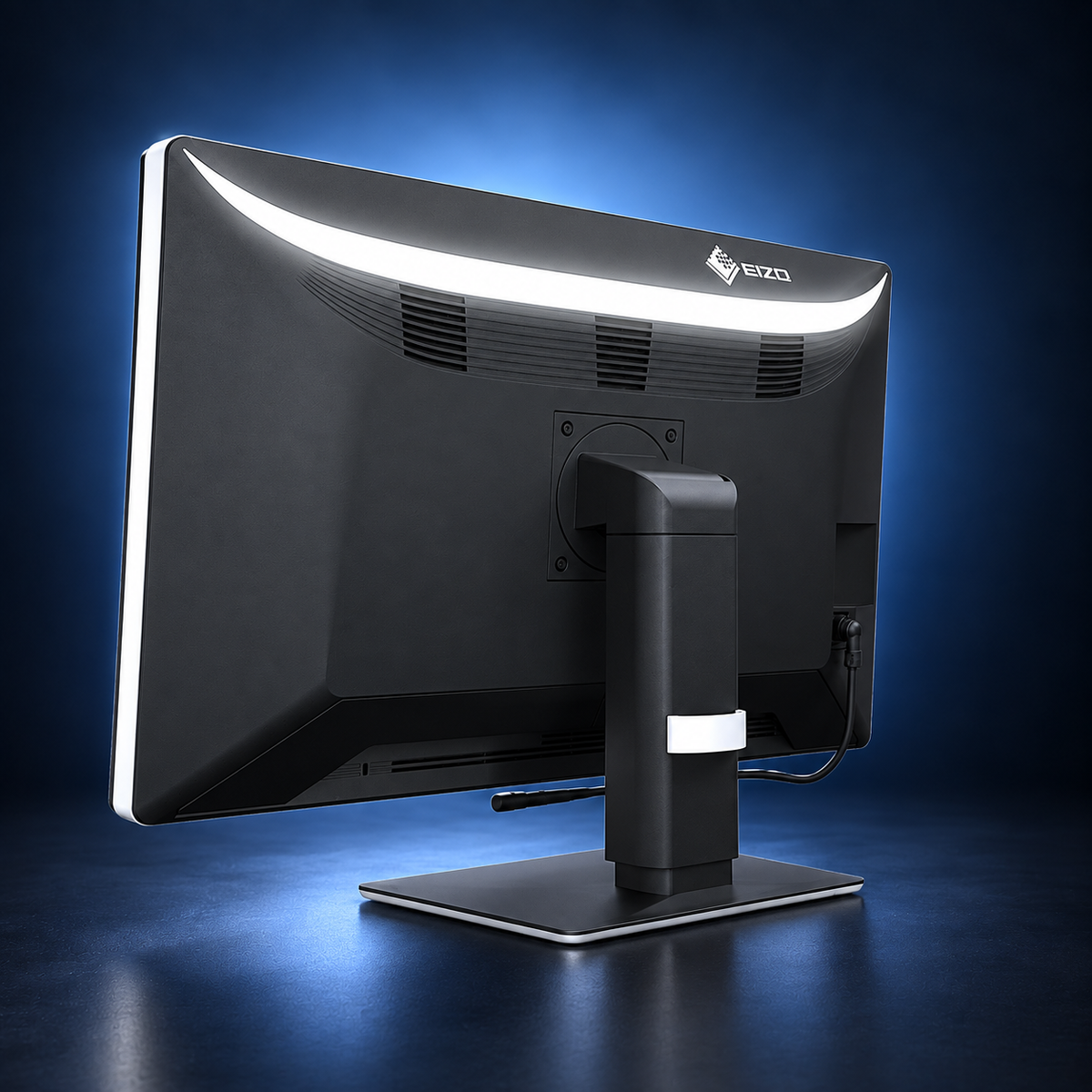

08 · REAR VIEW
Plan the complete connection path.
USB-C, two DisplayPort inputs, HDMI and Ethernet provide workstation options. Review downstream USB-C daisy chaining and peripheral connections before installation.
EIZO RadiForce RX670 technical specifications
Display & calibration
| Manufacturer / model | EIZO RadiForce RX670 |
|---|---|
| Screen / panel | 30-inch color IPS; LED backlight |
| Native resolution | 3280 × 2048; 6MP class; 16:10 |
| Typical brightness | 1100 cd/m² |
| Recommended calibration | 500 cd/m² |
| Typical contrast / pixel pitch | 1800:1; 0.1968 mm |
| DICOM / uniformity | DICOM Part 14; Digital Uniformity Equalizer |
| Calibration sensor | Integrated Front Sensor (IFS) |
Connections & installation
| Video inputs | USB-C (DisplayPort Alt Mode); 2 × DisplayPort; 1 × HDMI |
|---|---|
| Video output | USB-C daisy chain |
| USB hub | 2 × Type-B + 1 × Type-C upstream; 3 × Type-A + 1 × Type-C downstream (USB 2.0) |
| USB-C power / LAN | Upstream up to 94W; downstream up to 15W; gigabit RJ-45 |
| VESA mounting | 100 × 100 mm |
| Power input / typical use | 100–240V AC, 50/60Hz; 61W |
| Net monitor weight | 15.8 kg with stand; not packaged shipping weight |
Applications & clinical scope
FDA 510(k) K241441 covers radiological image review, analysis and diagnosis by trained medical practitioners. Mammography is excluded; this listing does not claim diagnostic mammography or DBT use.
Confirm anti-glare or anti-reflection surface treatment and the final manufacturer suffix in your quote. DICOM Part 14 is not supported while Instant Backlight Booster is active. Daisy chaining requires a compatible graphics signal path.
Verify PACS compatibility, native-resolution output, reading-room conditions and facility QC requirements before deployment.
One monitor & standard accessories
EIZO's standard kit lists a USB-C cable, two DisplayPort cables, an HDMI cable, two USB Type-A–Type-B cables, an AC power cord, cable cover, RadiCS LE and documentation. Contents vary by country and supplied unit; the written quote confirms the actual kit. No workstation, dictation microphone or secondary monitor is included.
Product & purchasing details
One RX670 monitor. Condition, availability, price and shipping are confirmed in your quote. Contact Texel Comp for technical support options.
EIZO lists a standard five-year manufacturer warranty. Confirm the quoted unit's eligibility, remaining coverage and applicable LCD brightness or operating-hour limits before ordering; country and configuration terms can differ.
Send your quantity, workstation, graphics outputs and delivery ZIP code. Installation, full RadiCS, RadiNET Pro and external QC sensors are separate quote items.
RX670 buying & setup questions
Is the RX670 cleared for diagnostic mammography?
No. FDA 510(k) K241441 supports radiological review, analysis and diagnosis but excludes mammography. A multi-image or split-screen layout does not change the monitor's clinical indications.
Does USB-C support video as well as charging?
Yes. Unlike charging-only ports on some smaller RadiForce models, RX670's upstream USB-C supports DisplayPort Alt Mode, USB data and up to 94W Power Delivery.
Is 1100 cd/m² the calibration target?
No. 1100 cd/m² is typical brightness; EIZO recommends 500 cd/m² for calibration. Operating targets and acceptance tests should follow your reading-room QC requirements.
Does this include two displays?
No. This listing contains one 30-inch RX670 with a 3280 × 2048 panel. Additional diagnostic or worklist monitors require a separate quote.
