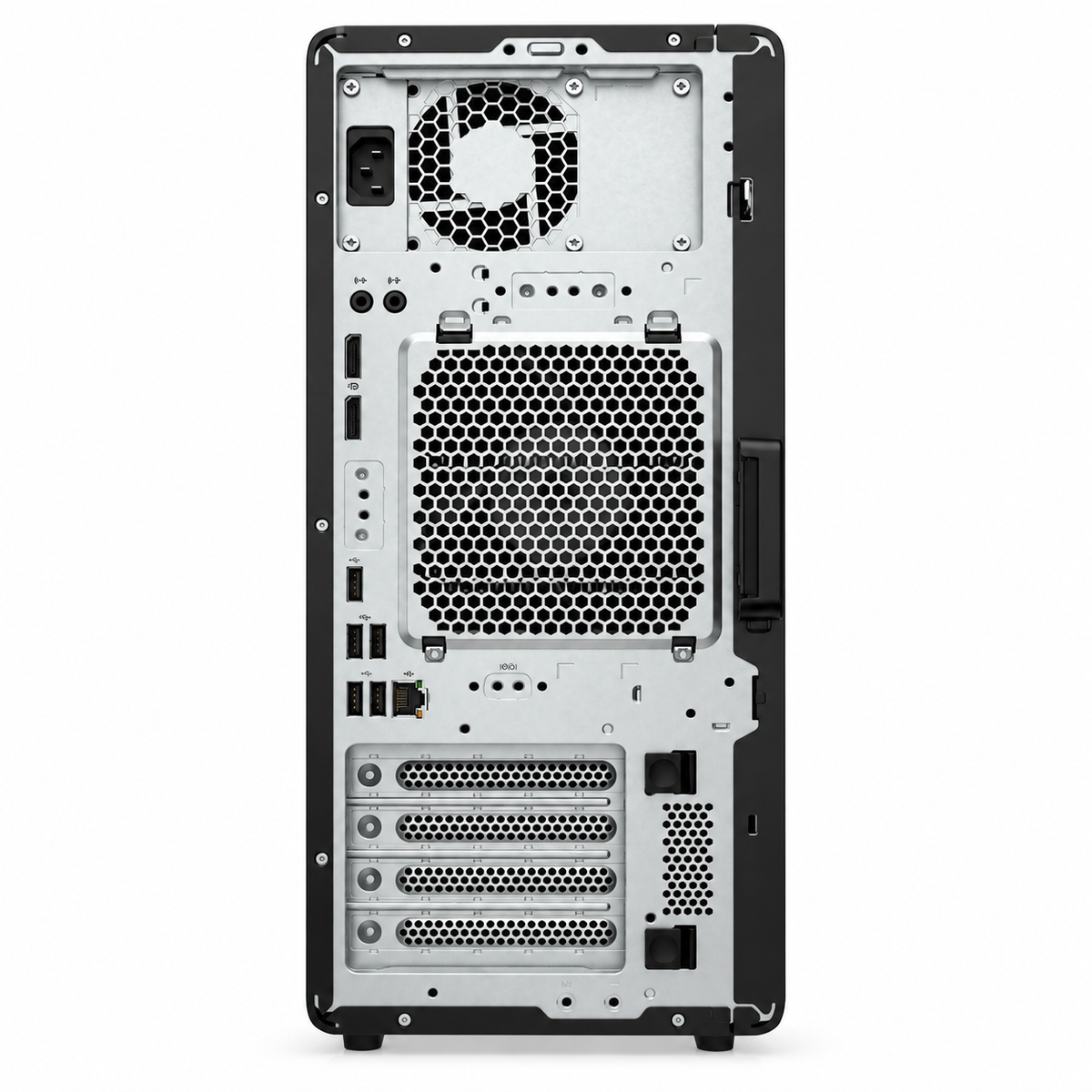

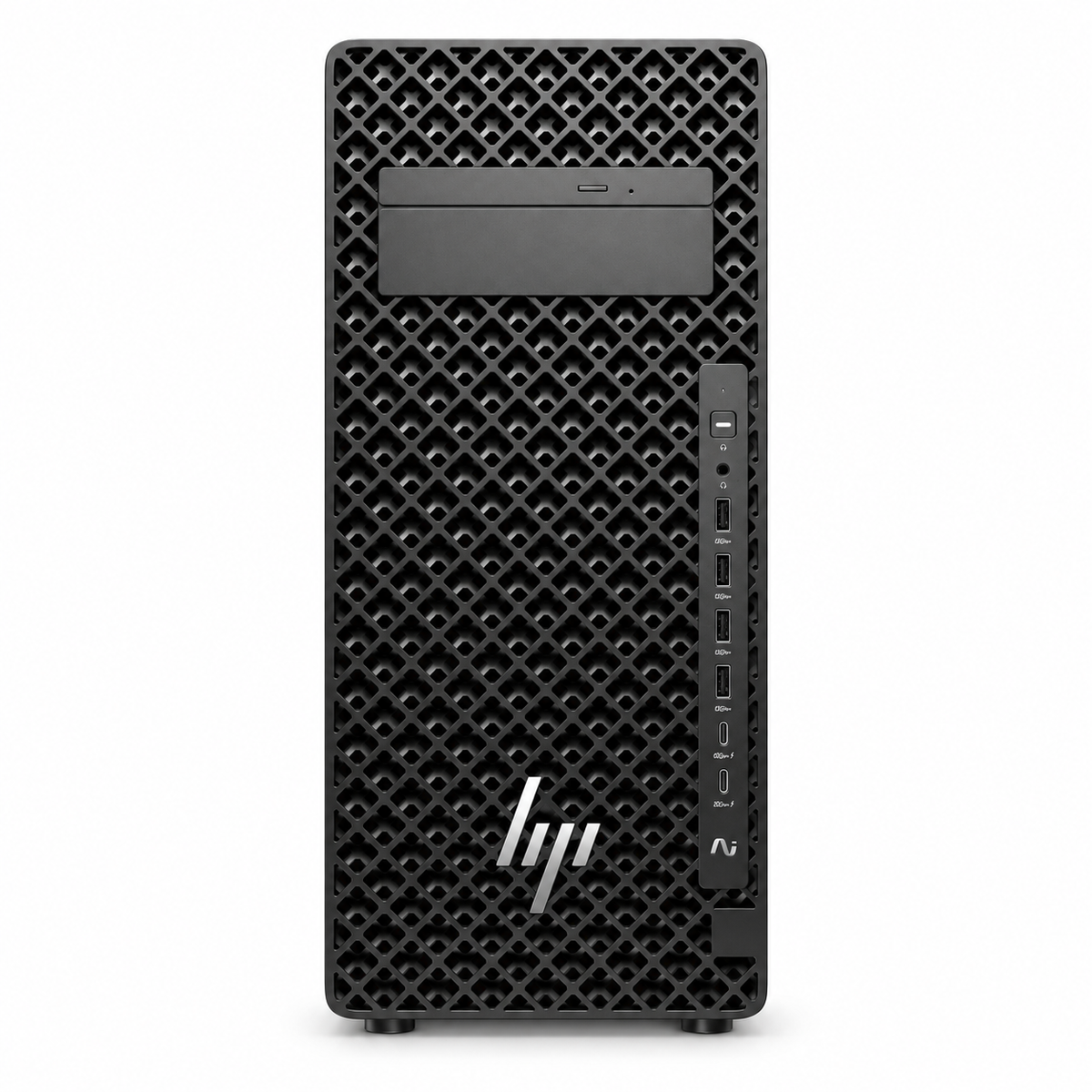

Representative HP Z2 G1i Tower chassis images. Graphics-card connections, optional ports and bay equipment vary with the final configuration.
HP · RADIOLOGY WORKSTATION
SKU TC-HP-Z2G1IT-U7265-32-1T-A1000
New custom-configured HP Z2 G1i Tower with Intel Core Ultra 7 265, 32GB DDR5, 1TB SSD and NVIDIA RTX A1000. Request a quote matched to your PACS software, displays and deployment.
Confirm your workflow, delivery location and final configuration with Texel Comp.
HP · NEW CUSTOM CONFIGURATION
Specify a new HP Z2 G1i Tower radiology workstation with Intel Core Ultra 7 265, 32GB DDR5 memory, a 1TB SSD and NVIDIA RTX A1000 professional graphics. This custom configuration gives your team a defined hardware baseline to review against its PACS, RIS and display requirements.
Evaluate this build for a reading desktop that runs PACS, reporting, worklists and communication tools together. Its 32GB memory capacity and 1TB SSD provide more working room than the 16GB / 512GB configuration, while the RTX A1000 supplies 8GB of dedicated graphics memory.
Reference configuration TC-HP-Z2G1IT-U7265-32-1T-A1000. Your written quote confirms the final components, operating system, warranty, price and delivery terms.
THE CONFIGURATION
New workstation · Computer only
Processor
20 cores / 20 threads · Up to 5.3GHz maximum turbo
System memory
Installed capacity; module layout, speed and ECC status confirmed in quote.
Storage
SSD model, interface and PCIe generation confirmed for the final build.
Graphics
8GB GDDR6 dedicated graphics memory.
TECHNICAL SPECIFICATIONS
| Dedicated graphics | NVIDIA RTX A1000 |
|---|---|
| Graphics memory | 8GB GDDR6 |
| GPU display outputs | 4 × mini DisplayPort 1.4a |
| Display planning | Monitor count, resolution, refresh rate, adapters and driver support confirmed for your chosen software and displays |
| Wired network | Gigabit Ethernet (RJ-45) on the HP Z2 Tower G1i platform |
| Front connectivity | HP platform: four USB-A 10Gbps, two USB-C 20Gbps and headset combo jack; optional bay equipment varies |
| Rear connectivity | HP platform: USB-A, audio and onboard DisplayPort; connect specified displays to the dedicated GPU as required |
| Wireless / optional I/O | Wi-Fi, Bluetooth and flexible I/O options confirmed in quote |
| Power configuration | PSU wattage and GPU installation details confirmed for the final build |
| Warranty | Term, provider, service level and custom-component coverage confirmed in quote |
| Manufacturer / platform | HP Z2 Tower G1i |
|---|---|
| Texel Comp configuration SKU | TC-HP-Z2G1IT-U7265-32-1T-A1000 |
| Condition | New |
| Processor | Intel Core Ultra 7 265 |
| CPU cores / threads | 20 cores / 20 threads |
| Maximum turbo | Up to 5.3GHz; workload and configuration dependent |
| Installed RAM | 32GB DDR5; module layout, speed and ECC status confirmed in quote |
| Installed storage | 1TB SSD; model and interface confirmed in quote |
| Operating system | Not specified; confirmed in quote |
| Form factor | Tower |
| Manufacturer part number / GTIN | Confirmed for the final custom build; Texel SKU is not an HP manufacturer part number |
WORKFLOW & PURCHASING
The 20-core Core Ultra 7 265 and 32GB RAM support configuration planning for concurrent applications. The RTX A1000 adds professional graphics with dedicated ray-tracing and Tensor cores; any acceleration benefit depends on whether your imaging software supports that GPU and feature.
The HP tower platform offers tool-less access for service and future expansion. Additional memory, drives, graphics and optional I/O are configuration choices; they are included only when specified in your quote.
CONFIGURATION QUESTIONS
The desktop NVIDIA RTX A1000 has 8GB GDDR6 memory and four mini DisplayPort 1.4a outputs. Specify the monitor models, resolution and connection types in your quote request so the required adapters, drivers and supported display arrangement can be checked.
Provide the PACS name and version, approved operating system, monitor models, resolution and any local processing requirements. Software support, graphics drivers, display connections and adapters must be checked for the complete configuration. Clinical use depends on the facility’s validation of that system.
One new HP Z2 G1i Tower with Intel Core Ultra 7 265, 32GB RAM, 1TB SSD and NVIDIA RTX A1000. The operating system, warranty, keyboard, mouse, power accessories and adapter kit are confirmed in the written quote. Displays, dictation hardware, PACS licenses and installation services are quoted separately unless expressly included.
Select Request a Quote and reference configuration SKU TC-HP-Z2G1IT-U7265-32-1T-A1000. Include quantity, software, monitor models and delivery ZIP code. Texel Comp will identify any component changes, operating system, warranty, service scope, final price and lead time in the written quote.
