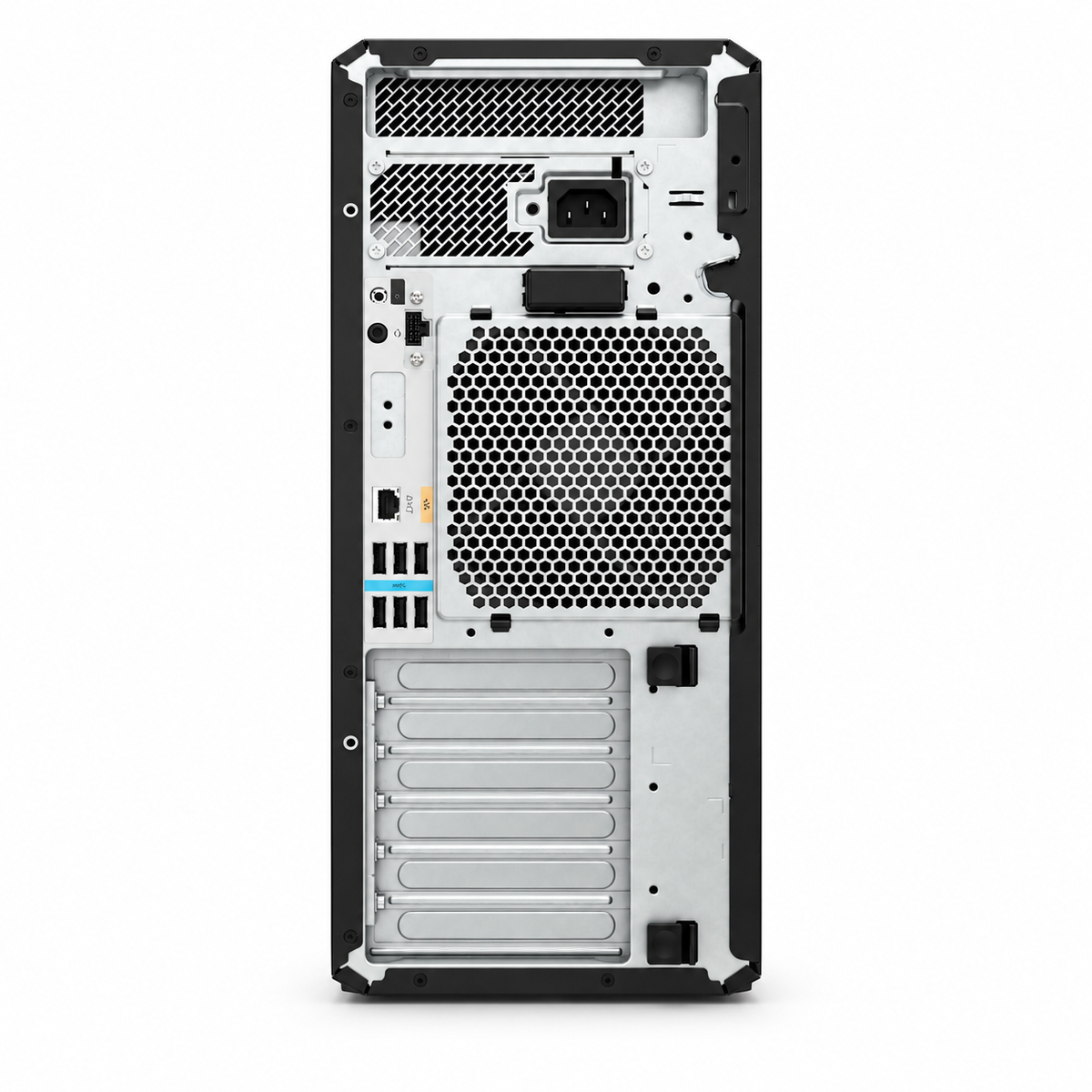

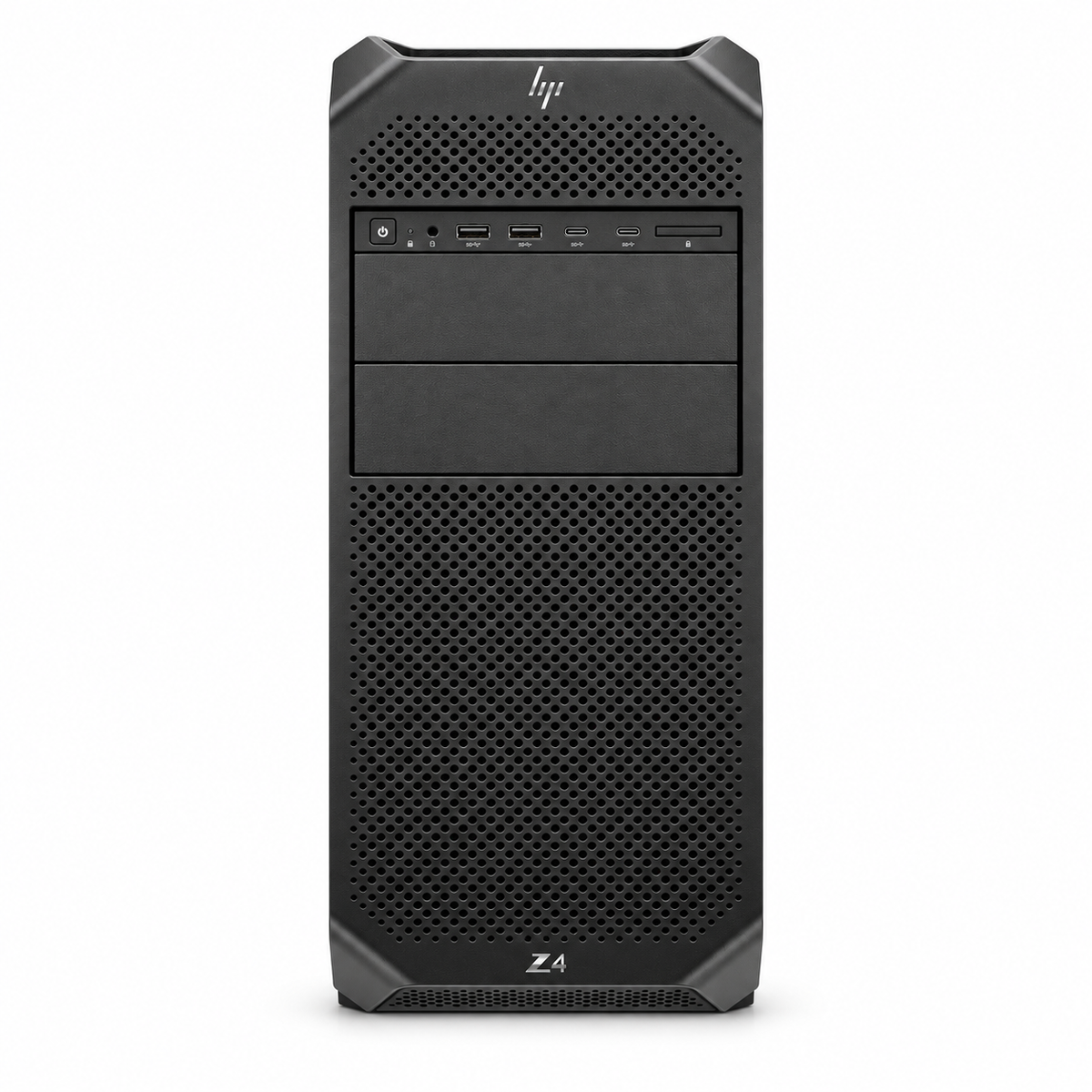

Representative HP Z4 G5 chassis images. Graphics-card connections, optional ports and bay equipment vary with the final configuration.
HP · RADIOLOGY WORKSTATION
SKU TC-HP-Z4G5-W52455X-32-1T-RTX2000ADA
New custom-configured HP Z4 G5 with Intel Xeon W5-2455X, 32GB DDR5 memory, 1TB SSD and NVIDIA RTX 2000 Ada. Request a quote matched to your PACS, displays and deployment.
Confirm your workflow, delivery location and final configuration with Texel Comp.
HP · NEW CUSTOM CONFIGURATION
Specify a new HP Z4 G5 radiology workstation with Intel Xeon W5-2455X, 32GB DDR5 memory, a 1TB SSD and NVIDIA RTX 2000 Ada. This custom tower configuration provides a defined hardware baseline for your PACS, reporting and display requirements.
Consider this Z4 G5 configuration when your application sizing calls for a 12-core Xeon processor and 16GB of graphics memory. It retains 32GB RAM and a 1TB SSD while moving to the RTX 2000 Ada, giving supported local visualization and processing tasks a larger graphics-memory allocation than the RTX A1000 build.
Reference configuration TC-HP-Z4G5-W52455X-32-1T-RTX2000ADA. Your written quote confirms the final hardware, operating system, warranty, price and delivery terms.
THE CONFIGURATION
New workstation · Computer only
Processor
12 cores / 24 threads · 3.2GHz base frequency
System memory
Capacity specified; HP platform uses registered ECC DIMMs. Module layout and speed confirmed in quote.
Storage
SSD model, interface and PCIe generation confirmed for the final build.
Graphics
16GB GDDR6 with ECC.
TECHNICAL SPECIFICATIONS
| Graphics configuration | NVIDIA RTX 2000 Ada |
|---|---|
| Graphics memory | 16GB GDDR6 with ECC |
| Display connections | 4 × mini DisplayPort 1.4a |
| Display planning | Exact monitor count, resolution, refresh rate, adapters and driver support confirmed for your software and displays |
| Processor video | Xeon W-2400 processors have no integrated graphics; use the installed graphics/controller outputs |
| Wired network | Gigabit Ethernet (RJ-45) on the HP Z4 G5 platform |
| Front connectivity | Headset combo jack and configurable USB module; USB-A / USB-C arrangement confirmed in quote |
| Rear connectivity | Six USB-A ports, RJ-45 and audio on the standard platform; display outputs supplied by installed graphics cards |
| Wireless / optional I/O | Not specified; confirm Wi-Fi, Bluetooth and optional cards in quote |
| Power and expansion | PSU wattage, PCIe slot assignment and expansion clearance confirmed for the final configuration |
| Manufacturer / model | HP Z4 G5 |
|---|---|
| Texel Comp configuration SKU | TC-HP-Z4G5-W52455X-32-1T-RTX2000ADA |
| Condition | New |
| Processor | Intel Xeon W5-2455X |
| Cores / threads | 12 cores / 24 threads |
| Base frequency | 3.2GHz |
| Maximum turbo | Up to 4.6GHz with Intel Turbo Boost Max Technology 3.0; system enablement, thermals and workload dependent |
| Processor cache | 30MB Intel Smart Cache |
| Installed RAM | 32GB DDR5; registered ECC platform, module layout and operating speed confirmed in quote |
| Installed storage | 1TB SSD; model and interface confirmed in quote |
| Operating system | Not specified; confirmed in quote |
| Form factor / dimensions | Tower · 6.65 × 17.50 × 15.20 in (W × D × H), HP chassis specification |
| Warranty | Term, provider, service level and custom-component coverage confirmed in quote |
| Manufacturer part number / GTIN | Confirmed for the final custom build; Texel SKU is not an HP manufacturer part number |
WORKFLOW & PURCHASING
The Xeon W5-2455X provides 12 cores and 24 threads. The desktop RTX 2000 Ada combines dedicated RT and Tensor cores with 16GB GDDR6 ECC graphics memory. Confirm GPU support and system-memory sizing with the software vendor before choosing this build for volumetric visualization, reconstruction or AI-assisted features.
The Z4 G5 platform provides eight memory slots and PCIe expansion for configuration planning. Available upgrade capacity depends on the processor, DIMM population, power supply and installed cards; platform maximums are not the installed specification of this listing.
CONFIGURATION QUESTIONS
Intel’s official processor model is Xeon W5-2455X, with 12 cores, 24 threads and a 3.2GHz base frequency. This listing uses the complete model name. The desktop RTX 2000 Ada has 16GB GDDR6 graphics memory with ECC; operating system, RAM module details and application compatibility are confirmed separately in the quote.
Provide your PACS name and version, approved operating system, diagnostic and worklist monitor models, resolution and local processing requirements. Software support, graphics drivers, adapters and display-controller compatibility must be checked for the complete configuration. Clinical suitability depends on the facility’s validation of that system.
One new HP Z4 G5 specified with Intel Xeon W5-2455X, 32GB RAM, 1TB SSD and NVIDIA RTX 2000 Ada. Operating system, warranty, power accessories, keyboard/mouse and display adapters are identified in the written quote. Medical displays, dictation equipment, PACS licenses and installation are quoted separately unless expressly included.
Select Request a Quote and reference configuration SKU TC-HP-Z4G5-W52455X-32-1T-RTX2000ADA. Include quantity, software, display models, delivery ZIP code and any installation or support requirements. The quote identifies the final components, operating system, warranty, availability, lead time and price.
HP Z4 G5 platform specifications and optionsIntel Xeon W5-2455X specifications from IntelNVIDIA graphics specifications
Compare HP radiology workstationsShop Medical DisplaysShop Worklist MonitorsShop Dictation & AccessoriesShop Complete PACS Reading Stations
TEXEL COMP
Talk with Texel Comp about the right configuration, compatibility and service scope for your organization.
