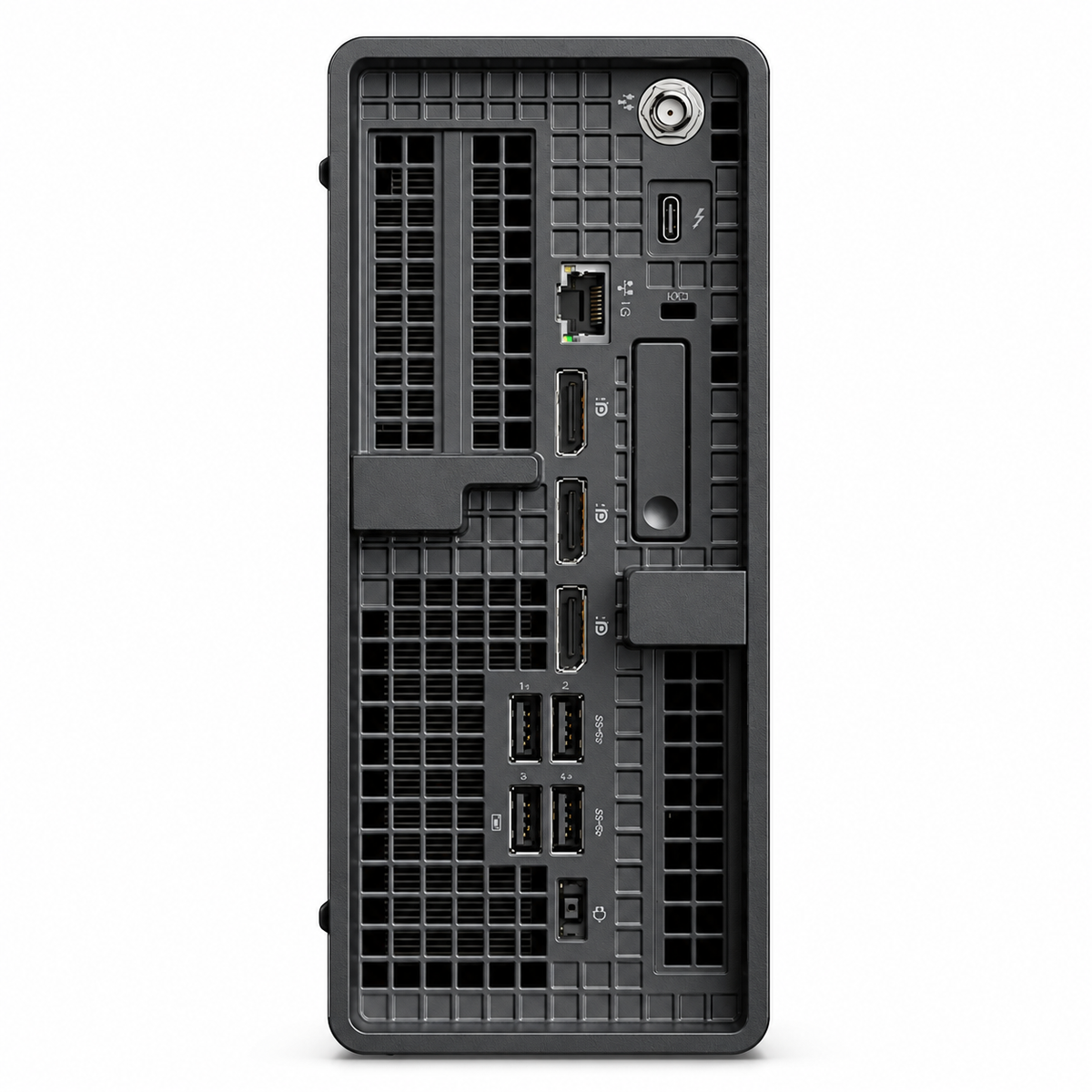

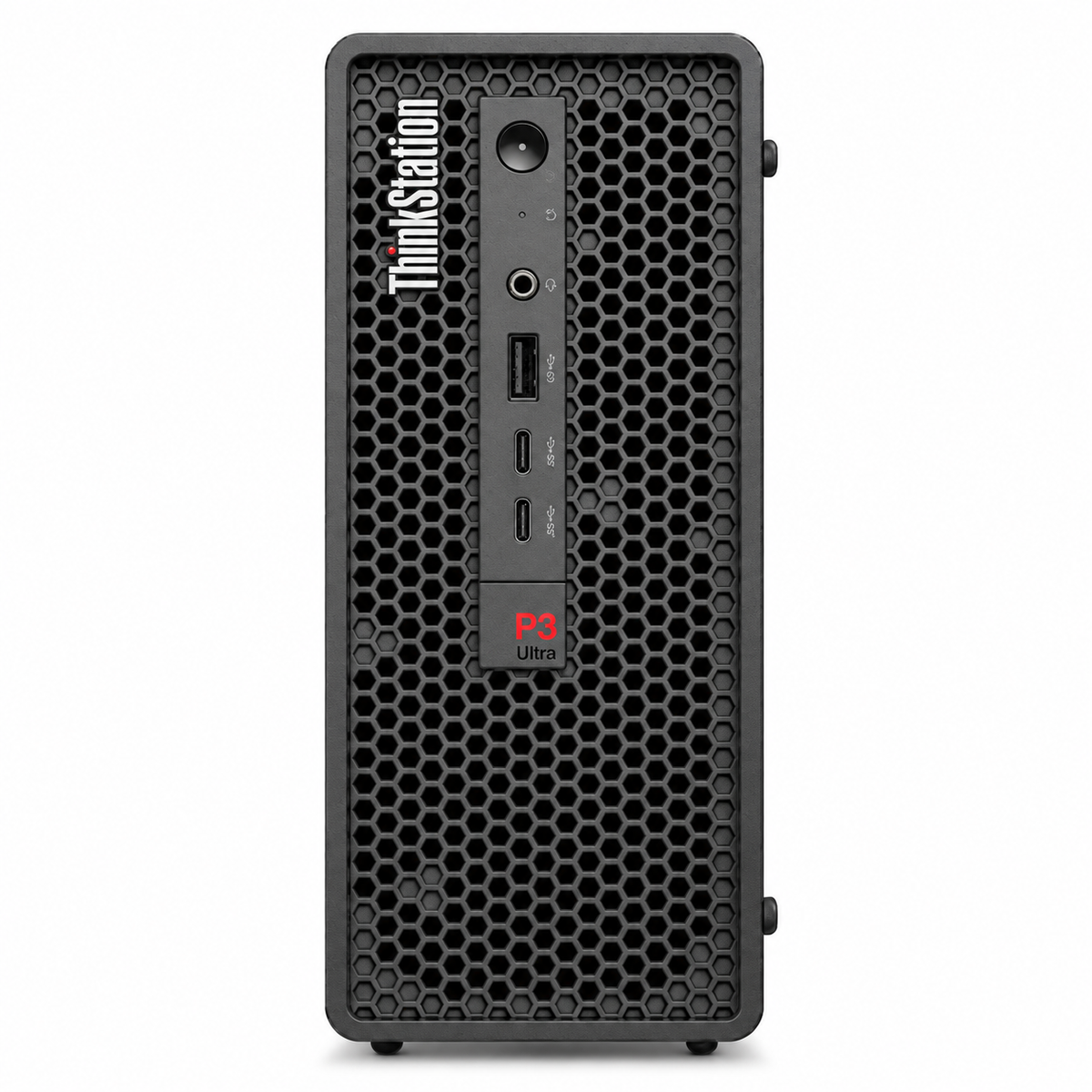

Representative Lenovo ThinkStation P3 Ultra Gen 2 chassis images. Graphics-card connections, optional ports and bay equipment vary with the final configuration.
LENOVO · RADIOLOGY WORKSTATION
SKU TC-LNV-P3U2-U9285-64-1T-2KADA16
New custom-configured P3 Ultra Gen 2 with Intel Core Ultra 9 285, 64GB DDR5, 1TB SSD and NVIDIA RTX 2000 Ada Generation 16GB. Request a quote matched to your PACS software and display requirements.
Confirm your workflow, delivery location and final configuration with Texel Comp.
LENOVO · NEW CUSTOM CONFIGURATION
This new Lenovo ThinkStation P3 Ultra SFF Gen 2 custom configuration includes an Intel Core Ultra 9 285, 64GB DDR5 memory, a 1TB SSD and NVIDIA RTX 2000 Ada Generation 16GB graphics. It gives buyers a compact option with the same requested CPU, RAM, SSD capacity and GPU class as the corresponding Tower build.
For buyers evaluating a compact workstation where their approved imaging application requires 64GB of system memory or a 16GB professional graphics card. Compare the Ultra’s footprint and expansion arrangement with a tower, then confirm the exact application and display requirements.
Reference configuration TC-LNV-P3U2-U9285-64-1T-2KADA16. The written quote identifies the final hardware, operating system, warranty and delivery terms for your organization.
THE CONFIGURATION
New workstation · Computer only
Processor
24 cores / 24 threads · Up to 5.6GHz maximum turbo
System memory
Installed capacity; module layout and ECC status confirmed in quote.
Storage
SSD model and interface details identified in the final build.
Graphics
4 × Mini DisplayPort 1.4a on the graphics card.
TECHNICAL SPECIFICATIONS
| Dedicated graphics | NVIDIA RTX 2000 Ada Generation 16GB |
|---|---|
| Graphics memory | 16GB GDDR6 with ECC |
| Display connections | 4 × Mini DisplayPort 1.4a on the graphics card |
| Display planning | Exact monitor count, resolution, refresh rate and adapters confirmed for the chosen software and displays |
| Wired network | Gigabit Ethernet (RJ-45) on the Lenovo platform |
| Wireless / Bluetooth | Not specified; confirm in quote |
| USB / accessories | Front USB-C (data) and USB-A; rear USB-A. Optional Thunderbolt confirmed in quote. |
| Power configuration | Power adapter wattage and graphics riser confirmed for the final build |
| Manufacturer part number / GTIN | Confirmed for the final custom build; Texel SKU is not a manufacturer MPN |
| Warranty | Term, provider, service level and custom-component coverage confirmed in quote |
| Manufacturer / platform | Lenovo ThinkStation P3 Ultra SFF Gen 2 |
|---|---|
| Texel Comp configuration SKU | TC-LNV-P3U2-U9285-64-1T-2KADA16 |
| Condition | New |
| Processor | Intel Core Ultra 9 285 |
| CPU cores / threads | 24 cores / 24 threads |
| Maximum turbo | Up to 5.6GHz; workload and configuration dependent |
| Installed RAM | 64GB DDR5; module layout, speed and ECC status confirmed in quote |
| Installed storage | 1TB SSD; SSD model, interface and PCIe generation confirmed in quote |
| Operating system | Operating system and licensing confirmed in quote |
| Form factor | Compact mini-tower (3.9L) |
WORKFLOW & PURCHASING
The RTX 2000 Ada Generation has 16GB of GDDR6 graphics memory with ECC and four Mini DisplayPort 1.4a outputs. Its Ada architecture provides RT and Tensor cores for supported visualization and compute applications.
This is the RTX 2000 Ada Generation desktop card. It is a distinct product from RTX A2000, RTX 2000E Ada and RTX PRO 2000 Blackwell. Confirm the final power configuration and display adapters with the quote.
CONFIGURATION QUESTIONS
This listing specifies the Core Ultra 9 285 exactly as requested, not the 285T or 285K. Lenovo’s P3 Ultra SFF Gen 2 platform document lists the 285 processor. The quoted build must retain that exact processor unless you approve a change.
Send the exact display models, resolution and PACS version with your request. A connector match or GPU model does not establish diagnostic compatibility. Software, graphics drivers, adapters and the display manufacturer’s requirements must be checked for the complete workstation.
One new P3 Ultra Gen 2 workstation with the specified processor, RAM, SSD and graphics. Diagnostic displays, worklist monitors, dictation hardware, PACS licenses and installation services are outside this computer listing unless added to the written quote. Keyboard, mouse, power accessories and any adapter kit are confirmed in that quote.
Use Request a Quote and include the configuration SKU, quantity, software, monitor models and delivery ZIP code. Any component changes, operating system, warranty, service scope, final price and lead time will be identified in the written quote.
