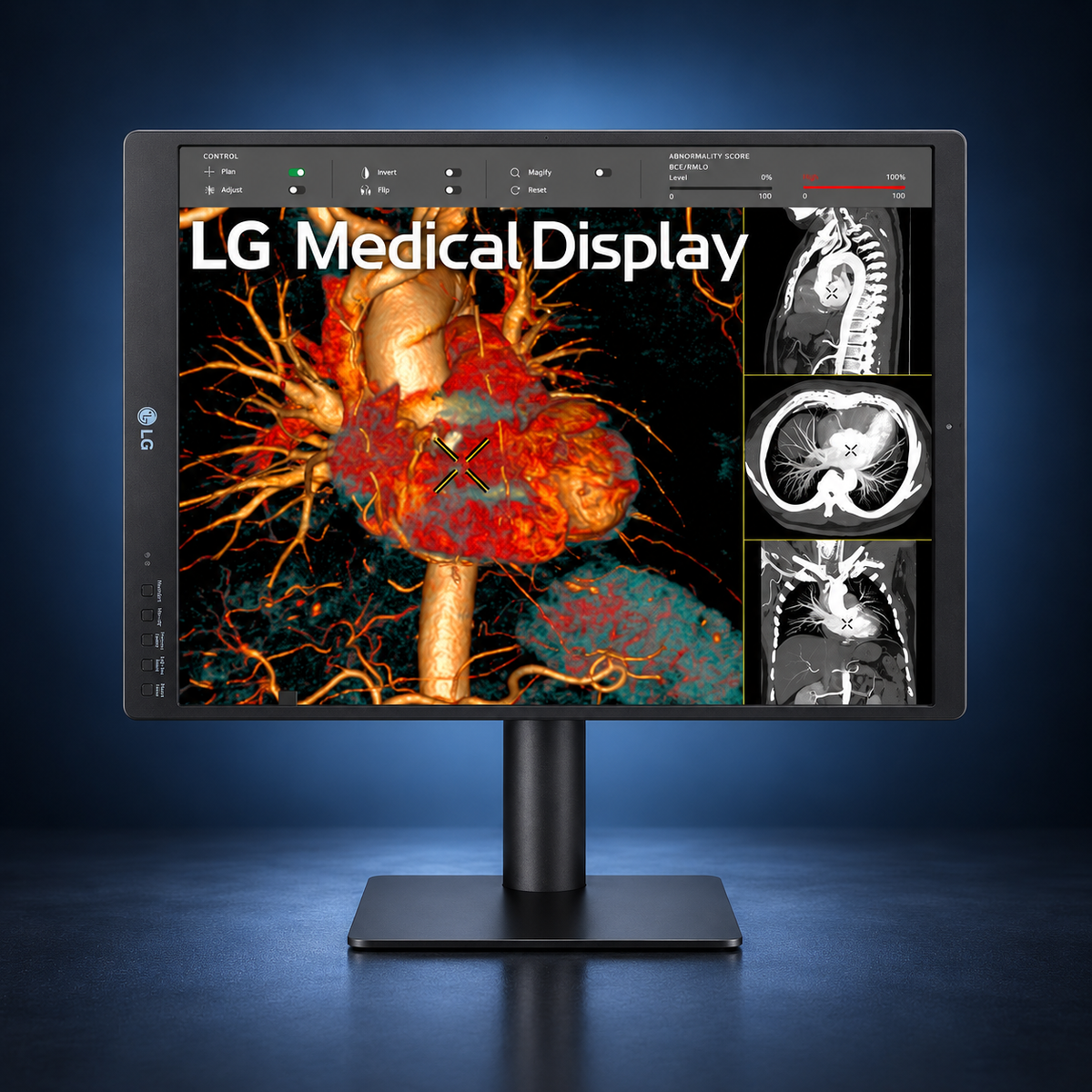

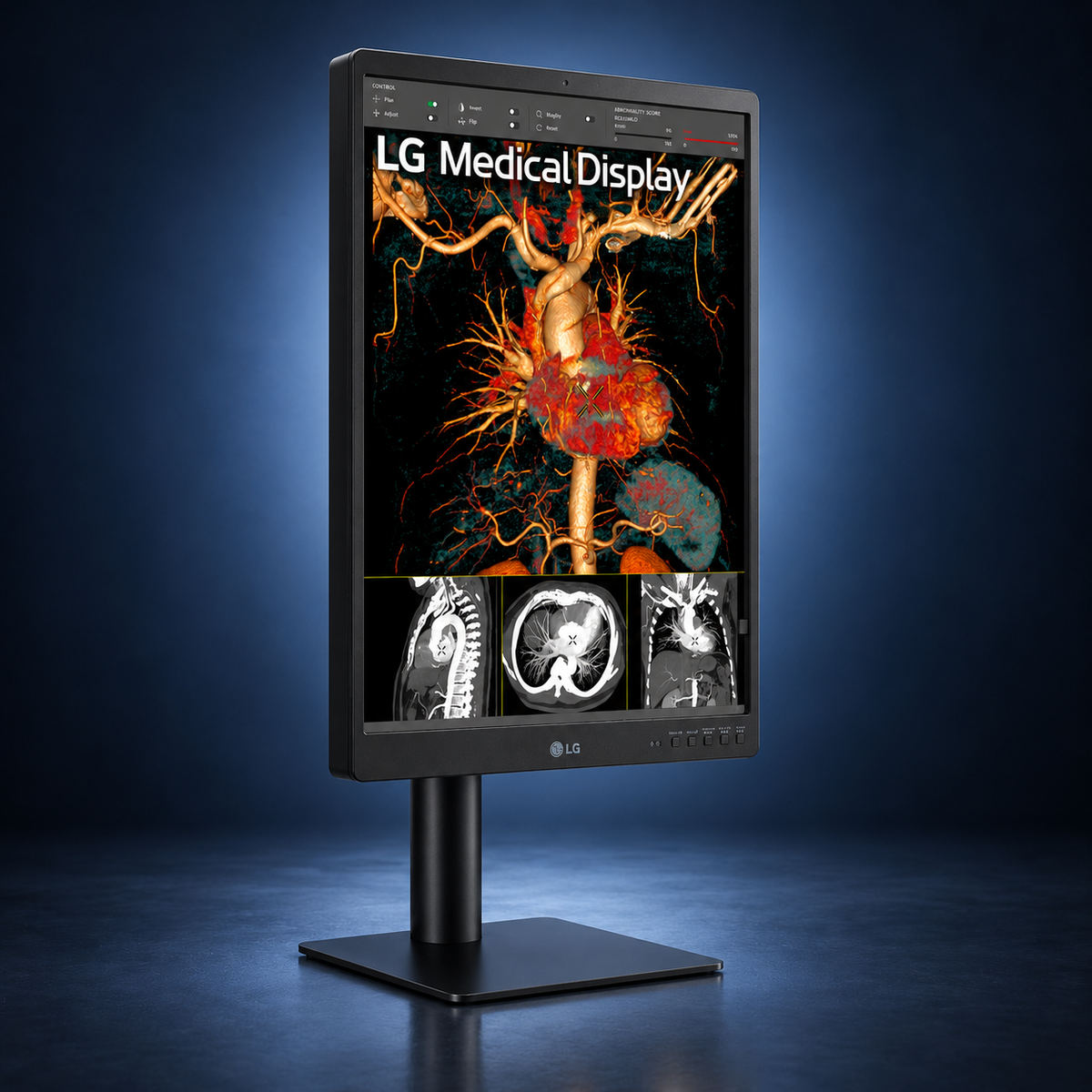

01 · DISPLAY
A portrait 3MP workspace.
The 21.3-inch IPS display provides a 3MP image area. Plan a single display or paired reading station with Texel Comp.
LG 21HQ513D-S3MP · 1536 × 2048
Product images show the individual monitor. Screen content is illustrative.
DIAGNOSTIC RADIOLOGY
LG 21HQ513D-S 21.3″ 3MP Diagnostic Monitor
SKU LG-21HQ513D-S-1
New
LG 21HQ513D-S combines a 21.3-inch 3MP IPS display with internal front calibration sensor. A portrait medical monitor for radiology desks that need a dedicated image display, with single-monitor and pair configurations available.
- DISPLAY
- 21.3-inch 3MP
1536 × 2048 - PANEL
- IPS
1,800:1 typical contrast - BRIGHTNESS
- 1100 cd/m² typical
- CALIBRATION SENSOR
- Internal front calibration sensor
Single Monitor · Specifications are per monitor.
5-year manufacturer limited warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
LG 21HQ513D-S · DIAGNOSTIC RADIOLOGY
Portrait imaging. A focused reading desk.
A portrait medical monitor for radiology desks that need a dedicated image display, with single-monitor and pair configurations available.
Choose Single Monitor or Pair (2 Monitors) in the configuration selector. Specifications are per monitor.
Plan the display around your workflow
Tell Texel Comp which imaging application you use, how many screens you need and which graphics outputs your workstation provides. That information helps match the display to the desk before you order.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · RESOLUTION MODES
Choose the mode for your system.
3MP and 2MP modes let you match the display to a supported source. Confirm the graphics output and application settings during installation.
03 · FOCUS VIEW
Give one region more attention.
Focus View highlights a selected image area while dimming the surrounding screen. Use the on-screen controls to choose the area you want to examine.
04 · FRONT SENSOR
Bring calibration into the display.
The internal front sensor works with supported calibration software. Include display calibration and ongoing quality checks when planning your reading station.
05 · EVERYDAY CONTROLS
Keep common settings close at hand.
Six hot keys provide access to display settings. Set up the controls around the modes your team uses during its reading workflow.

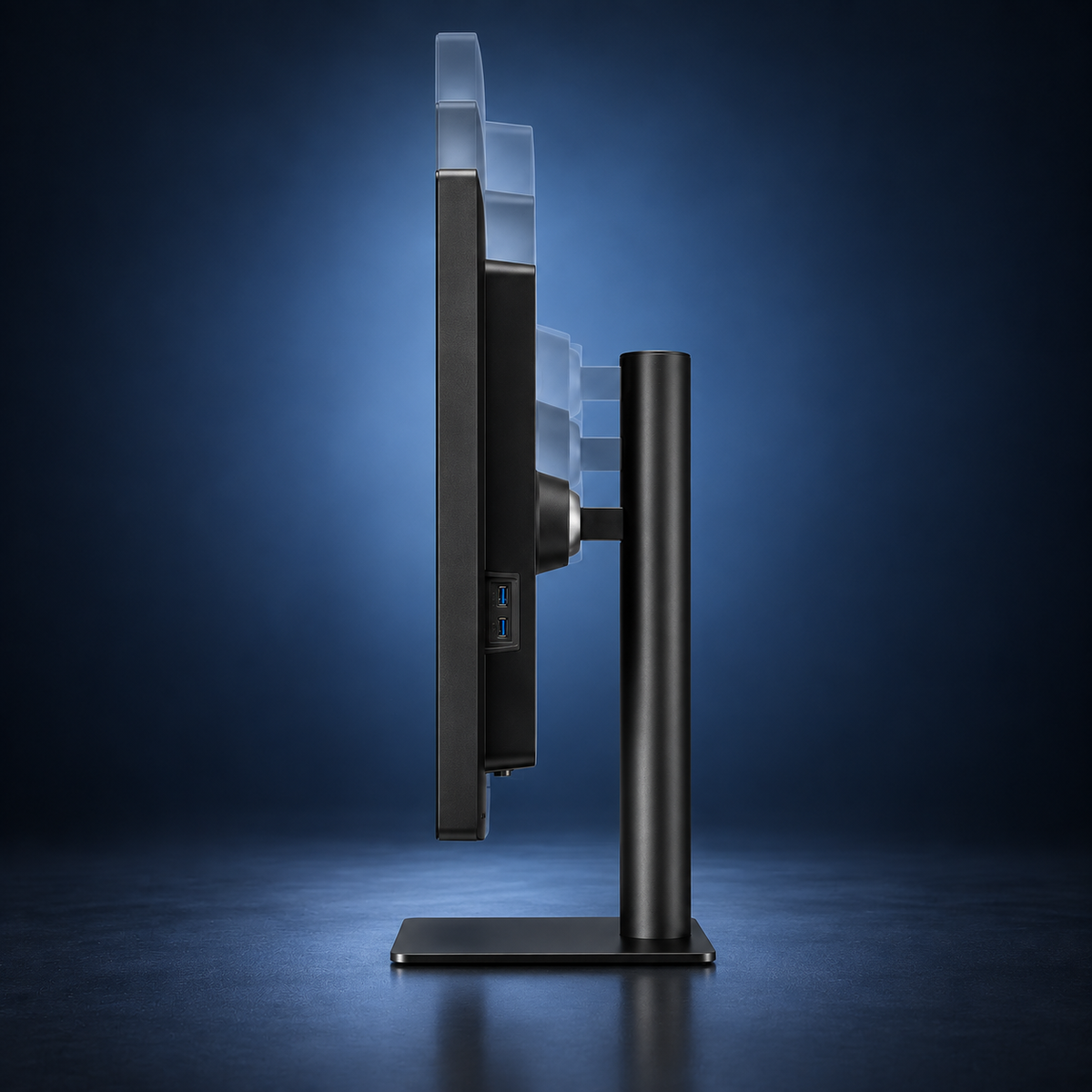

06 · STAND ADJUSTMENTS
Arrange the screen around your desk.
Height, tilt, swivel and pivot adjustments support different desk positions. Ask Texel Comp to review the layout when choosing a single or paired configuration.

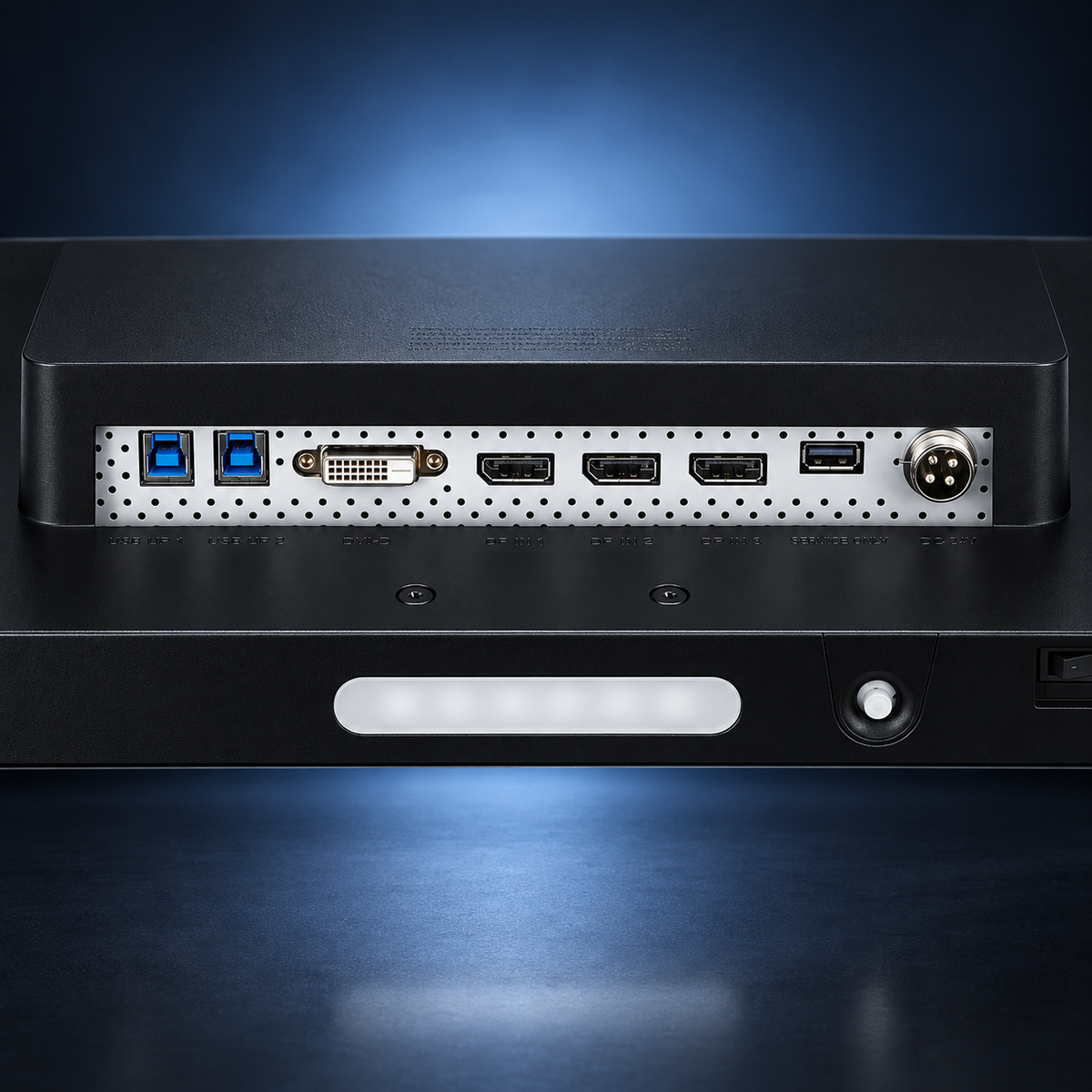

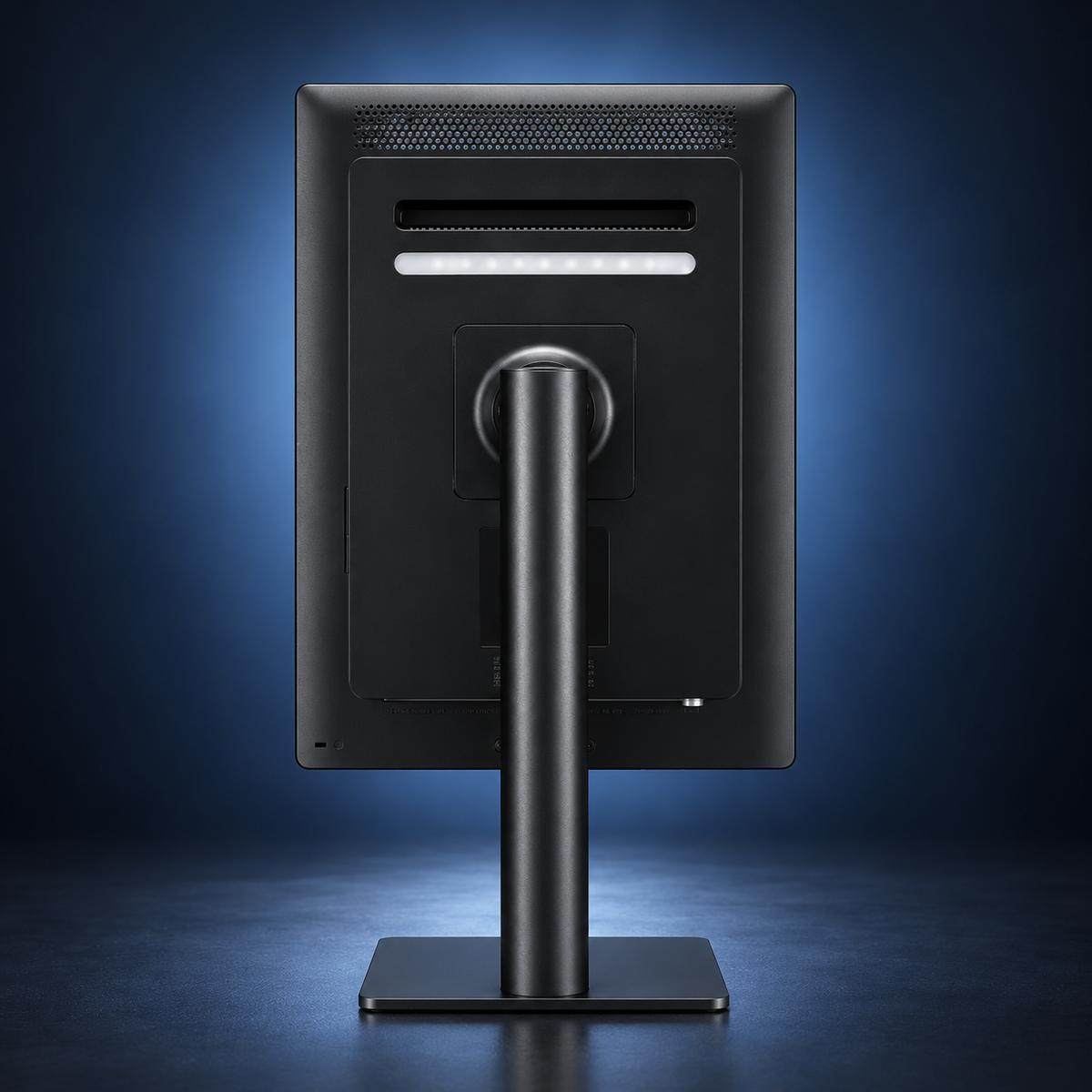

07 · REAR CONNECTIONS
See the ports before you connect.
DisplayPort connectivity and the USB hub sit in the rear connector area. Review your graphics card, daisy-chain requirements and cable routing with Texel Comp.
LG 21HQ513D-S specifications
Display performance
| Exact model | LG 21HQ513D-S |
|---|---|
| Screen | 21.3 inches |
| Native resolution | 3MP · 1536 × 2048 |
| Panel / aspect | IPS · 3:4 |
| Typical brightness | 1100 cd/m² |
| Typical contrast | 1,800:1 |
Calibration & installation
| Calibration sensor | Internal front calibration sensor |
|---|---|
| Calibration support | LG Calibration Studio Medical |
| Resolution modes | 3MP / 2MP |
| Connectivity | DisplayPort daisy chain and USB hub |
| Stand adjustment | Height, tilt, swivel and bi-directional auto pivot |
| Condition / warranty | New · 5-year manufacturer limited warranty |
Brightness shown is the manufacturer’s typical specification, not a promise of calibrated luminance. Confirm the calibration target, software version and display connection for your installation.
Intended application
FDA-cleared for radiological image display; not intended for mammography.
For your purchasing team
Use the exact model number when comparing quotes. Ask Texel Comp to confirm availability, supplied accessories, delivery timing and applicable U.S. manufacturer warranty terms for your order.
A monitor purchase does not include a computer, PACS software license or deployment service unless those items are explicitly listed in your quote.
Questions before you order

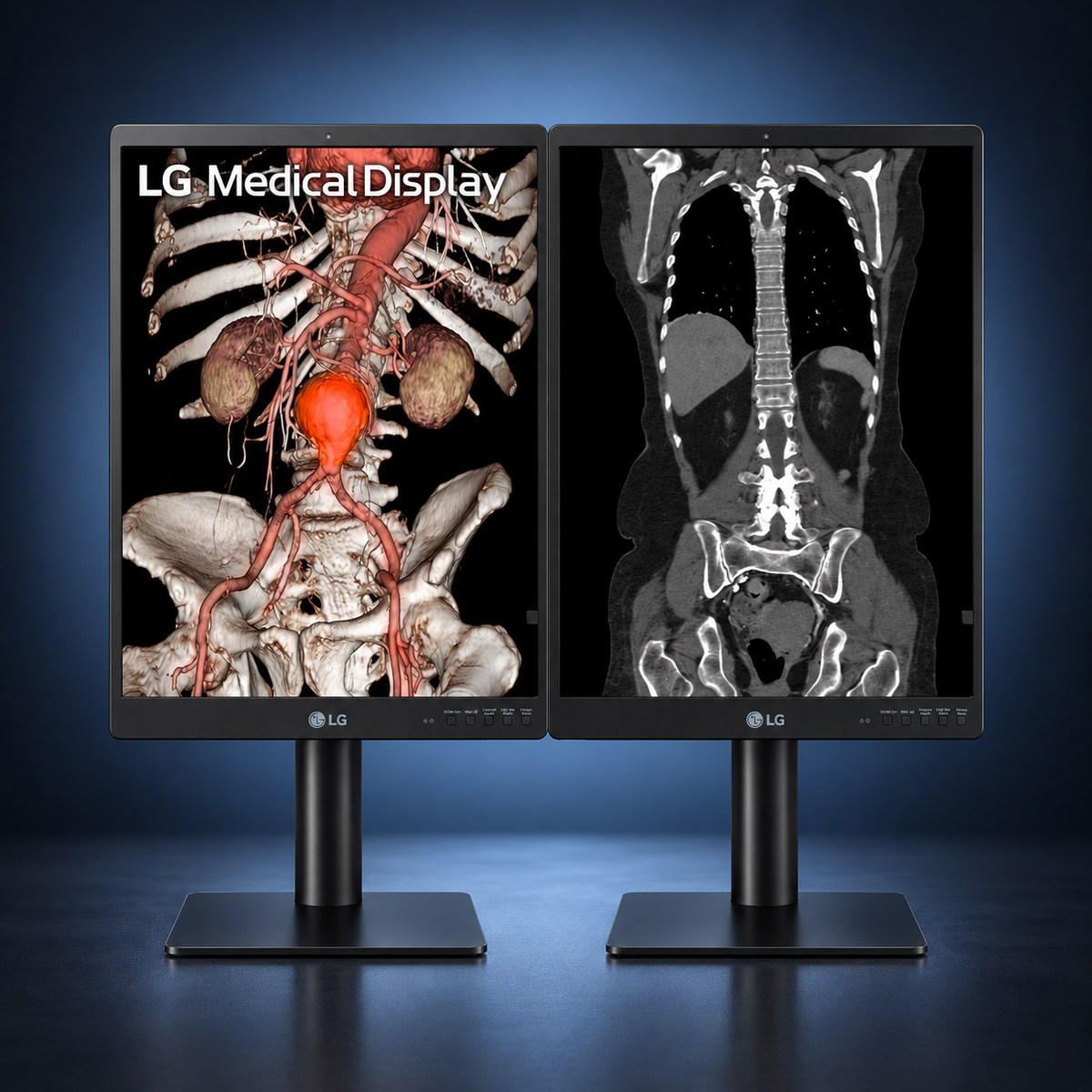

Does choosing a pair create one 6MP display?
No. A pair contains two separate 3MP monitors. Each screen retains its own native resolution, calibration and workstation connection requirements.
Will it work with my existing PACS workstation?
Confirm your graphics card’s output, supported resolution and required cable connection. Send your workstation model and intended screen arrangement to Texel Comp for help reviewing the setup.
Does DICOM support complete our display quality checks?
The display’s DICOM support is one part of the installation. Your team should establish and maintain its calibration and quality-control workflow for the intended application.
Can we request a quote for several reading desks?
Yes. Include the exact LG model, monitor quantity, single or paired arrangement and delivery destination. Texel Comp can help you review the display requirements for the order.
