01 · FULL HD DISPLAY
A 27-inch Full HD surgical display.
The 1920 × 1080 IPS panel provides a Full HD image area. Confirm the signal format from your surgical video equipment with Texel Comp.
LG 27HK510S-W27-inch · Full HD
SURGICAL MEDICAL DISPLAY

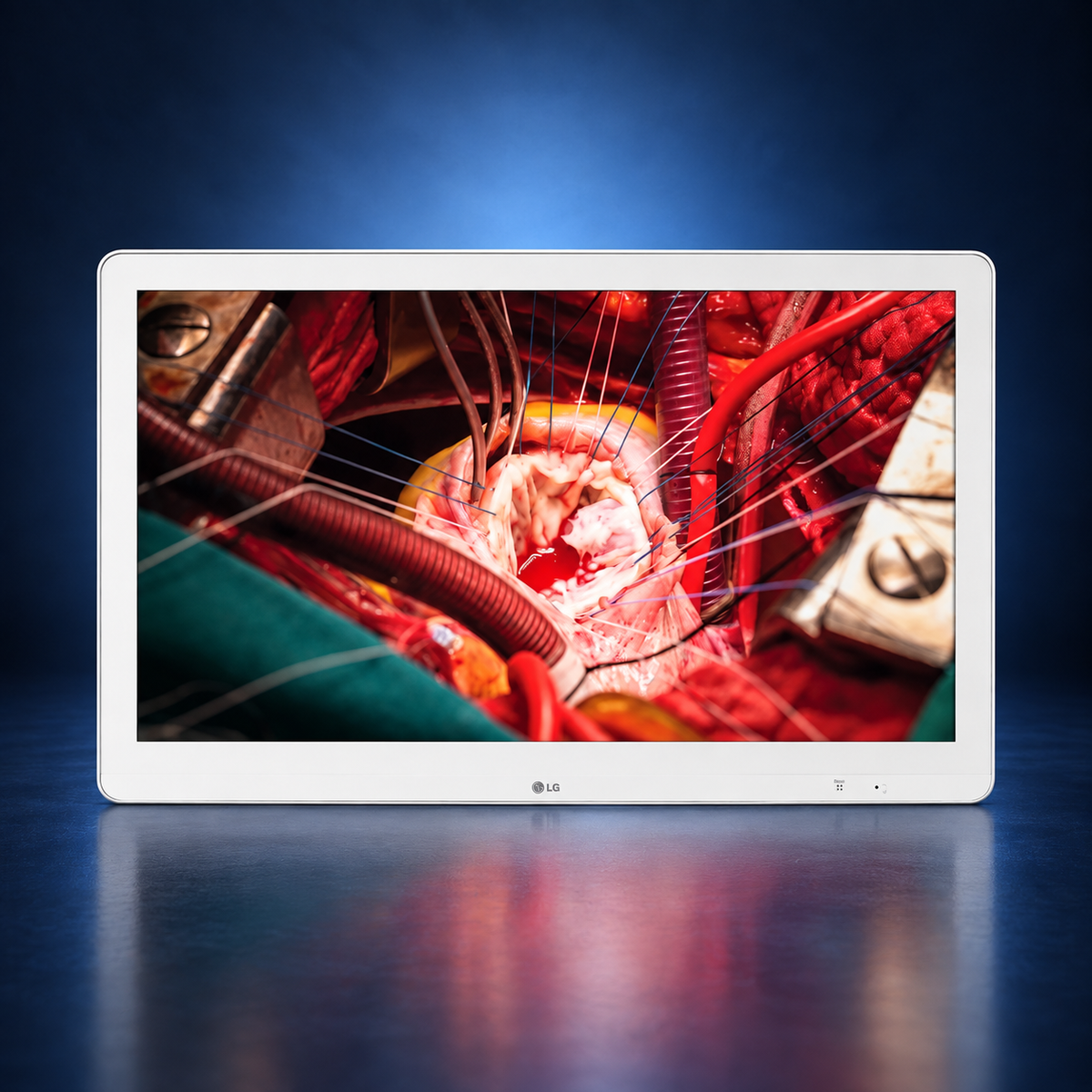

LG 27HK510S-W 27-inch Full HD IPS Surgical Medical Monitor
SKU LG-27HK510S-W
New
The LG 27HK510S-W is a 27-inch Full HD IPS surgical display with 1000 cd/m² typical brightness, 3G-SDI connectivity and protective glass for compatible operating-room video systems.
- DISPLAY
- 27-inch
IPS LCD - RESOLUTION
- 1920 × 1080
Full HD - CONNECTION
- 3G-SDI
HDMI / DVI-D - WORKFLOW
- PBP / PIP
Full HD surgical video
3-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
SURGICAL MEDICAL DISPLAY
A focused Full HD display for surgical video.
The LG 27HK510S-W is a 27-inch Full HD IPS surgical display with 1000 cd/m² typical brightness, 3G-SDI connectivity and protective glass for compatible operating-room video systems.
Connect compatible endoscopic and surgical video sources to a dedicated 1920 × 1080 screen. The 27-inch format combines a compact mounting footprint with broad viewing angles for the procedure team.
Plan your video workflow
Choose this model when your imaging chain uses Full HD video and 3G-SDI rather than a native 4K workflow. Confirm source formats, output connectors and the required arm or pendant mount before ordering.
Explore our medical displays to compare screen sizes and connection options.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · COLOR DISPLAY
Review color settings with your video source.
LG specifies 115% sRGB coverage for this model. Choose the display settings around the connected equipment and the video material being shown.
03 · BRIGHTNESS CONTROL
Maintain the selected brightness target.
Brightness stabilization adjusts the backlight toward the chosen luminance level. Include the monitor’s display settings in the installation and maintenance plan.
04 · PROTECTION GLASS
A protected front viewing surface.
The front protection glass forms part of the monitor’s physical design. Follow LG’s cleaning and handling instructions when preparing the display for use.
05 · FLICKER SAFE
Consider the viewing environment.
LG Flicker Safe is designed to reduce screen flicker. Set brightness and room lighting together when configuring the display for your team.

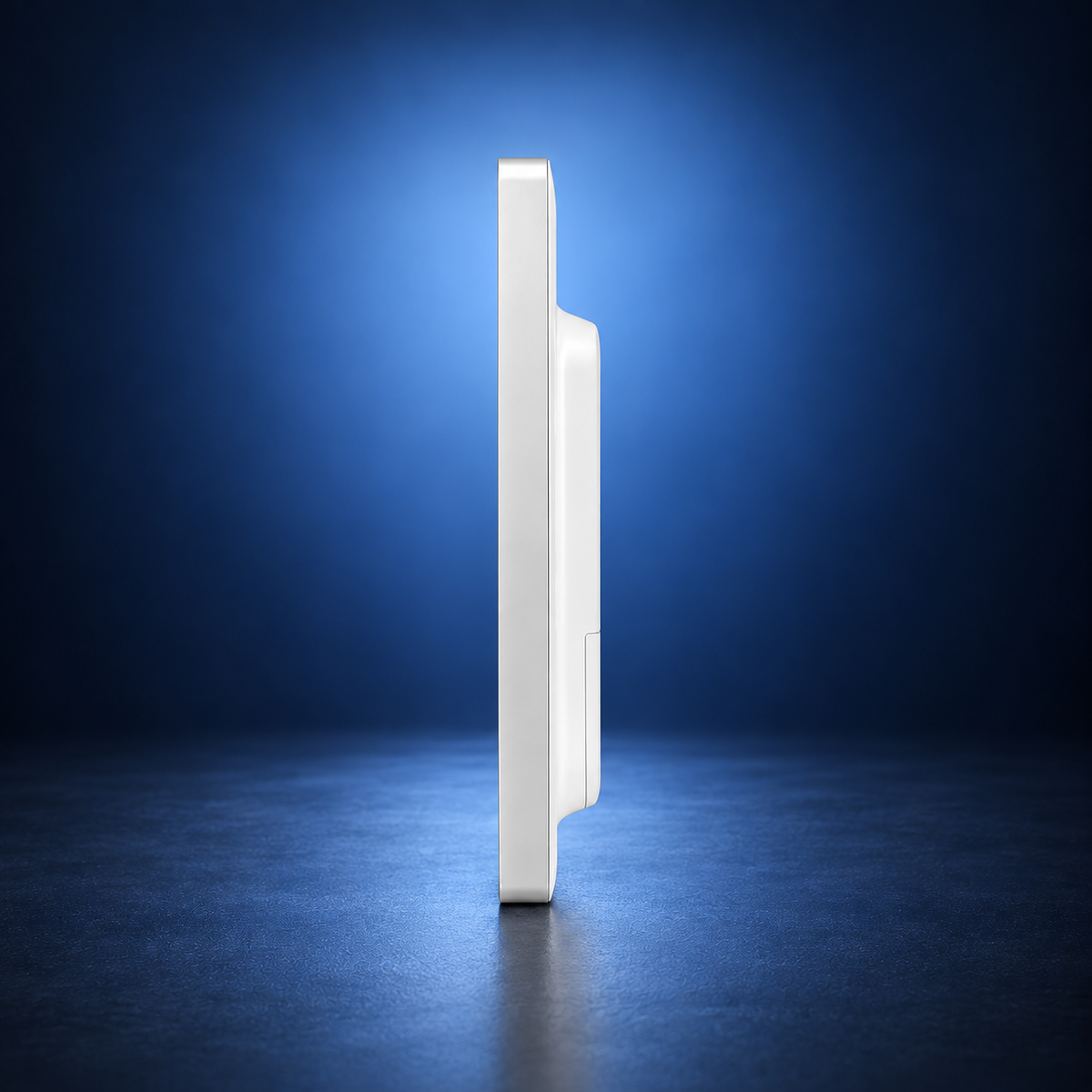

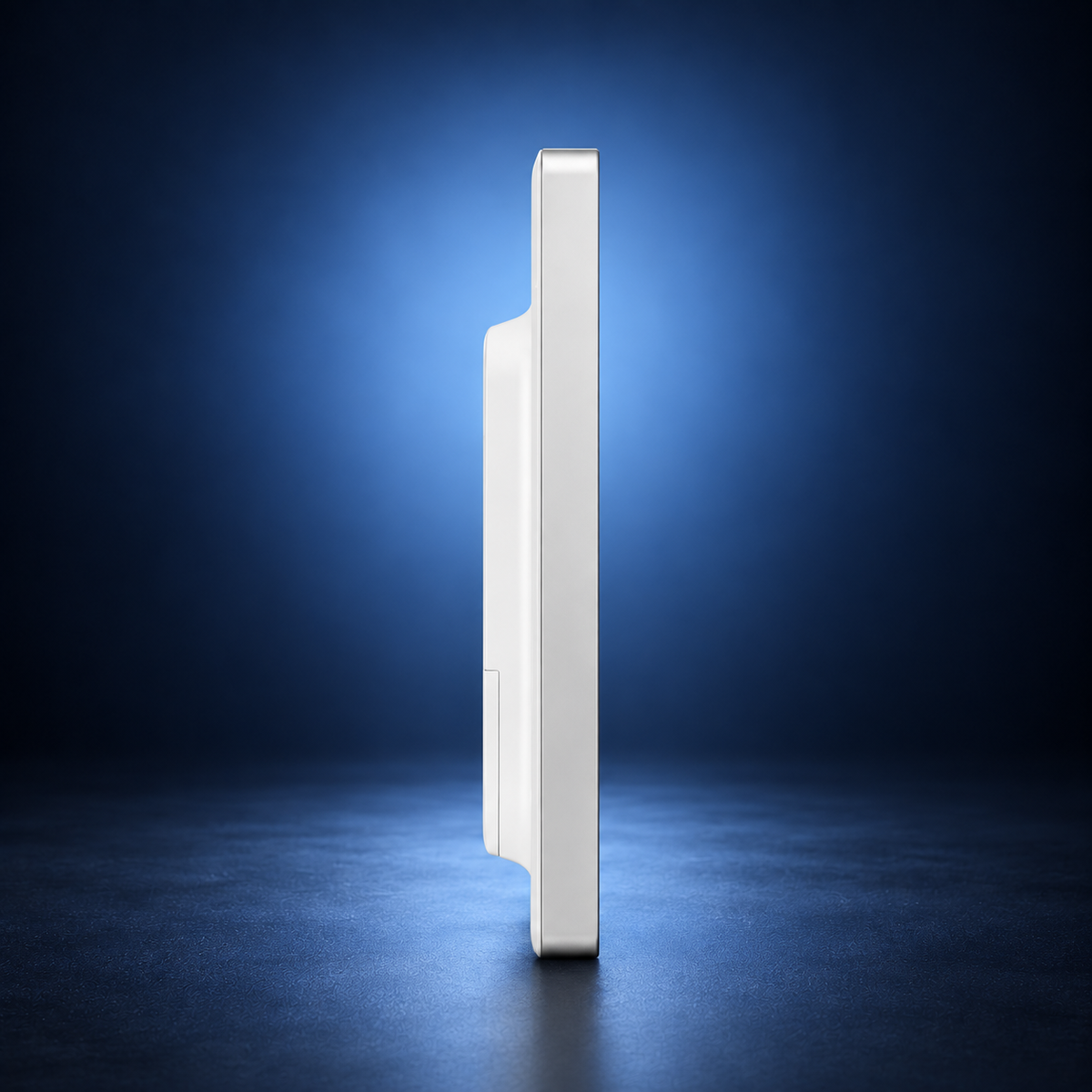

06 · HOUSING DESIGN
Check the enclosure for the installation.
LG rates the front IP35 and the rear IP32. Review mounting, ventilation and the manufacturer’s cleaning guidance when planning the monitor location.

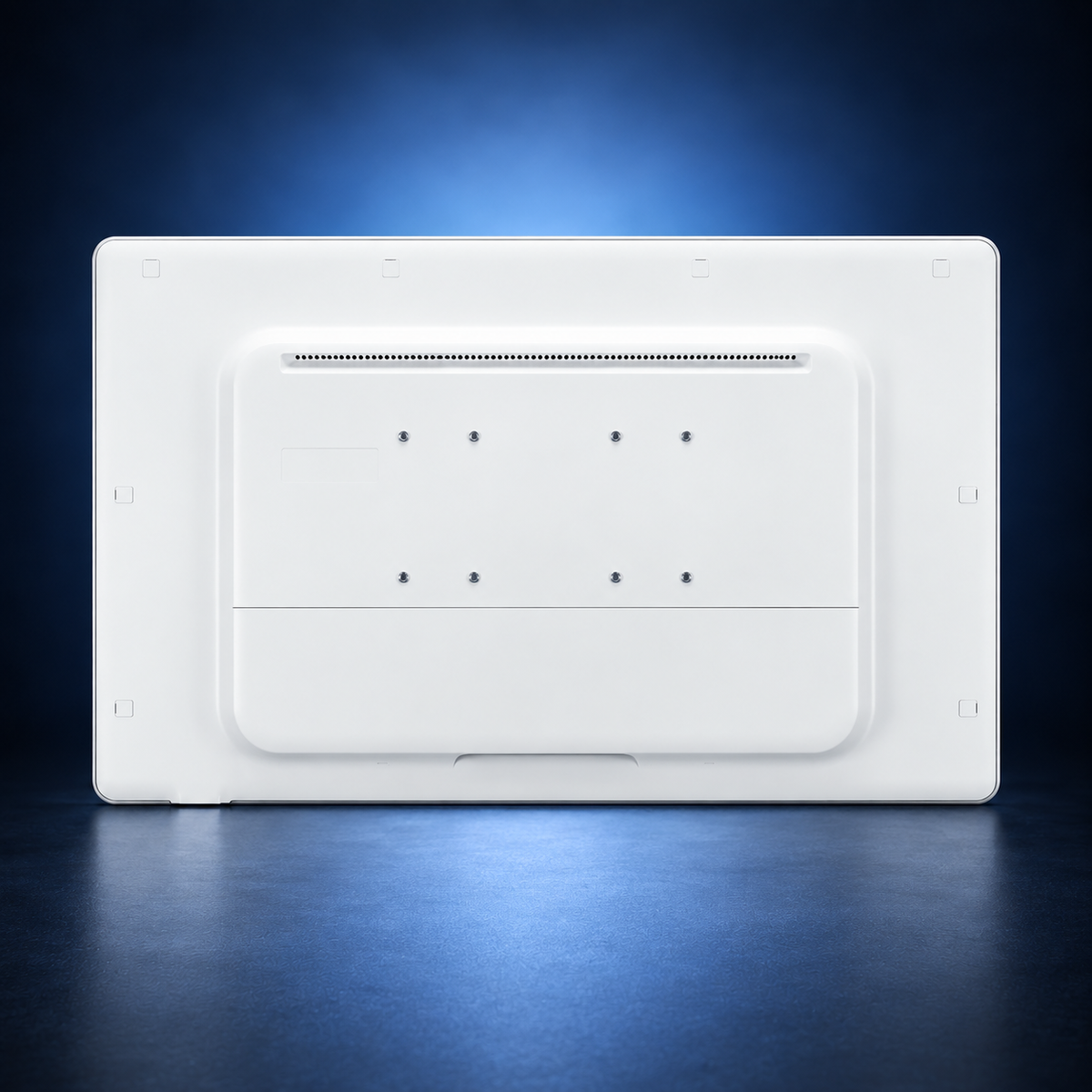

07 · REAR DESIGN
Review the housing and connection plan.
The rear photograph shows the monitor housing and covered connector area. Ask Texel Comp to review its 3G-SDI inputs and required video cables.
Technical specifications
Display and performance
| Model / MPN | 27HK510S-W |
|---|---|
| SKU | LG-27HK510S-W |
| Screen | 27-inch; 16:9 |
| Panel | IPS LCD with LED backlight |
| Native resolution | 1920 × 1080 |
| Typical brightness | 1000 cd/m² |
| Contrast | 1000:1 |
| Color | sRGB 99% coverage; 10-bit color |
| HDR | Not specified as an HDR10 model |
| Timing | 60 Hz supported at Full HD |
Connections and installation
| Video inputs | 1 × HDMI; 2 × DVI-D; 1 × 3G-SDI; D-Sub with supported analog/component signals |
|---|---|
| Video outputs | 1 × DVI-D; 1 × 3G-SDI |
| USB | 1 upstream / 1 downstream for supported hardware calibration |
| Control | RS-232C and RJ45 remote control |
| Multi-image tools | Picture-by-Picture and Picture-in-Picture |
| Protection | Protective glass with anti-reflection and anti-fingerprint treatment; IP35 front / IP32 rear |
| VESA mounting | 100 × 100 mm; 200 × 100 mm |
| Dimensions / net mass | 656.4 × 412.9 × 62.2 mm; 7.7 kg without stand |
| Power | External adapter; 100–240 V AC, 50/60 Hz; up to 120 W |
| Display settings | Brightness stabilization; hardware calibration with supported LG Calibration Studio / True Color Pro workflow |
Configuration and purchasing
Supplied configuration
One LG 27HK510S-W monitor. LG lists no stand; confirm the regional power adapter or cord, cables and accessory kit. Specify the required mount or surgical arm separately.
Specify the source, input timing and cable path for your surgical-video workflow. DICOM tone support alone does not establish diagnostic radiology or mammography indications.
Warranty and support
3-year manufacturer limited warranty, subject to unit eligibility and regional terms. Confirm condition, remaining coverage, availability and delivery with your quote. Contact Texel Comp for configuration and support options.
Request a quote for LG 27HK510S-W with your source equipment, desired layout and mounting requirements.
Frequently asked questions
Is the 27HK510S-W a 4K monitor?
No. Its native resolution is 1920 × 1080 Full HD. Compare the 27HQ710S-W if you need a 27-inch native 4K screen.
Which SDI connection does it support?
The model lists 3G-SDI input and output. Confirm the camera or processor's signal format and cabling; 3G-SDI should not be described as a single-link 12G-SDI 4K connection.
Does this include a desktop stand?
LG lists the display without a stand. Specify a compatible VESA mount, surgical arm or pendant and confirm the included power adapter, cables and mounting hardware in the quote.
Can I use it for diagnostic radiology reading?
This listing is for surgical video and compatible clinical reference applications. DICOM tone settings do not establish radiology or mammography diagnostic indications. Choose a display specified for the required diagnostic workflow.
Resources and related displays
Official LG 27HK510S-W specifications · Manufacturer brochure · Manufacturer support and warranty
Compare Compare the LG 27HQ710S-W for a 27-inch 4K Mini-LED option..
