One 12MP breast-imaging display
A 4200 × 2800, 3:2 diagnostic canvas with 12MP and 6MP modes, Picture-by-Picture and 10-bit color.
LG 31HN713D-B4200 × 2800 · 12MP
Internal front calibration sensor
TEXEL COMP · MAMMOGRAPHY & DBT WORKSTATION PACKAGE
Complete PACS Mammography & 3D Tomosynthesis Station | LG 31HN713D-B 31-inch 12MP Diagnostic Display | Lenovo Workstation | Philips SpeechMike | Two Dell 24-inch Worklist Monitors
SKU TC-RAD-MAMMO-12MP-LG31-P3G2
New
An LG 12MP mammography diagnostic display, Lenovo workstation and Philips dictation, with two dedicated Dell 24-inch worklist screens. Dell models are selected based on availability.
- DISPLAY CONFIGURATION
- LG 31HN713D-B 12MP mammography display
2 Dell 24-inch worklist monitors - PROCESSOR
- Core Ultra 5 235
- MEMORY / STORAGE
- 32GB DDR5 / 512GB NVMe
- GRAPHICS
- RTX A400 · 4GB
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-Year Manufacturer Limited WarrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
WORKSPACE
Mammography. Tomosynthesis. Reporting.

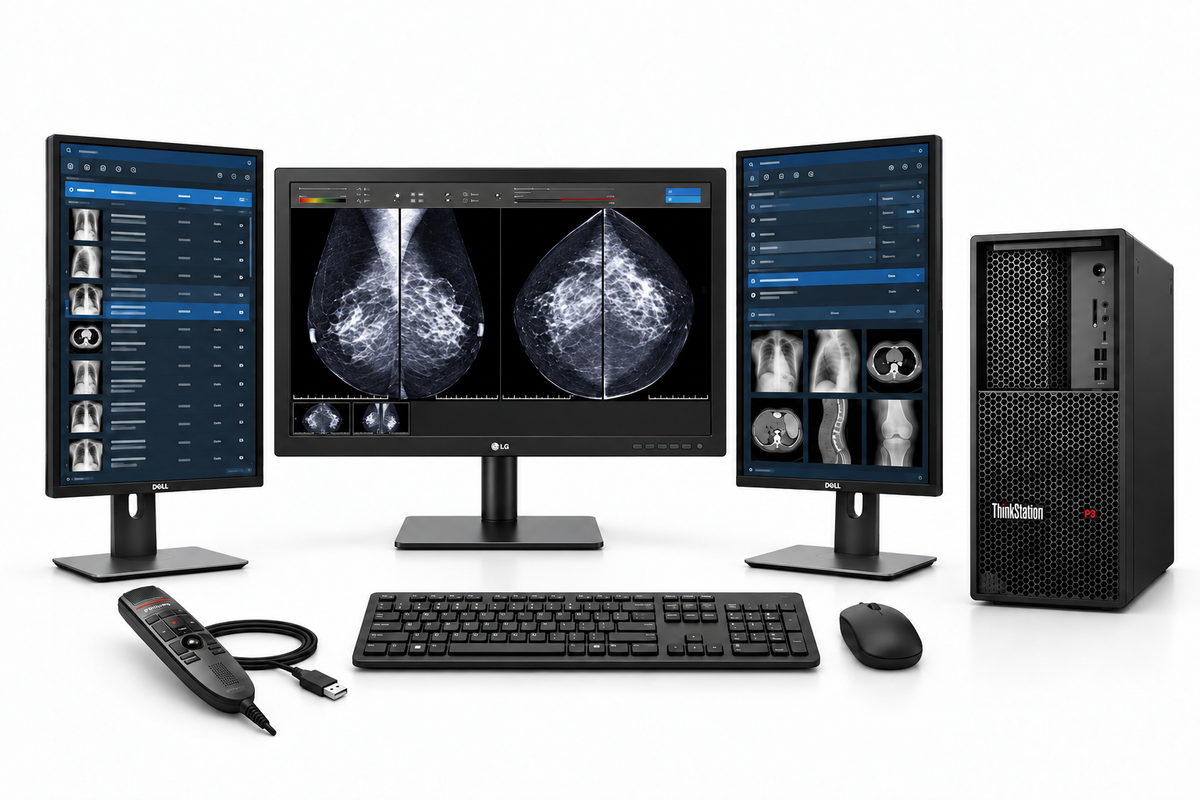

This breast-imaging package includes one LG 31HN713D-B 31-inch 12MP diagnostic display with a new Lenovo ThinkStation P3 Tower Gen 2, RTX A400 and two Dell 24-inch worklist monitors and a Philips SpeechMike Premium LFH3500.
Use the LG for radiology, full-field digital mammography and DBT; use the Dell screens for worklists and reporting. Confirm PACS, mammography software, calibration and facility requirements.
Self-calibration and sensing
Internal front calibration, brightness stabilization, auto-luminance and presence sensors support imaging.
A three-screen reporting platform
Four Mini DisplayPort 1.4a outputs support the LG/Dell layout; verify final connections.
THE PACKAGE
What's included.
Three physical monitors.
One workstation. One dictation microphone.
One keyboard. One mouse.
1 × MAMMOGRAPHY DISPLAY

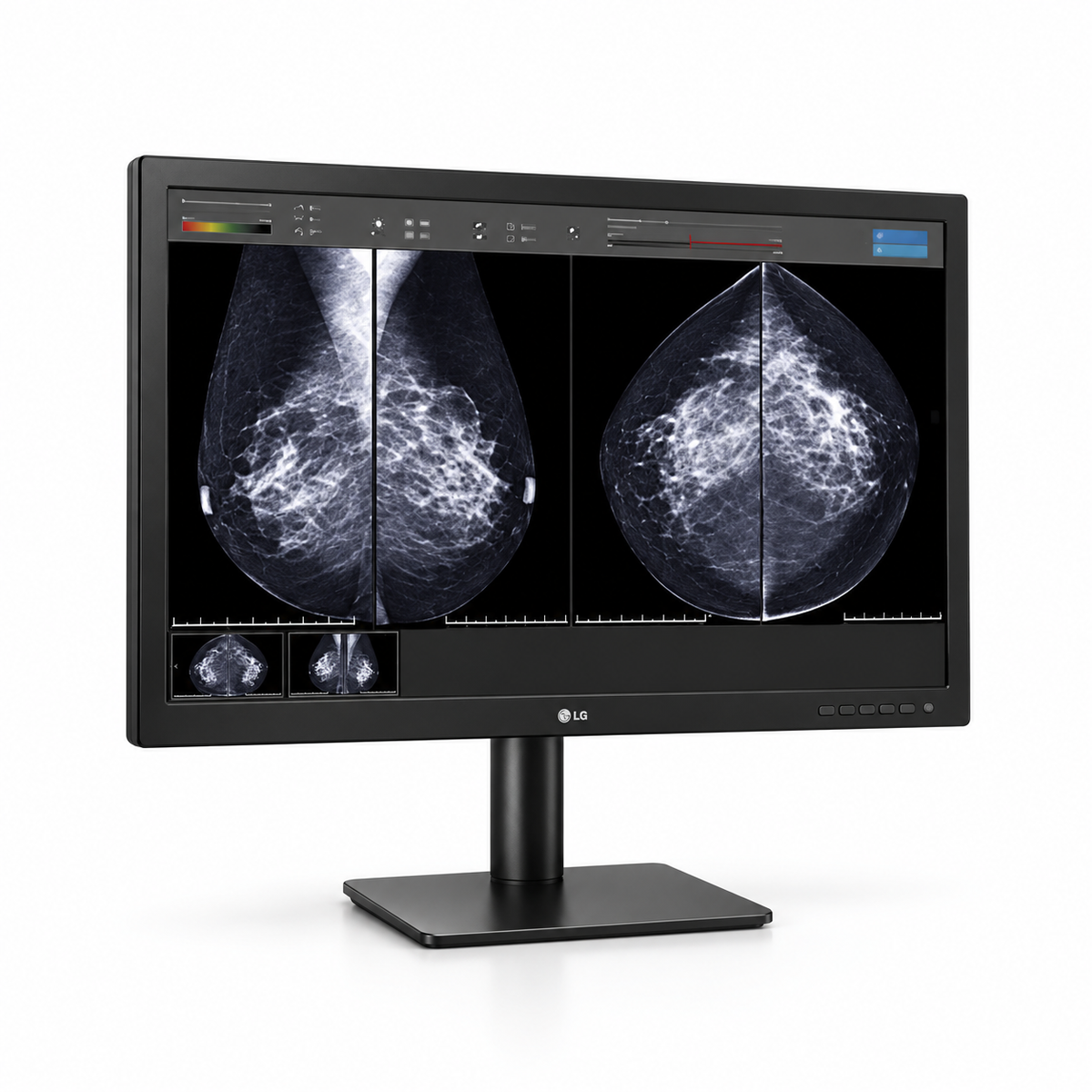

LG 31HN713D-B
31-inch, 12MP IPS diagnostic display for radiology, full-field digital mammography and digital breast tomosynthesis.
1 × WORKSTATION + GPU
Lenovo P3 Tower Gen 2
Core Ultra 5 235 · 32GB DDR5 · 512GB NVMe SSD. Installed NVIDIA RTX A400 with 4GB GDDR6.
2 × WORKLIST DISPLAY
Dell 24-inch class
Portrait-capable worklist and reporting screens. Models depend on availability; confirm connections.
1 × DICTATION MICROPHONE
Philips SpeechMike LFH3500
Wired USB Type-A connection, push-button operation, integrated trackball and configurable controls.
1 × KEYBOARD + 1 × MOUSE
Keyboard and mouse
Desktop input set. Models selected based on availability.
TECHNICAL DETAIL
Technical specifications.
LG mammography display One included
| Exact model | LG 31HN713D-B |
|---|---|
| Panel | 31-inch IPS LED · 3:2 · 10-bit color |
| Native resolution | 4200 × 2800 · 12MP |
| Resolution modes | 12MP / 6MP · Picture-by-Picture support |
| Brightness | 1080 cd/m² typical |
| Contrast | 1800:1 typical |
| Calibration | DICOM compliant · internal front calibration sensor · LG PerfectLum |
| Connectivity | 2 × DisplayPort inputs · USB hub |
| Ergonomics | Height, tilt and swivel adjustment |
Workstation and graphics Package configuration
| Computer | New Lenovo ThinkStation P3 Tower Gen 2 |
|---|---|
| Processor | Intel Core Ultra 5 235 · 14 cores / 14 threads · up to 5.0GHz |
| Memory | 32GB DDR5 |
| Storage | 512GB NVMe SSD |
| Graphics | NVIDIA RTX A400 · 4GB GDDR6 |
| GPU outputs | 4 × Mini DisplayPort 1.4a |
| Microphone | Philips SpeechMike Premium LFH3500 · USB Type-A |
| Worklist monitors | 2 × Dell 24-inch worklist monitors · selected based on availability |
| Keyboard and mouse | 1 × keyboard · 1 × mouse · models selected based on availability |
| Operating system | To be confirmed in the final quote |
PURCHASING & SUPPORT
Purchasing and support.
- Condition
- New, as specified for this package.
- Display warranty
- LG 31HN713D-B: 5-year manufacturer limited warranty under applicable U.S. terms. Other coverage is confirmed in the quote.
- Technical support
- Contact support@texelcomp.com. Installation, calibration, QA and training are specified in the quote.
- Final configuration
- Confirm price, delivery, OS, Dell model, cables, adapters and services in the quote.
CLINICAL NOTES
Breast-imaging workflow.
FDA K201777 clears the LG 31HN713D for radiological image review, analysis and diagnosis by trained medical practitioners, including full-field digital mammography and DBT. Clearance covers the LG display, not the assembled package.
Confirm Lenovo configuration, OS, driver, DisplayPort connections, PACS/mammography compatibility, calibration, QA and services. Software licenses are included only when listed in the quote.
QUESTIONS
Package questions.
How many monitors are included?
Three: one LG 31HN713D-B 12MP mammography diagnostic display and two Dell 24-inch worklist monitors. Dell models are selected based on availability.
Is the LG display cleared for mammography and DBT?
Yes. FDA 510(k) K201777 includes full-field digital mammography and digital breast tomosynthesis among the indicated radiological uses.
Can the RTX A400 support the planned display arrangement?
RTX A400 has four Mini DisplayPort outputs. The three-screen layout uses three; PBP may use a second LG input. Verify final resolution, cables, adapters, drivers and software.
Are PACS, mammography and speech-recognition licenses included?
Included only if listed in the quote. Confirm your PACS, breast-imaging, reporting, dictation software and OS.
Manufacturer resources
LG 31HN713D-B specificationsFDA 510(k) K201777Lenovo P3 Tower Gen 2 PSREFPhilips LFH3500 documentationView the LG 31HN713D-B displayExplore radiology workstations
TEXEL COMP
Build around your workflow.
Talk with Texel Comp about the right configuration, compatibility and service scope for your organization.
