Native 8MP diagnostic display
3840 × 2160 color and grayscale imaging, IPS Black technology and 2,000:1 typical contrast.
LG 32HQ713D-B3840 × 2160 · 8MP
Primary mammography/DBT: use the complete native 8MP panel
TEXEL COMP · RADIOLOGY, MAMMOGRAPHY & DBT WORKSTATION PACKAGE
Complete PACS Radiology, Mammography & 3D Tomosynthesis Station | LG 32HQ713D-B 31.5-inch 8MP Diagnostic Display | Lenovo Workstation | Philips SpeechMike | Two Dell 24-inch Worklist Monitors
SKU TC-RAD-FUSION-8MP-LG32HQ-P3G2
New
An FDA-cleared LG 8MP IPS Black diagnostic display used as one full native panel for mammography/DBT, with a Lenovo workstation, Philips dictation and two Dell 24-inch worklist screens.
- DISPLAY CONFIGURATION
- LG 32HQ713D-B · full native 8MP use
2 Dell 24-inch worklist monitors - PROCESSOR
- Core Ultra 5 235
- MEMORY / STORAGE
- 32GB DDR5 / 512GB NVMe
- GRAPHICS
- RTX A400 · 4GB
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-Year Manufacturer Limited WarrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
WORKSPACE
Fusion color imaging. Worklists. Reporting.

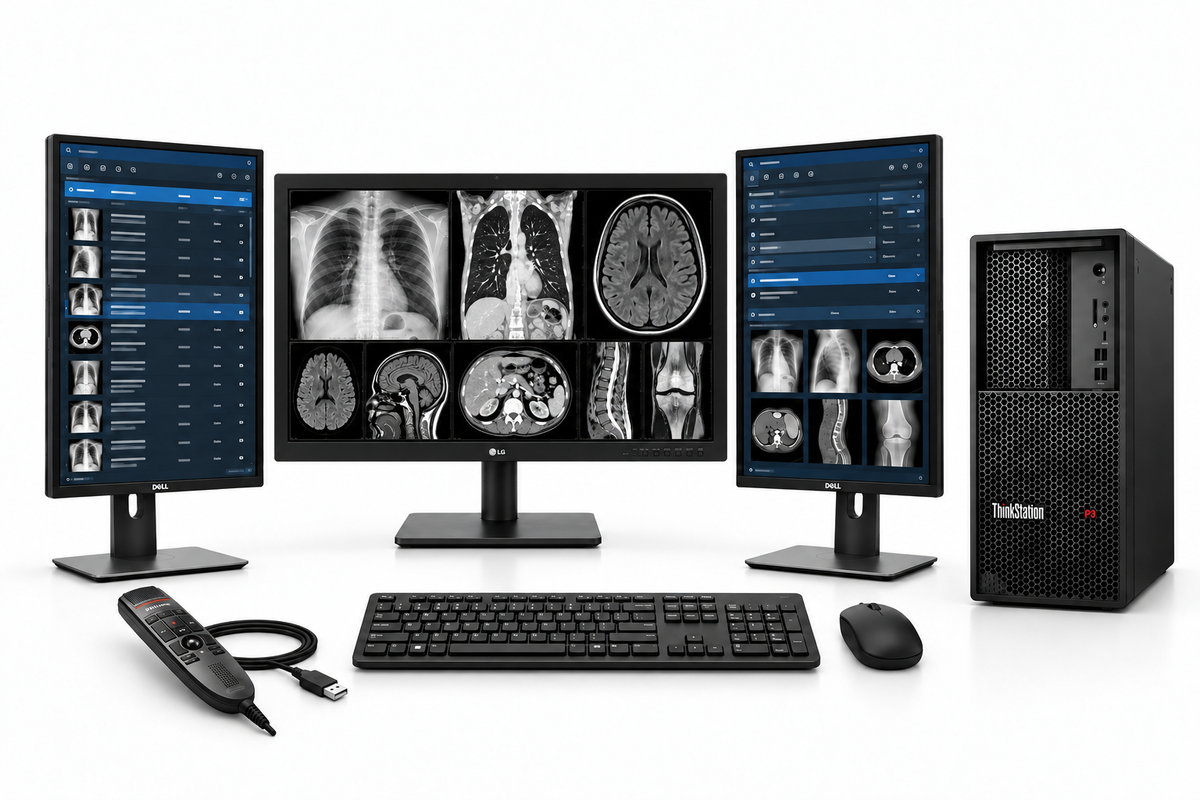

This package combines one LG 32HQ713D-B 31.5-inch 8MP IPS Black diagnostic display, a new Lenovo ThinkStation P3 Tower Gen 2 with NVIDIA RTX A400 graphics, two Dell 24-inch worklist monitors and a Philips SpeechMike Premium LFH3500.
The LG display is FDA-cleared for general radiology, full-field digital mammography and digital breast tomosynthesis. For primary mammography/DBT interpretation, use the complete native 3840 × 2160 8MP panel.
Integrated calibration
Internal front sensor with brightness, ambient-light and presence sensing.
Three-screen reporting platform
LG imaging and two Dell worklist screens, driven by the four-output RTX A400.
THE PACKAGE
What's included.
Three monitors.
One workstation. One dictation microphone.
One keyboard. One mouse.
1 × DIAGNOSTIC DISPLAY

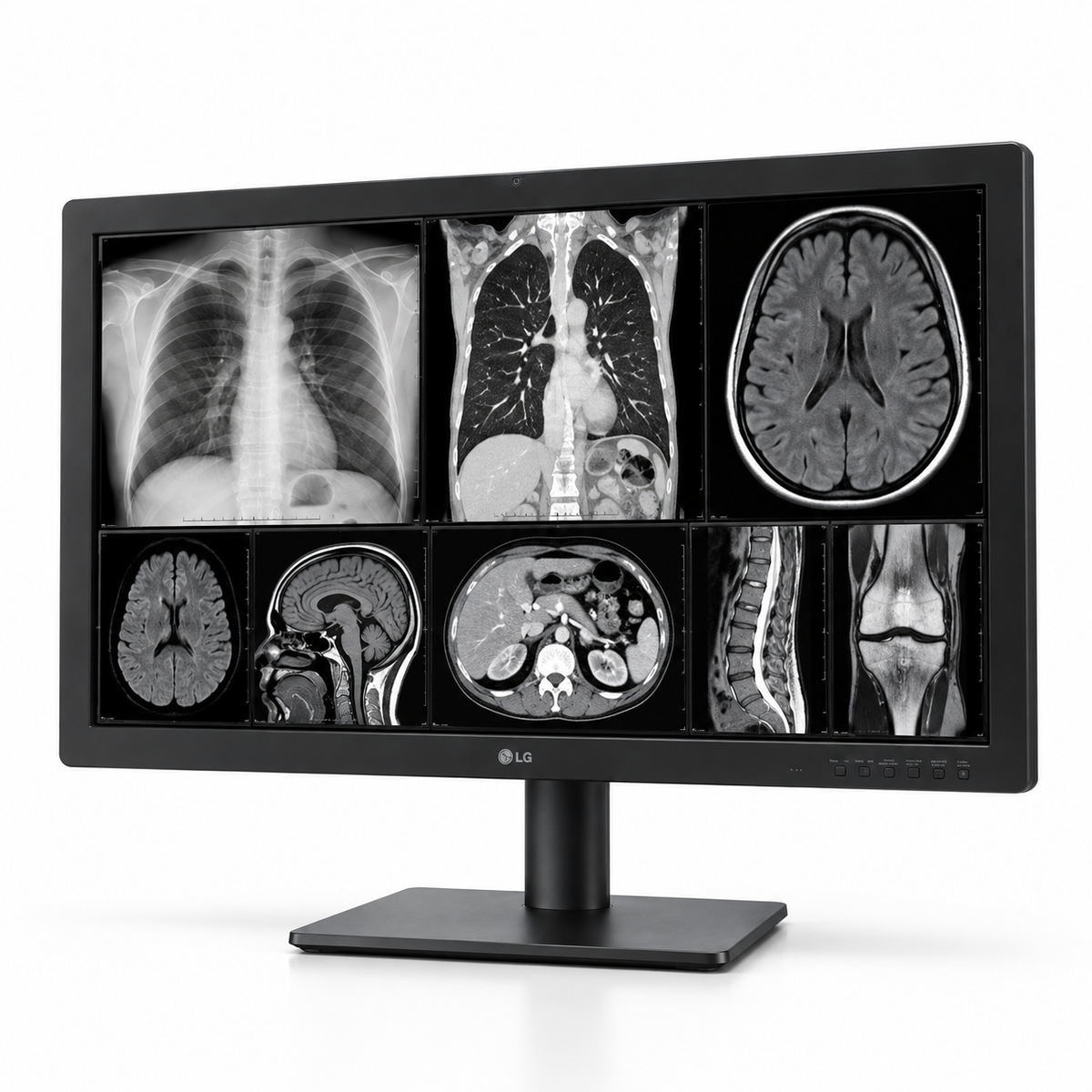

LG 32HQ713D-B
31.5-inch 8MP IPS Black display for radiology, full-field digital mammography and DBT.
1 × WORKSTATION + GPU
Lenovo P3 Tower Gen 2
Core Ultra 5 235 · 32GB DDR5 · 512GB NVMe SSD · NVIDIA RTX A400 4GB.
2 × WORKLIST DISPLAY
Dell 24-inch class
Pivot-capable worklist screens for portrait use. Exact model selected based on availability.
1 × DICTATION MICROPHONE
Philips SpeechMike LFH3500
Wired USB microphone with push buttons and trackball.
1 × KEYBOARD + 1 × MOUSE
Keyboard and mouse
Desktop input set. Models selected based on availability.
TECHNICAL DETAIL
Technical specifications.
LG diagnostic display One included
| Exact model | LG 32HQ713D-B |
|---|---|
| Panel | 31.5-inch IPS Black · 16:9 · anti-glare |
| Native resolution | 3840 × 2160 · 8MP |
| Resolution modes | 8MP / 6MP / 4MP |
| Primary mammography | Use the complete native 8MP panel |
| Brightness | 1000 cd/m² typical |
| Contrast | 2,000:1 typical |
| Calibration | DICOM compliant · internal front sensor |
| Connectivity | 2 × DisplayPort inputs · USB hub |
Workstation and graphics Package configuration
| Computer | New Lenovo ThinkStation P3 Tower Gen 2 |
|---|---|
| Processor | Intel Core Ultra 5 235 · 14 cores / 14 threads · up to 5.0GHz |
| Memory | 32GB DDR5 |
| Storage | 512GB NVMe SSD |
| Graphics | NVIDIA RTX A400 · 4GB GDDR6 |
| GPU outputs | 4 × Mini DisplayPort 1.4a |
| Microphone | Philips SpeechMike Premium LFH3500 |
| Worklist monitors | 2 × Dell 24-inch pivot-capable monitors |
| Keyboard and mouse | 1 × keyboard · 1 × mouse · models selected based on availability |
| Operating system | Confirmed in the final quote |
PURCHASING & SUPPORT
Purchasing and support.
- Condition
- New, as specified for this package.
- Display warranty
- LG 5-year manufacturer limited warranty, subject to applicable U.S. terms. Other component coverage is confirmed in the quote.
- Technical support
- Contact support@texelcomp.com. Installation, calibration, QA and training scope are quoted separately.
- Final configuration
- Final price, delivery, OS, component models, connections and services are confirmed before fulfillment.
CLINICAL NOTES
Use the complete 8MP panel for breast imaging.
The LG 32HQ713D is FDA-cleared under K232127 for radiological images, including full-field digital mammography and digital breast tomosynthesis. Clearance applies to the LG display—not the assembled workstation package.
For primary mammography/DBT, use one native 3840 × 2160 8MP display. Equal two-pane PBP gives about 1920 × 2160, or 4.1MP, per pane; it is not two 5MP mammography displays. Validate alternate split-screen workflows with the PACS vendor, medical physicist and facility.
QUESTIONS
Package questions.
How many monitors are included?
Three: one LG 32HQ713D-B 8MP diagnostic display and two Dell 24-inch pivot-capable worklist monitors.
Is the LG display FDA-cleared for mammography and DBT?
Yes. FDA 510(k) K232127 includes full-field digital mammography and digital breast tomosynthesis. Use the full native 8MP panel for primary interpretation.
Does PBP create two mammography displays?
No. An equal split is about 4.1MP per pane. It is not two 5MP mammography displays and should not be marketed or treated that way.
Can the RTX A400 support the layout?
Yes, subject to validation. One output per screen uses three outputs and leaves one available.
Are PACS and speech-recognition licenses included?
Included only if quoted. Confirm PACS, breast-imaging, reporting and dictation applications.
