01 · FULL HD WORKSPACE
A compact companion to your imaging display.
The 23.8-inch EV2400R provides 1920 × 1080 resolution for worklists, reporting and everyday applications. Discuss your desk arrangement with Texel Comp.
EIZO FlexScan EV2400R23.8-inch · Full HD
PROFESSIONAL WORKLIST MONITOR
EIZO FlexScan EV2400R 23.8-inch Full HD 100Hz IPS Worklist Monitor
SKU EIZO-EV2400R
New
The EIZO FlexScan EV2400R pairs a compact 23.8-inch Full HD IPS screen with up to 100 Hz refresh for worklists, EHR applications and everyday office work.
- DISPLAY
- 23.8-inch
IPS - RESOLUTION
- 1920 × 1080 Full HD
Up to 100 Hz - CONNECTION
- DisplayPort / HDMI
USB hub - POSITIONING
- 140 mm height adjustment
Portrait / landscape pivot
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
7-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · SLIM DESIGN
Make practical use of a smaller desk.
A slim cabinet and narrow bezels help organize adjacent screens while preserving workspace for your keyboard and other peripherals.

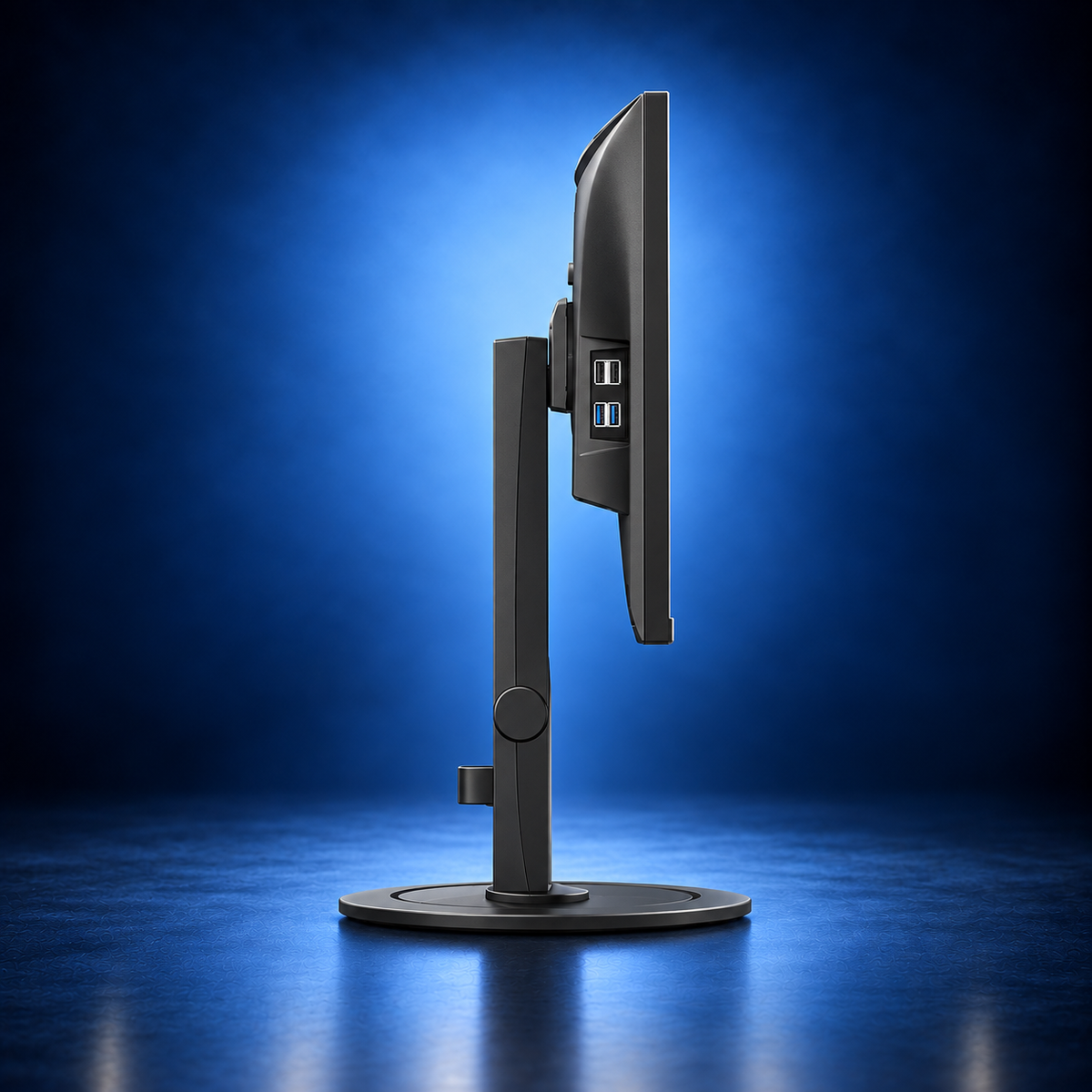

03 · CONNECTION PANEL
Connect video and everyday peripherals.
DisplayPort and HDMI provide video inputs. Four USB-A downstream ports support peripherals through a connected USB-B upstream cable.
04 · ADJUSTABLE STAND
Position the complete screen comfortably.
Height, tilt, swivel and pivot adjustment let you arrange the monitor for your desk. Texel Comp can help review orientation and clearance.
05 · AUTOMATIC BRIGHTNESS
Respond to changing room light.
Auto EcoView uses ambient light to adjust screen brightness. Configure it to suit the information-display role on your workstation.
06 · IPS PANEL
Keep information visible from different angles.
The IPS panel supports broad viewing angles, useful when checking a worklist from an offset position or discussing information with a colleague.
07 · SCREEN SURFACE
Reduce reflections on the worklist screen.
The anti-glare screen surface diffuses reflected light. Consider room lighting and screen position when planning your workstation with Texel Comp.
EIZO FLEXSCAN EV2400R · PROFESSIONAL WORKLIST MONITOR
A compact screen for a smoother working day.
The EIZO FlexScan EV2400R pairs a compact 23.8-inch Full HD IPS screen with up to 100 Hz refresh for worklists, EHR applications and everyday office work.
Keep appointment lists, reporting tools and administrative applications within easy reach. The EV2400R fits a focused desk or a matching two-screen setup, with an adjustable stand that helps align the screen to your working position.
Choose the display around your workflow
Choose this model when a compact Full HD workspace and conventional DisplayPort or HDMI connections suit your workstation. Its USB hub adds peripheral connections without requiring a USB-C laptop.
EV2400R features for a professional desk
Full HD at up to 100 Hz
The 1920 × 1080 IPS panel supports up to 100 Hz for smoother scrolling and window movement. The factory refresh setting is 60 Hz; select a supported 100 Hz mode on your connected system.
Practical desktop connections
DisplayPort and HDMI handle video, while a separate USB Type-B upstream connection enables the USB hub. This model does not provide USB-C video or laptop charging.
A stand that follows your setup
Height adjustment, tilt, swivel and pivot support both landscape and portrait layouts. A 100 × 100 mm VESA pattern provides an alternative mounting option.
Brightness that responds to the room
Auto EcoView adjusts brightness using ambient light readings. Paper mode offers a reading-oriented setting for documents, while integrated stereo speakers cover basic desktop audio.
EIZO EV2400R technical specifications
Display & performance
| Manufacturer / model | EIZO FlexScan EV2400R |
|---|---|
| Screen | 23.8-inch flat IPS; LED backlight |
| Native resolution | 1920 × 1080 Full HD; 16:9 |
| Refresh rate | Up to 100 Hz; factory setting 60 Hz |
| Typical brightness / contrast | 350 cd/m²; 1500:1 |
| Response / pixel density | 5 ms gray-to-gray; 93 ppi |
| Typical / maximum power | 8 W typical; 43 W maximum |
Connections & installation
| Video inputs | 1 × DisplayPort; 1 × HDMI |
|---|---|
| USB hub | USB Type-B upstream; 2 × USB-A at 5 Gbps and 2 × USB-A at USB 2.0 downstream |
| USB-C power delivery | Not supported |
| Wired networking | No integrated Ethernet |
| Audio | 1 W + 1 W speakers |
| Multi-source display | Use separate video outputs for a two-monitor setup |
| Stand-equipped configuration | 140 mm height adjustment; tilt 35° up / 5° down; 344° swivel; 90° pivot in either direction |
| VESA mounting | 100 × 100 mm |
| Net weight with stand | 5.6 kg |
Configuration & purchasing
One monitor, configured for your desk
This listing is for one EIZO FlexScan EV2400R. Confirm the manufacturer suffix, color, stand configuration and regional accessories in your quote. Specifications above describe the stand-equipped configuration; cables, adapters and mounting hardware depend on the supplied unit.
The manufacturer lists DisplayPort, power and USB Type-A to Type-B cables for the standard stand-equipped model.
Listed for worklists, reporting, EHR and office tasks. A DICOM preset does not establish suitability for primary diagnostic interpretation; choose an appropriately specified medical display for diagnostic reading.
Warranty, condition & availability
7-year manufacturer warranty, limited to 30,000 usage hours; confirm eligibility and remaining coverage for the quoted unit.
Condition, availability, shipping, delivery timing and included accessories are confirmed in the final quote. Send the quantity, workstation or laptop model, video outputs and delivery ZIP code so Texel Comp can help plan the connections.
EIZO EV2400R buying & setup questions
Does the EV2400R support 100 Hz?
Yes, the panel supports up to 100 Hz. The default setting is 60 Hz, and the selected refresh rate depends on the computer, video output and operating-system settings.
Can I connect a USB-C laptop with one cable?
This model has DisplayPort and HDMI video inputs, with a separate USB Type-B connection for hub data. It has no USB-C docking or power delivery; ask about the EV2720S for a USB-C option.
Can I rotate the screen for portrait documents?
The stand-equipped version supports 90° pivot in either direction. Check available cable length and desk clearance before choosing portrait orientation.
Is this suitable for primary diagnostic interpretation?
This listing is for worklist, reporting, EHR and office applications. A DICOM preset does not establish diagnostic suitability. Specify an appropriate RadiForce display for primary diagnostic interpretation.
