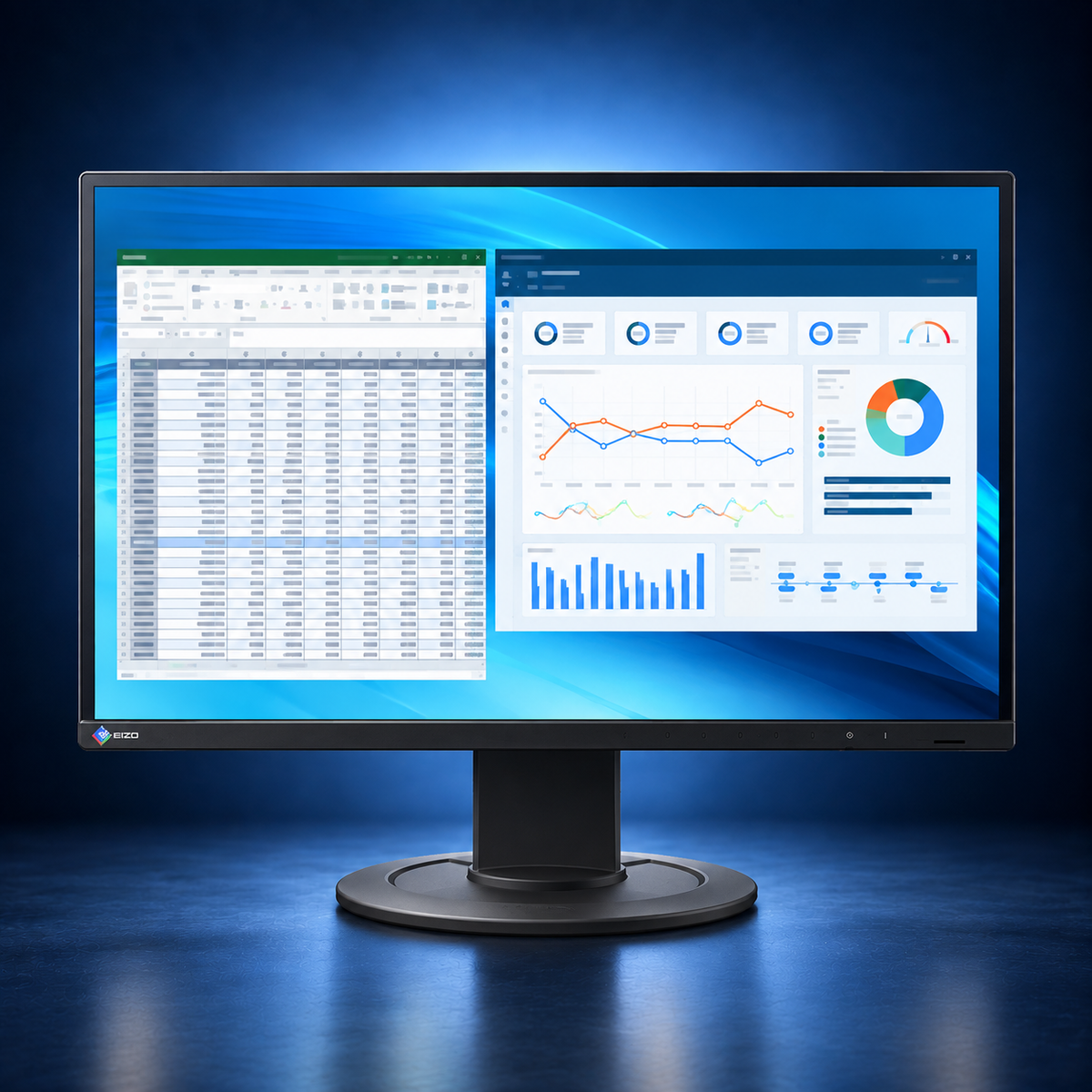

01 · WUXGA WORKSPACE
More vertical space for lists and reports.
The 24.1-inch EV2410R displays 1920 × 1200 pixels. Texel Comp can help place this worklist screen alongside your medical imaging display.
EIZO FlexScan EV2410R24.1-inch · 16:10
PROFESSIONAL WORKLIST MONITOR
EIZO FlexScan EV2410R 24.1-inch WUXGA 16:10 IPS Worklist Monitor
SKU EIZO-EV2410R
New
The EIZO FlexScan EV2410R gives worklists, documents and EHR applications a 24.1-inch WUXGA IPS workspace with a taller 16:10 aspect ratio.
- DISPLAY
- 24.1-inch
IPS - RESOLUTION
- 1920 × 1200 WUXGA
60 Hz - CONNECTION
- DisplayPort / HDMI
DVI-D / VGA - POSITIONING
- 129.9 mm height adjustment
Portrait / landscape pivot
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
7-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · 16:10 LAYOUT
Keep a little more information in view.
Its 16:10 workspace offers extra vertical pixels compared with Full HD, helping accommodate longer documents and application lists on your desk.

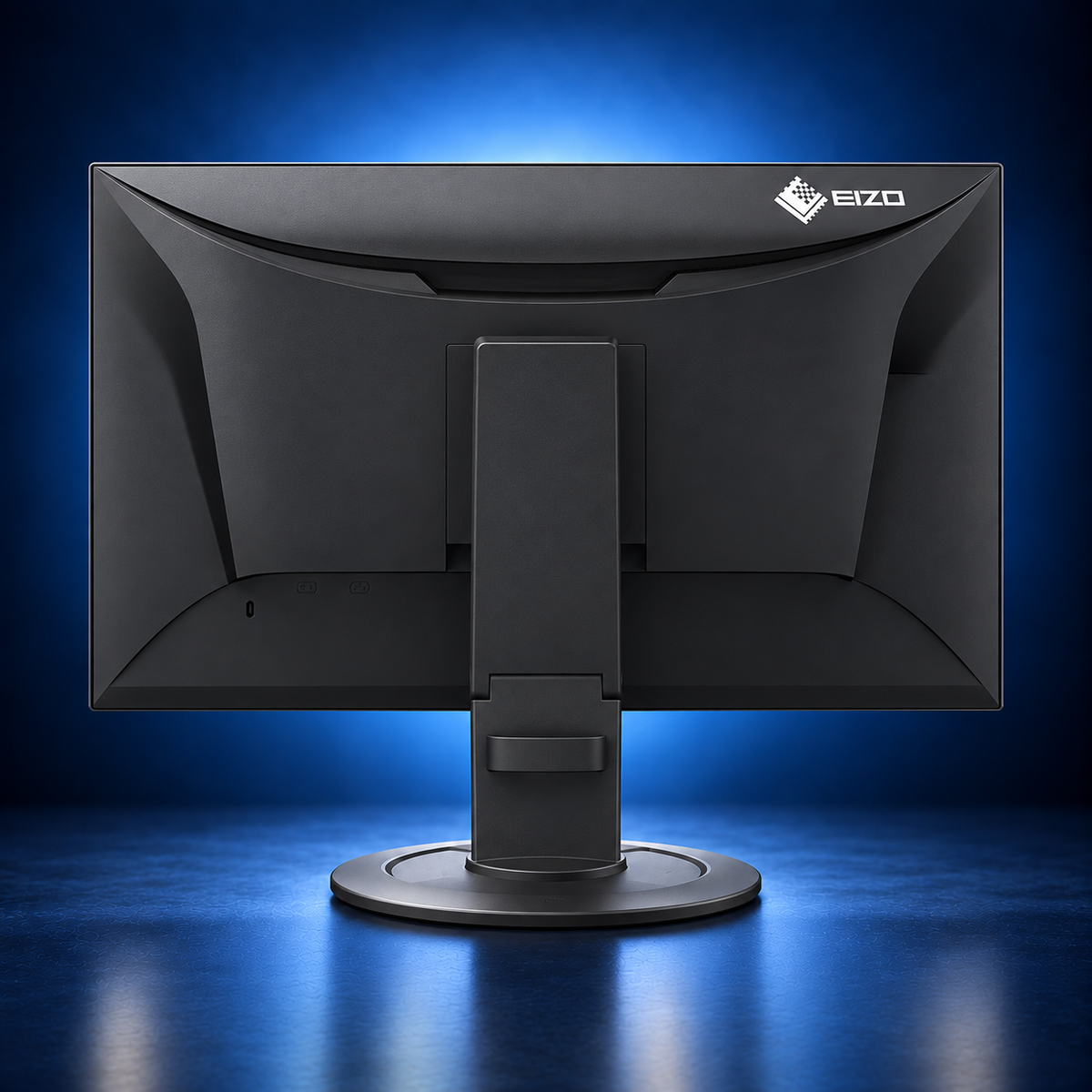

03 · CONNECTION PANEL
Support digital and analog workstation outputs.
DisplayPort, HDMI, DVI-D and D-Sub inputs provide connection options. Four USB-A ports support connected peripherals through the USB hub.

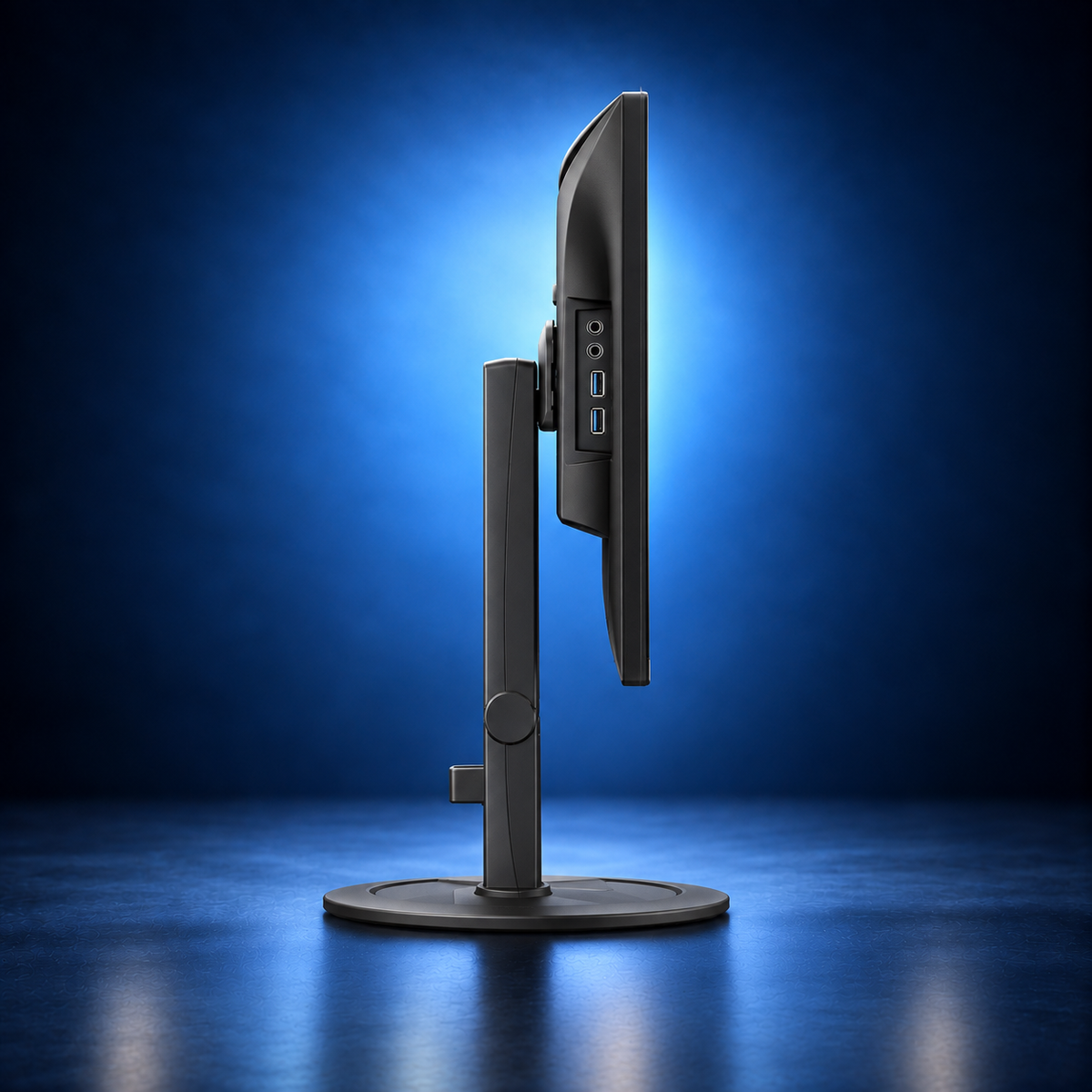

04 · ADJUSTABLE STAND
Set the screen height and orientation.
The stand supports height, tilt, swivel and pivot adjustment. Review portrait or landscape placement with Texel Comp as you plan the workstation.
05 · AUTOMATIC BRIGHTNESS
Adapt the information screen to room light.
Auto EcoView adjusts brightness based on ambient conditions. Choose settings appropriate for your reporting and worklist applications.

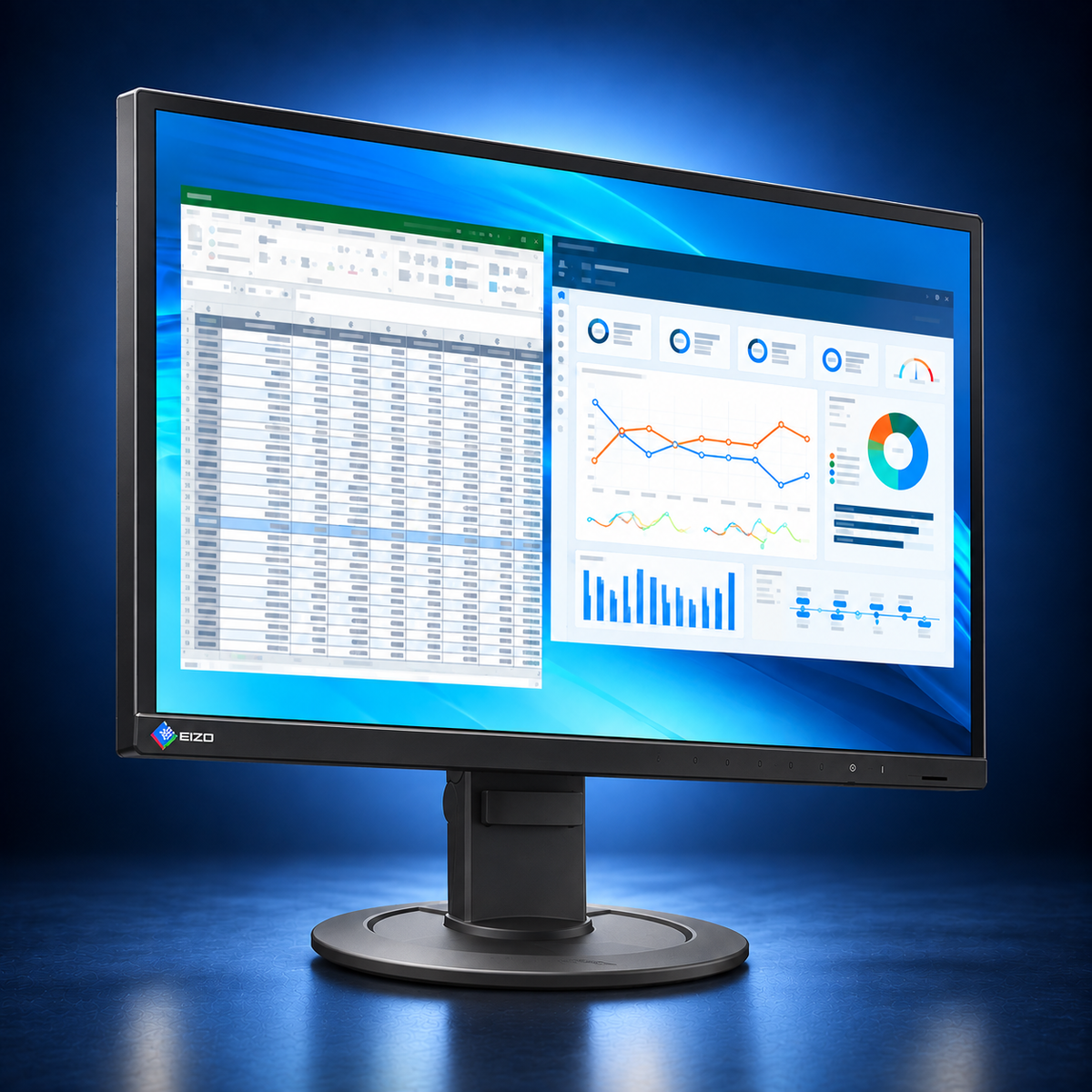

06 · IPS PANEL
View your information from across the desk.
The IPS panel supports broad viewing angles for shared information and offset seating positions within a multi-screen workstation.
07 · SCREEN SURFACE
Manage reflections around the desk.
An anti-glare surface helps diffuse reflected light. Check the position of lamps and windows when arranging the screen with Texel Comp.
EIZO FLEXSCAN EV2410R · PROFESSIONAL WORKLIST MONITOR
More vertical space for lists, forms and reports.
The EIZO FlexScan EV2410R gives worklists, documents and EHR applications a 24.1-inch WUXGA IPS workspace with a taller 16:10 aspect ratio.
The 1920 × 1200 screen adds vertical room compared with Full HD, helping keep more rows or document content visible. Its broad input selection makes it a practical choice when a desk needs to accommodate both current and older video outputs.
Choose the display around your workflow
Plan a reporting or administrative station around the 16:10 format, or pair two matching screens for separate worklist and document views. Confirm the exact graphics outputs before selecting cables.
EV2410R features for a professional desk
A taller 16:10 workspace
WUXGA resolution provides 1200 vertical pixels for document pages, forms and longer application lists. The IPS panel maintains broad viewing angles for shared desk use.
Current and legacy video inputs
DisplayPort, HDMI, DVI-D and VGA support a range of workstation connections. Confirm the appropriate input and cable for your computer before ordering.
Four-port USB hub
Connect the USB Type-B upstream port to a computer to enable four USB Type-A downstream ports. The hub supports data connections and does not replace a laptop charging dock.
Position the screen comfortably
The stand offers height, tilt, swivel and portrait pivot. Auto EcoView responds to ambient light, while Paper mode provides a document-oriented display setting.
EIZO EV2410R technical specifications
Display & performance
| Manufacturer / model | EIZO FlexScan EV2410R |
|---|---|
| Screen | 24.1-inch flat IPS; LED backlight |
| Native resolution | 1920 × 1200 WUXGA; 16:10 |
| Refresh rate | 60 Hz at native digital resolution |
| Typical brightness / contrast | 350 cd/m²; 1300:1 |
| Response / pixel density | 5 ms gray-to-gray; 94 ppi |
| Typical / maximum power | 8 W typical; 54 W maximum |
Connections & installation
| Video inputs | 1 × DisplayPort; 1 × HDMI; 1 × DVI-D; 1 × D-Sub 15-pin (VGA) |
|---|---|
| USB hub | USB Type-B upstream; 4 × USB-A downstream at 5 Gbps |
| USB-C power delivery | Not supported |
| Wired networking | No integrated Ethernet |
| Audio | 1 W + 1 W speakers; headphone output; stereo mini-jack audio input |
| Multi-source display | Use separate video outputs for a two-monitor setup |
| Stand-equipped configuration | 129.9 mm height adjustment; tilt 35° up / 5° down; 344° swivel; 90° pivot in either direction |
| VESA mounting | 100 × 100 mm |
| Net weight with stand | 6.0 kg |
Configuration & purchasing
One monitor, configured for your desk
This listing is for one EIZO FlexScan EV2410R. Confirm the manufacturer suffix, color, stand configuration and regional accessories in your quote. Specifications above describe the stand-equipped configuration; cables, adapters and mounting hardware depend on the supplied unit.
The manufacturer lists DisplayPort, power and USB Type-A to Type-B cables for the standard stand-equipped model.
Listed for worklists, reporting, EHR and office tasks. A DICOM preset does not establish suitability for primary diagnostic interpretation; choose an appropriately specified medical display for diagnostic reading.
Warranty, condition & availability
7-year manufacturer warranty, limited to 30,000 usage hours; confirm eligibility and remaining coverage for the quoted unit.
Condition, availability, shipping, delivery timing and included accessories are confirmed in the final quote. Send the quantity, workstation or laptop model, video outputs and delivery ZIP code so Texel Comp can help plan the connections.
EIZO EV2410R buying & setup questions
What is the benefit of 1920 × 1200 resolution?
The 16:10 panel provides 120 more vertical pixels than a 1920 × 1080 Full HD screen. That extra height can show more document content or application rows at the same horizontal resolution.
Does the EV2410R work with older PCs?
It includes DVI-D and VGA alongside HDMI and DisplayPort. Confirm the workstation output, native-resolution support and correct cable for the selected connection.
Does it provide USB-C laptop charging?
No. Its USB Type-B upstream connection supplies hub data to four USB Type-A ports. Choose a USB-C FlexScan model if one-cable video, data and laptop charging are required.
Can it be used as a diagnostic medical monitor?
This product is listed for worklists, EHR, reporting and office tasks. Its DICOM preset is not a substitute for a diagnostic display specification or clinical quality assurance. Ask about RadiForce for diagnostic reading.
Manufacturer resources & related displays
EIZO EV2410R specifications, manuals & downloads
Prefer a smaller Full HD screen with up to 100 Hz? Compare the EV2400R.
