01 · QHD WORKSPACE
A wider view of your daily applications.
The 27-inch EV2720S displays 2560 × 1440 pixels for worklists and reporting. Texel Comp can help match it to your desk layout.
EIZO FlexScan EV2720S27-inch · QHD
PROFESSIONAL WORKLIST MONITOR
EIZO FlexScan EV2720S 27-inch QHD USB-C IPS Worklist Monitor
SKU EIZO-EV2720S
New
The EIZO FlexScan EV2720S combines a 27-inch QHD IPS workspace with USB-C video, data and up to 70 W charging for compatible laptops.
- DISPLAY
- 27-inch
IPS - RESOLUTION
- 2560 × 1440 QHD
60 Hz - CONNECTION
- USB-C · up to 70 W
DisplayPort / HDMI - POSITIONING
- 169 mm height adjustment
Portrait / landscape pivot
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
7-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · APPLICATION SPACE
Arrange more information on one screen.
The QHD workspace provides room for application panels and reference windows. Review your preferred software layout before choosing the monitor arrangement.
03 · USB-C CONNECTION
Connect a compatible laptop with one cable.
USB-C carries video, USB data and up to 70 W power delivery. Confirm laptop output and charging requirements during your Texel Comp quote.
04 · USB HUB
Connect the peripherals your workflow needs.
Four USB-A downstream ports make room for a keyboard, mouse and other peripherals through the monitor’s USB-C connection.

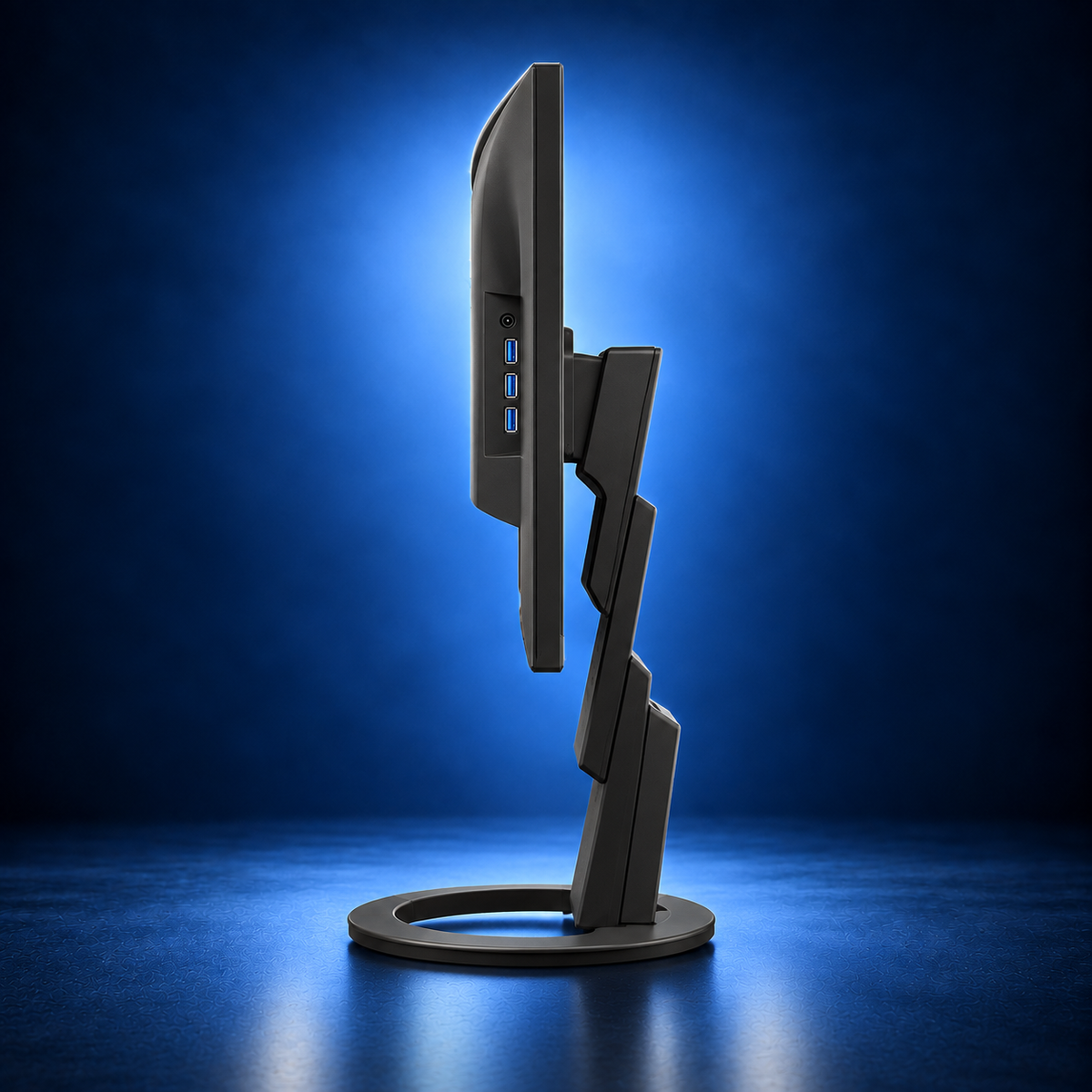

05 · ADJUSTABLE STAND
Place the whole screen where you need it.
Height, tilt, swivel and pivot adjustment support different desk arrangements. Check screen clearance and orientation with Texel Comp.
06 · AUTOMATIC BRIGHTNESS
Match brightness to the surroundings.
Auto EcoView responds to ambient light. Set up the information screen to suit the lighting and applications used at your workstation.

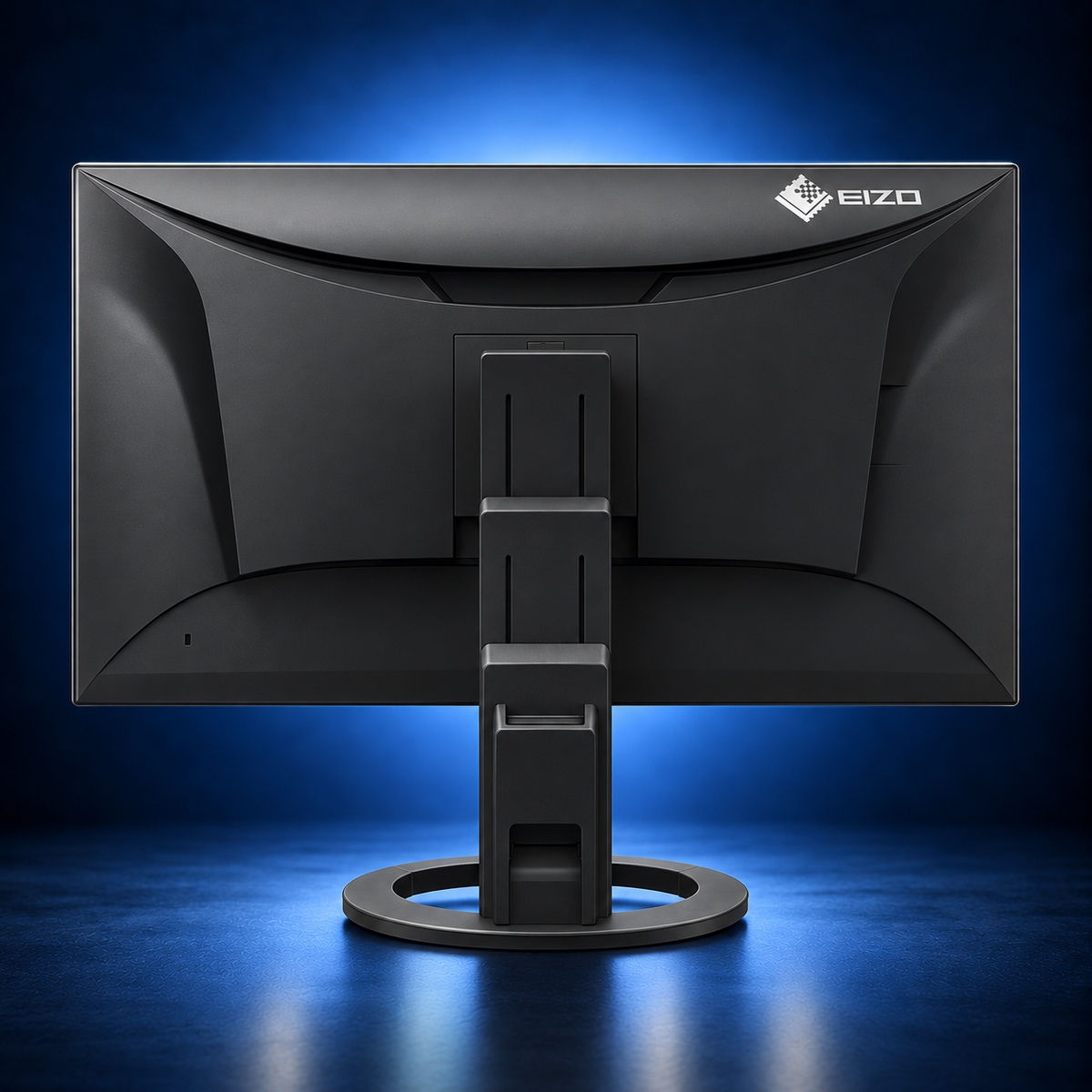

07 · CONNECTION PANEL
Review the ports before installation.
USB-C, DisplayPort and HDMI provide video inputs, alongside peripheral and headphone connections. Plan the cable path behind the monitor.
EIZO FLEXSCAN EV2720S · PROFESSIONAL WORKLIST MONITOR
A clear QHD workspace with a simpler laptop connection.
The EIZO FlexScan EV2720S combines a 27-inch QHD IPS workspace with USB-C video, data and up to 70 W charging for compatible laptops.
Arrange a worklist, reporting window and reference application across a 2560 × 1440 screen. The EV2720S adds USB-C convenience while retaining DisplayPort and HDMI for conventional workstation connections.
Choose the display around your workflow
Choose this model for a flexible desk that alternates between a desktop and a compatible laptop. Check the laptop's USB-C video support and power requirements so the connection matches your daily workload.
EV2720S features for a professional desk
27-inch QHD detail
The 2560 × 1440 IPS panel gives desktop applications more room than Full HD. A 1500:1 typical contrast ratio supports clear separation between text, interface elements and backgrounds.
USB-C with up to 70 W charging
A compatible USB-C connection carries DisplayPort Alt Mode video, USB data and power delivery. A laptop must support the required video mode, and charging depends on its power needs.
Useful peripheral access
Four USB Type-A downstream ports support a keyboard, mouse and other desk peripherals. Separate HDMI and DisplayPort inputs allow additional video sources.
Flexible viewing and desk position
Two-source Picture-by-Picture can show compatible inputs side by side. Height adjustment and pivot help adapt the screen to your desk; Auto EcoView responds to room brightness.
EIZO EV2720S technical specifications
Display & performance
| Manufacturer / model | EIZO FlexScan EV2720S |
|---|---|
| Screen | 27-inch flat IPS; LED backlight |
| Native resolution | 2560 × 1440 QHD; 16:9 |
| Refresh rate | 60 Hz |
| Typical brightness / contrast | 350 cd/m²; 1500:1 |
| Response / pixel density | 5 ms gray-to-gray; 109 ppi |
| Typical / maximum power | 14 W typical; 149 W maximum |
Connections & installation
| Video inputs | 1 × USB-C (DisplayPort Alt Mode); 1 × DisplayPort; 1 × HDMI |
|---|---|
| USB hub | USB-C upstream at 5 Gbps; 4 × USB-A downstream at 5 Gbps |
| USB-C power delivery | Up to 70 W via USB-C |
| Wired networking | No integrated Ethernet |
| Audio | 1 W + 1 W speakers; headphone output |
| Multi-source display | Picture-by-Picture for 2 sources |
| Stand-equipped configuration | 169 mm height adjustment; tilt 35° up / 5° down; 344° swivel; 90° pivot in either direction |
| VESA mounting | 100 × 100 mm |
| Net weight with stand | 8.5 kg |
Configuration & purchasing
One monitor, configured for your desk
This listing is for one EIZO FlexScan EV2720S. Confirm the manufacturer suffix, color, stand configuration and regional accessories in your quote. Specifications above describe the stand-equipped configuration; cables, adapters and mounting hardware depend on the supplied unit.
The manufacturer lists a 2 m USB-C cable and power cord for the standard stand-equipped model.
Listed for worklists, reporting, EHR and office tasks. A DICOM preset does not establish suitability for primary diagnostic interpretation; choose an appropriately specified medical display for diagnostic reading.
Warranty, condition & availability
7-year manufacturer warranty, limited to 30,000 usage hours; confirm eligibility and remaining coverage for the quoted unit.
Condition, availability, shipping, delivery timing and included accessories are confirmed in the final quote. Send the quantity, workstation or laptop model, video outputs and delivery ZIP code so Texel Comp can help plan the connections.
EIZO EV2720S buying & setup questions
Can one USB-C cable connect and charge a laptop?
Yes, with a compatible USB-C DisplayPort Alt Mode and power-delivery connection. Charging is up to 70 W; confirm the laptop's video support and power requirements before selecting this model.
Is Ethernet built into the EV2720S?
No integrated Ethernet port is listed for this model. The EV2740X adds Gigabit Ethernet and a 4K panel if a monitor docking connection with wired networking is required.
Can it show two computers at once?
Two-source Picture-by-Picture displays compatible inputs side by side. Peripheral routing and the required computer cables should be planned separately.
Is QHD resolution a diagnostic display qualification?
No. This listing covers worklist, reporting, EHR and office use. Resolution and a DICOM preset alone do not qualify a monitor for primary diagnostic interpretation; specify a suitable RadiForce model for that workflow.
Manufacturer resources & related displays
EIZO EV2720S specifications, manuals & downloads
Need 4K detail, 94 W charging and Ethernet? Compare the EV2740X.
