01 · 4K WORKSPACE
Detailed information on a 27-inch screen.
The EV2740X combines a 27-inch panel with 3840 × 2160 resolution. Discuss worklist scaling and desk placement with Texel Comp.
EIZO FlexScan EV2740X27-inch · 4K UHD
PROFESSIONAL WORKLIST MONITOR
EIZO FlexScan EV2740X 27-inch 4K USB-C Docking Worklist Monitor
SKU EIZO-EV2740X
New
The EIZO FlexScan EV2740X brings 27-inch 4K IPS detail, 2000:1 typical contrast and USB-C docking with up to 94 W charging and Gigabit Ethernet to a professional desk.
- DISPLAY
- 27-inch
IPS - RESOLUTION
- 3840 × 2160 4K UHD
60 Hz - CONNECTION
- USB-C · up to 94 W
Gigabit Ethernet - POSITIONING
- 195 mm height adjustment
Clockwise portrait pivot
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · APPLICATION SPACE
Arrange a flexible 4K desktop.
The 4K image area supports several application windows. Review text scaling and your preferred window layout before deploying the workstation.
03 · USB-C DOCKING
Simplify a compatible laptop connection.
USB-C carries video and USB data while supplying up to 94 W charging. Check the laptop’s requirements during configuration.
04 · WIRED NETWORK
Connect to Ethernet through the monitor.
Built-in Gigabit Ethernet can serve a compatible USB-C laptop. Texel Comp can review the connections required at your desk.
05 · PERIPHERAL HUB
Keep your desktop accessories connected.
Three USB-A ports and a downstream USB-C port support peripherals, helping keep the laptop connection organized around the display.

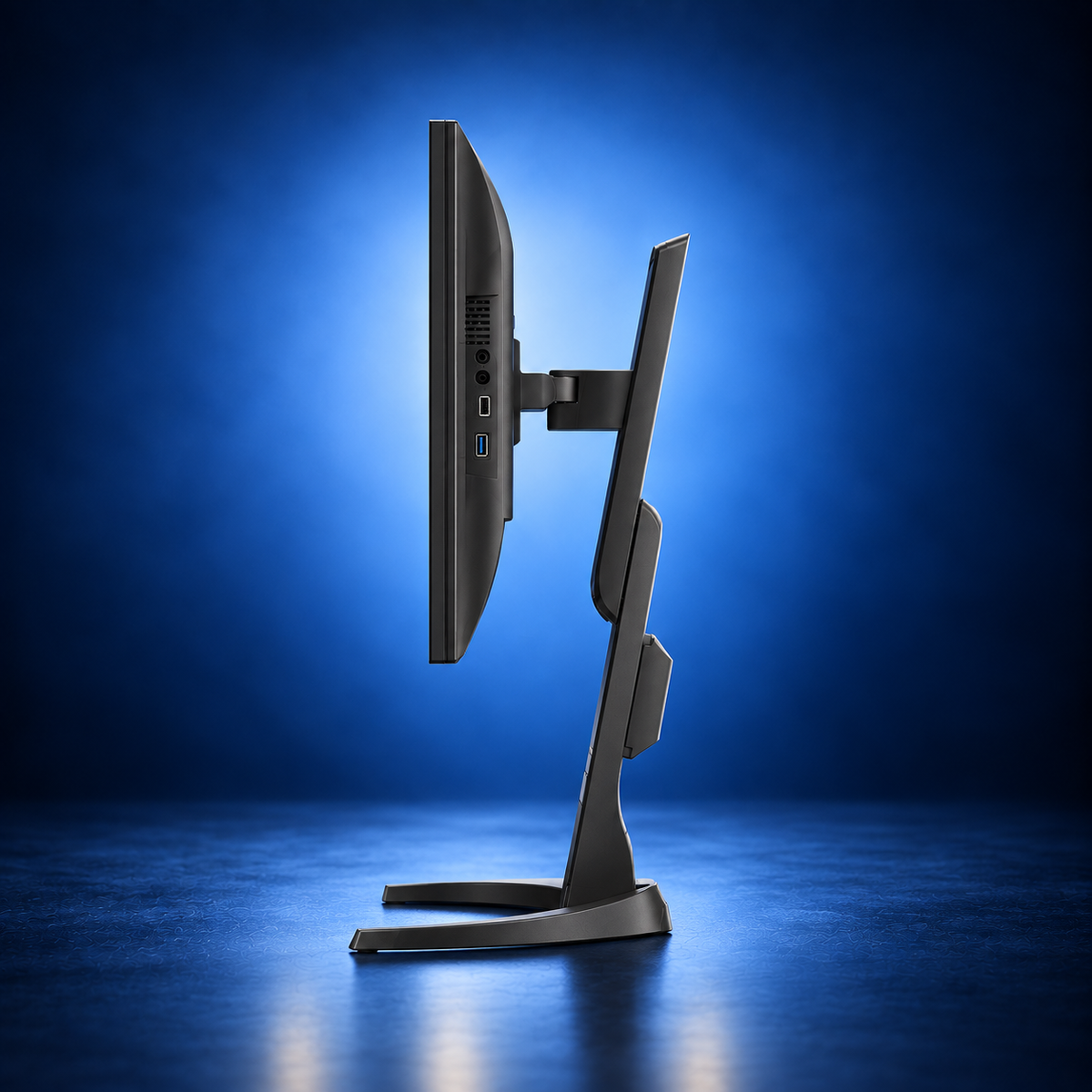

06 · ADJUSTABLE STAND
Set the screen position for your workstation.
Height, tilt, swivel and pivot adjustment support different desk layouts. Check placement and cable clearance before choosing your configuration.
07 · AUTOMATIC BRIGHTNESS
Respond to the light around your desk.
Auto EcoView adjusts brightness to ambient conditions. Choose settings suited to the worklist and reporting tasks on this screen.

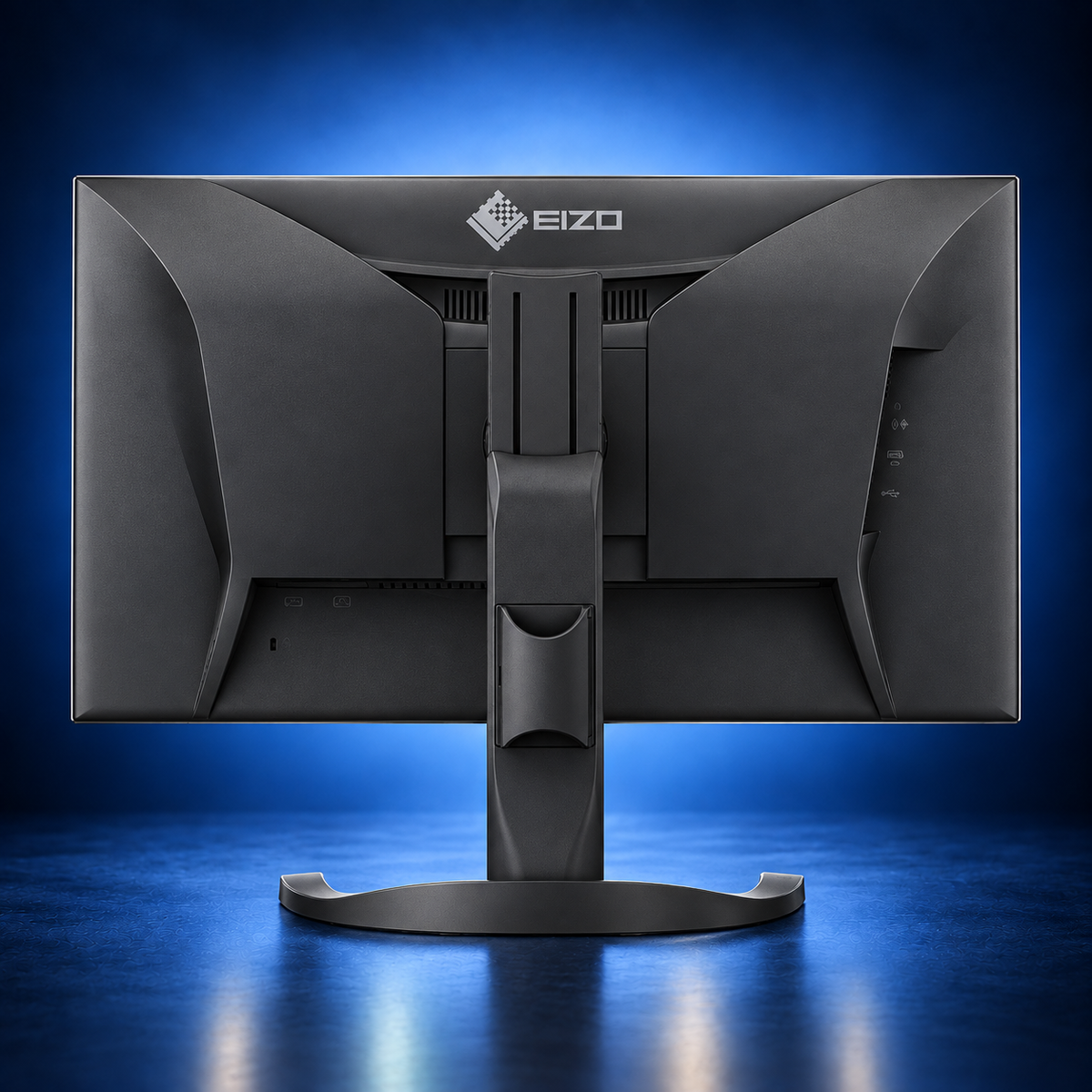

08 · CONNECTION PANEL
Review every connection together.
USB-C, DisplayPort, two HDMI inputs, Ethernet and the USB hub support workstation connectivity. Texel Comp can help plan cable routing.
EIZO FLEXSCAN EV2740X · PROFESSIONAL WORKLIST MONITOR
4K detail and a connected desk in one display.
The EIZO FlexScan EV2740X brings 27-inch 4K IPS detail, 2000:1 typical contrast and USB-C docking with up to 94 W charging and Gigabit Ethernet to a professional desk.
Use the EV2740X for detailed documents, reporting interfaces and a compact 4K worklist station. Its USB-C connection can consolidate video, peripheral data, wired networking and charging for a compatible laptop.
Choose the display around your workflow
Plan display scaling to suit your applications and reading distance. The 27-inch screen offers a high pixel density, while DisplayPort and two HDMI inputs accommodate additional computers or video sources.
EV2740X features for a professional desk
High-density 27-inch 4K
The 3840 × 2160 IPS panel provides 163 ppi and a 2000:1 typical contrast ratio. Adjust operating-system scaling to balance interface size with the workspace your applications need.
Docking with wired networking
USB-C carries compatible video, data and up to 94 W charging. Integrated Gigabit Ethernet can give a connected laptop wired network access when the host system supports the required USB networking functions.
A hub for everyday peripherals
Three USB Type-A downstream ports and a USB-C downstream port support desk accessories. The downstream USB-C port provides up to 15 W; it is distinct from the laptop power-delivery connection.
Two-source viewing and positioning
Picture-by-Picture supports two video sources on one screen. A 195 mm height range, tilt, swivel and clockwise pivot help position the monitor, while Auto EcoView adjusts brightness to ambient light.
EIZO EV2740X technical specifications
Display & performance
| Manufacturer / model | EIZO FlexScan EV2740X |
|---|---|
| Screen | 27-inch flat IPS; LED backlight |
| Native resolution | 3840 × 2160 4K UHD; 16:9 |
| Refresh rate | 60 Hz |
| Typical brightness / contrast | 350 cd/m²; 2000:1 |
| Response / pixel density | 5 ms gray-to-gray; 163 ppi |
| Typical / maximum power | 16 W typical; 186 W maximum |
Connections & installation
| Video inputs | 1 × USB-C (DisplayPort Alt Mode); 1 × DisplayPort; 2 × HDMI |
|---|---|
| USB hub | USB-B and USB-C upstream at 5 Gbps; 3 × USB-A and 1 × USB-C downstream at 5 Gbps |
| USB-C power delivery | Up to 94 W upstream; up to 15 W at downstream USB-C |
| Wired networking | RJ45 Gigabit Ethernet (1000BASE-T) |
| Audio | 2 W + 2 W speakers; headphone output; audio line output |
| Multi-source display | Picture-by-Picture for 2 sources |
| Stand-equipped configuration | 195 mm height adjustment; tilt 35° up / 5° down; 90° swivel; 90° clockwise pivot |
| VESA mounting | 100 × 100 mm |
| Net weight with stand | 8.2 kg |
Configuration & purchasing
One monitor, configured for your desk
This listing is for one EIZO FlexScan EV2740X. Confirm the manufacturer suffix, color, stand configuration and regional accessories in your quote. Specifications above describe the stand-equipped configuration; cables, adapters and mounting hardware depend on the supplied unit.
The manufacturer lists a 1.5 m USB-C cable and power cord for the standard stand-equipped model.
Listed for worklists, reporting, EHR and office tasks. A DICOM preset does not establish suitability for primary diagnostic interpretation; choose an appropriately specified medical display for diagnostic reading.
Warranty, condition & availability
5-year manufacturer warranty, limited to 30,000 usage hours; confirm eligibility and remaining coverage for the quoted unit.
Condition, availability, shipping, delivery timing and included accessories are confirmed in the final quote. Send the quantity, workstation or laptop model, video outputs and delivery ZIP code so Texel Comp can help plan the connections.
EIZO EV2740X buying & setup questions
What does USB-C docking include?
With a compatible host and cable, the upstream USB-C connection supports video, USB data, wired networking and up to 94 W laptop charging. Confirm DisplayPort Alt Mode, host networking compatibility and laptop power requirements.
Is the EV2740X a 4K 120 Hz monitor?
The native resolution is 3840 × 2160 at 60 Hz. This listing does not describe a 120 Hz panel.
Can two video sources share the screen?
Yes, two-source Picture-by-Picture is supported. Arrange the input connections and desired USB peripheral routing when planning a two-computer desk.
Should I choose the 27-inch or 31.5-inch model?
The EV2740X offers a compact, high-density 27-inch 4K screen. The EV3240X provides a larger 31.5-inch 4K screen and adds Picture-in-Picture; consider desk space, viewing distance and application scaling.
