01 · 31.5-INCH 4K DISPLAY
Give your desktop more room to work.
The 31.5-inch EV3240X displays 3840 × 2160 pixels. Texel Comp can help plan this larger worklist screen around your workstation space.
EIZO FlexScan EV3240X31.5-inch · 4K UHD
PROFESSIONAL WORKLIST MONITOR
EIZO FlexScan EV3240X 31.5-inch 4K USB-C Docking Worklist Monitor
SKU EIZO-EV3240X
New
The EIZO FlexScan EV3240X combines a spacious 31.5-inch 4K IPS screen with USB-C docking, up to 94 W charging and Gigabit Ethernet for professional workstations.
- DISPLAY
- 31.5-inch
IPS - RESOLUTION
- 3840 × 2160 4K UHD
60 Hz - CONNECTION
- USB-C · up to 94 W
Gigabit Ethernet - POSITIONING
- 195 mm height adjustment
Clockwise portrait pivot
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
TEXEL COMP · PRODUCT DETAILS

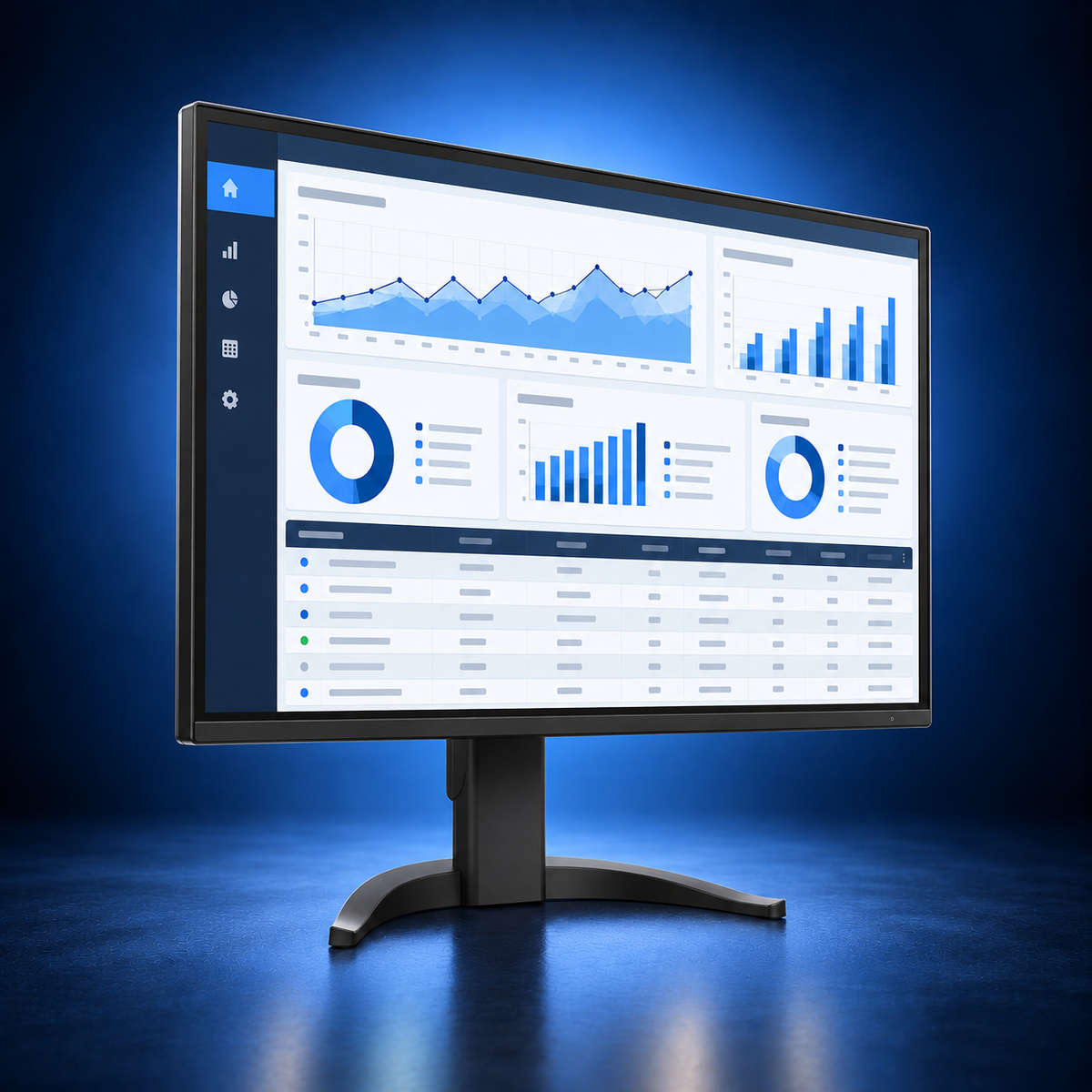

A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · APPLICATION SPACE
Spread your information across a wide desktop.
The 4K workspace accommodates multiple application windows. Compare text scaling and screen distance with the arrangement you prefer for daily reporting.
03 · USB-C DOCKING
Connect a compatible laptop efficiently.
USB-C combines video, USB data and up to 94 W charging. Review laptop compatibility and power needs with Texel Comp.
04 · WIRED NETWORK
Bring Gigabit Ethernet to the desk.
A built-in Ethernet connection can serve a compatible USB-C workstation through the monitor, reducing separate desktop adapters.
05 · PERIPHERAL HUB
Connect accessories at the display.
Three USB-A ports and a downstream USB-C port support everyday peripherals. Consider your keyboard, mouse and dictation accessories when planning connections.

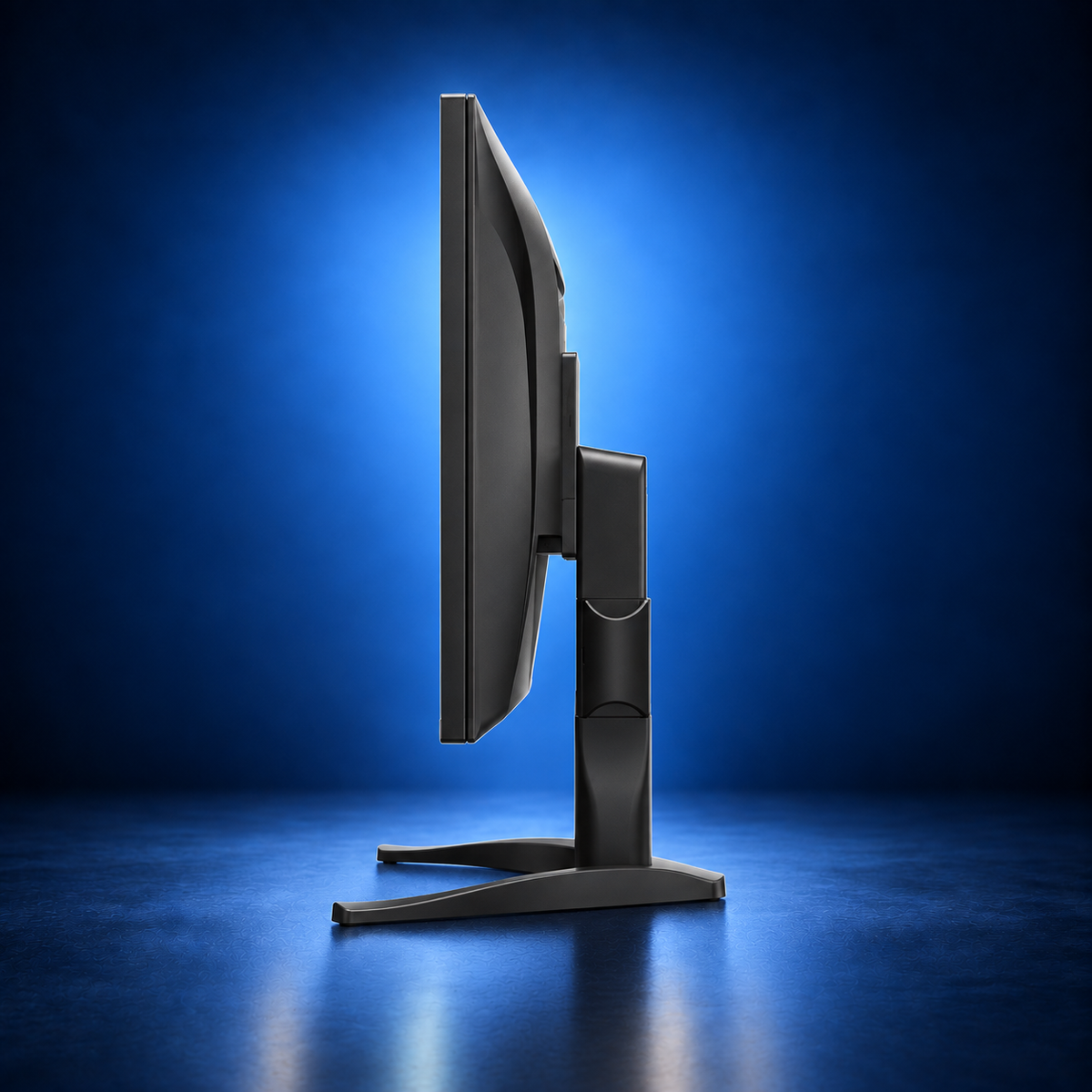

06 · ADJUSTABLE STAND
Position the whole display comfortably.
The stand offers height, tilt, swivel and pivot adjustment. Review screen clearance and portrait positioning before installation.
07 · AUTOMATIC BRIGHTNESS
Adapt to changing desk light.
Auto EcoView responds to ambient brightness. Configure the worklist screen for the room lighting and applications used at your workstation.

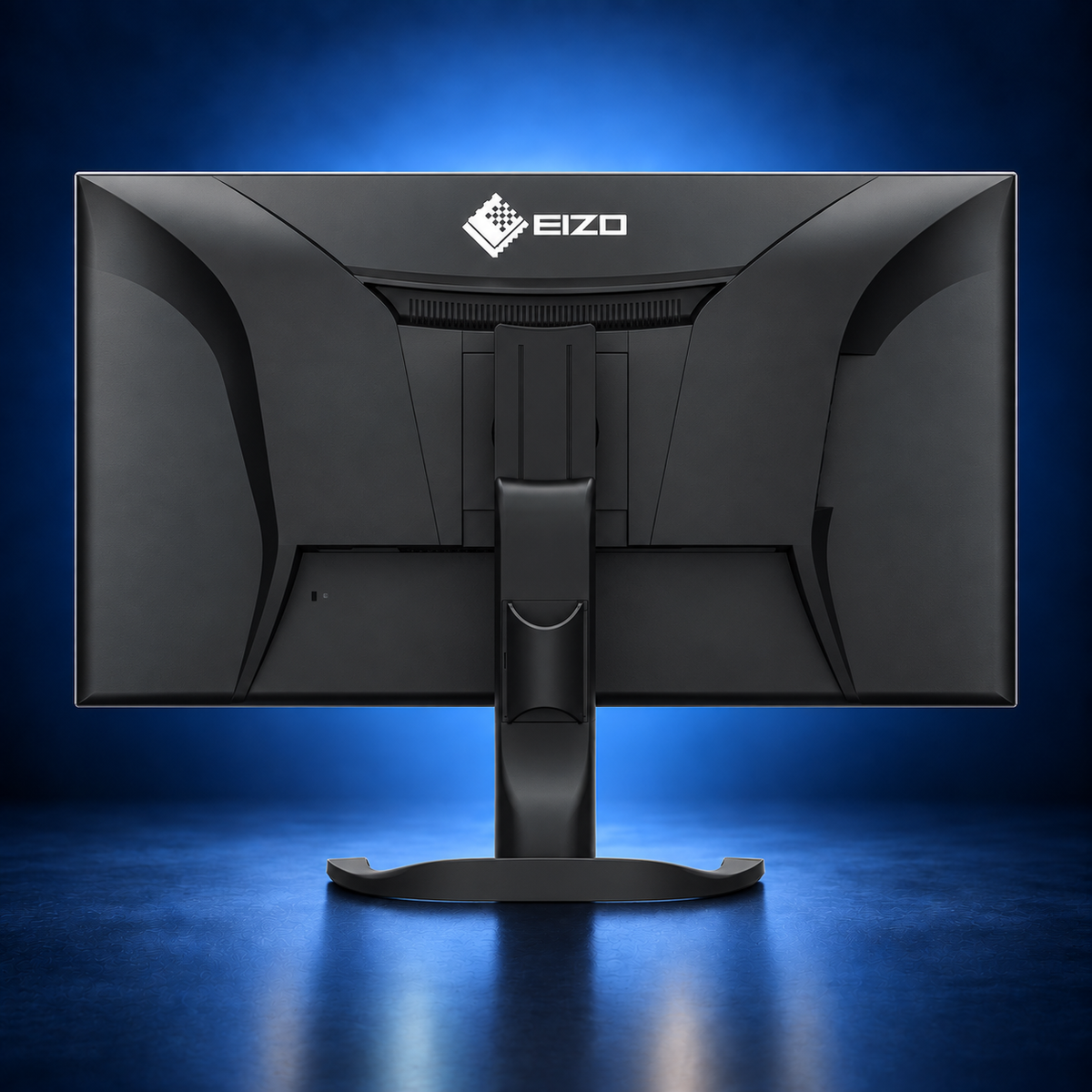

08 · CONNECTION PANEL
Plan the cables behind the monitor.
USB-C, DisplayPort, two HDMI inputs, Ethernet and USB connections support different desktop setups. Texel Comp can review your complete connection plan.
EIZO FLEXSCAN EV3240X · PROFESSIONAL WORKLIST MONITOR
A larger 4K canvas for a connected reporting desk.
The EIZO FlexScan EV3240X combines a spacious 31.5-inch 4K IPS screen with USB-C docking, up to 94 W charging and Gigabit Ethernet for professional workstations.
Arrange documents, worklists and collaboration windows on a 3840 × 2160 screen with more physical display area than a 27-inch model. The EV3240X brings laptop docking connections into the monitor to simplify a compatible desk setup.
Choose the display around your workflow
Choose the 31.5-inch format when you need a larger screen surface for multiple applications. Plan operating-system scaling, desk depth and mounting clearance around your preferred viewing distance.
EV3240X features for a professional desk
31.5-inch 4K IPS workspace
The panel combines 3840 × 2160 resolution with 140 ppi and 2000:1 typical contrast. Its larger physical area gives application windows room while preserving 4K detail.
USB-C power and Gigabit Ethernet
The upstream USB-C port supports compatible video, data and up to 94 W charging. The RJ45 Gigabit Ethernet connection adds wired networking through a supported host USB connection.
Two ways to view another source
Picture-by-Picture places two sources side by side; Picture-in-Picture keeps a second source in an inset window. Input compatibility and the desired layout should be confirmed for your workstation.
Peripheral access and ergonomics
Three USB Type-A ports and a USB-C downstream port provide peripheral connections. Height adjustment, tilt, swivel and clockwise pivot support desk positioning, while Auto EcoView adapts brightness to the room.
EIZO EV3240X technical specifications
Display & performance
| Manufacturer / model | EIZO FlexScan EV3240X |
|---|---|
| Screen | 31.5-inch flat IPS; LED backlight |
| Native resolution | 3840 × 2160 4K UHD; 16:9 |
| Refresh rate | 60 Hz |
| Typical brightness / contrast | 350 cd/m²; 2000:1 |
| Response / pixel density | 5 ms gray-to-gray; 140 ppi |
| Typical / maximum power | 18 W typical; 196 W maximum |
Connections & installation
| Video inputs | 1 × USB-C (DisplayPort Alt Mode); 1 × DisplayPort; 2 × HDMI |
|---|---|
| USB hub | USB-B and USB-C upstream at 5 Gbps; 3 × USB-A and 1 × USB-C downstream at 5 Gbps |
| USB-C power delivery | Up to 94 W upstream; up to 15 W at downstream USB-C |
| Wired networking | RJ45 Gigabit Ethernet (1000BASE-T) |
| Audio | 2 W + 2 W speakers; headphone output; audio line output |
| Multi-source display | Picture-by-Picture for 2 sources; Picture-in-Picture |
| Stand-equipped configuration | 195 mm height adjustment; tilt 35° up / 5° down; 90° swivel; 90° clockwise pivot |
| VESA mounting | 100 × 100 mm |
| Net weight with stand | 9.4 kg |
Configuration & purchasing
One monitor, configured for your desk
This listing is for one EIZO FlexScan EV3240X. Confirm the manufacturer suffix, color, stand configuration and regional accessories in your quote. Specifications above describe the stand-equipped configuration; cables, adapters and mounting hardware depend on the supplied unit.
The manufacturer lists a 1.5 m USB-C cable and power cord for the standard stand-equipped model.
Listed for worklists, reporting, EHR and office tasks. A DICOM preset does not establish suitability for primary diagnostic interpretation; choose an appropriately specified medical display for diagnostic reading.
Warranty, condition & availability
5-year manufacturer warranty, limited to 30,000 usage hours; confirm eligibility and remaining coverage for the quoted unit.
Condition, availability, shipping, delivery timing and included accessories are confirmed in the final quote. Send the quantity, workstation or laptop model, video outputs and delivery ZIP code so Texel Comp can help plan the connections.
EIZO EV3240X buying & setup questions
How does the EV3240X differ from the EV2740X?
Both offer 4K resolution, 2000:1 typical contrast and USB-C docking with up to 94 W charging. The EV3240X has a larger 31.5-inch screen and supports Picture-in-Picture as well as two-source Picture-by-Picture.
Can USB-C replace a separate laptop dock?
It can consolidate supported video, USB data, charging and Gigabit Ethernet connections. Confirm the laptop's DisplayPort Alt Mode, networking compatibility, power requirements and the peripherals you need.
Does the monitor support portrait rotation?
The standard stand-equipped version supports 90° clockwise pivot. Allow enough desk and cable clearance for the 31.5-inch screen; verify any alternative mount's load capacity.
Is this sold as a diagnostic display?
This listing covers worklist, reporting, administrative and office use. A 4K panel or DICOM preset does not establish suitability for primary diagnostic interpretation. Request an appropriate RadiForce specification for diagnostic reading.
