01 · CURVED ULTRAWIDE DISPLAY
A connected workspace across a wider canvas.
The 34.1-inch EV3450XC displays 3440 × 1440 pixels. Texel Comp can help arrange applications across this curved worklist and conferencing screen.
EIZO FlexScan EV3450XC34.1-inch · Curved UWQHD
PROFESSIONAL WORKLIST MONITOR

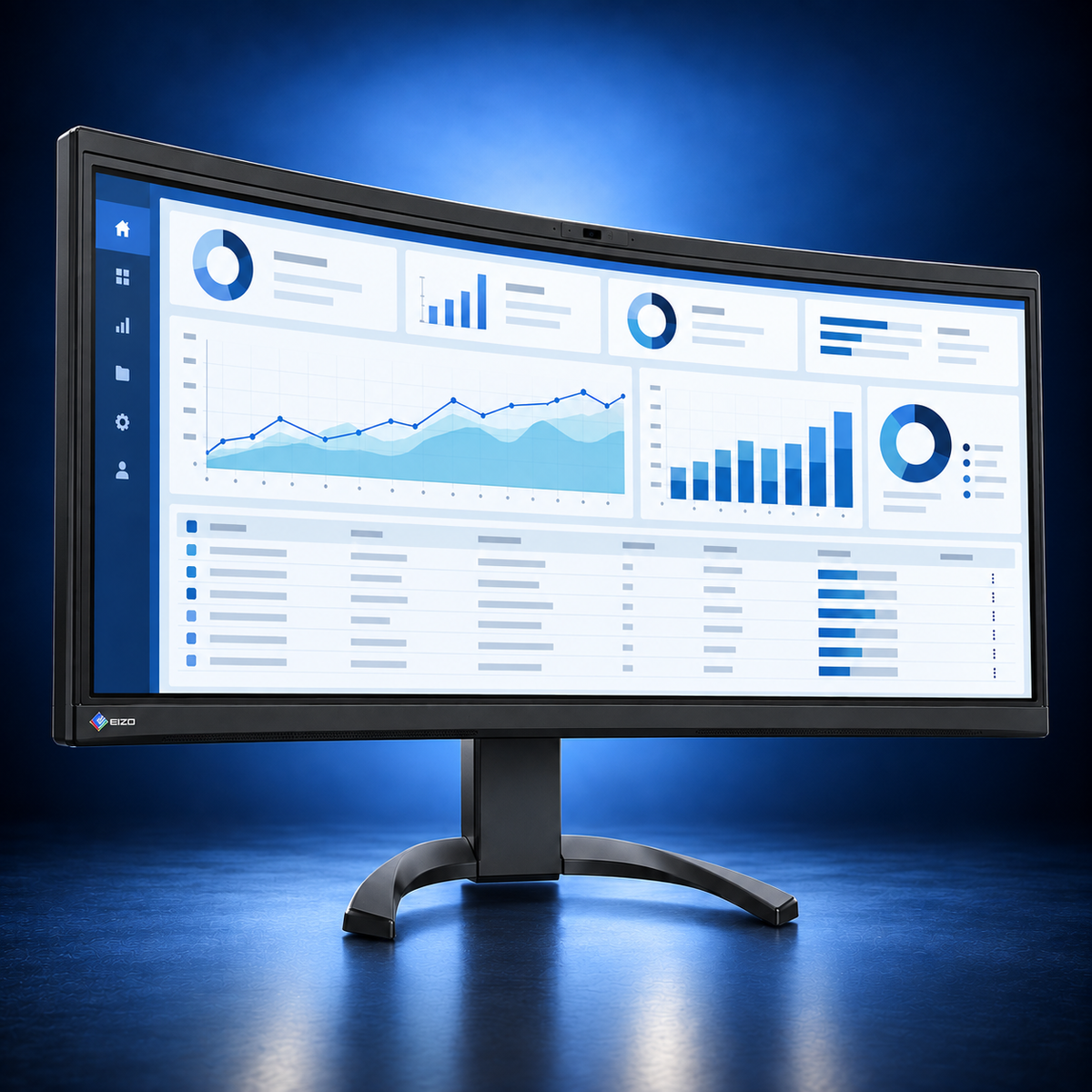

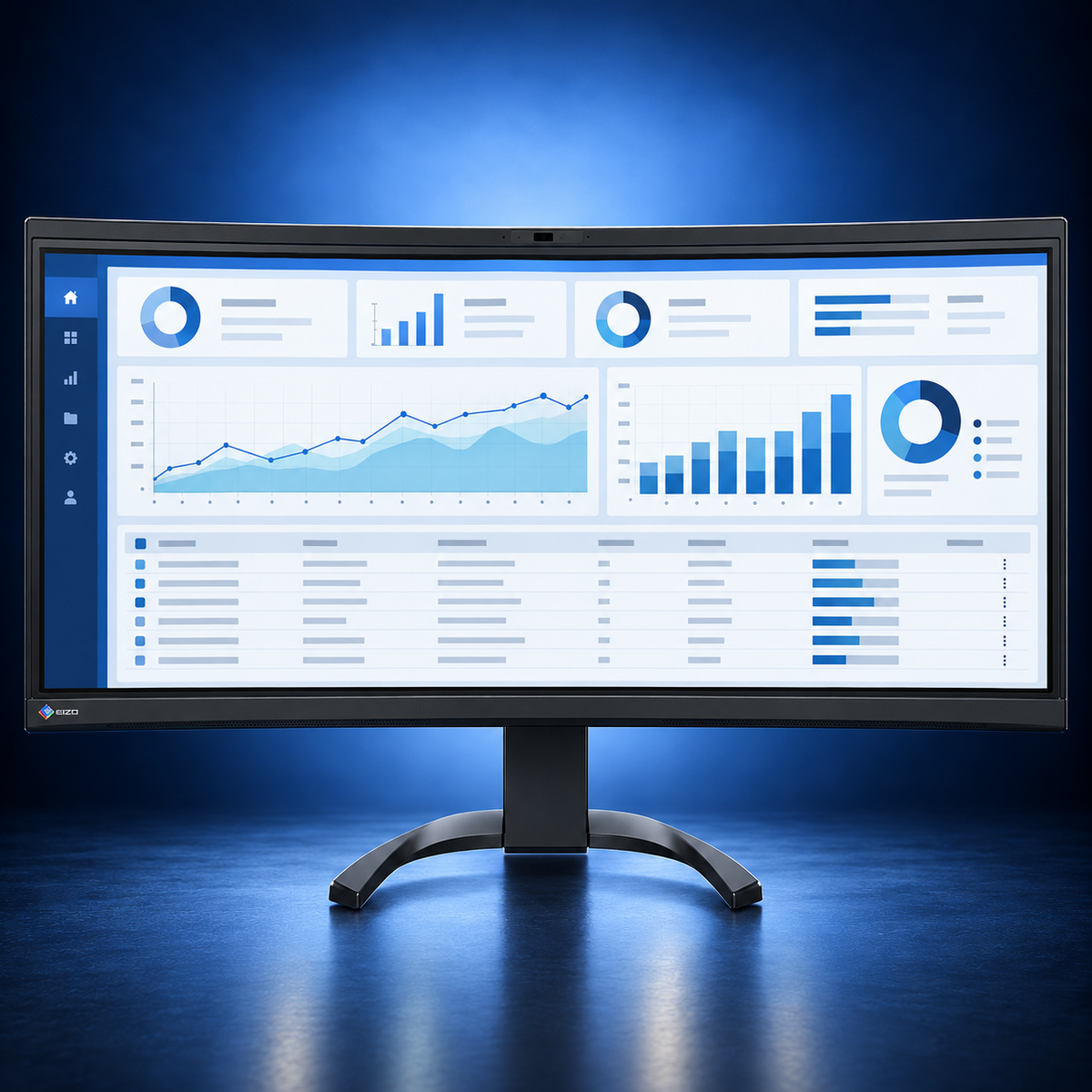

EIZO FlexScan EV3450XC 34.1-inch Curved Ultrawide USB-C Conferencing Monitor
SKU EIZO-EV3450XC
New
The EIZO FlexScan EV3450XC combines a 34.1-inch curved UWQHD screen, built-in 5 MP webcam and microphone with USB-C docking and up to 94 W charging.
- DISPLAY
- 34.1-inch
Curved IPS - RESOLUTION
- 3440 × 1440 UWQHD
60 Hz - CONNECTION
- USB-C · up to 94 W
Gigabit Ethernet - CONFERENCING
- 5 MP webcam / microphone
4 W + 4 W speakers
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · WORKSPACE
Keep related windows side by side.
The ultrawide image area provides space for several applications. Review your preferred layout and viewing distance when planning the desk.
03 · BUILT-IN CAMERA
Keep the webcam within the display.
A built-in 5MP webcam and microphone support compatible conferencing applications. Include camera positioning in your workstation setup.
04 · CONFERENCING AUDIO
Support clear conversations at the desk.
The integrated microphone uses noise cancellation, and front-facing speakers provide audio. Check your conferencing software and room arrangement with Texel Comp.
05 · USB-C DOCKING
Use one connection for compatible laptops.
USB-C provides video, USB data and up to 94 W charging. Review laptop requirements and connected peripherals before configuration.
06 · WIRED NETWORK
Connect the workspace to Ethernet.
Built-in Gigabit Ethernet can serve a compatible USB-C laptop through the monitor, helping organize a desk that requires a wired connection.
07 · AUTOMATIC BRIGHTNESS
Respond to the surrounding room light.
Auto EcoView adjusts brightness according to ambient conditions. Set it to suit the display’s worklist, reporting and conferencing role.
08 · CONNECTION PANEL
Plan the complete desktop connection.
USB-C, DisplayPort, two HDMI inputs, Ethernet and the peripheral hub provide connectivity. Discuss cable routing and connected accessories with Texel Comp.
EIZO FLEXSCAN EV3450XC · PROFESSIONAL WORKLIST MONITOR
An ultrawide workspace ready for your next meeting.
The EIZO FlexScan EV3450XC combines a 34.1-inch curved UWQHD screen, built-in 5 MP webcam and microphone with USB-C docking and up to 94 W charging.
Keep a worklist or document beside a video meeting without splitting your desk across two screens. The EV3450XC brings conferencing hardware, speakers and laptop docking connections into a curved 21:9 display.
Choose the display around your workflow
Choose this model for hybrid working, reporting and collaboration desks that need both screen space and an integrated camera. Verify your conferencing application and operating-system requirements before deployment.
EV3450XC features for a professional desk
Curved 21:9 workspace
The 3440 × 1440 IPS panel offers a wide arrangement for side-by-side applications. Its curved surface brings the edges of the 34.1-inch screen around your working position.
Built-in conferencing hardware
A 5 MP webcam, microphone and 4 W + 4 W speakers support video meetings without separate desk devices. Windows Hello support requires a compatible Windows environment.
USB-C docking with Ethernet
A compatible upstream USB-C connection supports video, data and up to 94 W charging. Integrated Gigabit Ethernet adds a wired network connection through a supported host.
Two-source viewing and desk access
Picture-by-Picture supports two video sources. Two USB Type-A ports and a downstream USB-C port connect peripherals, while the height-adjustable stand provides tilt and swivel positioning.
EIZO EV3450XC technical specifications
Display & performance
| Manufacturer / model | EIZO FlexScan EV3450XC |
|---|---|
| Screen | 34.1-inch curved IPS; LED backlight |
| Native resolution | 3440 × 1440 UWQHD; 21:9 |
| Refresh rate | 60 Hz |
| Typical brightness / contrast | 300 cd/m²; 1000:1 |
| Response / pixel density | 5 ms gray-to-gray; 109 ppi |
| Typical / maximum power | 23 W typical; 222 W maximum |
Connections & installation
| Video inputs | 1 × USB-C (DisplayPort Alt Mode); 1 × DisplayPort; 2 × HDMI |
|---|---|
| USB hub | USB-B and USB-C upstream at 5 Gbps; 2 × USB-A and 1 × USB-C downstream at 5 Gbps |
| USB-C power delivery | Up to 94 W upstream; up to 15 W at downstream USB-C |
| Wired networking | RJ45 Gigabit Ethernet (1000BASE-T) |
| Audio | 4 W + 4 W speakers; headphone output; built-in microphone |
| Camera / authentication | 5 MP webcam; Windows Hello support on compatible systems |
| Multi-source display | Picture-by-Picture for 2 sources |

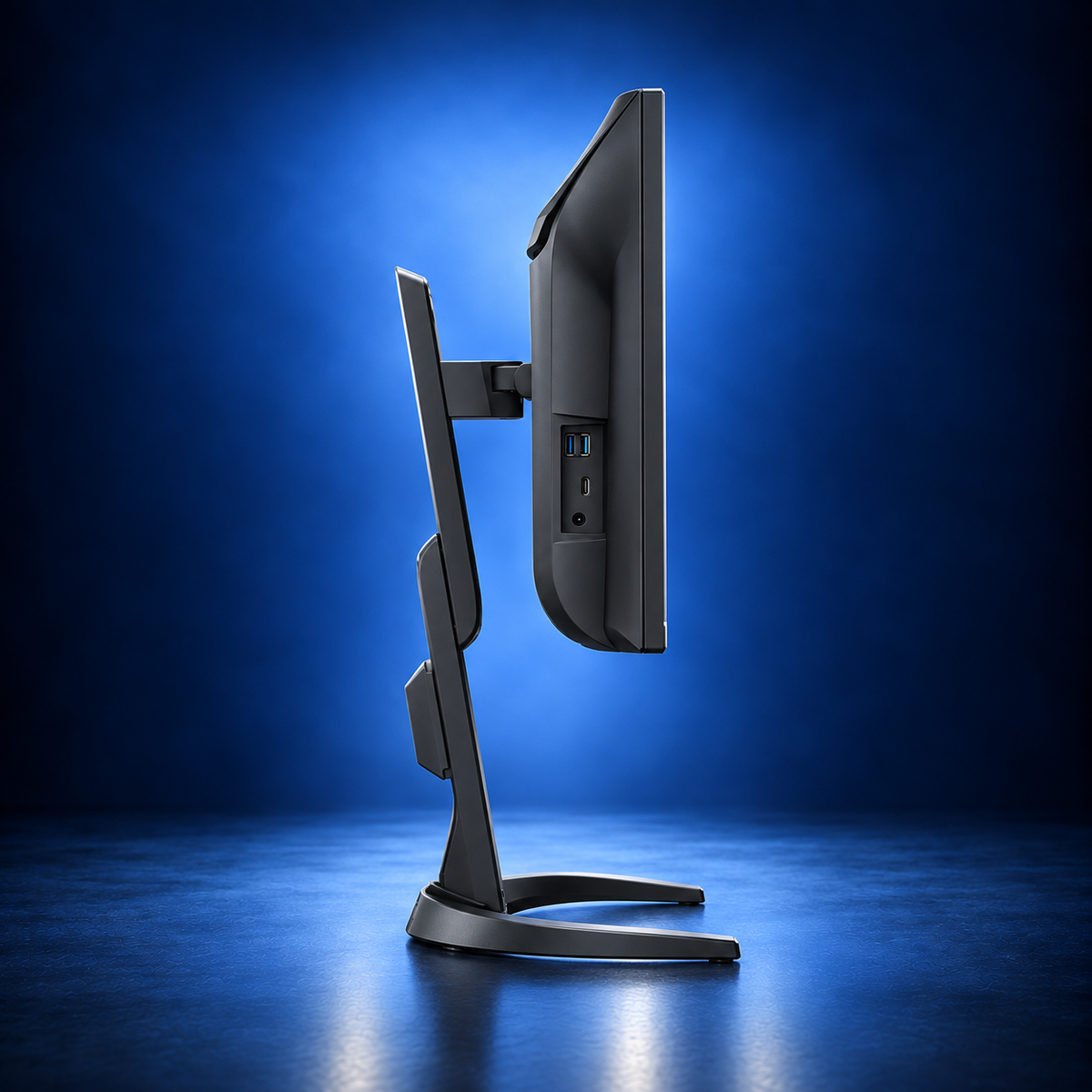

| Stand-equipped configuration | 195 mm height adjustment; tilt 35° up / 5° down; 90° swivel; no portrait pivot specified |

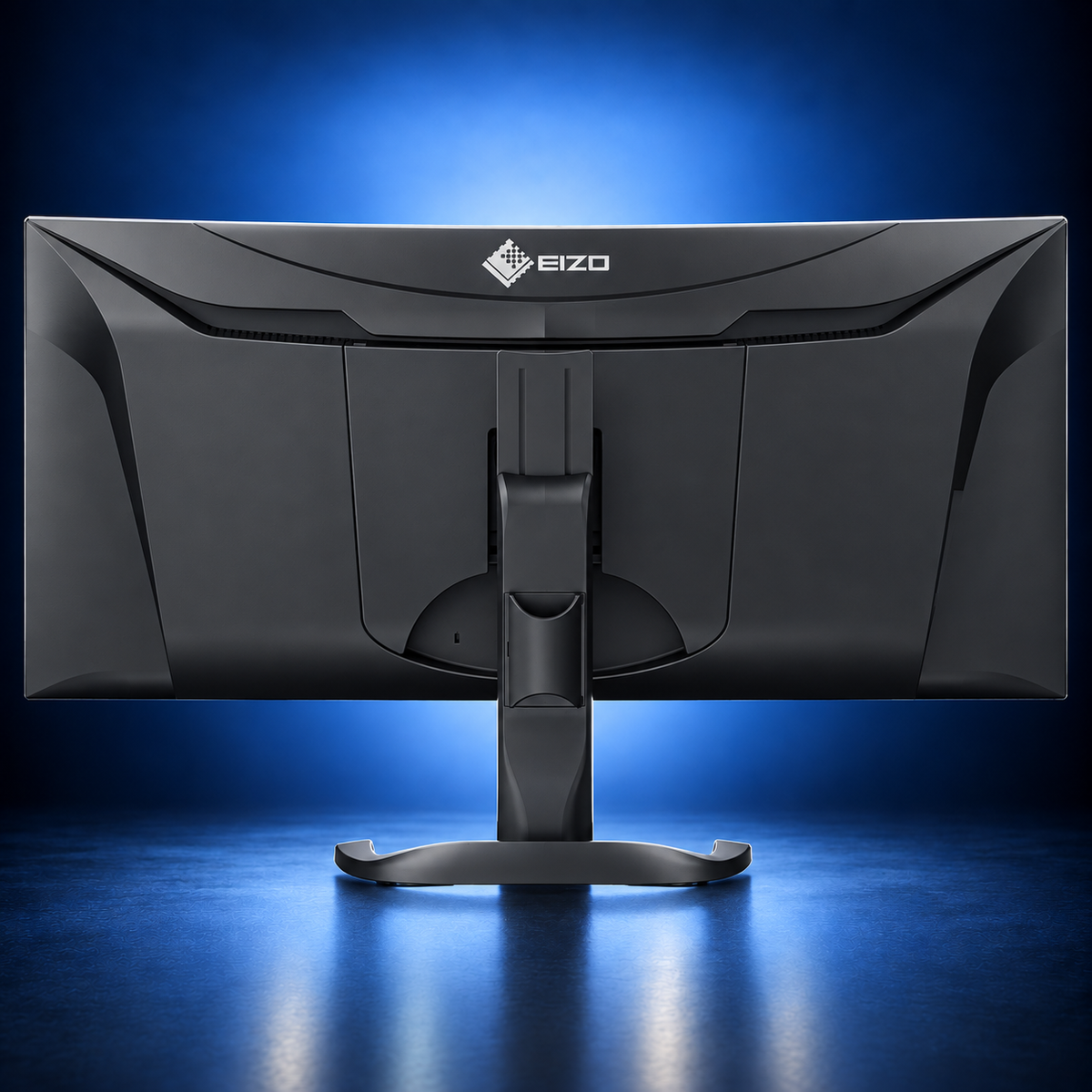

| VESA mounting | 100 × 100 mm |
| Net weight with stand | 12.1 kg |
Configuration & purchasing
One monitor, configured for your desk
This listing is for one EIZO FlexScan EV3450XC. Confirm the manufacturer suffix, color, stand configuration and regional accessories in your quote. Specifications above describe the stand-equipped configuration; cables, adapters and mounting hardware depend on the supplied unit.
The manufacturer lists USB-C, DisplayPort, power and USB Type-A to Type-B cables for the standard stand-equipped model.
Listed for worklists, reporting, EHR and office tasks. A DICOM preset does not establish suitability for primary diagnostic interpretation; choose an appropriately specified medical display for diagnostic reading.
Warranty, condition & availability
5-year manufacturer warranty, limited to 30,000 usage hours; confirm eligibility and remaining coverage for the quoted unit.
Condition, availability, shipping, delivery timing and included accessories are confirmed in the final quote. Send the quantity, workstation or laptop model, video outputs and delivery ZIP code so Texel Comp can help plan the connections.
EIZO EV3450XC buying & setup questions
Does the EV3450XC include a webcam and microphone?
Yes. It includes a 5 MP webcam, built-in microphone and 4 W + 4 W speakers. Check software access permissions, host connection and conferencing application compatibility during setup.
Does Windows Hello work on every computer?
Windows Hello support requires a compatible Windows system and the necessary host connection and settings. Confirm your organization's operating-system and authentication requirements.
Can it charge a laptop while displaying video?
The upstream USB-C port supports compatible DisplayPort Alt Mode video and up to 94 W charging. Confirm the laptop's USB-C capabilities, cable compatibility and power requirements.
Can the curved screen rotate to portrait?
Portrait pivot is not specified for this model. The standard stand provides height adjustment, tilt and swivel. Plan the 21:9 display as a landscape workspace.
