01 · LARGE 4K DISPLAY
A broader shared view of your information.
The 42.5-inch EV4340X displays 3840 × 2160 pixels. Discuss desktop space, mounting and viewing distance with Texel Comp before configuration.
EIZO FlexScan EV4340X42.5-inch · 4K UHD
PROFESSIONAL WORKLIST MONITOR

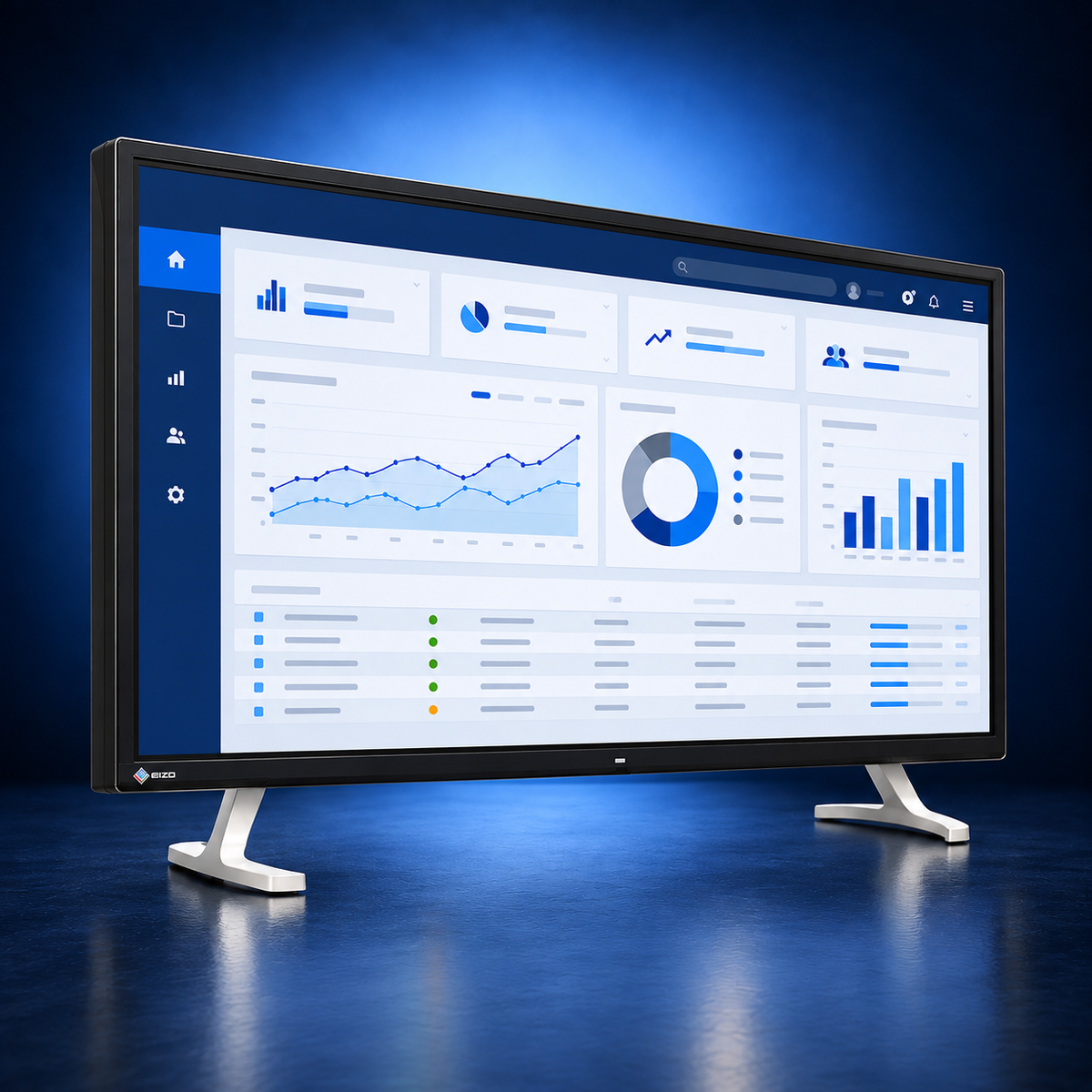

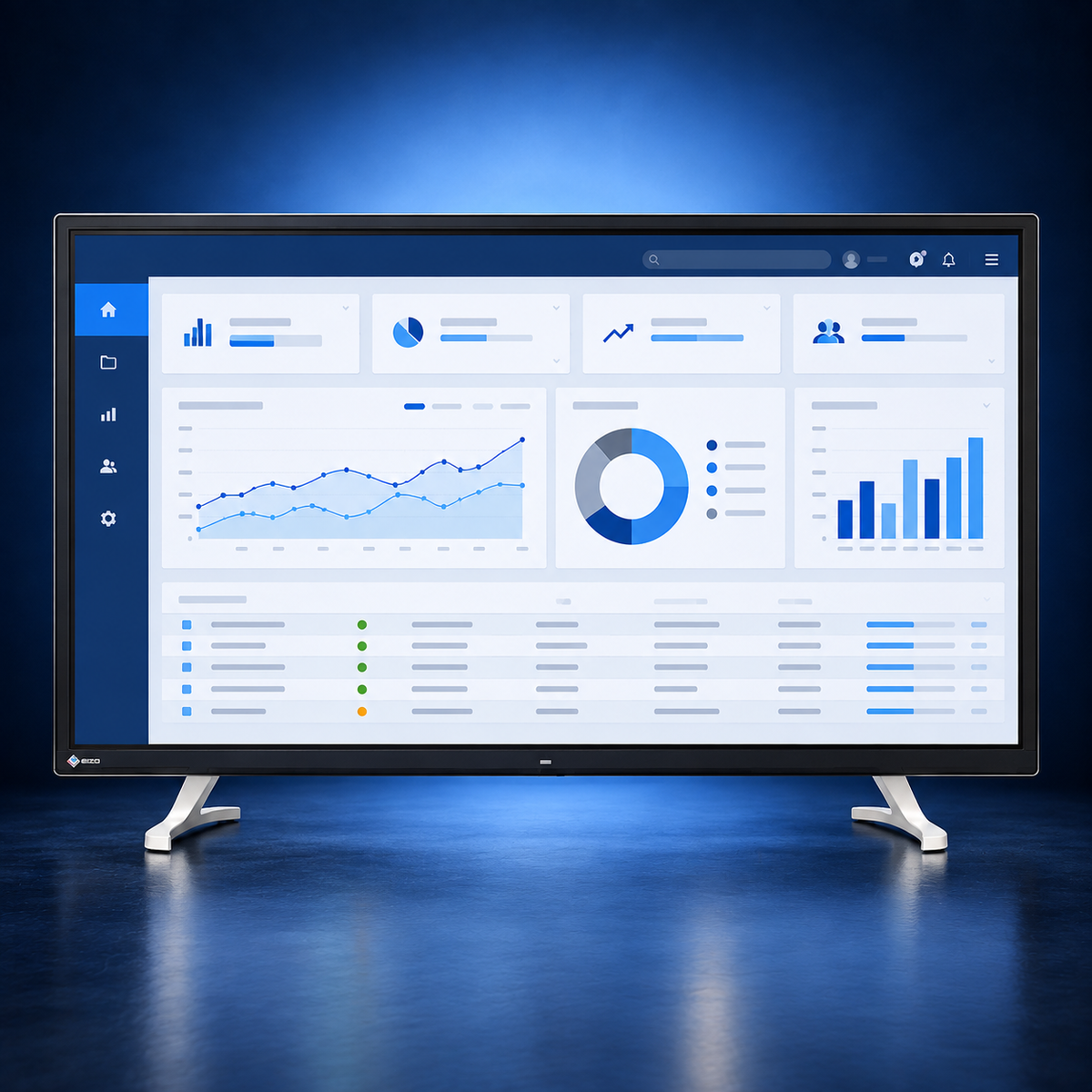

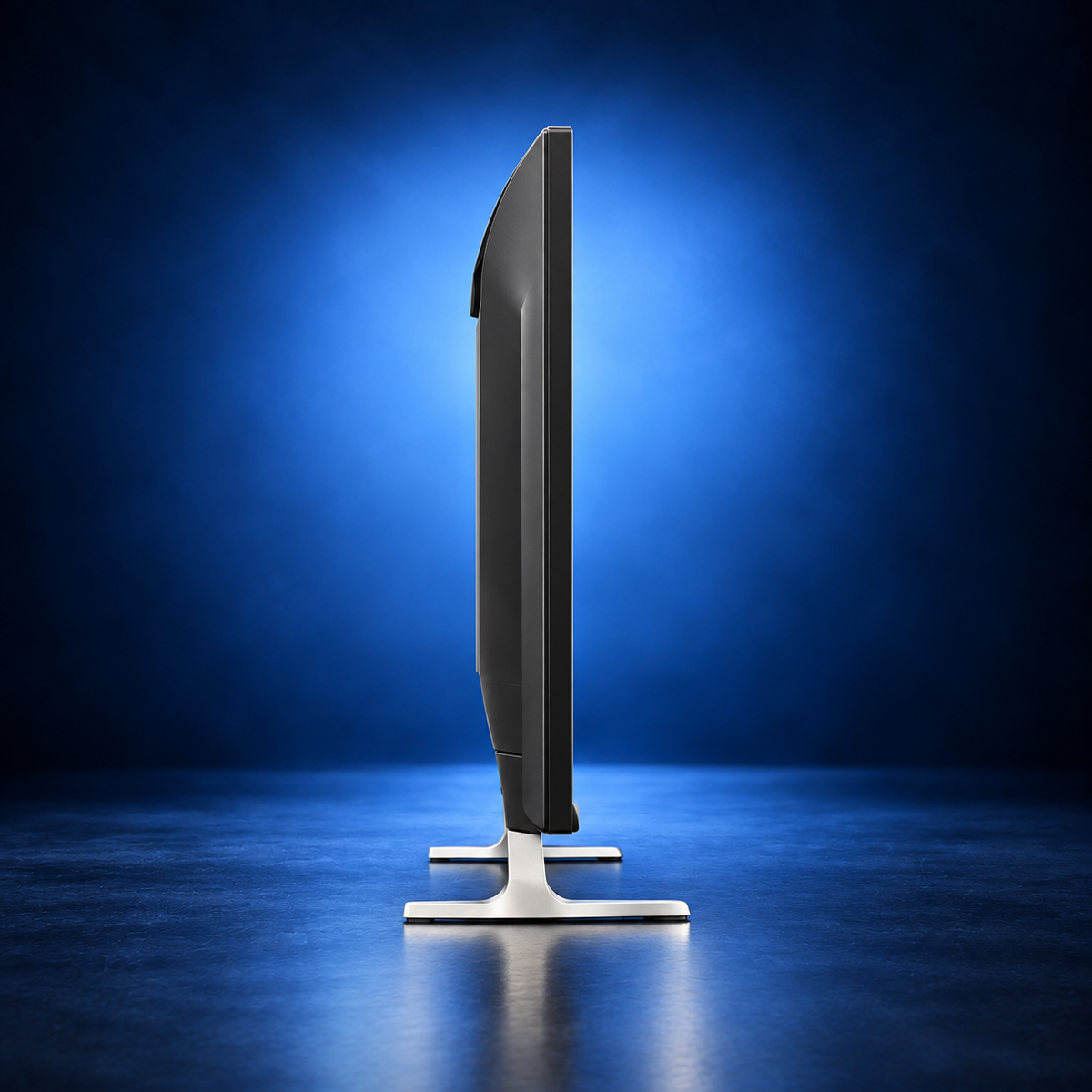

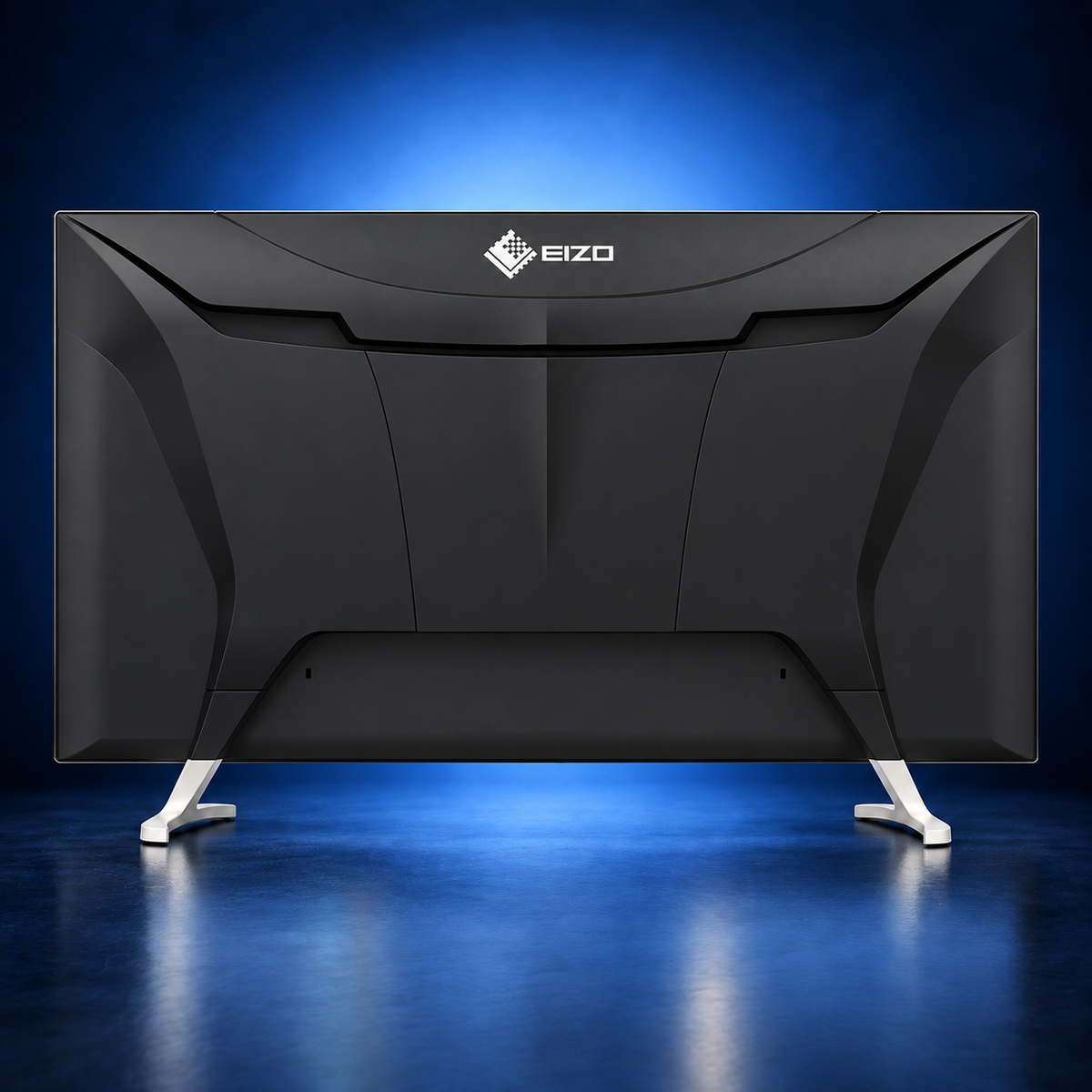

EIZO FlexScan EV4340X 42.5-inch 4K USB-C Large Format Worklist Monitor
SKU EIZO-EV4340X
New
The EIZO FlexScan EV4340X brings a 42.5-inch flat 4K IPS workspace to large desks, with USB-C docking and Picture-by-Picture for up to four video sources.
- DISPLAY
- 42.5-inch
IPS - RESOLUTION
- 3840 × 2160 4K UHD
60 Hz - CONNECTION
- USB-C · up to 94 W
Gigabit Ethernet - WORKSPACE
- Up to 4 sources with PbyP
Fixed removable stand
Request a quote
Confirm your workflow, delivery location and final configuration with Texel Comp.
5-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · WORKSPACE
Arrange information across a larger screen.
A large 4K canvas provides room for application windows or shared presentations. Review text scaling and the viewing position during workstation planning.
03 · USB-C DOCKING
Connect a compatible workstation through USB-C.
The connection carries video, USB data and up to 94 W charging. Confirm workstation output and power needs with Texel Comp.
04 · WIRED NETWORK
Keep Ethernet within the display setup.
The built-in Gigabit Ethernet connection can serve a compatible USB-C workstation, helping organize the cables around a larger desk or shared screen.
05 · MULTI-SOURCE VIEWING
View up to four sources together.
Picture-by-Picture supports up to four video signals, with Picture-in-Picture also available. Choose the arrangement that fits your connected systems.
06 · REMOTE CONTROL
Adjust the view from your seating position.
The included remote supports input, volume and display controls. Keep the larger screen accessible when planning shared viewing with Texel Comp.
07 · AUTOMATIC BRIGHTNESS
Respond to changing room light.
Auto EcoView adjusts brightness based on ambient conditions. Configure it for the worklist or shared-information role of this display.
08 · CONNECTION PANEL
Allow space for the complete cable path.
USB-C, DisplayPort, two HDMI inputs, Ethernet and the USB hub support workstation connections. Review mounting clearance and cable access before installation.
EIZO FLEXSCAN EV4340X · PROFESSIONAL WORKLIST MONITOR
One large screen for several active workspaces.
The EIZO FlexScan EV4340X brings a 42.5-inch flat 4K IPS workspace to large desks, with USB-C docking and Picture-by-Picture for up to four video sources.
Arrange multiple applications or connected video sources across a broad 3840 × 2160 screen. The EV4340X suits professional desks that need a large display surface for worklists, operational views and collaborative reference material.
Choose the display around your workflow
Plan desk depth and viewing distance before choosing this 42.5-inch model. Its fixed removable stand and VESA options require a different installation approach from the smaller height-adjustable FlexScan models.
EV4340X features for a professional desk
Large-format 42.5-inch 4K
The flat IPS panel provides 3840 × 2160 resolution at 60 Hz. Its physical size allows large application layouts, with operating-system scaling selected to suit your viewing distance.
Up to four video sources
Picture-by-Picture supports two, three or four compatible sources. Picture-in-Picture adds an inset view when a secondary source needs to stay visible.
USB-C and wired networking
USB-C supports compatible video, data and up to 94 W charging. Gigabit Ethernet, two USB Type-A ports and a downstream USB-C port consolidate desk connections.
Plan a secure installation
The supplied stand is fixed and removable; it does not offer height adjustment or pivot. VESA 100 × 100 mm and 200 × 200 mm patterns provide mounting options with a correctly rated mount.
EIZO EV4340X technical specifications
Display & performance
| Manufacturer / model | EIZO FlexScan EV4340X |
|---|---|
| Screen | 42.5-inch flat IPS; LED backlight |
| Native resolution | 3840 × 2160 4K UHD; 16:9 |
| Refresh rate | 60 Hz |
| Typical brightness / contrast | 350 cd/m²; 1000:1 |
| Response / pixel density | 5 ms gray-to-gray; 104 ppi |
| Typical / maximum power | 31 W typical; 243 W maximum |
Connections & installation
| Video inputs | 1 × USB-C (DisplayPort Alt Mode); 1 × DisplayPort; 2 × HDMI |
|---|---|
| USB hub | USB-B and USB-C upstream at 5 Gbps; 2 × USB-A and 1 × USB-C downstream at 5 Gbps |
| USB-C power delivery | Up to 94 W upstream; up to 15 W at downstream USB-C |
| Wired networking | RJ45 Gigabit Ethernet (1000BASE-T) |
| Audio | 4 W + 4 W speakers; headphone output |
| Multi-source display | Picture-by-Picture for 2, 3 or 4 sources; Picture-in-Picture |
| Stand-equipped configuration | Fixed, removable stand; no height adjustment, swivel or portrait pivot |
| VESA mounting | 100 × 100 mm and 200 × 200 mm |
| Net weight with stand | 15.9 kg |
Configuration & purchasing
One monitor, configured for your desk
This listing is for one EIZO FlexScan EV4340X. Confirm the manufacturer suffix, color, stand configuration and regional accessories in your quote. Specifications above describe the stand-equipped configuration; cables, adapters and mounting hardware depend on the supplied unit.
The manufacturer lists USB-C and DisplayPort cables for the standard model. Confirm the complete regional accessory kit with your quote.
Listed for worklists, reporting, EHR and office tasks. A DICOM preset does not establish suitability for primary diagnostic interpretation; choose an appropriately specified medical display for diagnostic reading.
Warranty, condition & availability
5-year manufacturer warranty, limited to 30,000 usage hours; confirm eligibility and remaining coverage for the quoted unit.
Condition, availability, shipping, delivery timing and included accessories are confirmed in the final quote. Send the quantity, workstation or laptop model, video outputs and delivery ZIP code so Texel Comp can help plan the connections.
EIZO EV4340X buying & setup questions
Can the EV4340X display four sources?
Yes, Picture-by-Picture supports two, three or four compatible video sources. Connect the required inputs and confirm the source resolutions and desired layout before deployment.
Does the stand adjust in height or rotate?
The stand is fixed and removable. It does not provide the height adjustment or portrait pivot found on smaller FlexScan models. Plan desk clearance and viewing distance accordingly.
What mounting patterns does it support?
The monitor supports 100 × 100 mm and 200 × 200 mm VESA patterns. Confirm the display weight without the stand, mount load rating, fasteners and installation requirements before selecting hardware.
Can a laptop connect with one USB-C cable?
A compatible USB-C connection supports video, data, wired networking and up to 94 W charging. Confirm DisplayPort Alt Mode, host networking support and power requirements; the downstream USB-C port has a separate 15 W limit.
