01 · DISPLAY

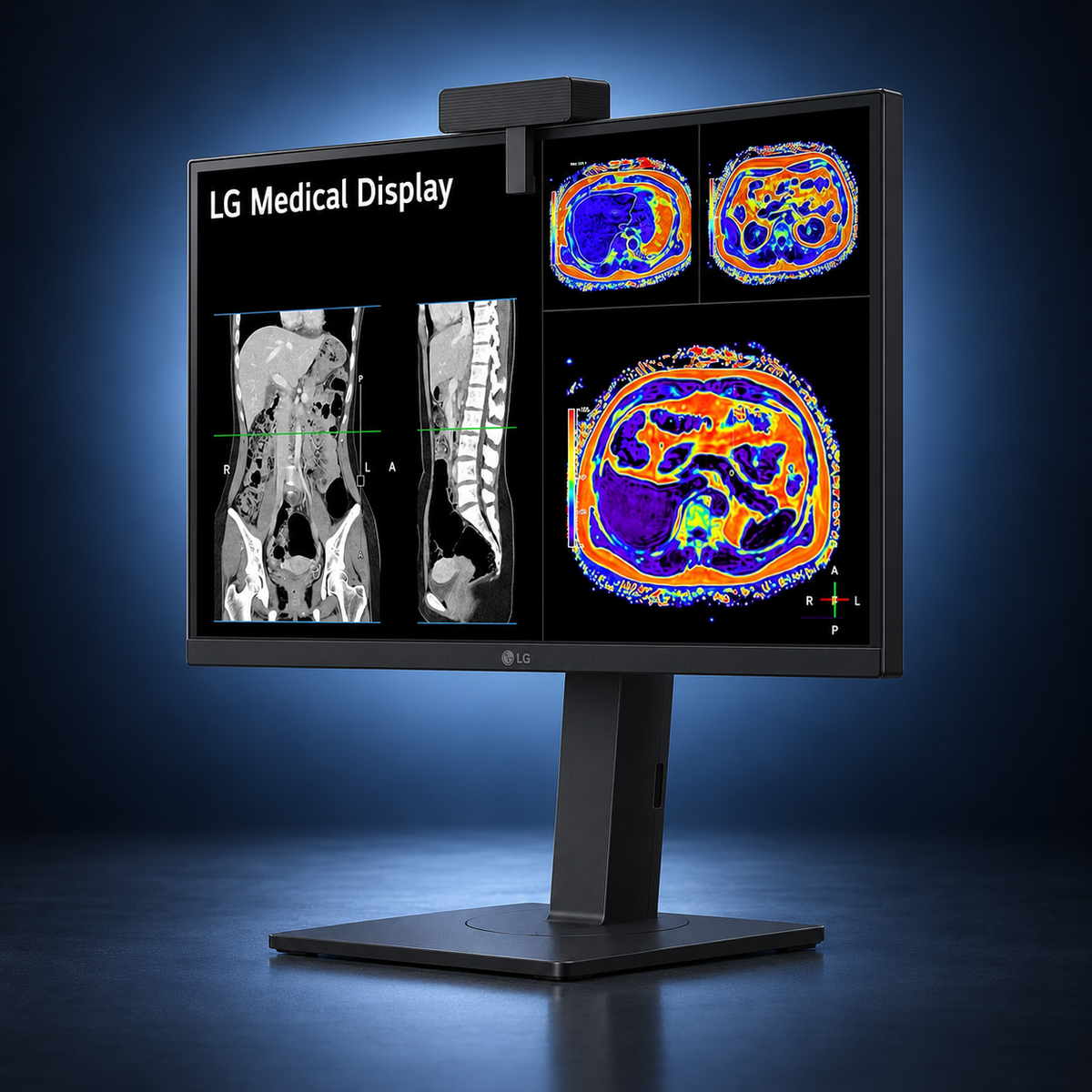

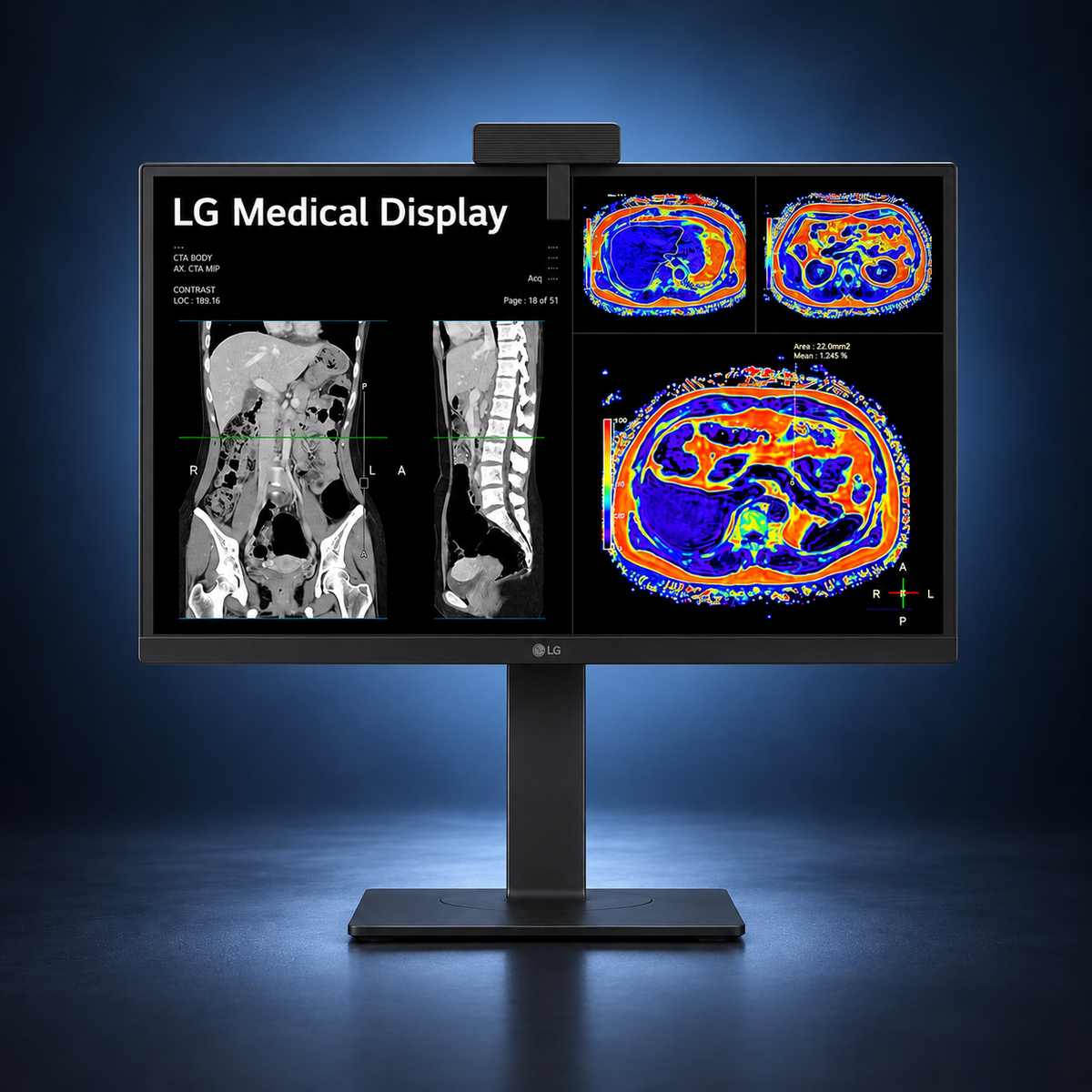

Bring 8MP to a 27-inch desk display.
The 3840 × 2160 IPS panel provides a 4K workspace for clinical review. Discuss application layout and workstation output with Texel Comp.
LG 27HS713C-B8MP · 3840 × 2160
Product images show the individual monitor. Screen content is illustrative.
CLINICAL REVIEW
LG 27HS713C-B 27″ 8MP Clinical Review Monitor
SKU LG-27HS713C
New
LG 27HS713C-B combines a 27-inch 8MP IPS display with detachable calibration sensor. A 27-inch 4K clinical-review monitor for consulting and review spaces that need medical images and everyday workstation information on a clear, wide screen.
- DISPLAY
- 27-inch 8MP
3840 × 2160 - PANEL
- IPS
1,200:1 typical contrast - BRIGHTNESS
- 450 cd/m² typical
- CALIBRATION SENSOR
- Detachable calibration sensor
3-year manufacturer limited warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
LG 27HS713C-B · CLINICAL REVIEW
Clinical review, with room to work.
A 27-inch 4K clinical-review monitor for consulting and review spaces that need medical images and everyday workstation information on a clear, wide screen.
This listing is for one monitor. Specifications describe the individual display.
Plan the display around your workflow
Tell Texel Comp which imaging application you use, how many screens you need and which graphics outputs your workstation provides. That information helps match the display to the desk before you order.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.

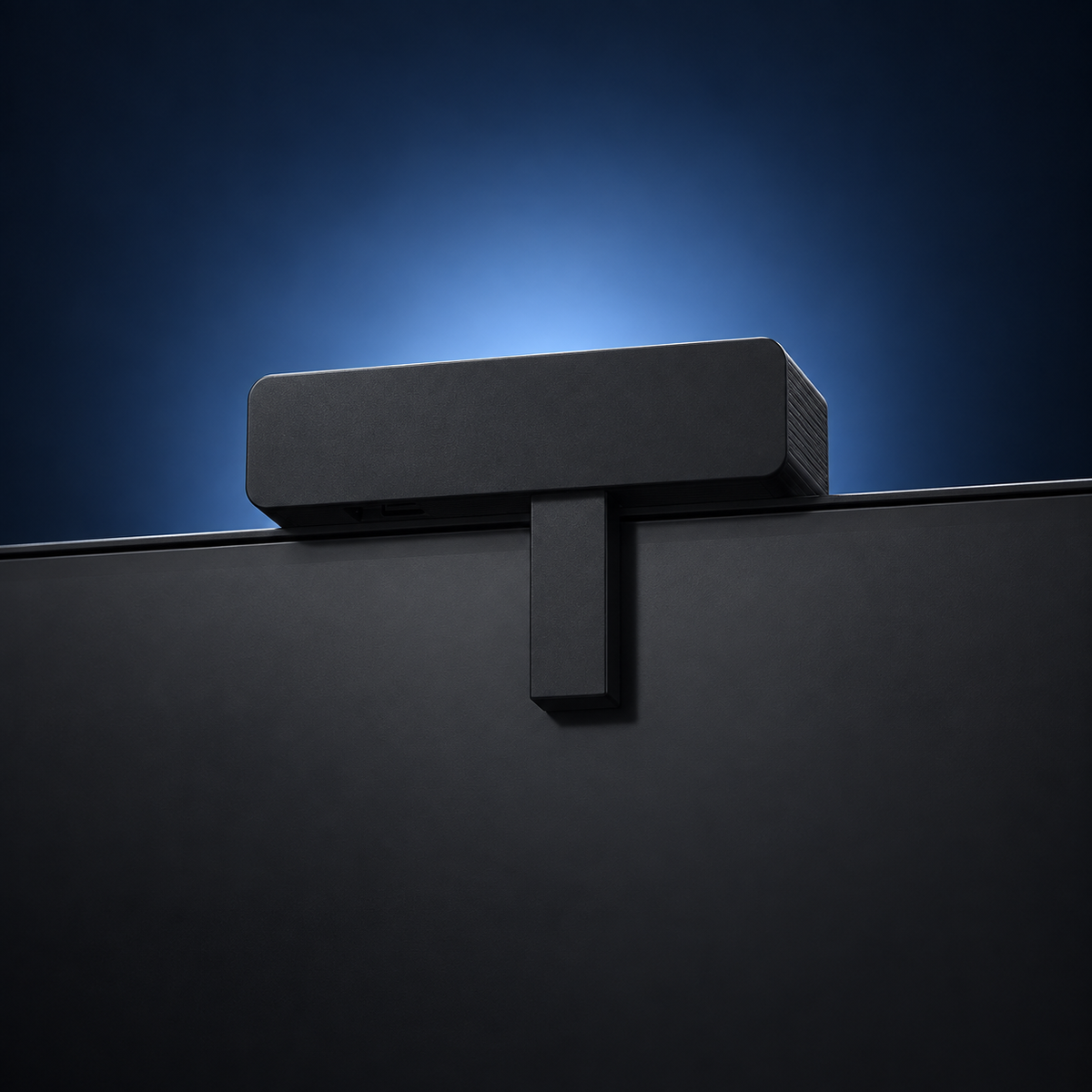

02 · CALIBRATION SENSOR
Attach the sensor when it is needed.
The detachable calibration sensor supports display calibration with compatible software. Confirm the sensor and software configuration when planning your order.
03 · FOCUS VIEW
Highlight the region you are reviewing.
Focus View emphasizes a chosen area while darkening the rest of the image. Use the monitor controls to position the focus region.

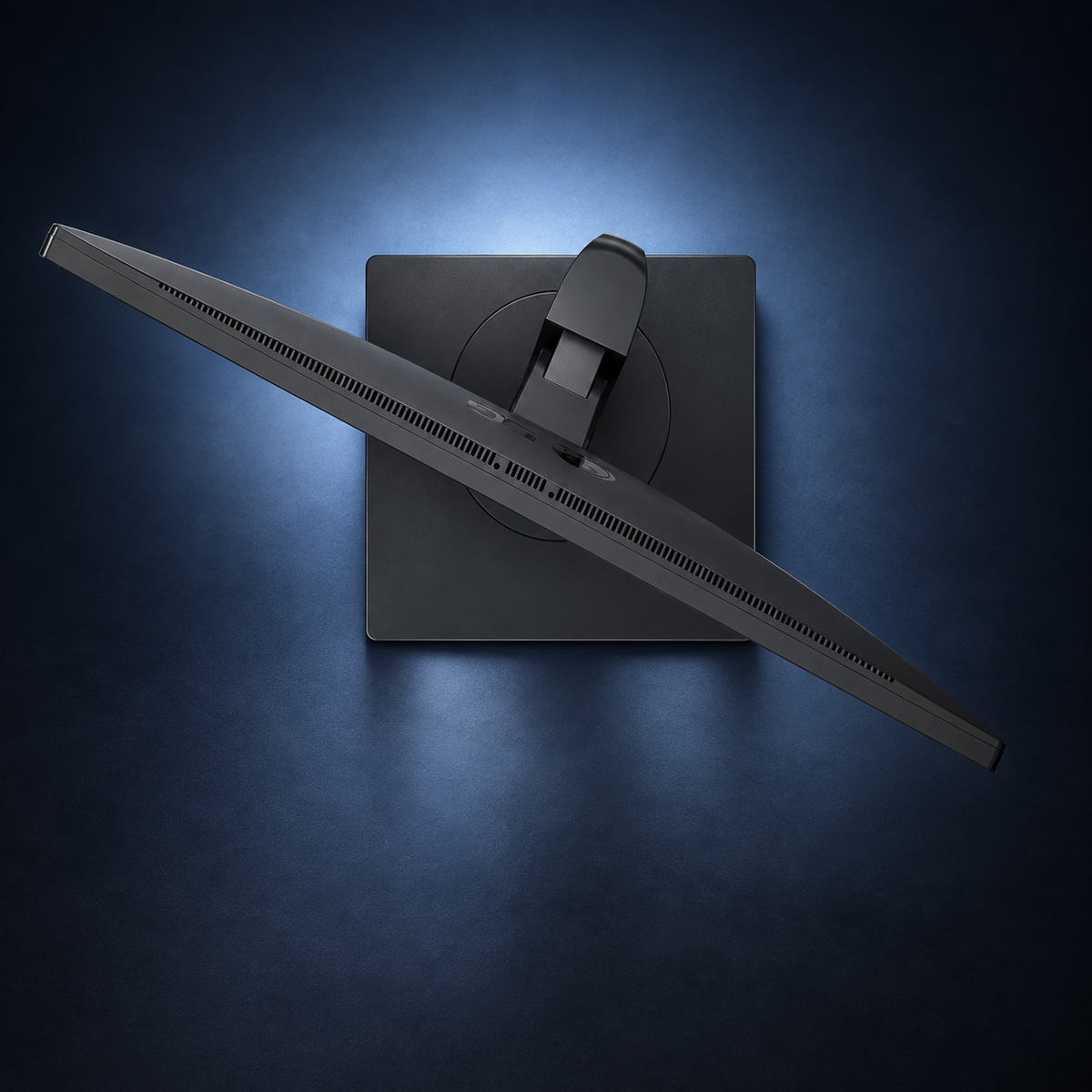

04 · STAND ADJUSTMENTS
Set the display around your working position.
Height, tilt, swivel and pivot adjustments support a flexible desk arrangement. Texel Comp can help review fit alongside your existing displays.
05 · CONNECTED COMPUTERS
Plan control of two systems.
LG Dual Controller supports a shared keyboard and mouse with compatible connected computers. Review software compatibility and the connection plan before deployment.
06 · CALIBRATION WORKFLOW
Include quality checks in your display plan.
LG Calibration Studio Medical supports calibration and quality-assurance workflows. Confirm the supported software version and your organization’s testing requirements during installation.

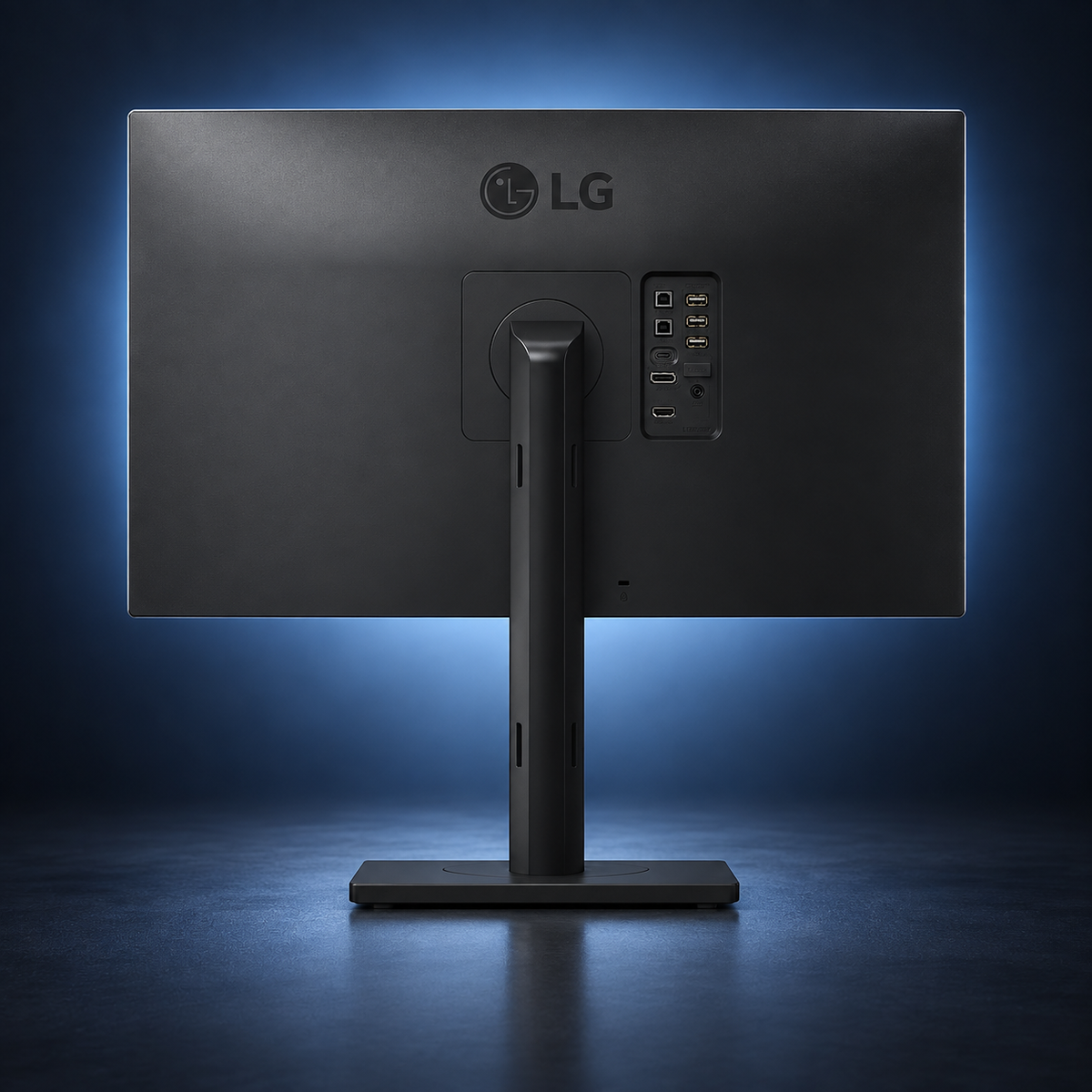

07 · REAR CONNECTIONS
See how the workstation connects.
The rear panel includes HDMI, DisplayPort, USB-C and USB connections. Share your workstation’s outputs with Texel Comp to confirm the cable configuration.
LG 27HS713C-B specifications
Display performance
| Exact model | LG 27HS713C-B |
|---|---|
| Screen | 27 inches |
| Native resolution | 8MP · 3840 × 2160 |
| Panel / aspect | IPS · 16:9 |
| Typical brightness | 450 cd/m² |
| Typical contrast | 1,200:1 |
Calibration & installation
| Calibration sensor | Detachable calibration sensor |
|---|---|
| Calibration support | LG Calibration Studio Medical |
| Resolution modes | 8MP / 4K native resolution |
| Connectivity | DisplayPort, HDMI, DVI-D, USB-C and USB hub |
| Stand adjustment | Height, tilt, swivel and bi-directional pivot |
| Condition / warranty | New · 3-year manufacturer limited warranty |
Brightness shown is the manufacturer’s typical specification, not a promise of calibrated luminance. Confirm the calibration target, software version and display connection for your installation.
Intended application
Designed for clinical review. No primary diagnostic or mammography clearance is claimed in this listing.
For your purchasing team
Use the exact model number when comparing quotes. Ask Texel Comp to confirm availability, supplied accessories, delivery timing and applicable U.S. manufacturer warranty terms for your order.
A monitor purchase does not include a computer, PACS software license or deployment service unless those items are explicitly listed in your quote.
Questions before you order
Is this intended for primary diagnostic mammography?
This listing is for clinical review. It does not claim FDA-cleared primary diagnostic mammography or breast tomosynthesis use. Choose an explicitly indicated diagnostic model for those applications.
Will it work with my existing PACS workstation?
Confirm your graphics card’s output, supported resolution and required cable connection. Send your workstation model and intended screen arrangement to Texel Comp for help reviewing the setup.
Does DICOM support complete our display quality checks?
The display’s DICOM support is one part of the installation. Your team should establish and maintain its calibration and quality-control workflow for the intended application.
Can we request a quote for several reading desks?
Yes. Include the exact LG model, monitor quantity, single or paired arrangement and delivery destination. Texel Comp can help you review the display requirements for the order.
