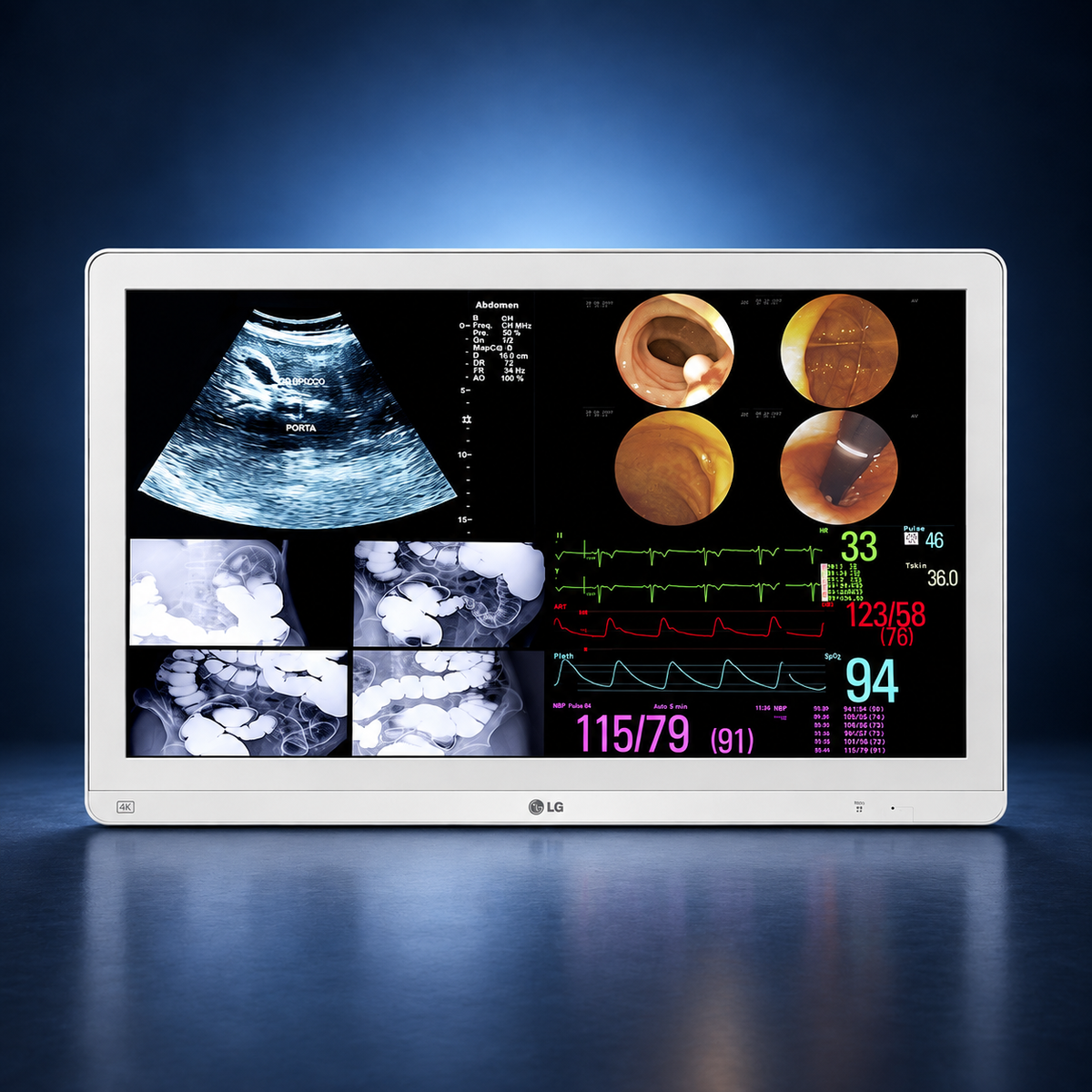

01 · 4K IPS DISPLAY
A 31.5-inch 4K viewing area.
The 3840 × 2160 IPS panel provides a wide-angle viewing area. Review display placement and the surgical video source with Texel Comp.
LG 32HL714S-W31.5-inch · 4K UHD
SURGICAL MEDICAL DISPLAY
LG 32HL714S-W 31.5-inch 4K IPS 12G-SDI Surgical Medical Monitor
SKU LG-32HL714S-W
New
The LG 32HL714S-W provides a 31.5-inch 4K IPS workspace with 12G-SDI support, HDR10 and multi-source display tools for compatible surgical video systems.
- DISPLAY
- 31.5-inch
IPS LCD - RESOLUTION
- 3840 × 2160
4K UHD - CONNECTION
- 12G-SDI
HDMI / DisplayPort - WORKFLOW
- Up to four-source PBP
HDR10
3-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
SURGICAL MEDICAL DISPLAY
A larger 4K view for an integrated operating room.
The LG 32HL714S-W provides a 31.5-inch 4K IPS workspace with 12G-SDI support, HDR10 and multi-source display tools for compatible surgical video systems.
Use a 3840 × 2160 screen to present surgical video and supported reference sources with room for a multi-image layout. The 31.5-inch panel offers broad viewing angles for a shared procedure workspace.
Plan your video workflow
Choose this model when a larger IPS display and 12G-SDI signal path are priorities. Plan the source processor, cable type, mount load rating and required source combinations before specifying the unit.
Explore our medical displays to compare screen sizes and connection options.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · HDR10
Match HDR settings to the video feed.
HDR10 support accommodates a compatible HDR source. Confirm the source format and monitor settings when planning the video connection.
03 · MULTIPLE SOURCES
Bring several video feeds together.
Picture-in-Picture and up to four Picture-by-Picture areas support multi-source viewing. Choose the layout around the inputs your team needs to see.
04 · 12G-SDI
Plan a 4K SDI signal path.
12G-SDI supports 4K video over a single compatible coaxial connection. Confirm source compatibility, cable specification and run length with Texel Comp.
05 · FAILOVER INPUT
Configure a backup video source.
Failover changes to a configured secondary source when the main input is lost. Check the source priorities and behavior during commissioning.
06 · IMAGE ORIENTATION
Set mirror and rotation for the task.
Mirror and rotation settings adjust the on-screen image orientation. Choose the settings around your video equipment and the team’s viewing position.
07 · REAR CONNECTIONS
See the physical inputs before installation.
The rear-port photograph shows the connector layout. Share the planned source equipment with Texel Comp to review signal formats and the cable configuration.
Technical specifications
Display and performance
| Model / MPN | 32HL714S-W |
|---|---|
| SKU | LG-32HL714S-W |
| Screen | 31.5-inch; 16:9 |
| Panel | IPS LCD with LED backlight |
| Native resolution | 3840 × 2160 |
| Typical brightness | 800 cd/m² |
| Contrast | 1300:1 |
| Color | sRGB over 99% coverage; 10-bit color |
| HDR | HDR10 |
| Timing | Source timing and native 4K support depend on input |
Connections and installation
| Video inputs | 1 × HDMI; 1 × DisplayPort; 1 × DVI; 4 × SDI with 12G-SDI support |
|---|---|
| Video outputs | DisplayPort, DVI and SDI outputs; confirm routing for selected signal |
| USB | 1 upstream / 1 downstream USB connection |
| Control | RS-232C |
| Multi-image tools | 2 / 3 / 4-source PBP; PIP; mirror and rotation modes |
| Protection | Protective glass with anti-reflection and anti-fingerprint treatment; IP35 front / IP32 except front; IK06 |
| VESA mounting | 100 × 100 mm; 200 × 100 mm |
| Dimensions / net mass | 764.6 × 480.8 × 94.4 mm; 13.5 kg without stand |
| Power | External adapter; 100–240 V AC, 50/60 Hz; up to 180 W |
| Display settings | Supported LG Calibration Studio / True Color Pro hardware calibration; brightness stabilization; input failover |
Configuration and purchasing
Supplied configuration
One LG 32HL714S-W monitor. LG lists no stand; confirm the regional power adapter or cord, cables and accessory kit. Specify the required mount or surgical arm separately.
Specify the source, input timing and cable path for your surgical-video workflow. DICOM tone support alone does not establish diagnostic radiology or mammography indications.
Warranty and support
3-year manufacturer limited warranty, subject to unit eligibility and regional terms. Confirm condition, remaining coverage, availability and delivery with your quote. Contact Texel Comp for configuration and support options.
Request a quote for LG 32HL714S-W with your source equipment, desired layout and mounting requirements.
Frequently asked questions
Is the 32HL714S-W a Mini-LED display?
No. LG specifies an IPS LCD with conventional LED backlighting. Compare the 32HR734S-W for a 31.5-inch Mini-LED model.
Does it support 12G-SDI surgical video?
Yes. Confirm the camera or processor's output format, required cable and any intermediary equipment so the complete signal chain supports your intended 4K workflow.
Can I combine surgical video and reference inputs?
PBP supports up to four compatible sources and PIP provides an inset view. Confirm the intended input combination and layout before deployment.
Is a surgical arm or stand included?
The manufacturer's specifications list no stand. Request mounting separately and confirm included regional accessories, adapter, cables and fasteners in your quote.
Resources and related displays
Official LG 32HL714S-W specifications · Manufacturer brochure · Manufacturer support and warranty
Compare Compare the LG 32HR734S-W for a 31.5-inch Mini-LED alternative..
