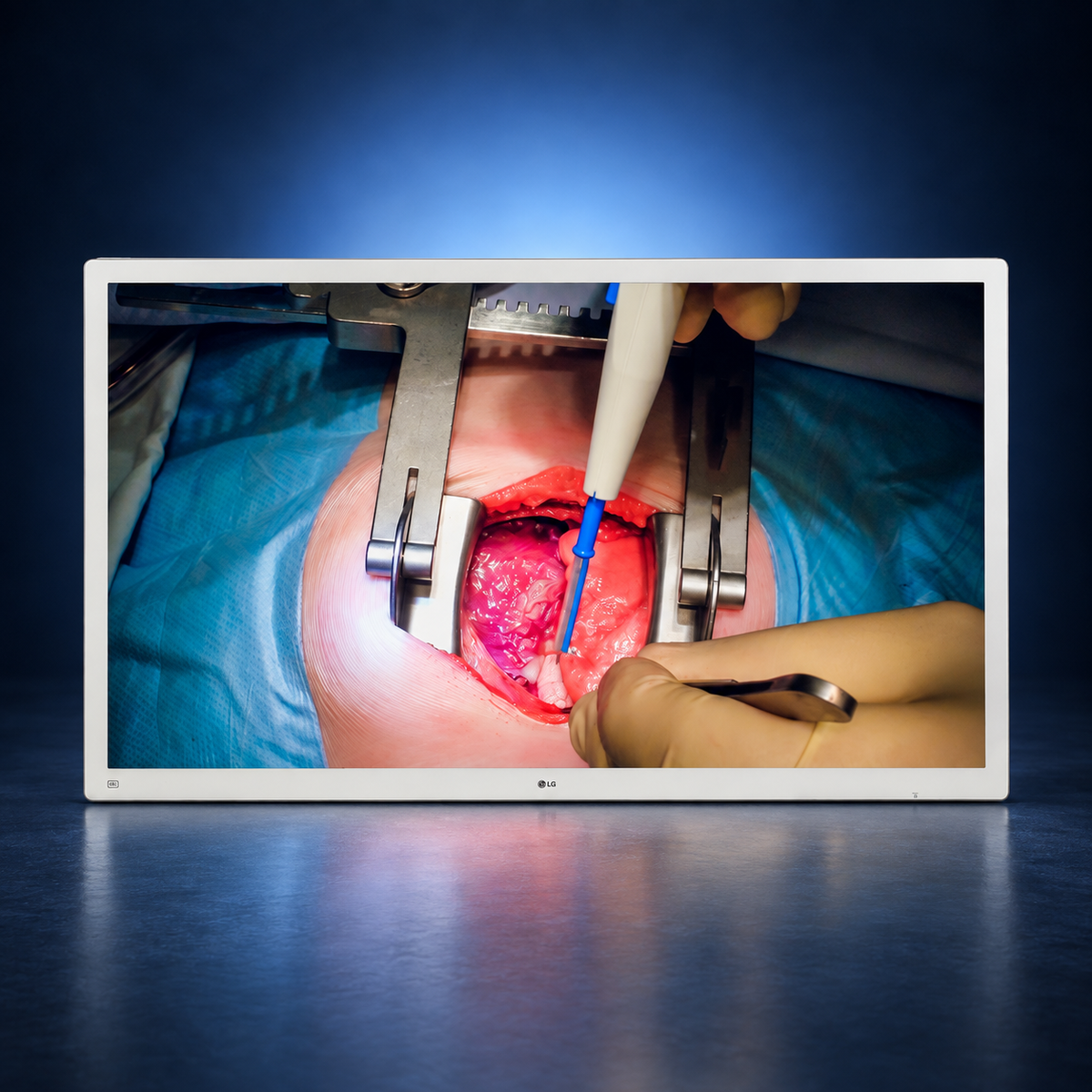

01 · 55-INCH 4K DISPLAY
Plan a larger shared viewing area.
The 55-inch, 3840 × 2160 IPS display provides a large 4K workspace. Discuss sightlines, mounting and source equipment with Texel Comp.
LG 55MH5K-C55-inch · 4K UHD
SURGICAL MEDICAL DISPLAY
LG 55MH5K-C 55-inch 4K IPS 12G-SDI Surgical Medical Display
SKU LG-55MH5K-C
New
The LG 55MH5K-C is a 55-inch 4K IPS surgical display with 12G-SDI support, HDR10 and multi-source layouts for a larger shared operating-room view.
- DISPLAY
- 55-inch
IPS LCD - RESOLUTION
- 3840 × 2160
4K UHD - CONNECTION
- 12G-SDI
HDMI / DisplayPort - WORKFLOW
- Up to four-source PBP
HDR10
Manufacturer warranty confirmed with quoteManufacturer terms apply
Contact Texel CompConfiguration and service questions
SURGICAL MEDICAL DISPLAY
A large 4K surgical view for the wider team.
The LG 55MH5K-C is a 55-inch 4K IPS surgical display with 12G-SDI support, HDR10 and multi-source layouts for a larger shared operating-room view.
Present compatible surgical video and reference sources on a 55-inch screen designed for a shared viewing position. The 3840 × 2160 panel combines a broad image area with PBP and PIP layout options.
Plan your video workflow
Plan the room, viewing distance and mounting structure before selecting this large display. Confirm required video inputs, signal formats and installation scope along with the exact 55MH5K-C unit.
Explore our medical displays to compare screen sizes and connection options.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · HDR10
Configure the display for an HDR source.
HDR10 support works with compatible HDR content. Confirm the source signal and monitor settings when planning the video installation.
03 · MULTIPLE SOURCES
Place several feeds on a single display.
Picture-in-Picture and up to four Picture-by-Picture areas support multiple sources. Choose the input combination and layout around the room’s viewing requirements.
04 · 12G-SDI SUPPORT
Confirm the SDI configuration before ordering.
The model supports a 12G-SDI configuration for 4K video. Ask Texel Comp to confirm the required SDI module, source compatibility and cable plan.
05 · FAILOVER INPUT
Set up a secondary video source.
Failover switches to a configured backup source when the main signal disappears. Confirm the priorities and source behavior as part of commissioning.
06 · IMAGE ORIENTATION
Adjust mirror and rotation settings.
Mirror and rotation functions change the displayed image orientation. Configure them around the video source and the team’s viewing position.

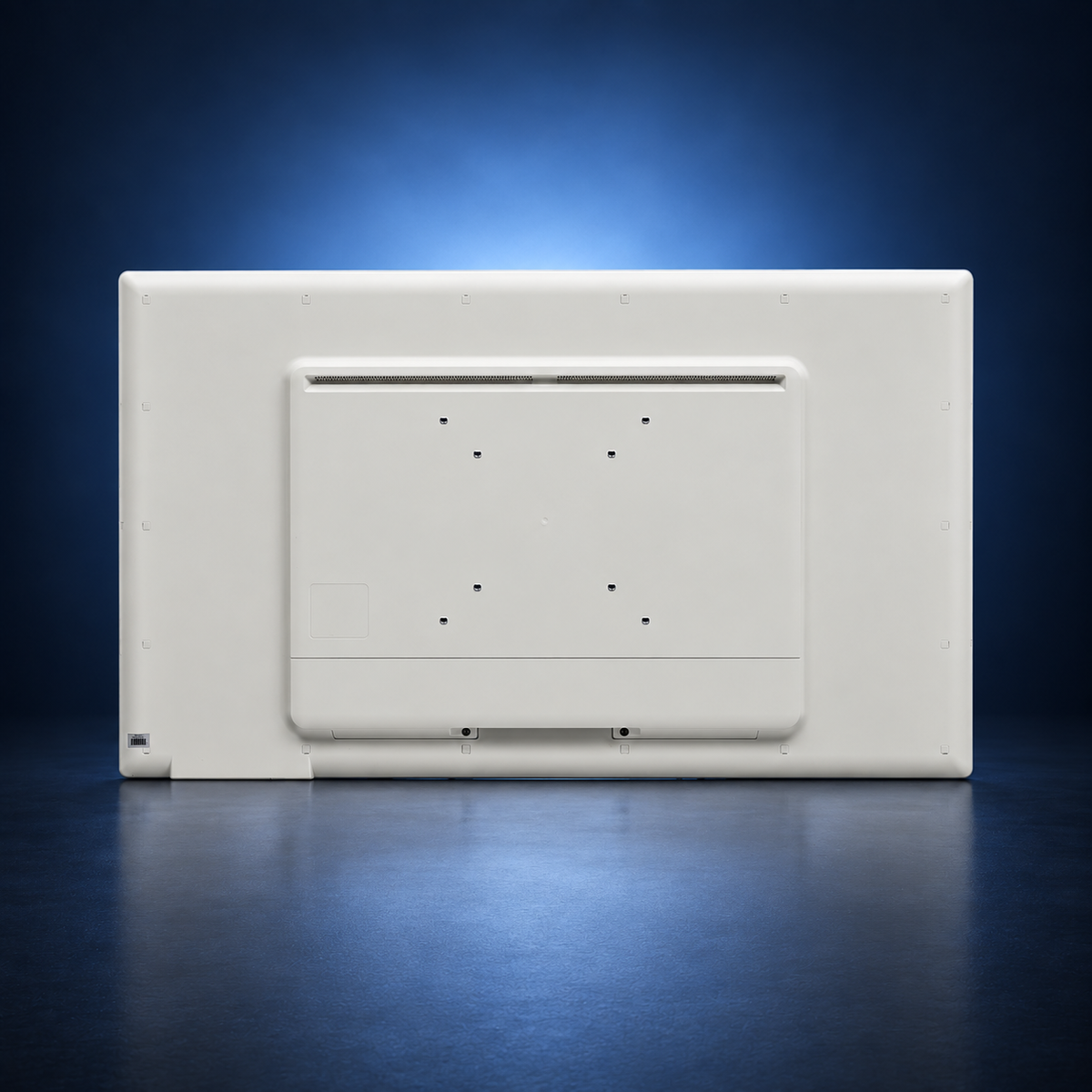

07 · REAR CONNECTIONS
Inspect the 55MH5K-C hardware layout.
This photograph shows the C model’s rear connector area. Review mounting clearance and confirm the supplied input-module configuration with Texel Comp.
Technical specifications
Display and performance
| Model / MPN | 55MH5K-C |
|---|---|
| SKU | LG-55MH5K-C |
| Screen | 55-inch; 16:9 |
| Panel | IPS LCD with edge LED backlight |
| Native resolution | 3840 × 2160 |
| Typical brightness | 680 cd/m² |
| Contrast | 1100:1 |
| Color | DCI-P3 86% (CIE1976); 10-bit color |
| HDR | HDR10 |
| Timing | 3840 × 2160 at 60 Hz via supported HDMI / DisplayPort |
Connections and installation
| Video inputs | 1 × HDMI; 1 × DisplayPort; 1 × DVI-D; 4 × 12G-SDI; SFP input slot as specified by LG |
|---|---|
| Video outputs | 1 × DisplayPort; 1 × DVI-D; 4 × 12G-SDI |
| USB | USB 3.0; 1 upstream / 1 downstream |
| Control | RS-232C |
| Multi-image tools | 2 / 3 / 4-source PBP; PIP; mirror and rotation modes |
| Protection | Direct-bonded protective glass with anti-reflection and anti-fingerprint treatment; IP45 front / IP32 except front; IK06 |
| VESA mounting | 200 × 200 mm; 300 × 300 mm |
| Dimensions / net mass | 1283.4 × 768.5 × 68.3 mm; 34.8 kg without stand |
| Power | Built-in power; 100–240 V AC, 50/60 Hz; up to 180 W |
| Display settings | Supported LG Calibration Studio hardware calibration; brightness stabilization and input failover |
Configuration and purchasing
Supplied configuration
One LG 55MH5K-C monitor. LG lists no stand; confirm the regional power adapter or cord, cables and accessory kit. Specify the required mount or surgical arm separately.
Specify the source, input timing and cable path for your surgical-video workflow. DICOM tone support alone does not establish diagnostic radiology or mammography indications.
Warranty and support
Manufacturer warranty confirmed with your quote. Confirm condition, remaining coverage, availability and delivery with your quote. Contact Texel Comp for configuration and support options.
Request a quote for LG 55MH5K-C with your source equipment, desired layout and mounting requirements.
Frequently asked questions
Is this the 55MH5K-C or 55MH5K-W?
This listing is specifically for 55MH5K-C. The final quote verifies its regional manufacturer suffix and supplied-unit configuration.
Does it include a floor stand or wall mount?
LG lists no stand. Specify the intended wall, ceiling or floor mounting system separately, with a load rating suitable for the monitor and complete installed assembly.
Can four sources appear simultaneously?
The model supports two-, three- and four-source PBP, along with PIP. Confirm input combinations, source timing and desired screen layout before installation.
What should I confirm for a 55-inch installation?
Provide viewing distance, mount location, source equipment, cable routes and site access requirements. Confirm the input configuration, SFP module if needed, power connection and installation scope in the quote.
