01 · 4K SURGICAL DISPLAY
A 42.5-inch view for surgical video.
The LMD-43M1MD displays 3840 × 2160 pixels. Texel Comp can help review source compatibility, screen placement and integration requirements.
Sony LMD-43M1MD42.5-inch · 4K UHD
SURGICAL MEDICAL DISPLAY
Sony LMD-43M1MD 42.5-inch 4K HDR Mini-LED Surgical Monitor
SKU SONY-LMD-43M1MD
New
A 42.5-inch 4K HDR surgical display with Mini-LED Backlight Master Drive, 12G-SDI and 2000 cd/m² peak luminance for a shared video view.
- DISPLAY
- 42.5-inch
Mini-LED LCD - RESOLUTION
- 3840 × 2160
4K UHD - CONNECTION
- 12G-SDI
HDMI / DisplayPort - WORKFLOW
- Two-image PIP / POP
HLG / PQ HDR
3-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
SURGICAL MEDICAL DISPLAY
A large Mini-LED view for a shared surgical workspace.
A 42.5-inch 4K HDR surgical display with Mini-LED Backlight Master Drive, 12G-SDI and 2000 cd/m² peak luminance for a shared video view.
The LMD-43M1MD combines a 42.5-inch IPS screen with 4K resolution and Sony's Mini-LED local dimming. Its larger view is suited to a carefully planned shared surgical-video installation.
Plan your video workflow
Compare screen dimensions, viewing distance and cable routing before selecting a large display. The 16.9 kg mass and 200 × 200 mm VESA pattern need a compatible mounting solution.
Explore our medical displays to compare screen sizes and connection options.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.

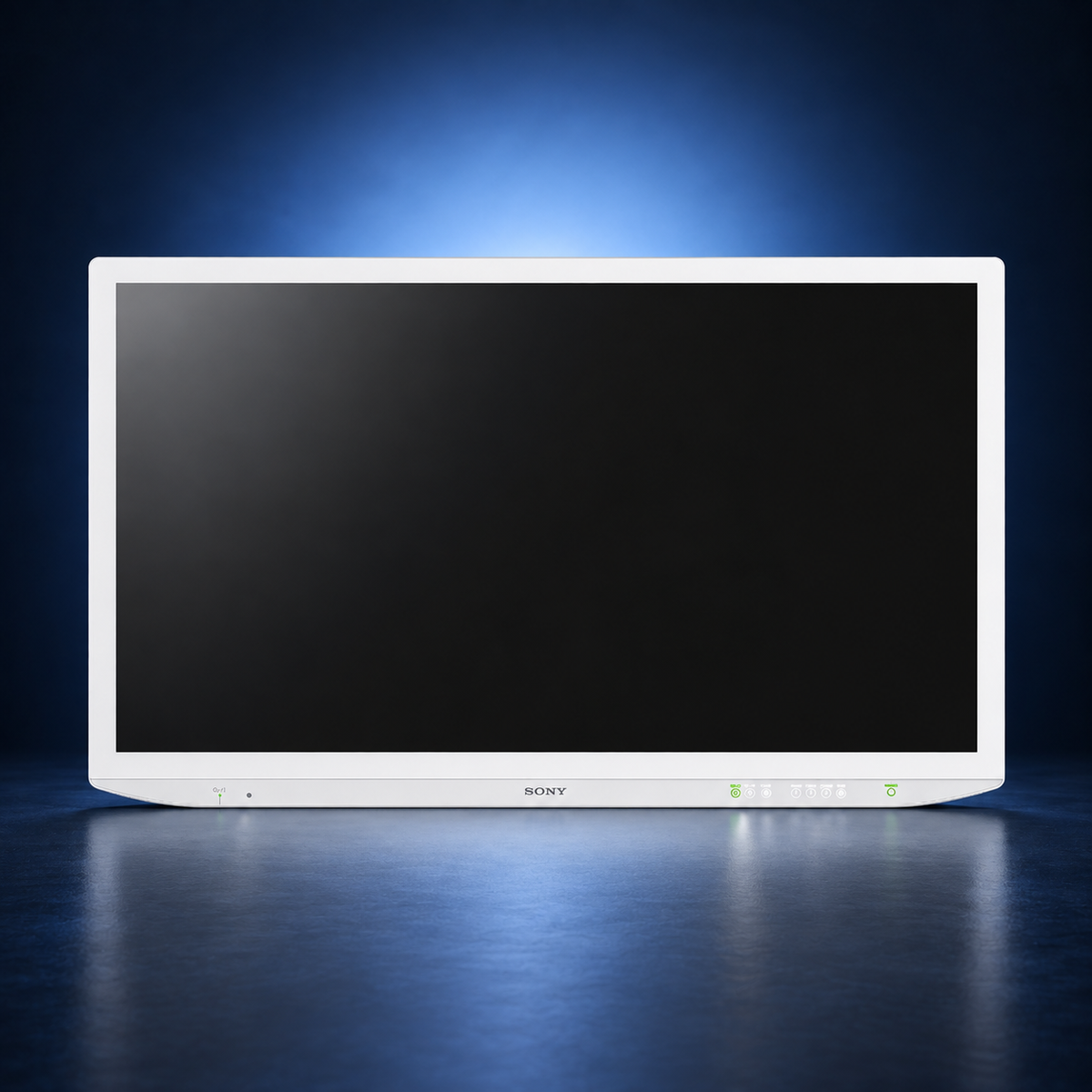

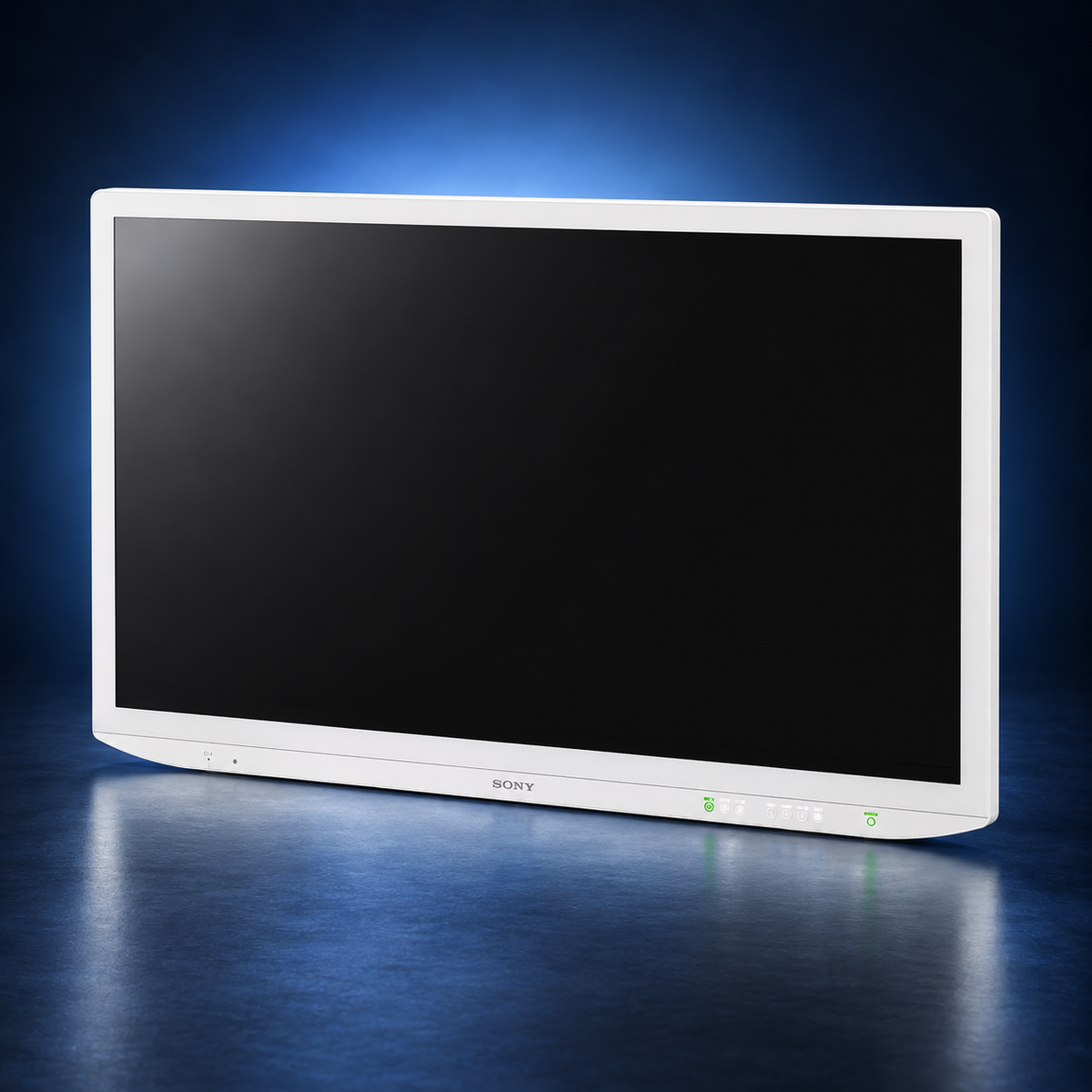

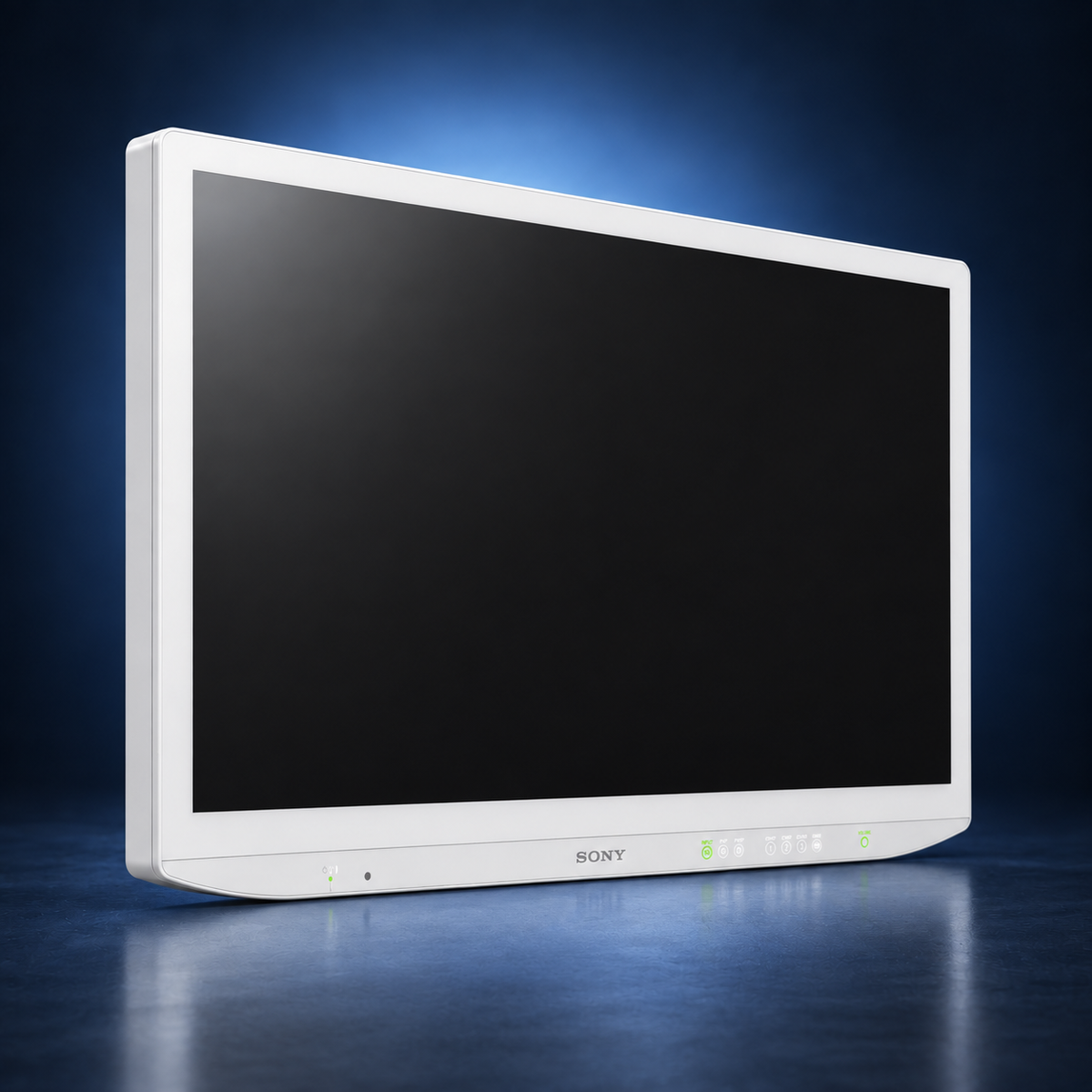

Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · MINI-LED BACKLIGHT
Control brightness across the image.
Backlight Master Drive uses local dimming for contrast, with peak luminance up to 2000 cd/m². Peak and sustained brightness differ.
03 · HDR VIDEO
Configure the display for your source.
HLG and PQ HDR support provide viewing options for compatible sources. Match the monitor and source settings when planning your surgical video system.
04 · SCREEN SURFACE
Manage reflections around the display.
Anti-reflection and anti-glare surface treatment help control reflected light. Review the monitor’s position and operating-room lighting with Texel Comp.
05 · FANLESS DESIGN
Integrate a display without a cooling fan.
Fanless cooling avoids a monitor fan in the installation. Follow the specified ventilation clearances when planning the mounting arrangement.

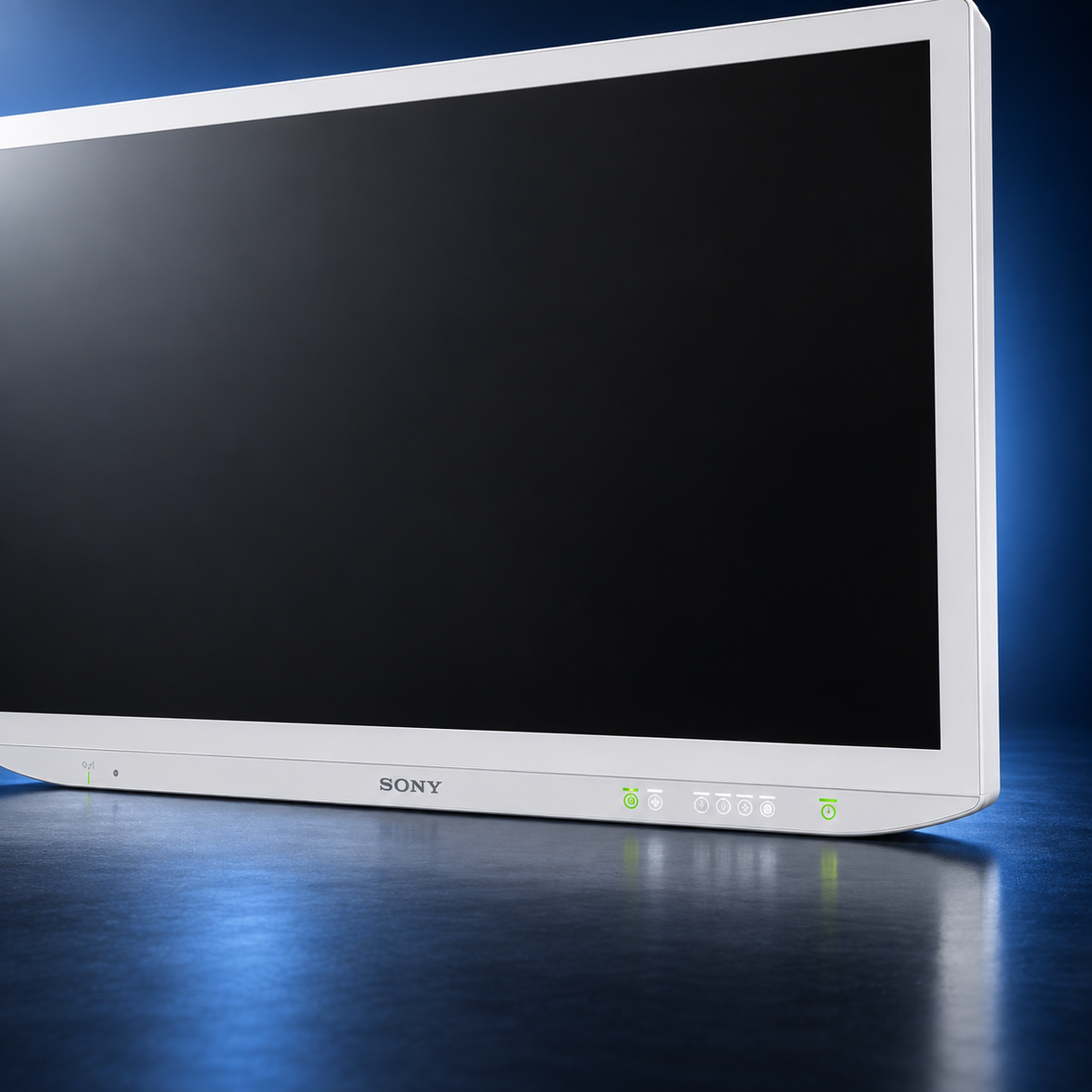

06 · FRONT CONTROLS
Keep frequently used settings accessible.
Customizable front buttons support commonly used functions. Discuss preferred control access and cleaning clearance while choosing the mounting position.
07 · TWO-SOURCE VIEWING
Place two connected views on one display.
Picture-in-Picture and Picture-out-Picture support two image sources, with independent gamma settings. Review signal combinations and preferred layouts with Texel Comp.
08 · REAR CONNECTIONS
Plan video inputs and cable management.
12G-SDI, HDMI and DisplayPort support surgical video connections. USB-C supplies 5 V/1.5 A to external equipment; check complete source compatibility before installation.
Technical specifications
Display and performance
| Model / MPN | LMD-43M1MD |
|---|---|
| SKU | SONY-LMD-43M1MD |
| Screen | 42.5-inch; 16:9 |
| Panel | IPS LCD with Mini-LED backlight |
| Native resolution | 3840 × 2160 |
| Peak luminance | 2000 cd/m² (peak; content and settings dependent) |
| Contrast | 1,000,000:1 (manufacturer local-dimming figure) |
| Color | 10-bit; wide-color processing compatible with BT.2020 signals |
| HDR | HLG and PQ; VESA DisplayHDR 1000 certified |
| Timing | 50 / 60 Hz panel frame rate |
Connections and installation
| Video inputs | 1 × HDMI (HDCP 2.3); 1 × DisplayPort SST; 1 × single-link DVI-D; 1 × SDI (12G / 6G / 3G / HD / SD) |
|---|---|
| Video outputs | 1 × DisplayPort; 1 × DVI-D; 1 × active-through SDI |
| USB | USB-A 2.0 for settings-memory import/export; USB-C 5 V / 1.5 A power output only (up to 7.5 W) |
| Control | RS-232C D-Sub 9-pin; RJ45 remote control; REMOTE stereo mini-jack |
| Multi-image tools | Two-image PIP / POP with independent gamma selection; image rotation and mirroring |
| Protection | Protective front surface with Low Reflection and Anti-Glare treatment; IP45 front, IP32 other surfaces |
| VESA mounting | 200 × 200 mm |
| Dimensions / net mass | 1005.1 × 623.0 × 83.7 mm (W × H × D); 16.9 kg |
| Power | 100–240 V AC, 50/60 Hz; maximum 203 W |
| Display settings | Auto Panel Brightness; selectable gamma including DICOM preset |
Configuration and purchasing
Supplied configuration
One Sony LMD-43M1MD monitor. Confirm the regional power cord and accessory kit. A stand, arm, mount and optional accessories are separately specified.
Specify this model for surgical video. A DICOM gamma preset alone does not establish diagnostic radiology suitability; verify the intended clinical use against Sony's documentation.
Warranty and support
3-year manufacturer limited warranty, subject to unit eligibility and regional terms. Confirm condition, remaining coverage, availability and delivery with your quote. Contact Texel Comp for configuration and support options.
Request a quote for Sony LMD-43M1MD with your source equipment, desired layout and mounting requirements.
Frequently asked questions
Is this a 43-inch or 42.5-inch monitor?
LMD-43M1MD is the model name and 43-inch class. Sony specifies a 42.5-inch viewable screen. The technical dimensions and mounting requirements should guide installation planning.
Can it display four sources at once?
Sony specifies two-image PIP and POP. Do not assume four-source viewing. If that layout is required, compare a suitable four-source model such as the LG 55MH5K-C and confirm input combinations.
What mounting pattern does it use?
The LMD-43M1MD uses 200 × 200 mm VESA mounting and weighs 16.9 kg. Select a compatible mount for the complete installed load; the display listing does not include a mounting solution.
Can USB-C carry video or power a laptop?
No. USB-C is a 5 V / 1.5 A power output only, up to 7.5 W. It is not a USB-C video input or a laptop docking connection.
