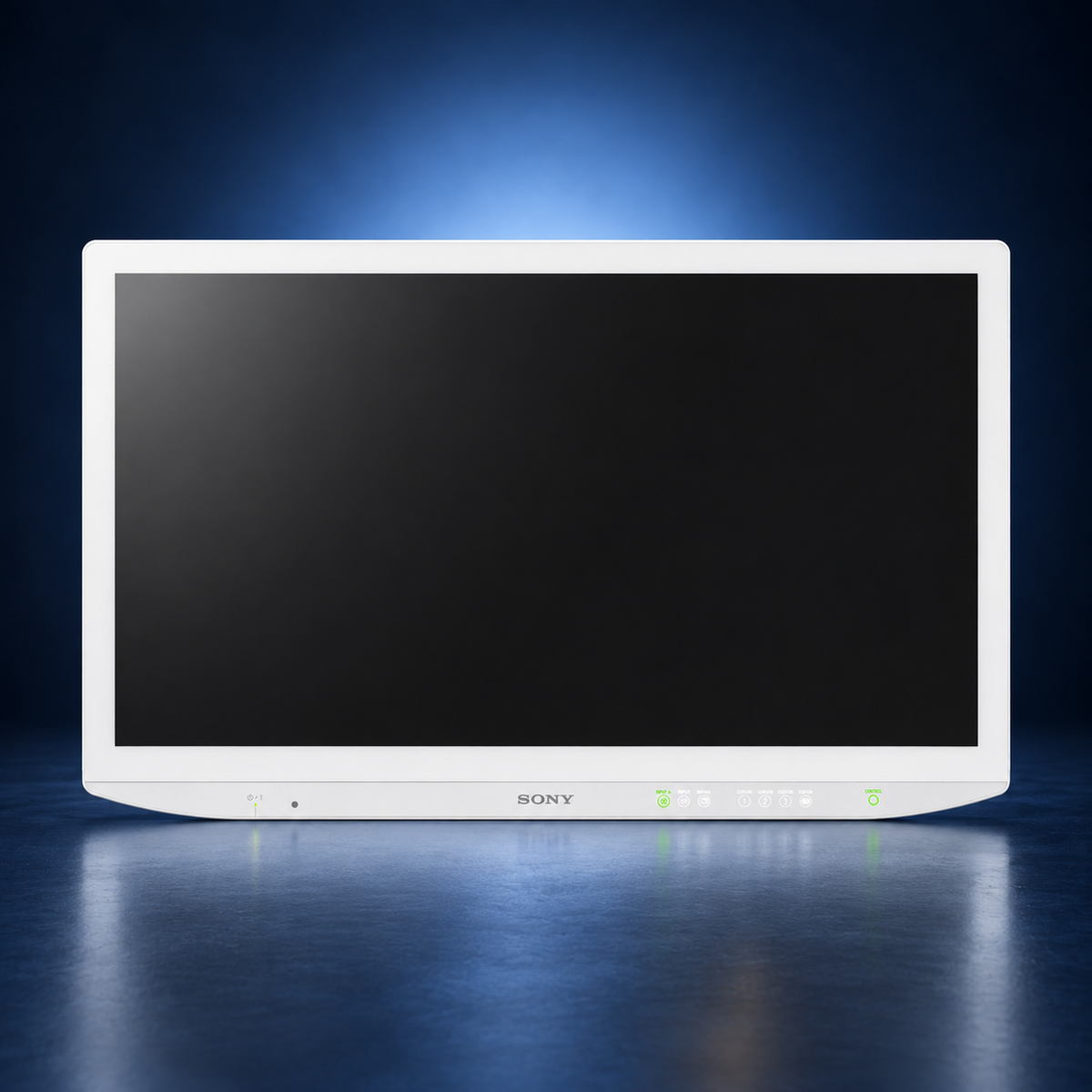

01 · 4K SURGICAL DISPLAY
A 31.5-inch view for surgical video.
The LMD-32M1MD displays 3840 × 2160 pixels. Texel Comp can help review source compatibility, screen placement and integration requirements.
Sony LMD-32M1MD31.5-inch · 4K UHD
SURGICAL MEDICAL DISPLAY
Sony LMD-32M1MD 31.5-inch 4K HDR Mini-LED Surgical Monitor
SKU SONY-LMD-32M1MD
New
A 31.5-inch 4K HDR surgical display combining Mini-LED Backlight Master Drive, 12G-SDI and independent gamma control for two images.
- DISPLAY
- 31.5-inch
Mini-LED LCD - RESOLUTION
- 3840 × 2160
4K UHD - CONNECTION
- 12G-SDI
HDMI / DisplayPort - WORKFLOW
- Two-image PIP / POP
HLG / PQ HDR
3-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
SURGICAL MEDICAL DISPLAY
A 31.5-inch HDR workspace for surgical video.
A 31.5-inch 4K HDR surgical display combining Mini-LED Backlight Master Drive, 12G-SDI and independent gamma control for two images.
The LMD-32M1MD gives surgical teams a larger 4K image within a 100 × 100 mm VESA mounting format. Sony's Mini-LED system combines local dimming with HDR processing for compatible clinical-video sources.
Plan your video workflow
Select this model when a 31.5-inch screen fits your viewing distance and equipment layout. Account for its 11.2 kg mass and the complete arm or mount specification.
Explore our medical displays to compare screen sizes and connection options.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · MINI-LED BACKLIGHT
Control brightness across the image.
Backlight Master Drive uses local dimming for contrast, with peak luminance up to 1850 cd/m². Peak and sustained brightness differ.
03 · HDR VIDEO
Configure the display for your source.
HLG and PQ HDR support provide viewing options for compatible sources. Match the monitor and source settings when planning your surgical video system.
04 · SCREEN SURFACE
Manage reflections around the display.
Anti-reflection and anti-glare surface treatment help control reflected light. Review the monitor’s position and operating-room lighting with Texel Comp.
05 · FANLESS DESIGN
Integrate a display without a cooling fan.
Fanless cooling avoids a monitor fan in the installation. Follow the specified ventilation clearances when planning the mounting arrangement.
06 · FRONT CONTROLS
Keep frequently used settings accessible.
Customizable front buttons support commonly used functions. Discuss preferred control access and cleaning clearance while choosing the mounting position.
07 · TWO-SOURCE VIEWING
Place two connected views on one display.
Picture-in-Picture and Picture-out-Picture support two image sources, with independent gamma settings. Review signal combinations and preferred layouts with Texel Comp.

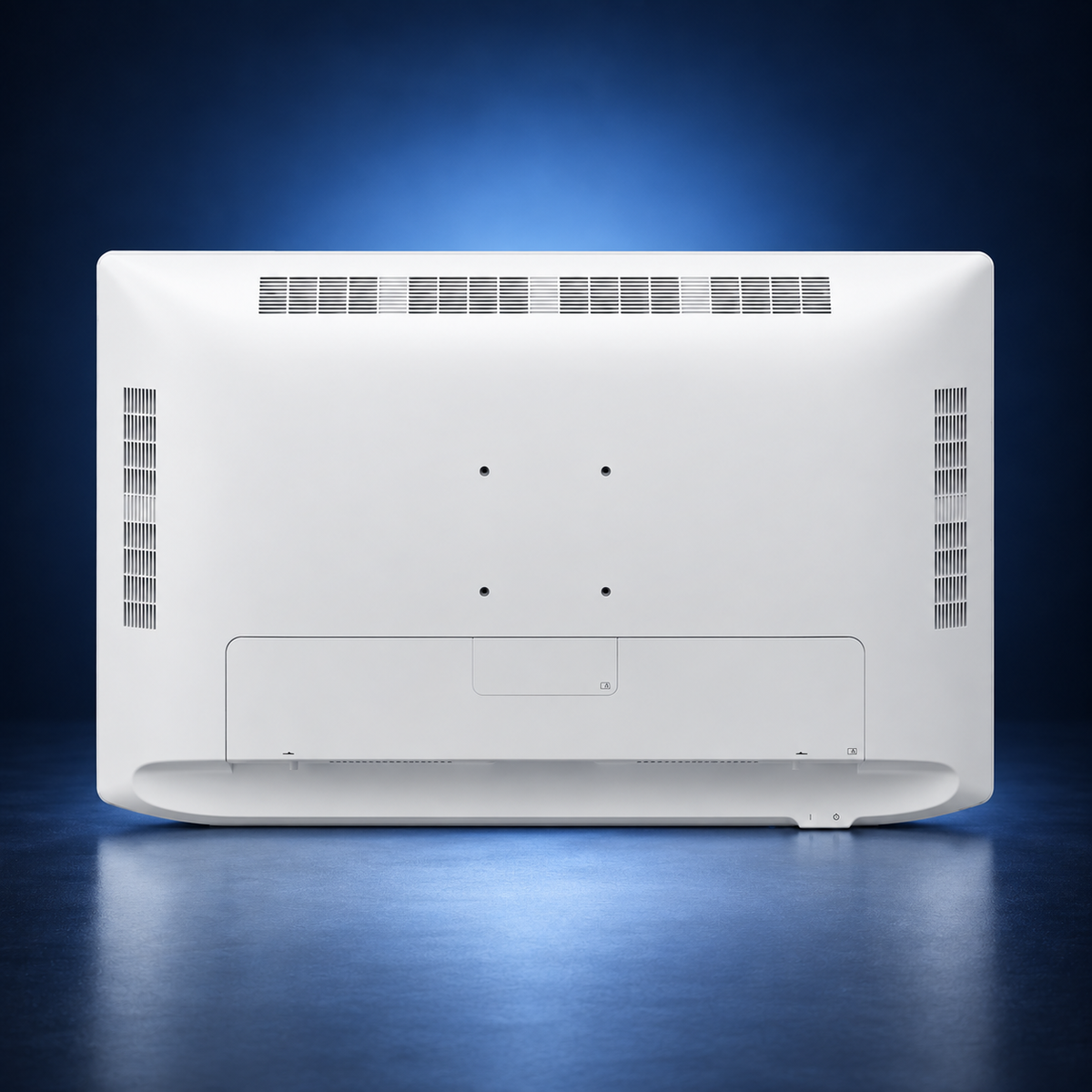

08 · REAR CONNECTIONS
Plan video inputs and cable management.
12G-SDI, HDMI and DisplayPort support surgical video connections. USB-C supplies 5 V/1.5 A to external equipment; check complete source compatibility before installation.
Technical specifications
Display and performance
| Model / MPN | LMD-32M1MD |
|---|---|
| SKU | SONY-LMD-32M1MD |
| Screen | 31.5-inch; 16:9 |
| Panel | IPS LCD with Mini-LED backlight |
| Native resolution | 3840 × 2160 |
| Peak luminance | 1850 cd/m² (peak; content and settings dependent) |
| Contrast | 1,000,000:1 (manufacturer local-dimming figure) |
| Color | 10-bit; wide-color processing compatible with BT.2020 signals |
| HDR | HLG and PQ; VESA DisplayHDR 1000 certified |
| Timing | 50 / 60 Hz panel frame rate |
Connections and installation
| Video inputs | 1 × HDMI (HDCP 2.3); 1 × DisplayPort SST; 1 × single-link DVI-D; 1 × SDI (12G / 6G / 3G / HD / SD) |
|---|---|
| Video outputs | 1 × DisplayPort; 1 × DVI-D; 1 × active-through SDI |
| USB | USB-A 2.0 for settings-memory import/export; USB-C 5 V / 1.5 A power output only (up to 7.5 W) |
| Control | RS-232C D-Sub 9-pin; RJ45 remote control; REMOTE stereo mini-jack |
| Multi-image tools | Two-image PIP / POP with independent gamma selection; image rotation and mirroring |
| Protection | Protective front surface with Low Reflection and Anti-Glare treatment; IP45 front, IP32 other surfaces |
| VESA mounting | 100 × 100 mm |
| Dimensions / net mass | 754.8 × 482.8 × 79.9 mm (W × H × D); 11.2 kg |
| Power | 100–240 V AC, 50/60 Hz; maximum 165 W |
| Display settings | Auto Panel Brightness; selectable gamma including DICOM preset |
Configuration and purchasing
Supplied configuration
One Sony LMD-32M1MD monitor. Confirm the regional power cord and accessory kit. A stand, arm, mount and optional accessories are separately specified.
Specify this model for surgical video. A DICOM gamma preset alone does not establish diagnostic radiology suitability; verify the intended clinical use against Sony's documentation.
Warranty and support
3-year manufacturer limited warranty, subject to unit eligibility and regional terms. Confirm condition, remaining coverage, availability and delivery with your quote. Contact Texel Comp for configuration and support options.
Request a quote for Sony LMD-32M1MD with your source equipment, desired layout and mounting requirements.
Frequently asked questions
What changes from the LMD-27M1MD?
This model has a 31.5-inch view, 11.2 kg mass and 1850 cd/m² peak luminance. The 27-inch model specifies 2250 cd/m² peak luminance. Both offer 4K resolution and 12G-SDI; screen size is not the only difference.
Which HDR formats does it support?
Sony lists HLG and PQ gamma support and VESA DisplayHDR 1000 certification. Verify the source's output format and input timing to establish the complete HDR workflow.
Does the DICOM setting make it a diagnostic radiology monitor?
A DICOM gamma preset alone does not establish diagnostic suitability or regulatory clearance. This listing is for surgical video; confirm your intended clinical use against Sony's applicable documentation.
Are the SU-600MD stand and AC-300MD adapter included?
They are listed as optional accessories. The quoted configuration identifies the supplied kit, mounting solution and any separately ordered accessories; this listing does not promise those options.
Resources and related displays
Official Sony LMD-32M1MD specifications · Manufacturer brochure · Manufacturer support and warranty
