01 · 4K SURGICAL DISPLAY
A 27-inch view for surgical video.
The LMD-27M1MD displays 3840 × 2160 pixels. Texel Comp can help review source compatibility, screen placement and integration requirements.
Sony LMD-27M1MD27-inch · 4K UHD
SURGICAL MEDICAL DISPLAY
Sony LMD-27M1MD 27-inch 4K HDR Mini-LED Surgical Monitor
SKU SONY-LMD-27M1MD
New
A 27-inch 4K HDR surgical display with Mini-LED Backlight Master Drive, 12G-SDI connectivity and 2250 cd/m² peak luminance.
- DISPLAY
- 27-inch
Mini-LED LCD - RESOLUTION
- 3840 × 2160
4K UHD - CONNECTION
- 12G-SDI
HDMI / DisplayPort - WORKFLOW
- Two-image PIP / POP
HLG / PQ HDR
3-year manufacturer warrantyManufacturer terms apply
Contact Texel CompConfiguration and service questions
SURGICAL MEDICAL DISPLAY
High-brightness Mini-LED in a compact surgical screen.
A 27-inch 4K HDR surgical display with Mini-LED Backlight Master Drive, 12G-SDI connectivity and 2250 cd/m² peak luminance.
Bring Sony's Backlight Master Drive to a 27-inch surgical-video workspace. Its compact 4K format suits a separately specified arm or mounting solution where screen size and positioning need careful planning.
Plan your video workflow
Choose this model for a 27-inch HDR display with 12G-SDI. Match its peak-luminance capability, source format and mounting position to your operating-room workflow.
Explore our medical displays to compare screen sizes and connection options.
TEXEL COMP · PRODUCT DETAILS
A closer look at your display.
Explore the display, workflow features and physical connections as you plan your workstation or installation with Texel Comp.
Manufacturer product photos and feature illustrations. Screen content and multi-monitor arrangements are illustrative; quoted configurations determine included equipment.
02 · MINI-LED BACKLIGHT
Control brightness across the image.
Backlight Master Drive uses local dimming for contrast, with peak luminance up to 2250 cd/m². Peak and sustained brightness differ.
03 · HDR VIDEO
Configure the display for your source.
HLG and PQ HDR support provide viewing options for compatible sources. Match the monitor and source settings when planning your surgical video system.
04 · SCREEN SURFACE
Manage reflections around the display.
Anti-reflection and anti-glare surface treatment help control reflected light. Review the monitor’s position and operating-room lighting with Texel Comp.
05 · FANLESS DESIGN
Integrate a display without a cooling fan.
Fanless cooling avoids a monitor fan in the installation. Follow the specified ventilation clearances when planning the mounting arrangement.

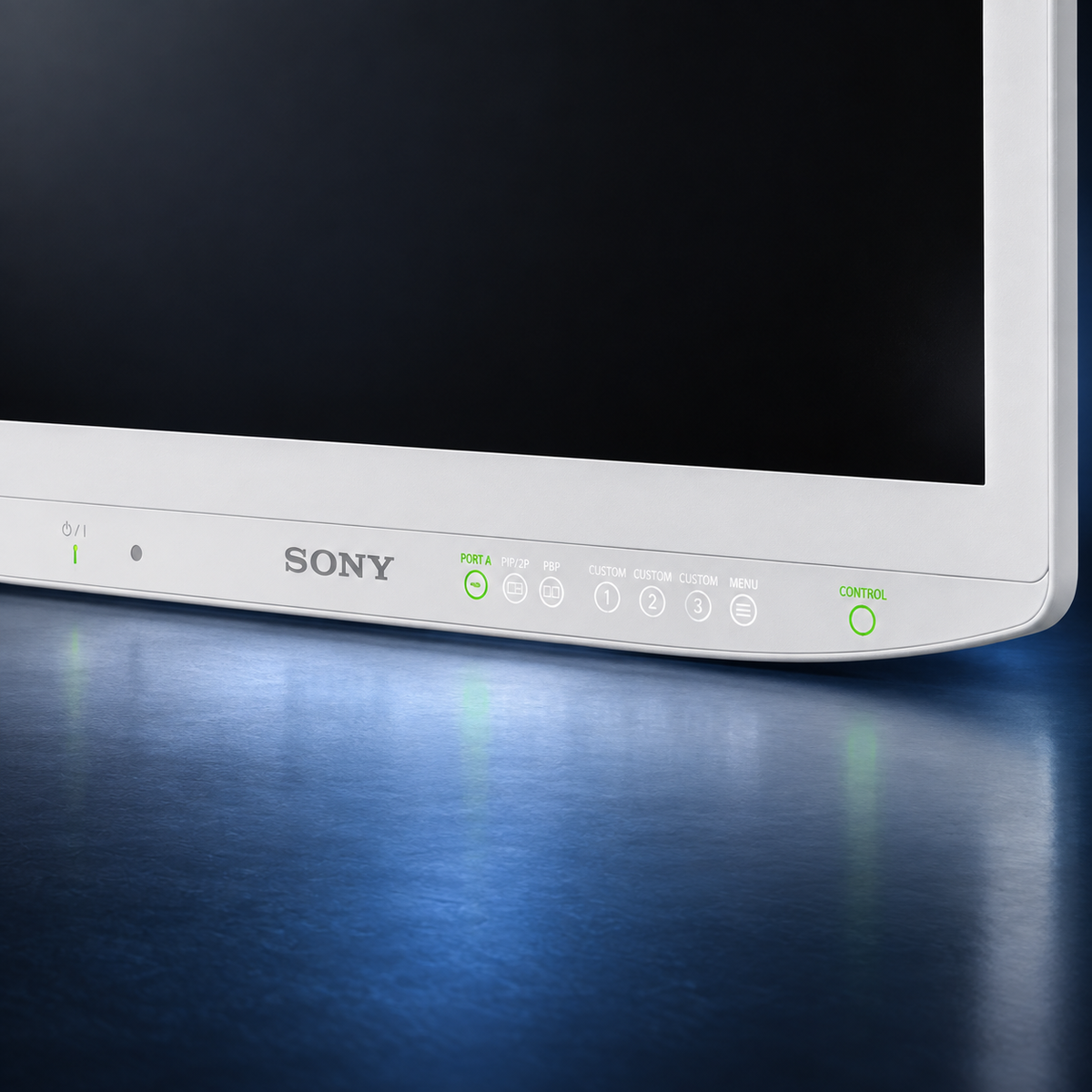

06 · FRONT CONTROLS
Keep frequently used settings accessible.
Customizable front buttons support commonly used functions. Discuss preferred control access and cleaning clearance while choosing the mounting position.
07 · TWO-SOURCE VIEWING
Place two connected views on one display.
Picture-in-Picture and Picture-out-Picture support two image sources, with independent gamma settings. Review signal combinations and preferred layouts with Texel Comp.
08 · REAR CONNECTIONS
Plan video inputs and cable management.
12G-SDI, HDMI and DisplayPort support surgical video connections. USB-C supplies 5 V/1.5 A to external equipment; check complete source compatibility before installation.
Technical specifications
Display and performance
| Model / MPN | LMD-27M1MD |
|---|---|
| SKU | SONY-LMD-27M1MD |
| Screen | 27-inch; 16:9 |
| Panel | IPS LCD with Mini-LED backlight |
| Native resolution | 3840 × 2160 |
| Peak luminance | 2250 cd/m² (peak; content and settings dependent) |
| Contrast | 1,000,000:1 (manufacturer local-dimming figure) |
| Color | 10-bit; wide-color processing compatible with BT.2020 signals |
| HDR | HLG and PQ; VESA DisplayHDR 1000 certified |
| Timing | 50 / 60 Hz panel frame rate |
Connections and installation
| Video inputs | 1 × HDMI (HDCP 2.3); 1 × DisplayPort SST; 1 × single-link DVI-D; 1 × SDI (12G / 6G / 3G / HD / SD) |
|---|---|
| Video outputs | 1 × DisplayPort; 1 × DVI-D; 1 × active-through SDI |
| USB | USB-A 2.0 for settings-memory import/export; USB-C 5 V / 1.5 A power output only (up to 7.5 W) |
| Control | RS-232C D-Sub 9-pin; RJ45 remote control; REMOTE stereo mini-jack |
| Multi-image tools | Two-image PIP / POP with independent gamma selection; image rotation and mirroring |
| Protection | Protective front surface with Low Reflection and Anti-Glare treatment; IP45 front, IP32 other surfaces |
| VESA mounting | 100 × 100 mm |
| Dimensions / net mass | 655.6 × 426.7 × 79.9 mm (W × H × D); 9.2 kg |
| Power | 100–240 V AC, 50/60 Hz; maximum 126 W |
| Display settings | Auto Panel Brightness; selectable gamma including DICOM preset |
Configuration and purchasing
Supplied configuration
One Sony LMD-27M1MD monitor. Confirm the regional power cord and accessory kit. A stand, arm, mount and optional accessories are separately specified.
Specify this model for surgical video. A DICOM gamma preset alone does not establish diagnostic radiology suitability; verify the intended clinical use against Sony's documentation.
Warranty and support
3-year manufacturer limited warranty, subject to unit eligibility and regional terms. Confirm condition, remaining coverage, availability and delivery with your quote. Contact Texel Comp for configuration and support options.
Request a quote for Sony LMD-27M1MD with your source equipment, desired layout and mounting requirements.
Frequently asked questions
Is 2250 cd/m² the normal full-screen brightness?
No. Sony specifies 2250 cd/m² as peak luminance. Full-screen output and sustained brightness depend on the image, mode and operating conditions; assess the display against the intended surgical-video source.
Can the USB-C port provide video or laptop docking?
No. The USB-C port supplies 5 V / 1.5 A power, up to 7.5 W. Video uses the documented HDMI, DisplayPort, DVI-D or SDI inputs; USB-A supports settings-memory transfer.
Can I show two sources with different gamma settings?
Yes. PIP and POP support two images with independent gamma selection. Confirm the exact input combination and timing requirements before specifying the installation.
How does it compare with the larger Sony models?
The LMD-32M1MD provides a 31.5-inch view and the LMD-43M1MD a 42.5-inch view. Peak luminance, dimensions, weight and mounting differ, so select by viewing distance and installation needs.
Resources and related displays
Official Sony LMD-27M1MD specifications · Manufacturer brochure · Manufacturer support and warranty
