A 4K surgical monitor needs to fit the video system, the viewing position and the installation. Start with those requirements before comparing screen size, brightness or price. This guide helps purchasing teams organize a model-specific comparison of LG and Sony surgical displays.
START WITH THE SOURCE
Match the monitor to the signal your equipment actually sends. Record the camera or processor model, output connector, resolution and frame rate. Then confirm the complete connection against the selected monitor's documentation.
1. Check video compatibility first
Connector names alone do not establish compatibility. Ask whether your source sends HDMI, DisplayPort or SDI, and confirm its timing, signal format and supported cable path. For an existing room, include any converters, switches and recorders in that review.

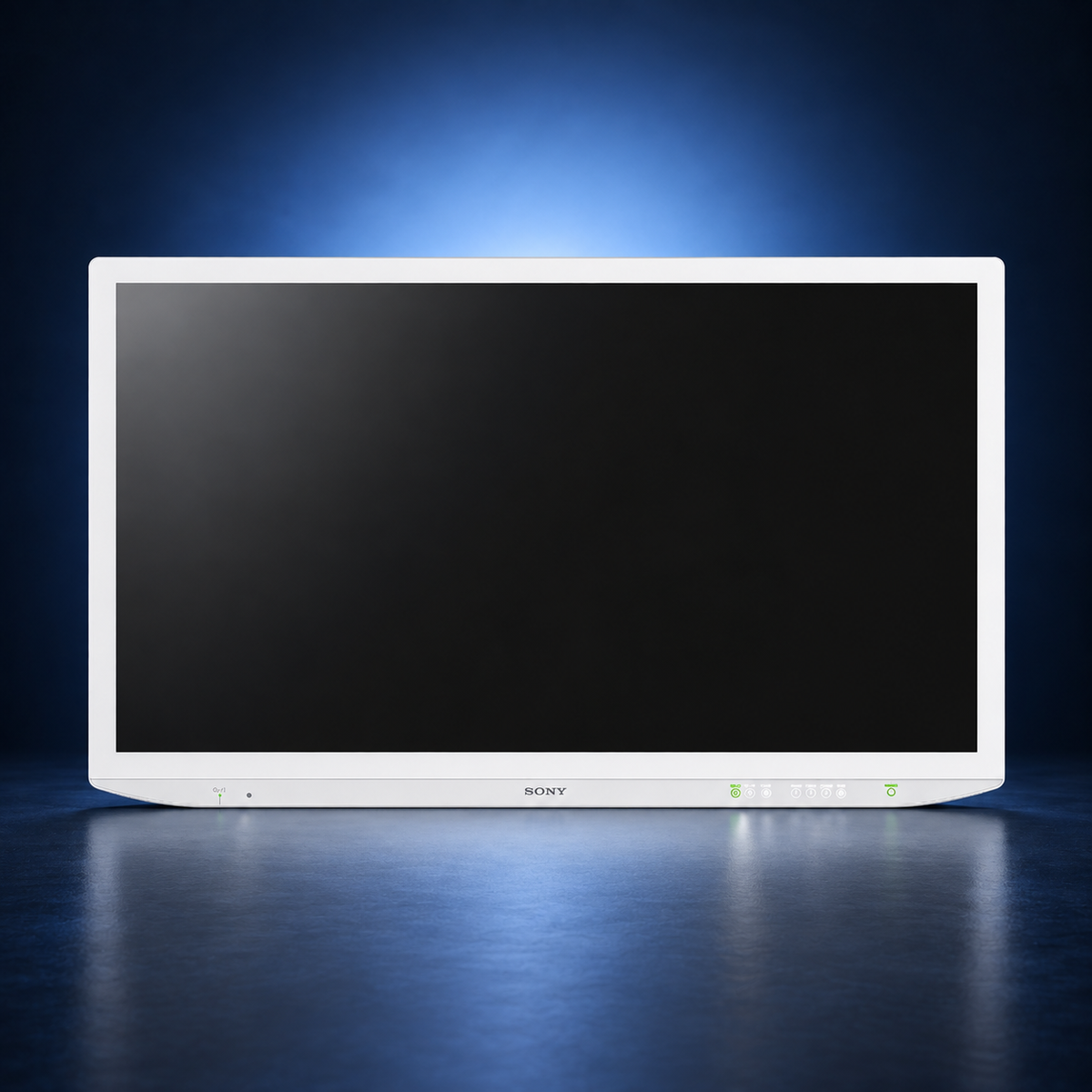

The LG 32HR734S-W and Sony LMD-43M1MD both list 12G-SDI connectivity. Their input and output arrangements differ, so compare the exact ports and intended routing rather than treating them as interchangeable.
2. Choose the screen for the viewing position
Mark where the display will be installed and where each viewer will stand. Check available space, sight lines, access to controls and the proposed mount. A larger screen may suit a shared view, while a smaller display may fit an arm-mounted position; the installation determines the useful choice.
| Consideration | LG 32HR734S-W | Sony LMD-43M1MD |
|---|---|---|
| Viewable screen | 31.5-inch | 42.5-inch |
| Display class | 4K Mini-LED | 4K Mini-LED |
| Multi-image features | Up to four-source PBP; PIP | Two-image PIP/POP; independent gamma |
| Additional workflow example | HDMI Clone Screen output | USB settings import/export |
| Price and full specifications | View LG configuration | View Sony configuration |
3. Evaluate HDR and multi-image modes with your sources
Check the monitor's supported HDR formats against the source and settings you will use. Peak brightness and typical brightness describe different operating conditions. A headline peak value by itself does not tell you how the display will behave with your usual content.
For multi-image use, list the sources you need on screen at the same time. Confirm the allowed input combinations, layout and resolution in that mode. If a second display must show the same screen, check the actual output function and downstream compatibility.
4. Include the full installation in the comparison
Request a written list of the supplied monitor, power components, stand or arm, mount and cables. Confirm mounting-pattern and load requirements with the responsible installer. Compare cleaning instructions, ventilation clearance and service access for the planned location.
A monitor's specified ingress-protection rating does not replace the manufacturer's cleaning and installation instructions. Review those documents for the exact model and regional configuration.
5. Compare complete quotes
Use the same requirements for each quote: display quantity, accessories, delivery destination, warranty eligibility and installation or support scope. This makes the configured cost easier to compare than a monitor-only price.
For smaller Sony options, review the 27-inch LMD-27M1MD and 31.5-inch LMD-32M1MD. Their model-specific specifications and mounting requirements should be checked separately.
What to send with your quote request
- Camera or video-processor model and required outputs.
- Resolution, frame rate and HDR format, if used.
- Preferred screen size and number of displays.
- Sources that need to appear together.
- Existing switches, converters and cable lengths.
- Planned arm, mount or stand and delivery destination.
Compare LG and Sony surgical monitors or request a configuration quote from Texel Comp.
Manufacturer references
Reviewed October 29, 2026. Features vary by exact model, configuration and region. This guide concerns surgical video displays; a DICOM preset alone does not establish diagnostic radiology or mammography suitability.
